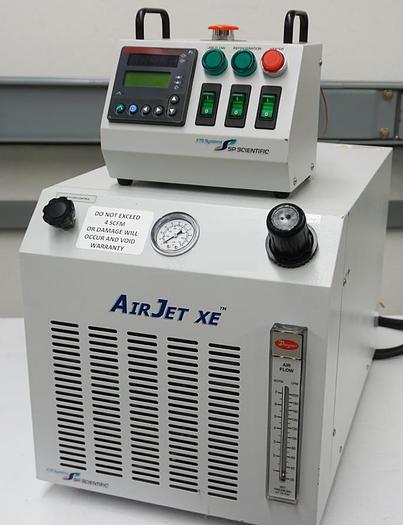

2012 SP Scientific Airjet XE-753

• -75C to +225C temperature range
• Small footprint – can be rack mounted if required
• Does not require any expendable refrigerants
• Can be controlled by internal or external thermocouple
• Flow rates of 1 to 6 scfm
• Effective and robust Dual Cool refrigeration system
• Quiet operation for use in labs
• 220v 50hz

Key Benefits

• Save lab space with small footprint
• Economical approach for less rigorous applications
• Accommodates a variety of devices under test with 1 to 6 scfm flow rate
• Meets mil spec requirements with -75C to +225C temperature range
• Control process internally or from the device under test
• RS-232 and GPIB allow use with automatic test equipment
• Excellent stability, accuracy and repeatability
• Optional test boxes expand performance capabilities
• Accurate temperature control with the internal or external sensor selection

Specifications

Temperature Range: -75C to +225C (model and scfm dependent)

Stability: +/-0.5C at discharge nozzle

Sensorstype: K thermocouples

Ramp Rate: -55C to +125C < 10 seconds at 2 scfm

+125 to -55C <20 seconds="" at="" 2="" scfm="" -25c="" to="" 100c="" 10="" 4="" br="">+100C to -25C at

<20 seconds="" at="" 4="" scfm="" div="">

Max Ramp Rate: +200C to -65C in <10 seconds="" div="">

  -75C to +225C in <10 seconds="" div="">

Control: PID

Stability: +/- 0.5C

Repeatability: +/- 0.5C

Resolution: 0.1C

Arm Reach: 96" (243.84 cm)

Dimensions: (W x D x H)

    Controller: 9.3 x 7 x 8.2 “ (23.6 x 17.8 x 20.8 cm)

    Refrigeration System: 14.9 x 23.7 x 16.12” (37.9 x 60.19 x 40.9 cm)

Weight:

    Controller: 9.0 lbs (4.08 kg)

    Refrigeration System: 120.0 lbs (54.4 kg)
