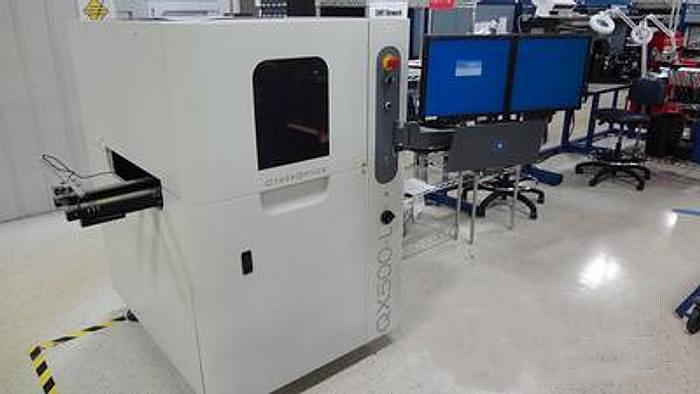

CyberOptics QX500-L 10-2011 Vintage AOI Automatic Inspection Machine

CyberOptics QX500-L 10-2011 Vintage AOI Automatic Inspection Machine

Contact us for price

orCall +353 (0) 87 192 1110

Description

CyberOptics QX500-L 10-2011 Vintage AOI Automatic Inspection Machine

CYBEROPTICS QX 500-L AOI Systems

Inspects down to 01005

 2012 Vintage

Board width: 2.0" - 20.0"

Board length: 2.0" - 20.0"

Board thickness: 1 mm - 5 mm

Board edge clearance (min.): 0.125" (bottom side only)

Measurement gage R&R: <10%

Imagers: Multiple 5.0 Megapixel color CMOS cameras

Image transfer protocol: PCle

Lighting: Strobe white light (with dark/bright field)

Resolution: 17 um pixel size

Image processing: Statistical Appearance Modeling (SAM) technology

Board warp compensation: up +/- 7 mm

Programming: Simple on-lin or off-line

Programming instruction: Quick-start programming guide for easy initial setup

CAD Import: Any column separated text file

Conveyor height: Adjustable to 33" - 39"

Machine interface: SMEMA, RS232 and Ethernet

Alarms: Light pole and

Specifications

ManufacturerCyberOptics
ModelQX500-L 10-2011 Vintage AOI Automatic Inspection Machine
ConditionUsed
Stock NumberEM1491
