Description

GPD CF-10 Loose Radial Lead Former General Production Devices CF10 Lead Forming

GPD CF10 LOOSE RADIAL LEAD FORMER


CF-10 Lead Former

Form & Cut 2-, 3-, 4-, 5-, and 7-leaded Radial Components

The CF-10 has three forming and cutting stations to provide you with the flexibility to produce forms on a

variety of component styles. Each forming and cutting die consists of two pieces (top and bottom). All

dies are stamped and color coded indicating installation position.The die stations themselves are each adjustable as

a unit for positioning the dies and knives at the desired dimensions. The first station (0) is normally used as a cutting station for TO-220 style packages in conjunction with the Venturi vacuum installed in the safety shield. This station is also used to spread the leads of TO-92 style packages if necessary. The second station (1) and third station (2) are used as

cutting and forming stations. All or part of the stations may be used depending on your forming

requirements


  Capable of forming loose radial components at rates up to 6,000 parts per hour with a variable speed motor.

  Feed components by hand or with tubes (TO-220s)

  Reduce setup time with quick change tooling and repeatable station settings.

  Forms bulk radial-leaded components to numerous form styles.


Component Forms:

Reducing Form

Reducing Form with Lock In Stand-off

Spread Form

Spread Form with Lock In Stand-off

Lock In Stand-off Form

90 Degree Angle Bend

Flush Mount Lock In Form

Stand-off Lock In Form

Inline Lock In

Stand-off Form

Middle Lead Offset Form

Middle Lead Offset with 3 Lead Lock In Form

Middle Lead Offset with Lock In Form

TO-220 Lock In Stand-off

TO-220 Offset toward Heatsink

TO-220 Lock In Offset away from Heatsink

TO-220 Offset away from Heatsink

TO-220 90 Degree Middle Lead Stagger

TO-220 90 Degree toward Heatsink

TO-220 90 Degree away from Heatsink

TO-220 Inline

TO-220 Middle Lead toward Heatsink

TO-220 Middle Lead away from Heatsink

5 Lead TO-220 90 Degree Stagger

5 Lead TO-220 Offset Pattern away from Heatsink

5 Lead TO-220 Offset Centered Pattern

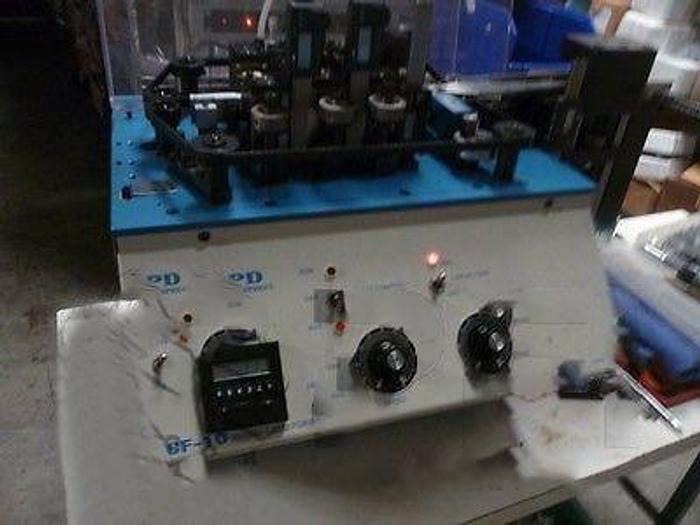

This machine has been fully gone through and is working properly


There are multiple units for sale so pictures may vary


Product Features and/or Part Number: Pictures are of actual item and are part of the auction description.


Specifications

ManufacturerGPD
ModelCF-10 Loose Radial Lead Former General Production Devices CF10 Lead Forming
ConditionUsed
Stock Numberem1784
