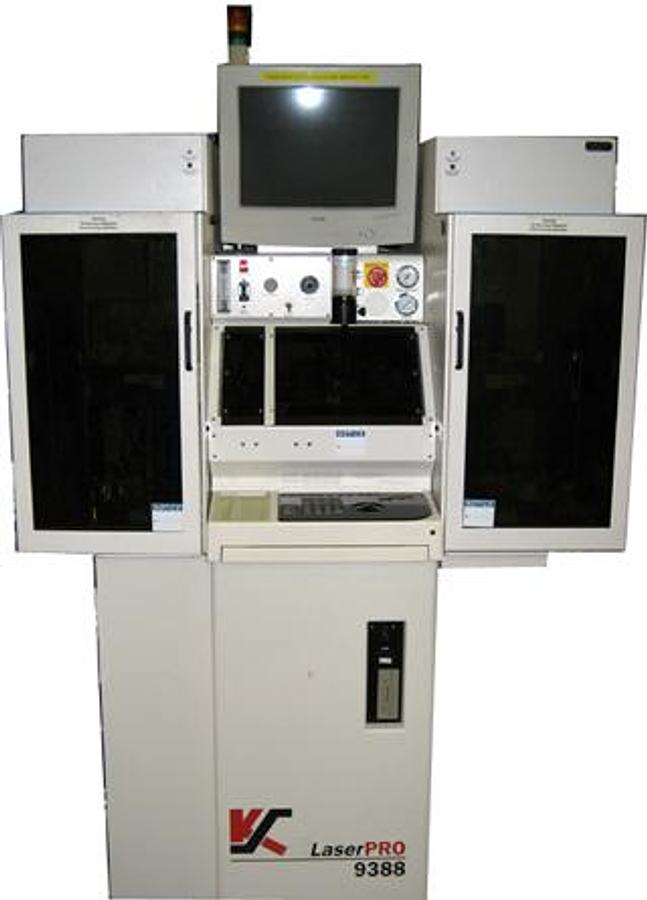

K&S 9388 Laser Pro Ball Attach

Automatic Ball Attach System

• Date of Mfg: 2000
• Attaches Solder Balls to Work Surface by Irradiating it with Laser Light
• Automatic Material Handling System
• 50mm (X) x 50mm (Y) Placement Area
• 100,000 Balls Placed Per Process Program
• 100 – 800 um (dia) Ball Size Range
• 150 Alignment Points per Process Program
• 100 Reference Points per Process Program
• Pattern Recognition System
• Class 1 Laser System with Embedded Class 4 Laser
• 915 nm Output Wavelength
• 40 Watts Maximum Output Power – Class 1 Laser System
• 8 Watts Maximum Output Power – Embedded Laser Diode (continuous-per diode)
• 0 to 100 msec Pulse Duration – Programmable in 0.1 msec increments
• 115V 27 Current(A) 50/60 Hz 1 Phase

Power Requirements 115 V   27.0 A   50/60 Hz   1 Phase
