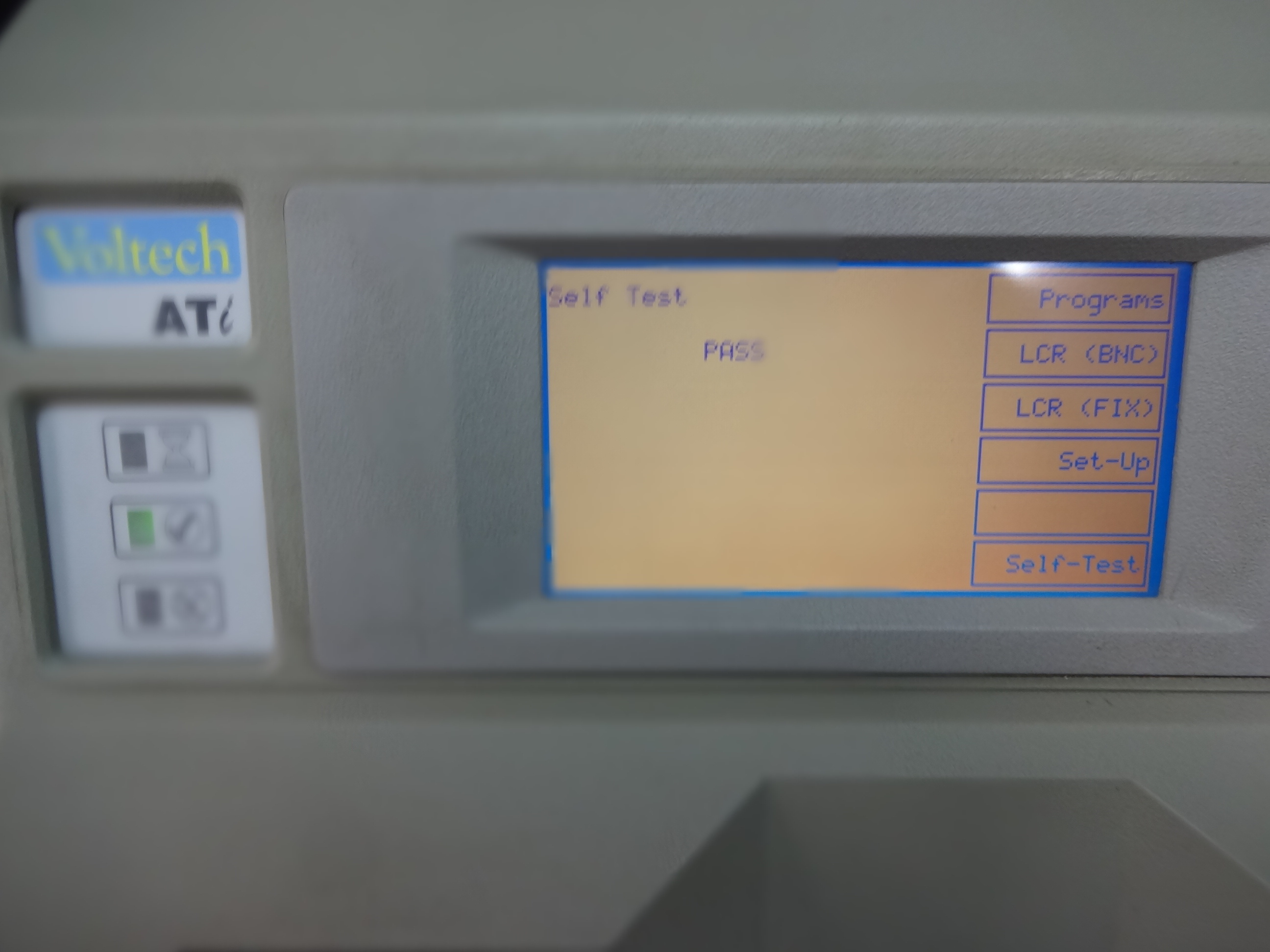

Voltech ATi Calibration System

Automatic high speed transformer testing, plus an LCR meter, all in one. Meet the ATi.

• Designed to test ferrite type transformers
• Offers unlimited frequency selection from 20Hz-3MHz
• Impressive base accuracy of 0.05%
• Can be configured with over 30 measurement parameters
• Ideal for high-speed production testing or manual impedance measurements
• Testing of multiple windings within a test routine, not only primary to secondary but also secondary-to-secondary windings
• Typical ferrite transformer tested in under 2 seconds!
• DC bias current up to 250A with the DC1000
• Prototyping, incoming inspection, and key for R&D bench measurements

Includes:

    2 - Test Fixtures/Boards
