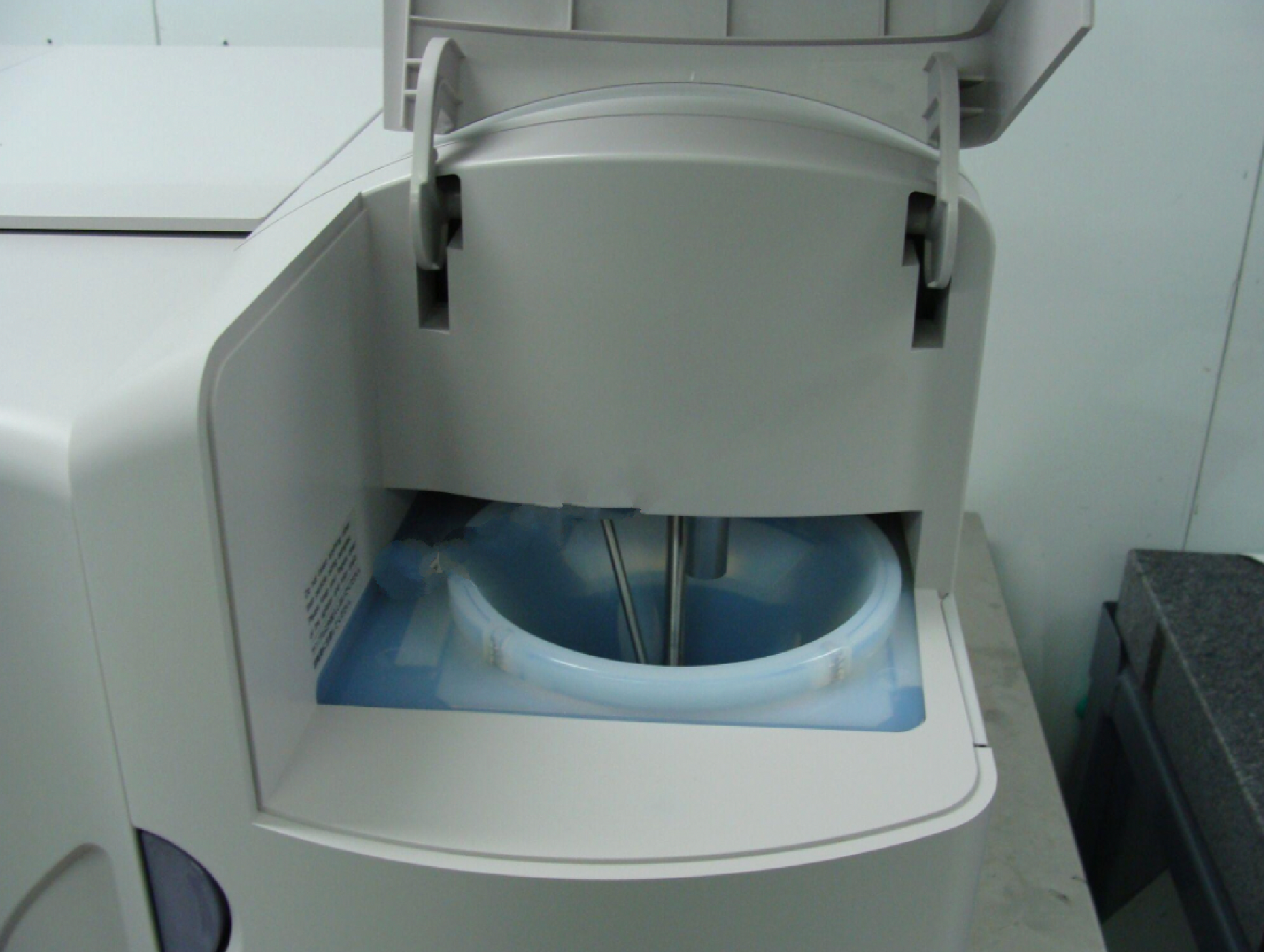

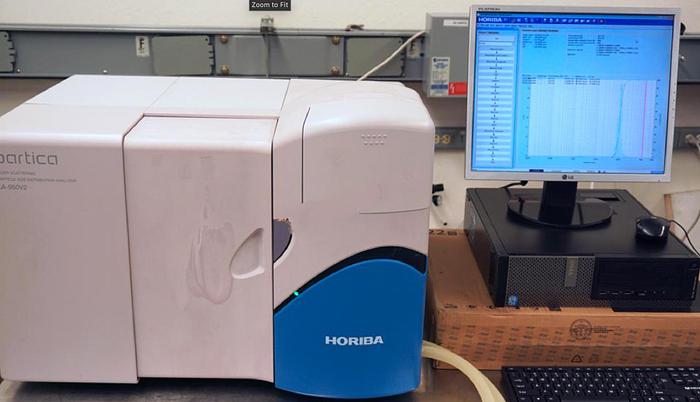

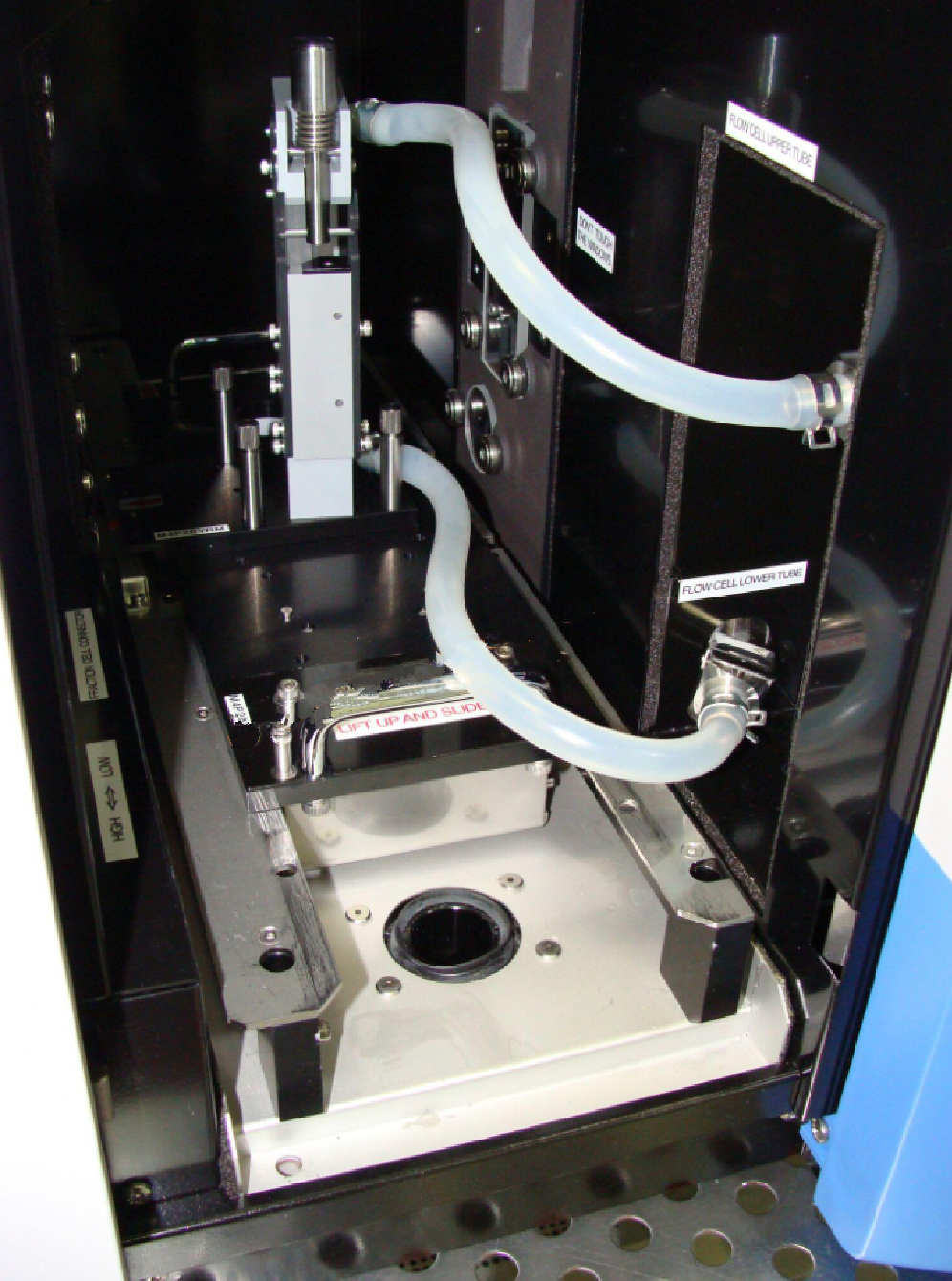

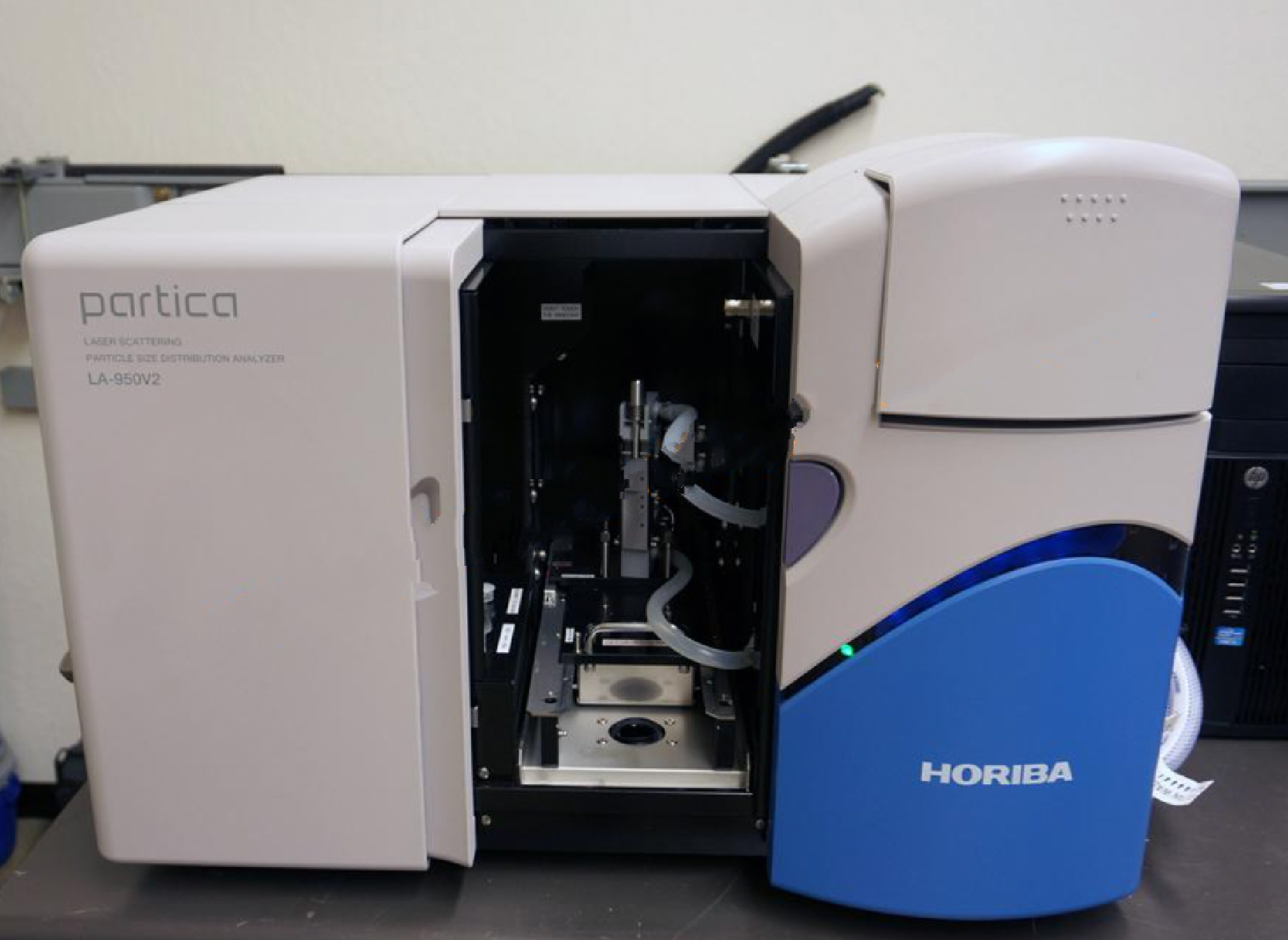

2011 Horiba LA950-A2 particle size distribution analyze

• The Horiba LA950-A2
• Manufacture date September 2011
• sn FTU0H475
• Upgraded to Windows 10 PC and current software version
• Software and manuals
• Communication & Power Cables

Specifications:

Range

• 0.01 to 3,000 microns
• Widest wet dynamic range on the market of 300,000 to 1
• Small particle sensitivity: Can accurately measure 30 nanometer diameter particles

Accuracy

• +/- 0.6% of standard tolerance on these NIST-traceable polystyrene latex standards: 100 nm, 500 nm, 1.020 um, 12.01 um, 102 um & 1004 um
• Meets or exceeds all requirements of ISO 13320 and USP<429>

Precision

• +/- 0.1% coefficient of variation (COV) on these NIST-traceable polystyrene latex standards: 100 nm, 500 nm, 1.020 um, 12.01 um, 102 um & 1004 um

Speed

• Fastest measurement on the market
• Fill, auto-alignment, blank, measurement, and rinse in less than 60 seconds
• 5,000 scans per second

Theory

• Mie Scattering for all size ranges supersedes Fraunhofer-only measurements
• Single, advanced measurement principle used for every size range eliminates data integration error

Light Sources

• Super long-life solid-state light sources
• 5 mW 650 nanometer red laser diode
• 3 mW 405 nanometer blue light emitting diode (LED)

Detectors

• 87 detector high-resolution silicon photodiode array
• 75 detectors for forward/low-angle light scattering
• 12 detectors for high-angle and backscatter light scattering
