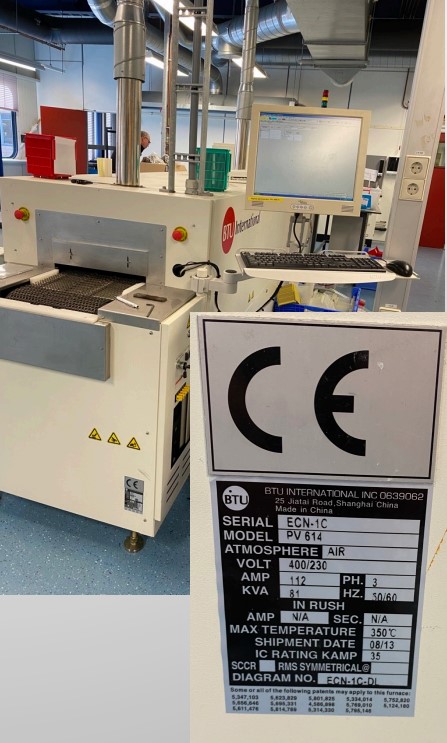

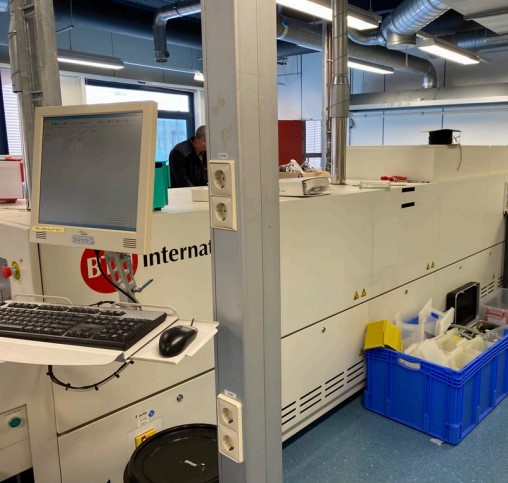

2013 BTU International PV 614 Solar Firing Furnace

BTU International PV 614 Solar Firing Furnace

Vintage 2013

Heater type IR Lamp

Belt Width 36 cm

Conveyor Speed cm/min 56-560 15, 38

Load station 38 cm

Unload station 38 cm

Number of heated zones 6

Maximum Temprature rating 1000°C

Operation Temprature range 200-900°C

Forced Air Cooling Length 229 cm

Atmosphere, CDA , Typicle (scfh, m3/hr) 900,

25.2

Process Exhaust, Venturi Assist 2

Electrical 400/230 VAC 112 AMP 81 KVA 50/60

Hz

Overall Length 576 cm

Overall Width 96,5 cm

Overall Height 184 cm
