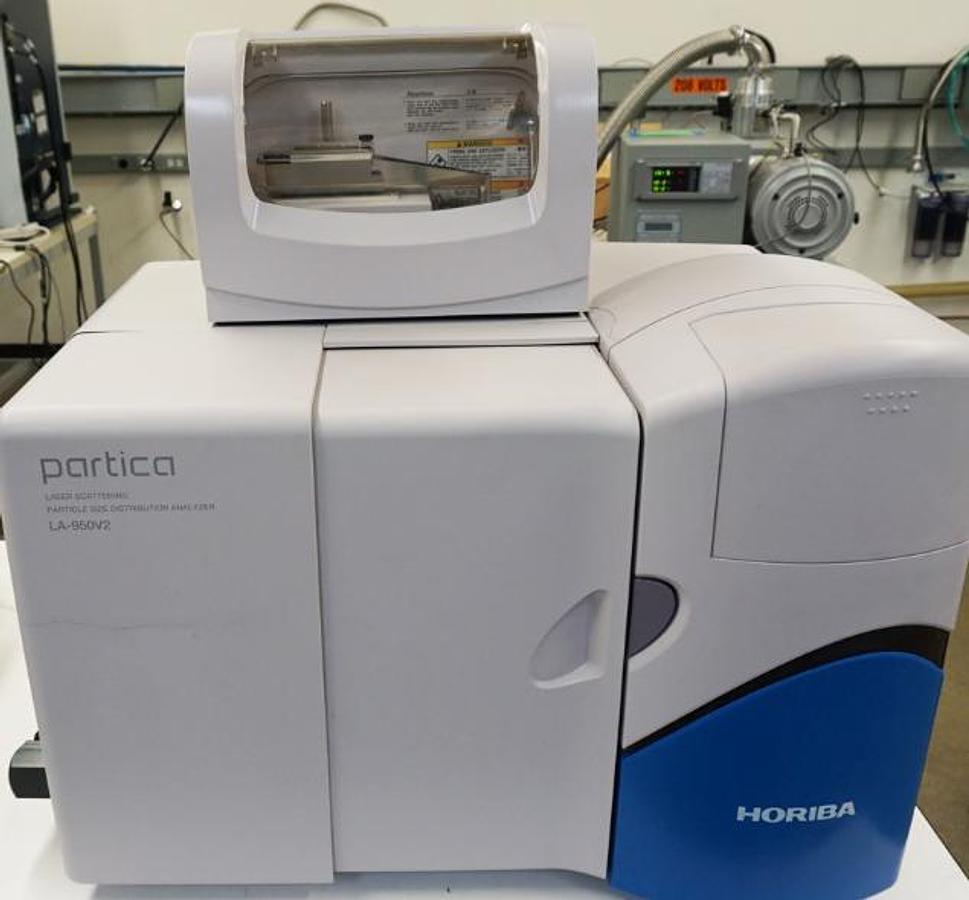

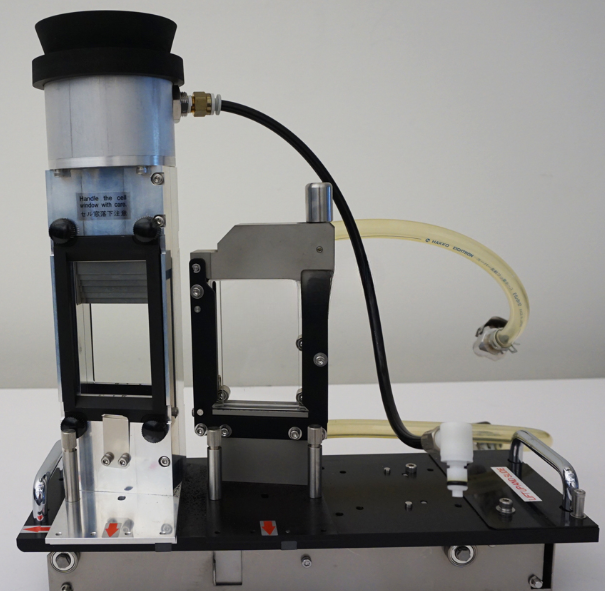

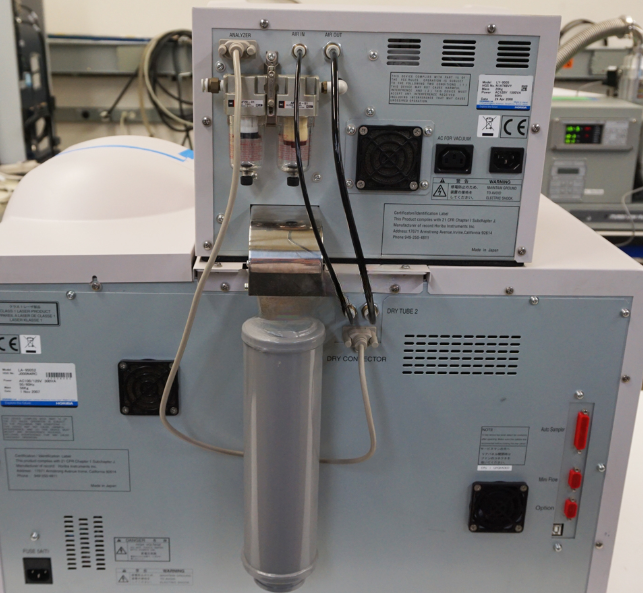

2007 Horiba LA950S2 laser scattering particle analyzer with LY-9505 powder jet dry feeder

Manufacture date 2007

Measurement MethodMie Scattering Theory

Measurement Range0.01 μm to 5000 μm

Measurement Time1 minute from dispersion liquid filling to measurement and rinse.

Sampling SystemRequired Sample Amount：Sample 10 mg to 5 g (Depends on sample material)

Dispersion Medium：Approx. 180 mL to 250 mL (Using Flow Cell)

Viscosity：Less than 10 mPa・s

Optical SystemLight Source：650 nm Laser Diode approx. 5.0 mW

405 nm Light Emitting Diode (LED) approx. 3.0 mW

Detectors：Silicon Photo Diode

Circulation SystemUltrasonic Probe：Frequency 20 kHz 7-Level selections

Circulation Pump：15-Level selections

Agitator：15-Level selections

Flow/Fraction Cell：Tempax Glass

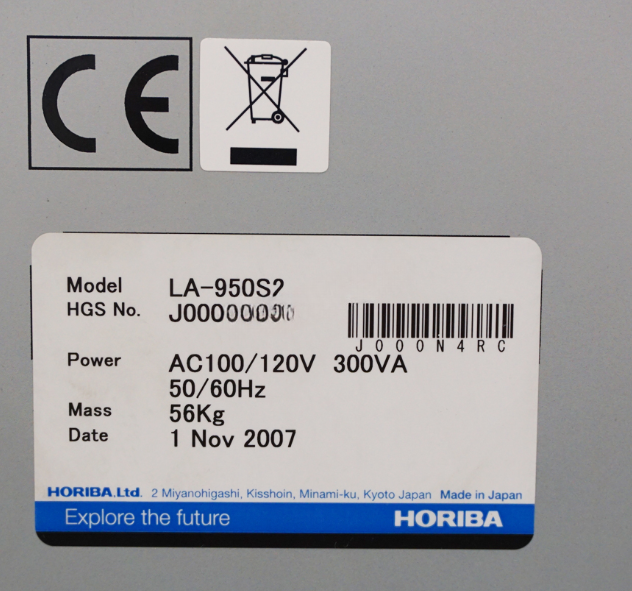

Power Supply120 V AC ±10% or 230 V AC ±10%, 50/60 Hz ±1%

Power Consumption300 VA

Operating Temperature15 to 35℃ (59 to 95℉)

Operating HumidityRelative Humidity 85% or less (no condensation)

External Dimensions705 x 565 x 500 mm (28 x 23 x 20 in)

(W x D x H：not including dimensions of projections)

Mass Approx56 kg (123 lb)
