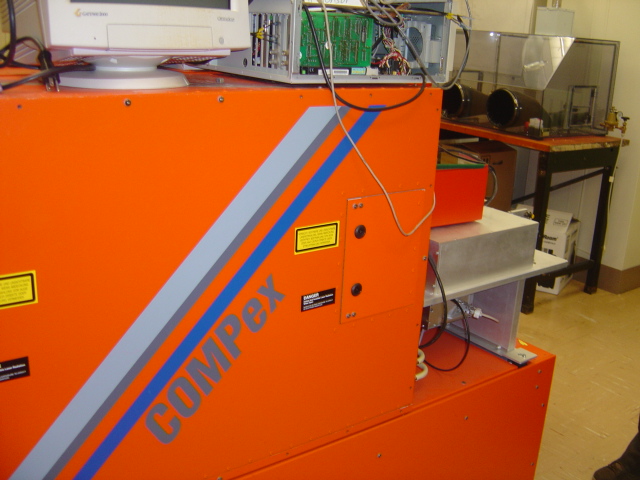

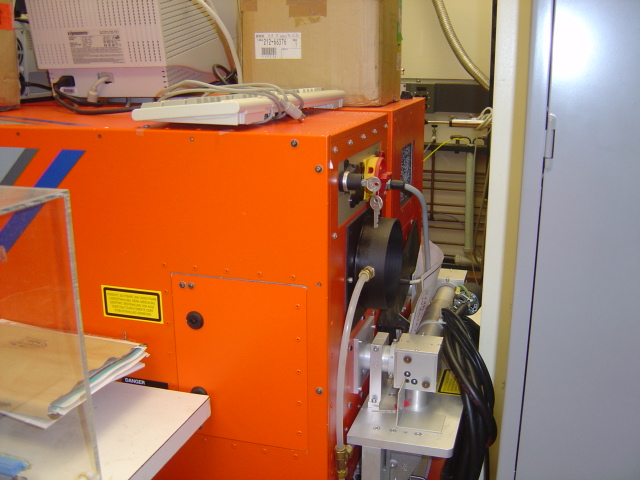

Lambda Physik COMPex 150 Laser System

Lambda Physik COMPex 150 Laser System

Contact us for price

orCall +353 (0) 87 192 1110

Description

Lambda Physik COMPex 150 Laser System

This versatile oscillator/amplifier laser system allows either low

divergent, spectrally narrowed or high power density operations.


System specifications:

  • Power: ≤ 30 W.

  • Pulseshape temp.:≥ 10 ns.

  • Pulse to Pulse stability: ± 12 %.

  • Beam divergence: ≤ 0.2 mrad.

  • Bandwidth(T mode): ≤3 pm.

  • Tuning range (T mode): ≥ 0.4 nm

  • Pulse length: ~ 20ns

  • PC control.

  • Laser medium: ArF (193 nm), KrF (248 nm), XeCl (308 nm)

  • CDRH-class (laser classification): IV

  • Dimensions w/out computer: (L x H x W): 1960 x 1350 x 828 mm³

  • Weight: 875 kg


Two separately charged and switched laser heads built as single unit.


Choice of operations:

a)Oscillator-Power-Amplifier (OPA) Mode

b)Tuning Mode

c)Two-Color Mode at pulse energies up to 500 mJ and repetition rates

up to 50 Hz.


All modules of system contained within laser cabinet.


Wheels on unit for easy movement to different operating sites.


Extra space available for optional halogen gas generator and 50-liter

premix gas bottle.

Specifications

ManufacturerLambda
ModelCOMPex 150
Year1997
ConditionUsed
Stock NumberGOD18012016-088
