Nikon Eclipse L300 300mm

Inspection microscope with ASI MS-8000 8x8 XY travel motorized stage

300mm inspection microscope for reflected light inspection

brightfield, darkfield inspection

tilt viewing head with camera port

5/10/20/50/100x LU Plan objectives

Ergonomic tilt viewing head with camera tube

12v/100w lamphouse

Optional DIC package includes: DIC module, analyzer, and polarizer + $$$

Can also be configured with manual 12"x12" XY stage + $$$

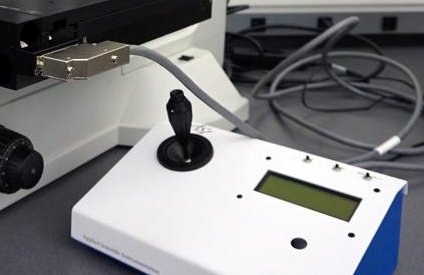

ASI MS-8000 motorized xy stage with 8"x8" XY travel

The lead screw pitch on the stage is 2TPI (turns per inch) This is what dictates the maximum speed, repeatability, and encoder resolution. These motors turn about 1 revolution per second.  So In this case the max speed is around 13mm per second, the encoder resolution is 4.4nm, and the bidirectional repeatability specification is 1.5um RMS or better.
