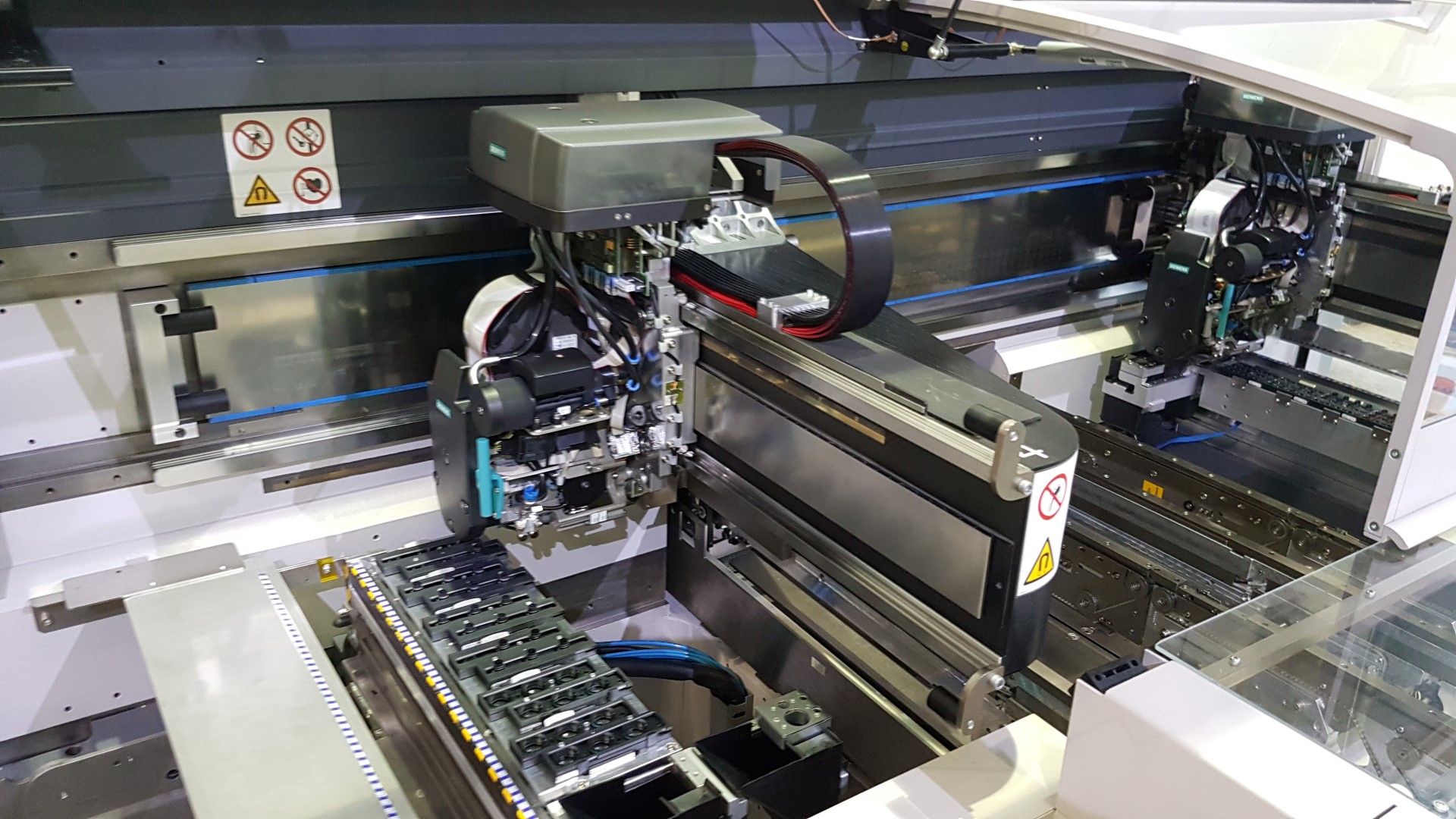

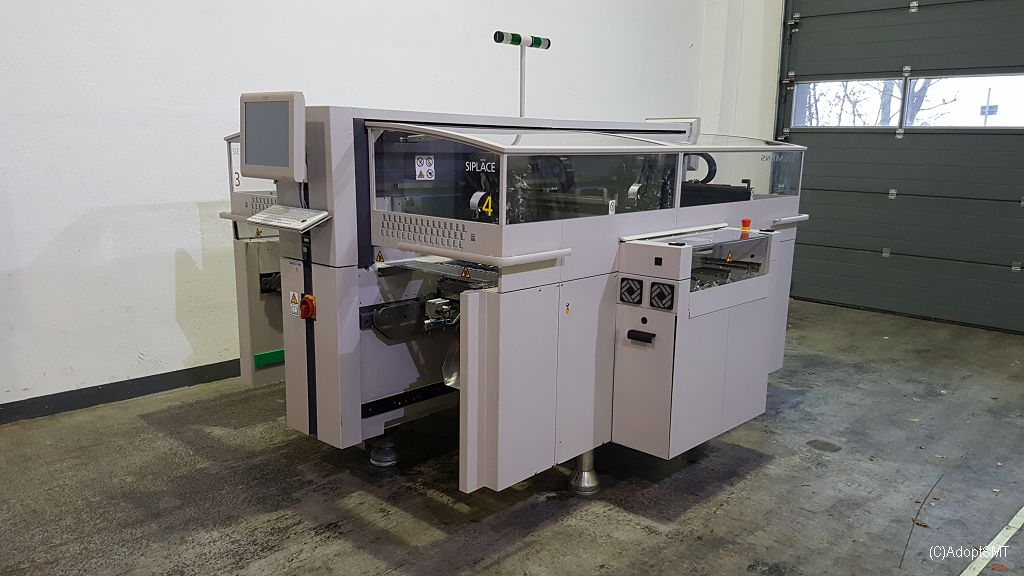

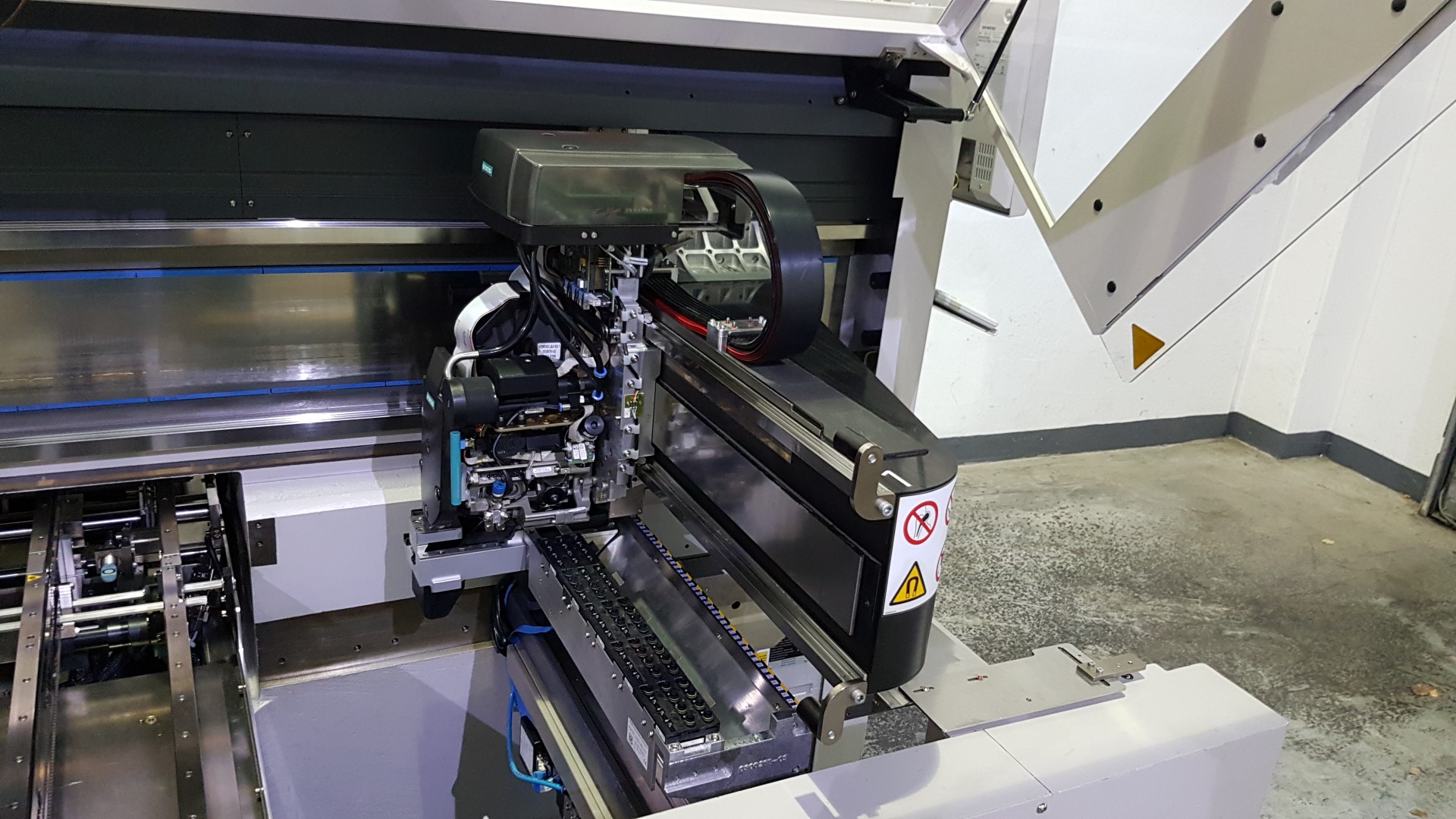

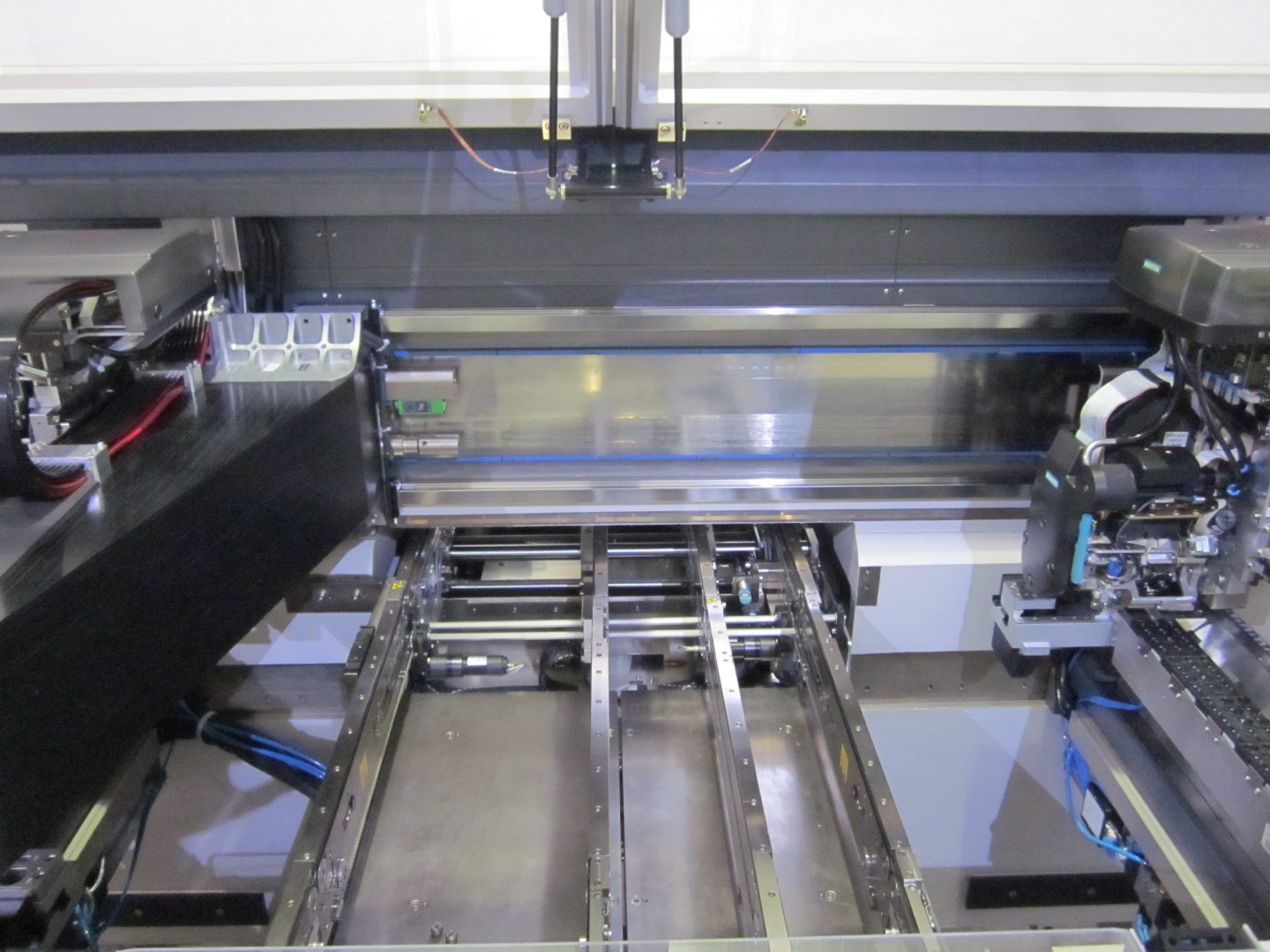

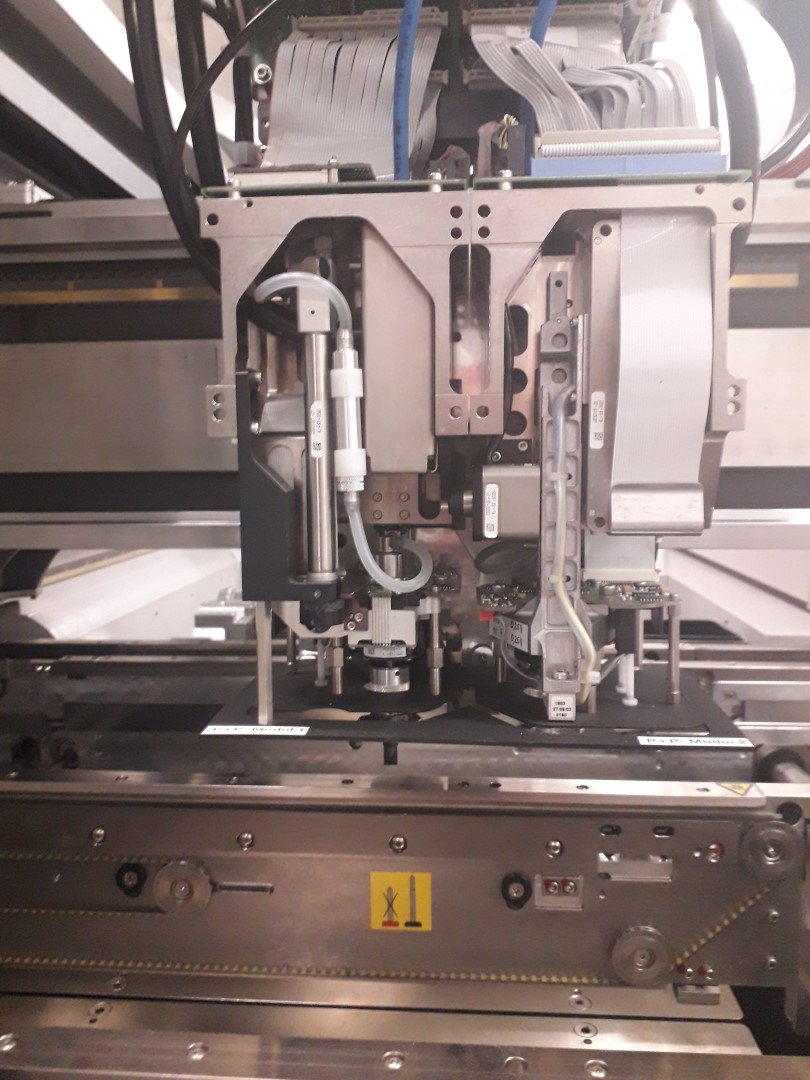

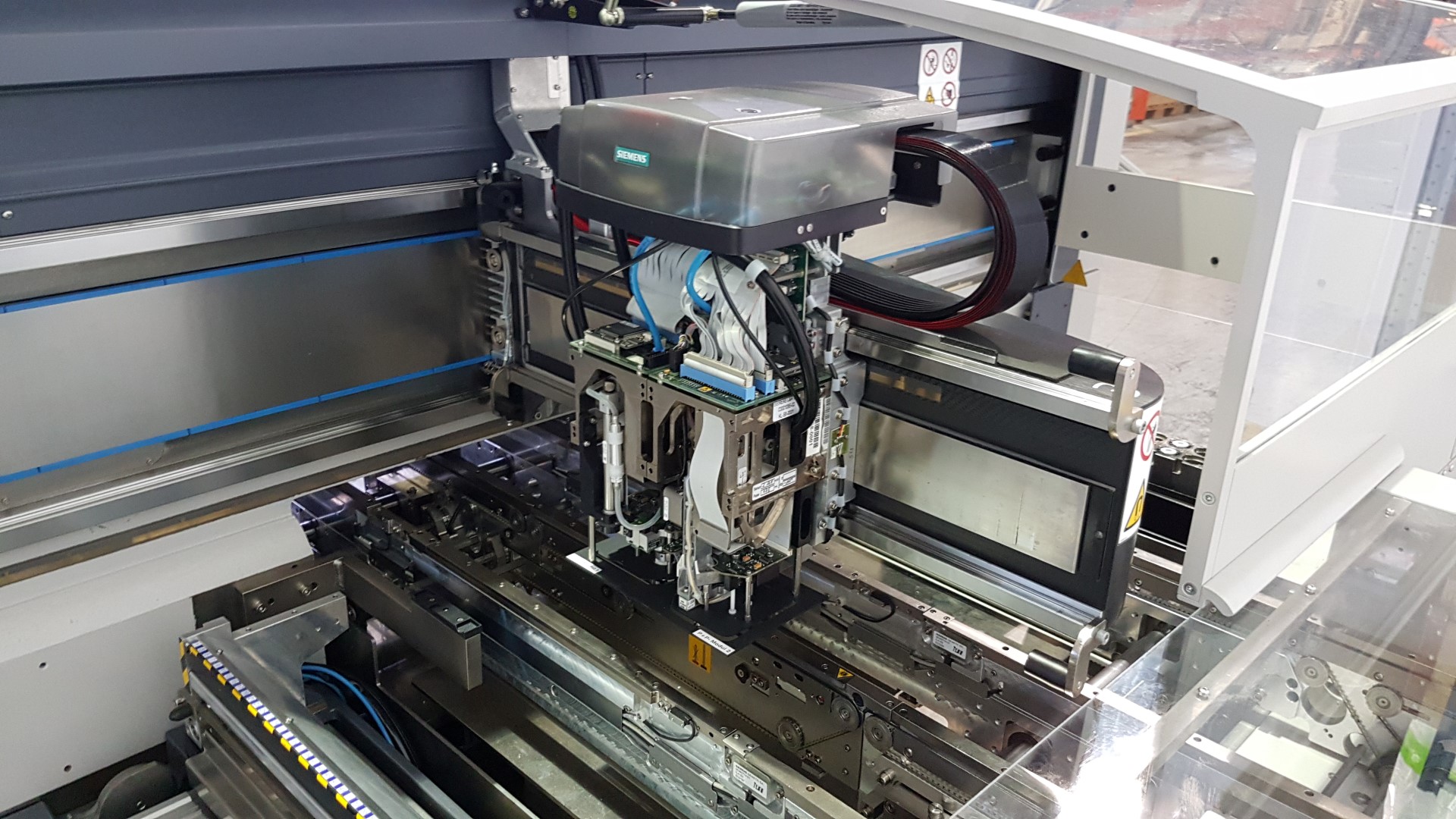

Siplace HF3 Pick & Place

Software Version: 505.05 Flexible High-Speed SMD placement system placement rate max. 40.400 components / h with high speed configuration Number of gantries 3 Placement head 1xCP6, 1xCP12 with nozzle changer in PA1, 1x twin head in PA2 flexible dual lane transport Component range 0,3x0,6mm² (0201) bis 85x85mm² / 155x30mm² Component height C&P12/ 6mm , C&P 6/ 8,5mm, TH 25mm Feeder capacity 180 track max., 8mm wide Microsoft Windows / RMOS 4x HF Feedertrolleys needed in addition
