Chatillon TCD 500-SS 500lbf

Available quantity: 1

orCall +353 (0) 87 192 1110

Description

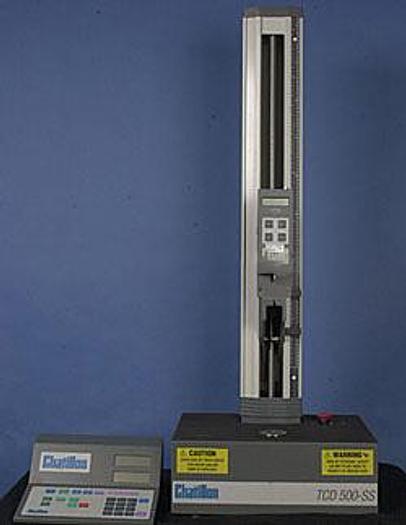

Chatillon TCD 500-SS 500lbf (2.5KN) Motorized Test Stand with DFIS-500 500lb Force Gauge

500lbf (2500N) test stand with full digital control and RS232 interface

programmable up to 1000 cycles

30" vertical travel

travel speed 0.020 to 0.500 x 0.001 inches/min (SS option)

DFIS 500 lbf digital gage (500 x0.5lb/ 250 x0.2kg)

Chatillon TCD500 Series motorized computer controlled test stands features bi-directional RS232 communications that support data exchange and remote control using a personal computer. These testers are supplied standard with the DFS Series digital force gauge. Force and deflection data may be transmitted or requested and used with our NEXYGEN FM Series software for comprehensive force measurement and materials testing analysis.

The Chatillon TCD500 digital test stand features a ball screw drive with dual column alignment for precise linear motion. Dynamic braking provides positive control of the motor. Programming of test speed, high and low deflection setpoints and cycling are performed using the membrane-style keypad. "MIN" and “MAX" speed functions are also provided for easy setup. Two LCD displays indicate speed and deflection values along with status indicators of the programmed functions and units of measurement (inches or millimeters).

Specifications

  • Capacity: 550 lbs (2500N)
  • Speed Range:
  • TCD-500 - 0.5- 12.5in min / 12.5-312.5mm min
  • TCD-500HS - 2-50in-min / 50.8- 1270mm-min
  • TCD-500SS - 0.02-0.5in-min / 0.5-12.7mm-min
  • Speed Accuracy: +/- 5% full scale
  • Travel: 29.5 inch (750mm)
  • Load Measuring: Chatillon E-DFE or Chatillon DFS Series Gauge
  • Outputs: RS232C serial data communications
  • Supply Voltage: 115Vdc or 220Vdc
  • Operating Temp: 40 to 95 F (5 to 35C)
  • Warranty: 1 year



Features

  • Easy to Use
  • Rugged Construction
  • Membrane Multi-function keypad for simple operation
  • Serial data communications
  • Precision ball screw drive mechanism
  • Programmable cycling up to 1000 cycles
  • Limit cycling on force and deflection
  • Dynamic braking
  • Emergency stop button
  • Adjustable high and low limits
  • Maintenance free design
  • Crosshead Speed: 0.5 to 12.5 in/min (12.5 to 312.5 mm/min) on Standard Model
  • Independent Return Speed
  • Selectable Speed, High & Low Deflection and Cycling (Up to 1000 Cycles)


Specifications

ManufacturerChatillon
ModelTCD 500-SS 500lbf
ConditionUsed
Stock NumberEM678
