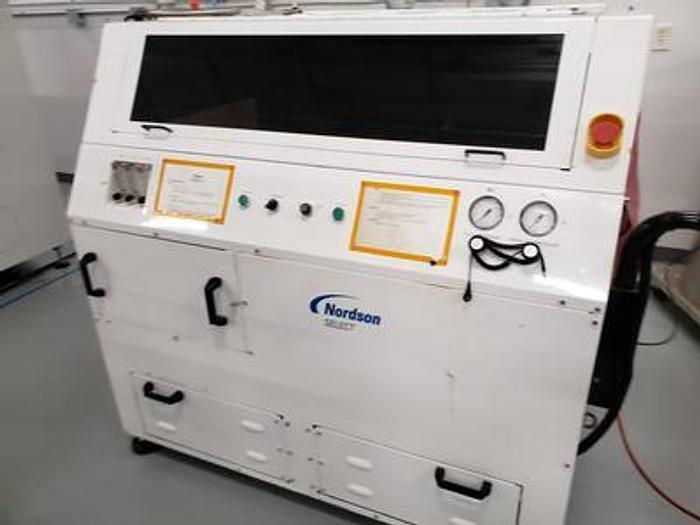

Nordson Select ACE NOVO-103 KISS Selective soldering machine 2017

Nordson Select ACE NOVO-103 KISS Selective soldering machine 2017

Contact us for price

orCall +353 (0) 87 192 1110

Description

Nordson Select ACE NOVO-103 KISS Selective soldering machine 2017

NOVO 103 Selective solder - loaded machine, with 2 pots, offline part warming for faster change over. Very recent vintage machine.

Nordson SELECT “Super Quick” Z-motion control for fastest processing times


• Windows 7 OS with the interactive SWAK-OS on machine programming interface rapid setup and time to “first production”, usually within 10 minutes

• Automated Fiducial Correction


1 KPHOB-3 Integrated topside on-board IR real-time preheater during the soldering process, selectable zones to match board size with optical pyrometer governing the topside board temperature


1 KFS-DJ Automated drop-jet fluxing system for precise on-demand application of no- clean fluxes with no overspray for true no-clean processing and eliminating need to post-soldering cleaning of boards


1 KSPADN-T Dual solder nozzle pot and pump assembly lead-free alloy solder with 2 individual solder delivery systems within one housing, each capable of accepting any B or W nozzles up to 25mm, includes a full set of "Bullet” nozzles

Not compatible with the air knife (KNAK-1) or spot heat (KN2SPH) machine options


1 W-75-SS 75mm wide "wave" nozzle for mass soldering with tin-lead alloy, made of all 316 stainless steel construction, includes complete pump assembly with motor and custom nitrogen manifold


Not compatible with the air knife (KNAK-1) or spot heat (KN2SPH) machine options


1 W-75-TI 75mm wide "wave" nozzle for mass soldering with lead-free alloy, made of all titanium construction, includes complete pump assembly with motor and custom nitrogen manifold

Not compatible with the air knife (KNAK-1) or spot heat (KN2SPH) machine options


1 KSP-T Lead Free KISS Solder Pot


1 KUPCB-2- Rack Universal PCB location rack. This is used where the solder sites are to close very the PCB edges or when components overlap the edges interfering with SMEMA edge location. This rack has adjustable fingers to hold the PCB in a position suitable for processing.


1 KSP-SC Solder pot service cart with temperature warming controls to assist with serving and rapid exchange of KISS solder pots


1 KWCA-2 2nd witness camera Must purchase KDMS: dual monitors


1 KDMS Dual LCD monitor setup (enables viewing of the cameras on a large screen)


1 KW-OLP Offline programming software

Specifications

ManufacturerNordson
ModelSelect ACE NOVO-103 KISS Selective soldering machine 2017
ConditionUsed
Stock Numberem1677
