Ling Dynamic Systems LDS Vibe LDS V875-640B 8000# medium force shaker S2766-001

Ling Dynamic Systems LDS Vibe LDS V875-640B 8000# medium force shaker S2766-001

Contact us for price

orCall +353 (0) 87 192 1110

Description

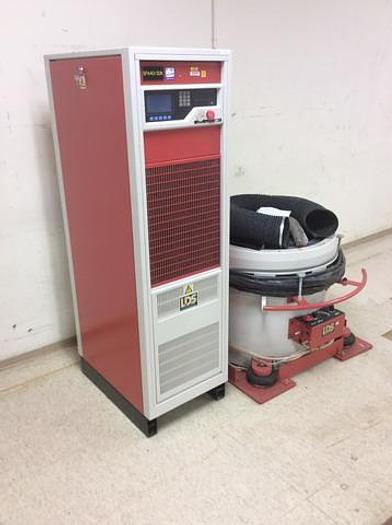

Ling Dynamic Systems Vibe LDS V875-640B 8000# medium force shaker


Ling Dynamic Systems V875-640B Shaker test system,


Unit was in working condition when removed from service due to plant closure, power 480V/3Ph,


Ling Dynamic Systems Mdl SPA40/30K Power amplifier, s/n S2766-001/1


Base mounted V875 model


Sine Peak Force : 35.59 kN ( 8,000 lbf)


Random Force : 31.14 kN ( 7,000 lbf)


Armature Diameter : 640 mm (25.20 in)


Usable Frequency Range 2400 Hz dc


Armature Resonance (fn) 2200 Hz


Velocity (sine peak)† : 1.8 m/s (70.9 in/s)


Acceleration (sine peak)† : 490 m/s2 (50.0 gn)


Acceleration Random (rms)† : 490 m/s2 (50.0 gn)


Displacement (peak-peak)‡ 50.8 mm (2.0 in)

Specifications

ManufacturerLing Dynamic Systems LDS
ModelVibe LDS V875-640B 8000# medium force shaker S2766-001
ConditionUsed
Stock Numberem1807
