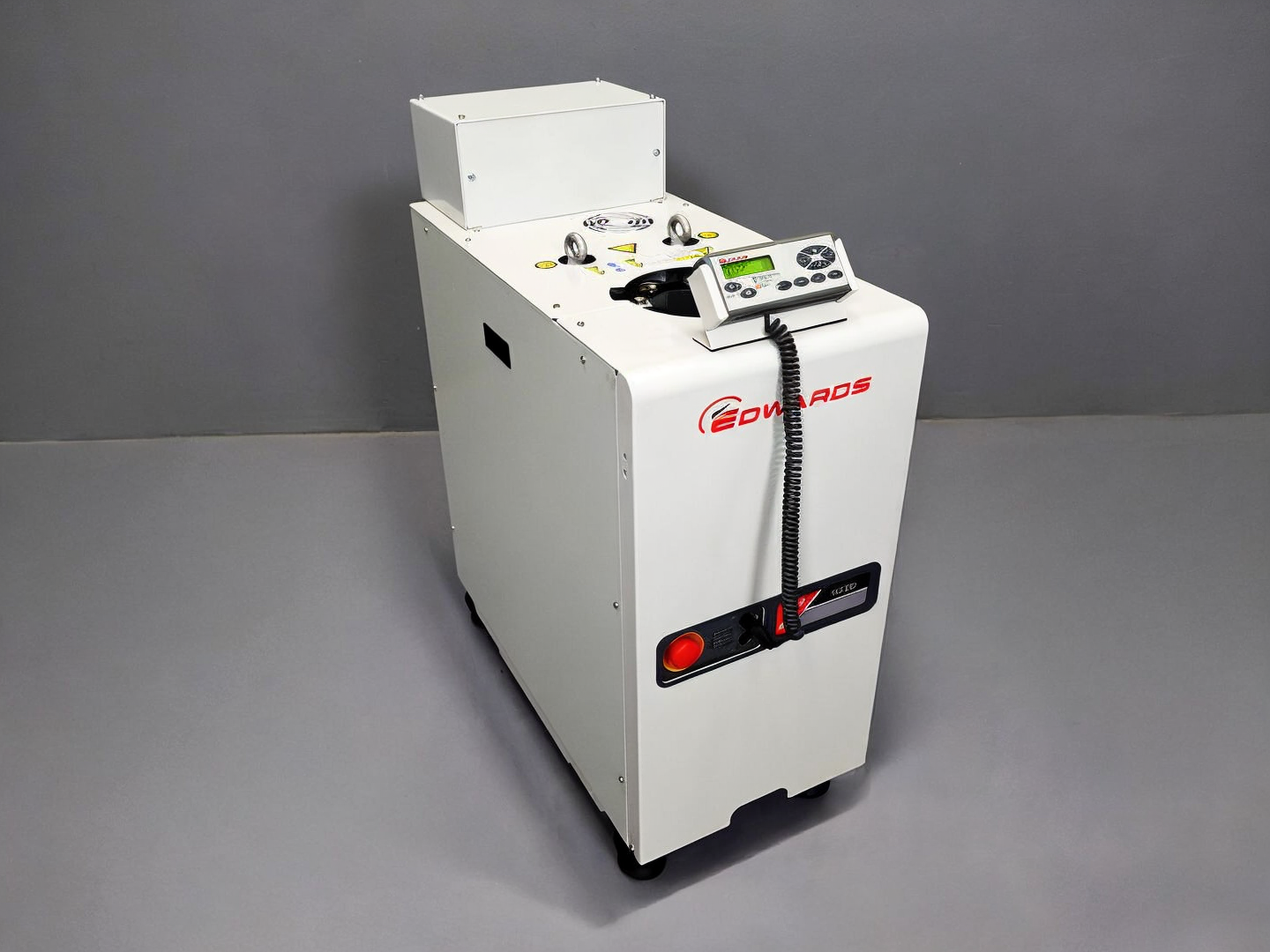

Edwards IH1000 MK5 High Vacuum Pump

Edwards iH1000/20 MK5 HV – Industrial High Vacuum Pump – As New / Unused / 0 Operating Hours – 420 kg

For sale is an Edwards iH1000/20 MK5 HV industrial high vacuum system.

This unit comes from a corporate environment, has never been installed, features 0 operating hours,

and is therefore in nearly new condition.

Ideal for buyers in industry, research, or vacuum technology who are looking for a powerful system at an attractive price.

Technical data:

Manufacturer: Edwards

Model: iH1000 / 20 MK5 HV

Code no.: A59030946

Design: Industrial dry pump

Pumping speed / Suction capacity: approx. 560 cfm (50/60 Hz)

Ultimate pressure: up to approx. 2 × 10⁻³ mbar

Inlet connection: ISO 100

Outlet: KF 40 (NW 40)

Motor power: approx. 5.1 – 6.1 kW (depending on model)

Oil volume (service): approx. 1.5 litres

Operation type: suitable for harsh industrial processes ('harsh duty')

Cooling: water- or air-cooled depending on model

Dimensions:

Length: approx. 909 mm

Width: approx. 839 mm

Height: approx. 390 mm

Description:

Giew Tl Roxz Dqts Umsl

The Edwards iH1000/20 MK5 HV is a robust industrial high-vacuum pump designed for demanding applications such as:

- PVD / CVD coating

- Semiconductor processes

- Laboratory and research facilities

- Vacuum furnaces & process chambers

- General industrial vacuum technology

Weight approx. 420–430 kg

Condition: new
