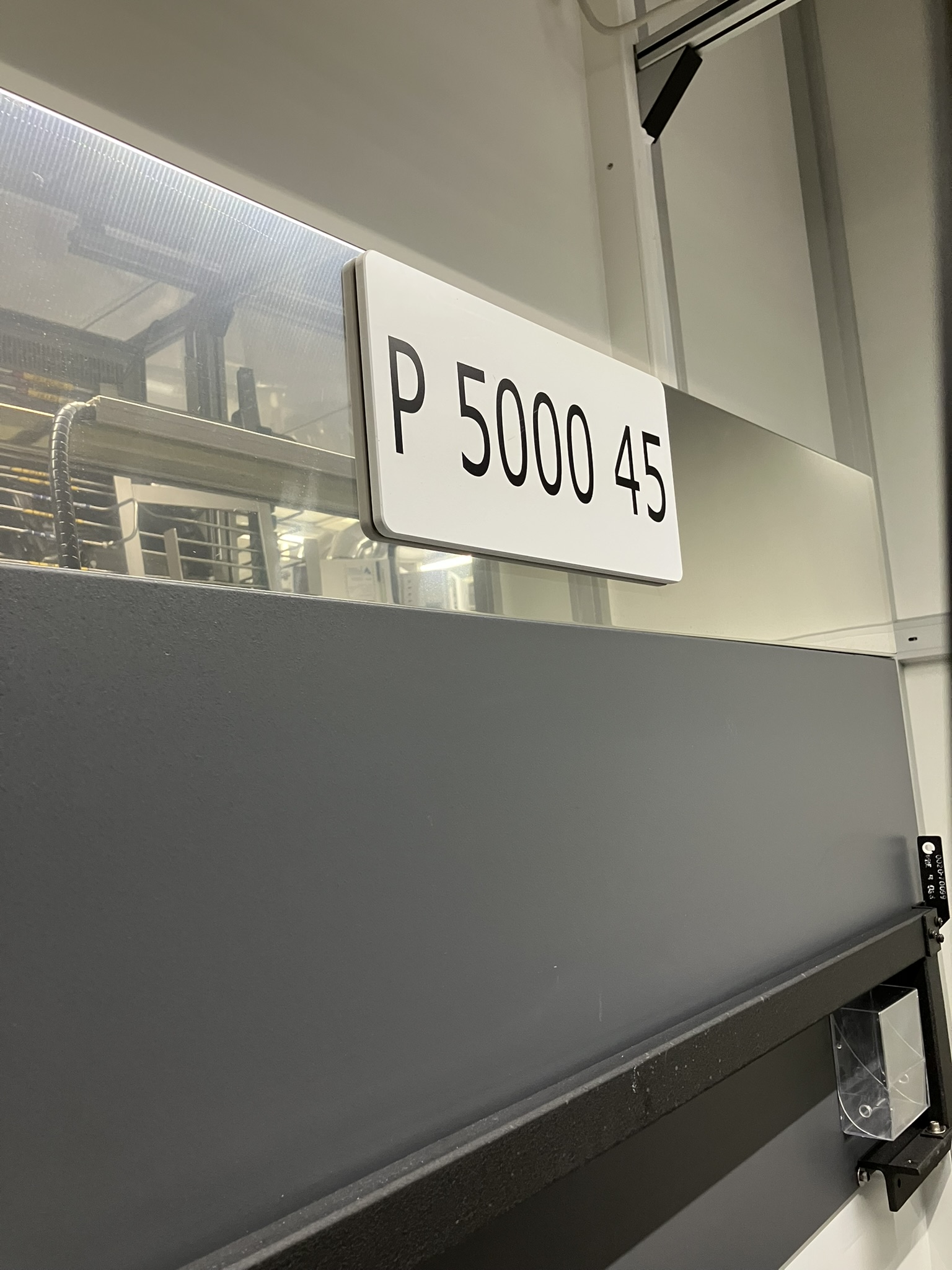

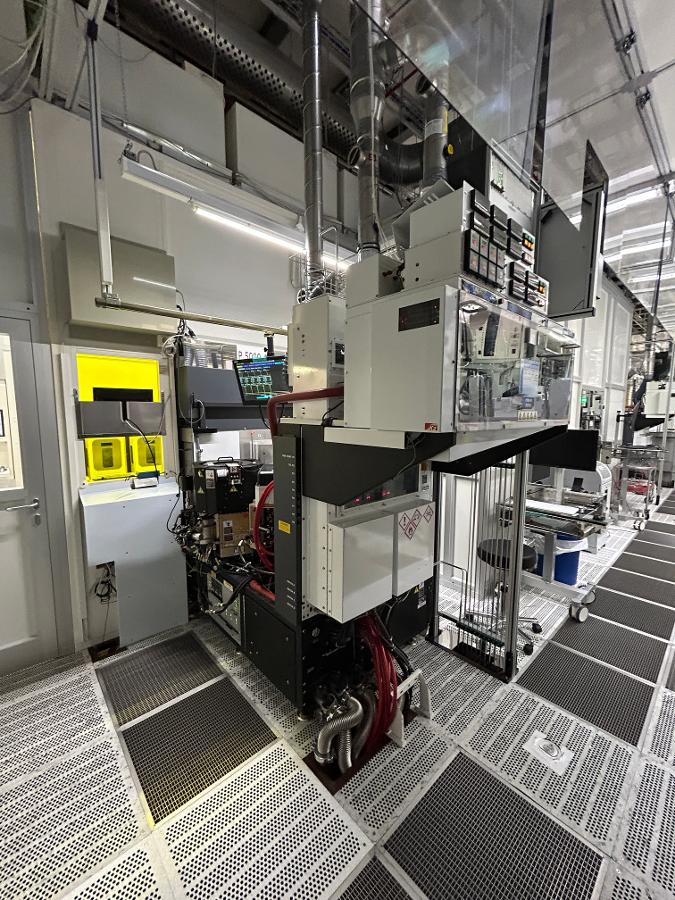

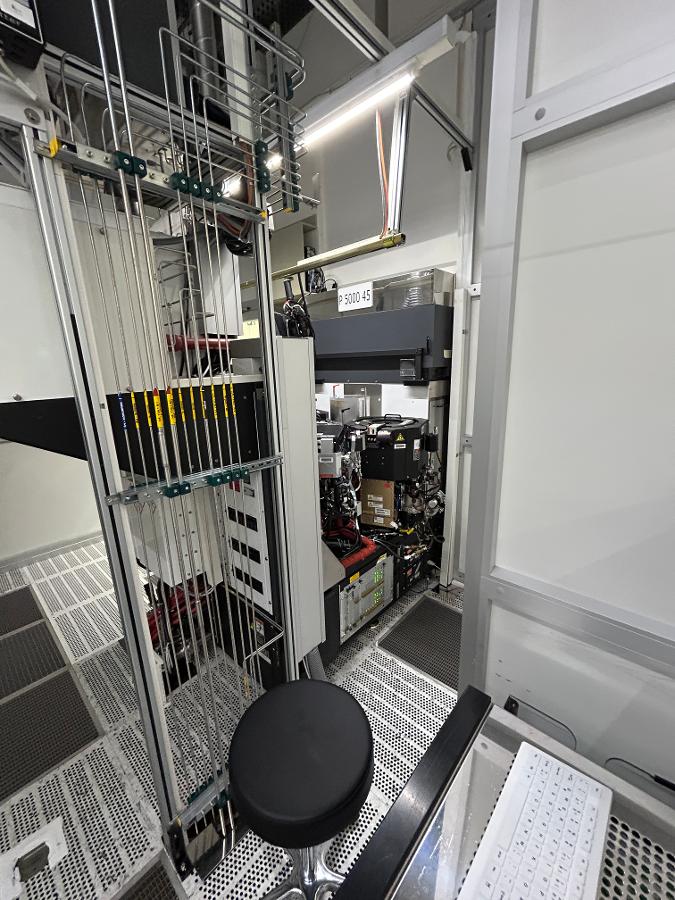

1996 AMAT P5000 45 ETCH / CVD TEOS

Applied Materials P5000 200 mm CVD / Etch Cluster Tool – 4 Chamber Configuration

Manufacturer: Applied Materials (AMAT)

Model: P5000

Equipment Type: CVD / Plasma Etch Cluster Tool

Year: 1996

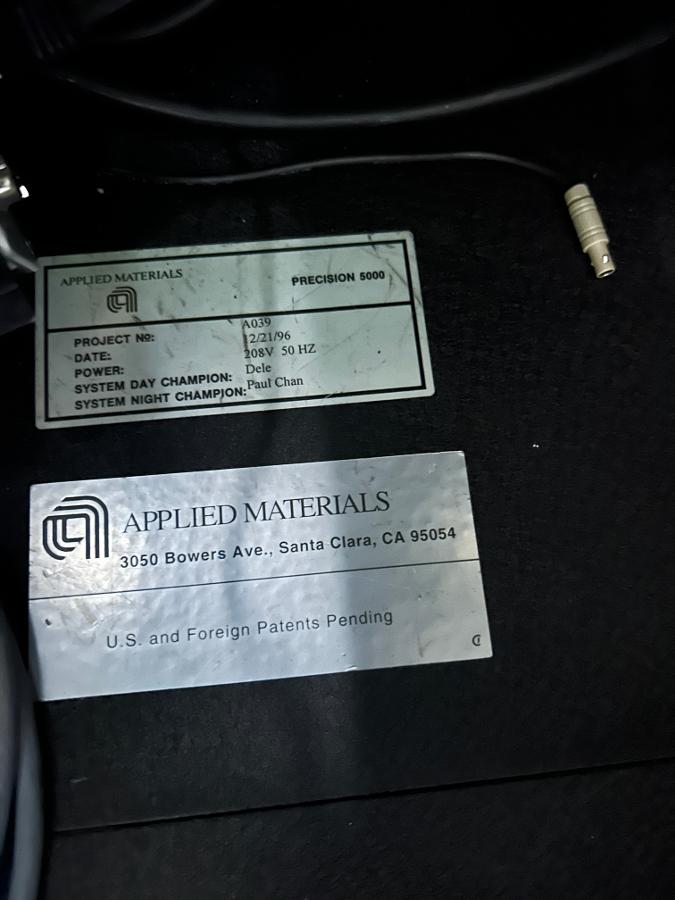

Serial Number: A039

Equipment Code: P5K45

Inventory Number: 227475

Wafer Size: 200 mm

Condition: Used – configuration as listed below

Location: Available on request

Lead Time: Available on request

Incoterms: Available on request

Price: Please contact us for quotation

System Overview

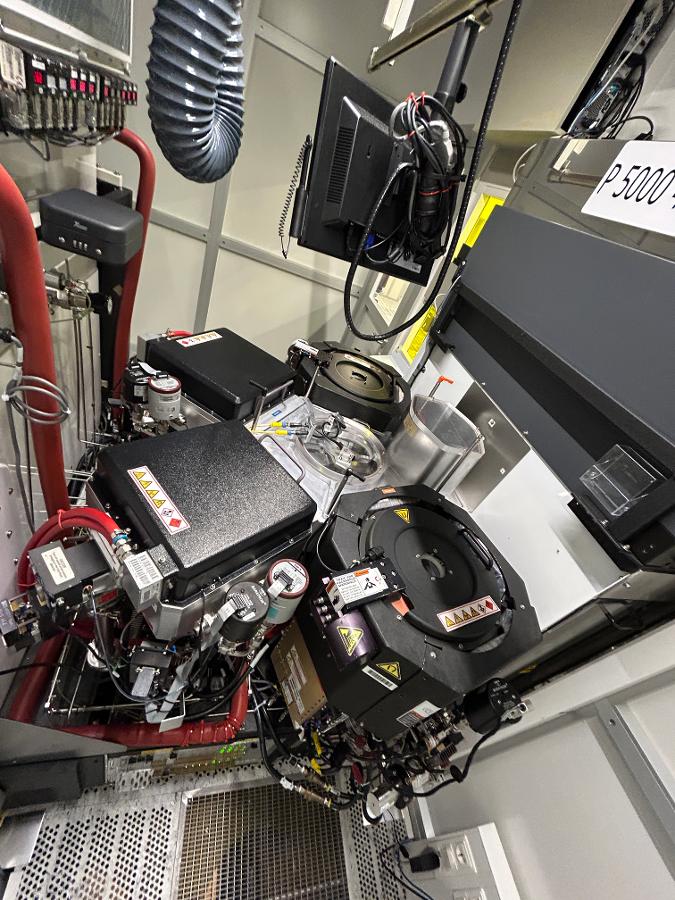

Applied Materials P5000 configured as a four-chamber 200 mm cluster tool for CVD and etch processing.

The system combines two Universal CVD chambers for TEOS processing with two MKII plasma etch chambers.

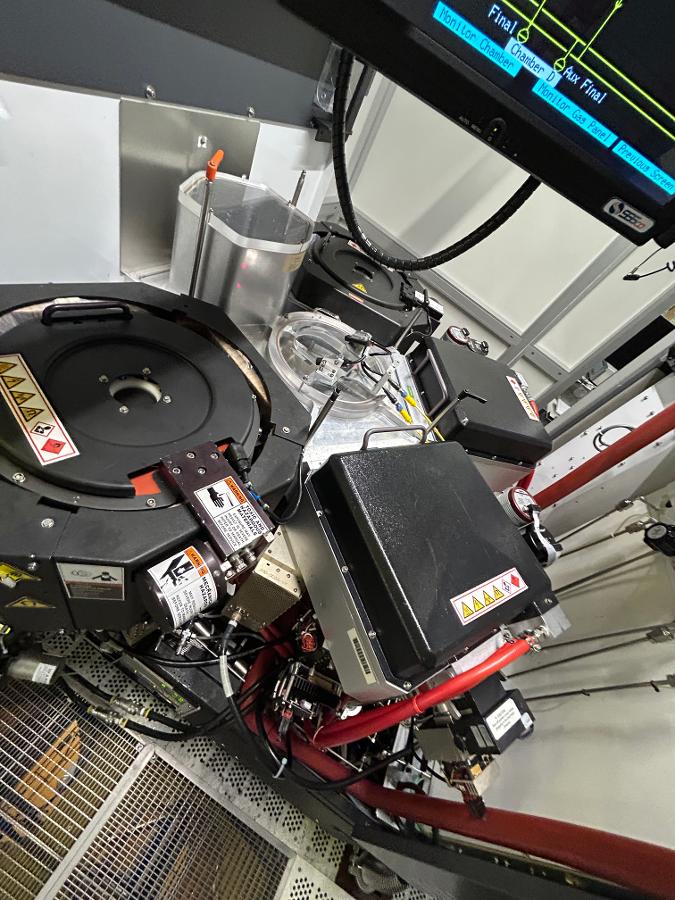

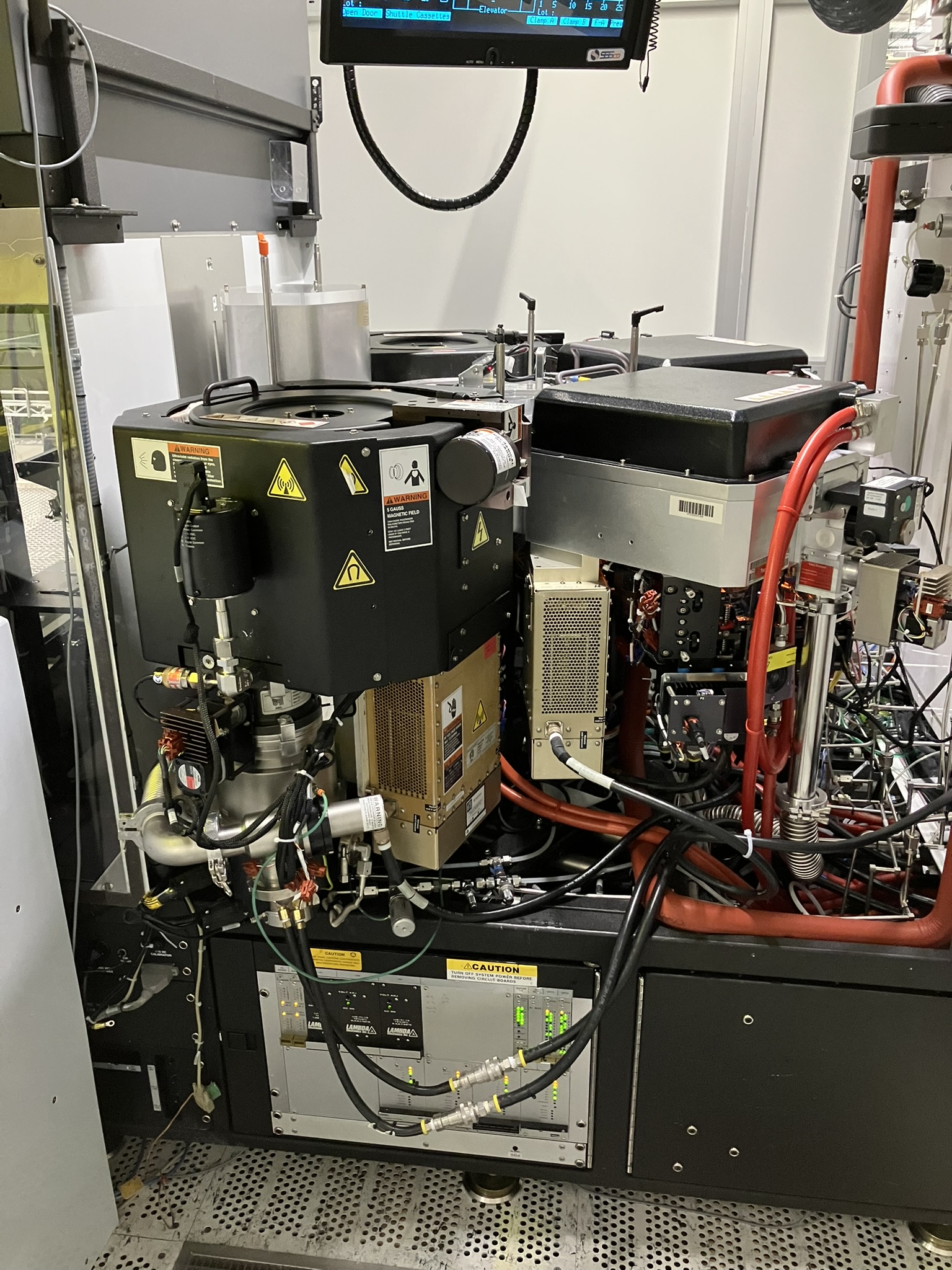

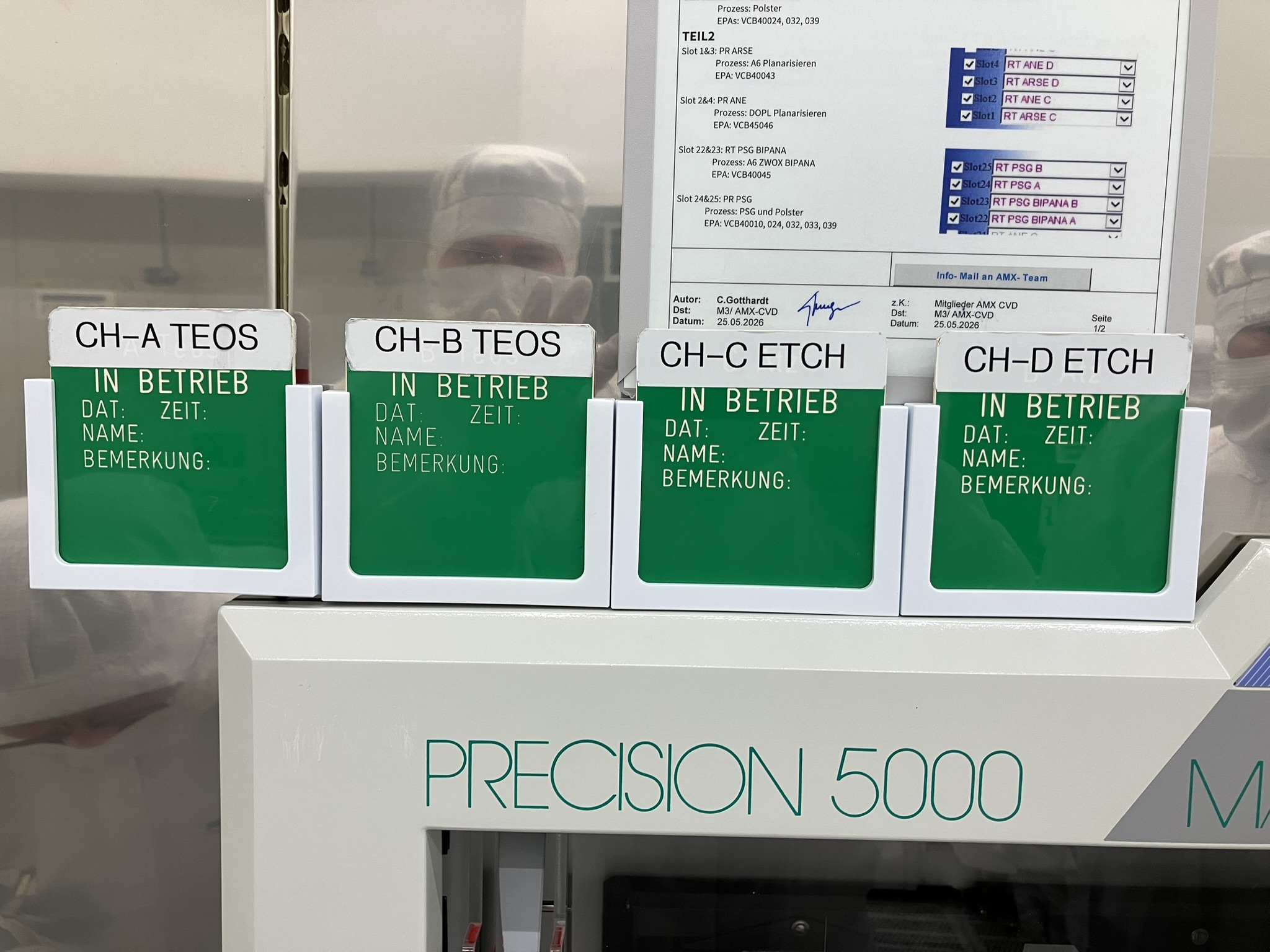

Installed chamber configuration:

• Chamber A – Universal CVD / TEOS
• Chamber B – Universal CVD / TEOS
• Chamber C – MKII / Etch
• Chamber D – MKII / Etch

The platform includes an MKII robot, manual dual-cassette loadlock, 15-slot storage elevator, gas delivery hardware, and system controller.

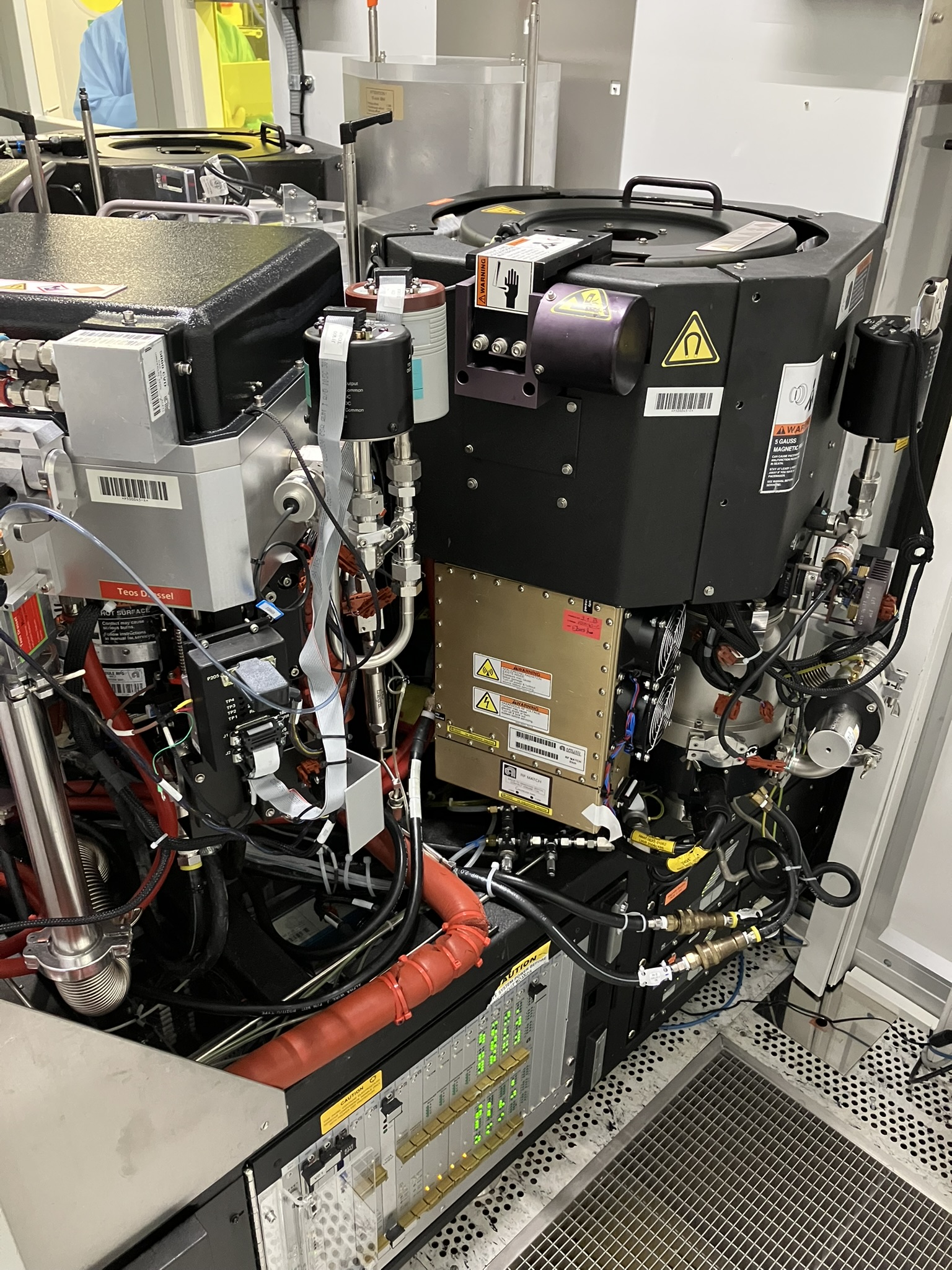

Chamber A – Universal CVD / TEOS

Chamber A is configured for TEOS-based CVD processing.

Included configuration:

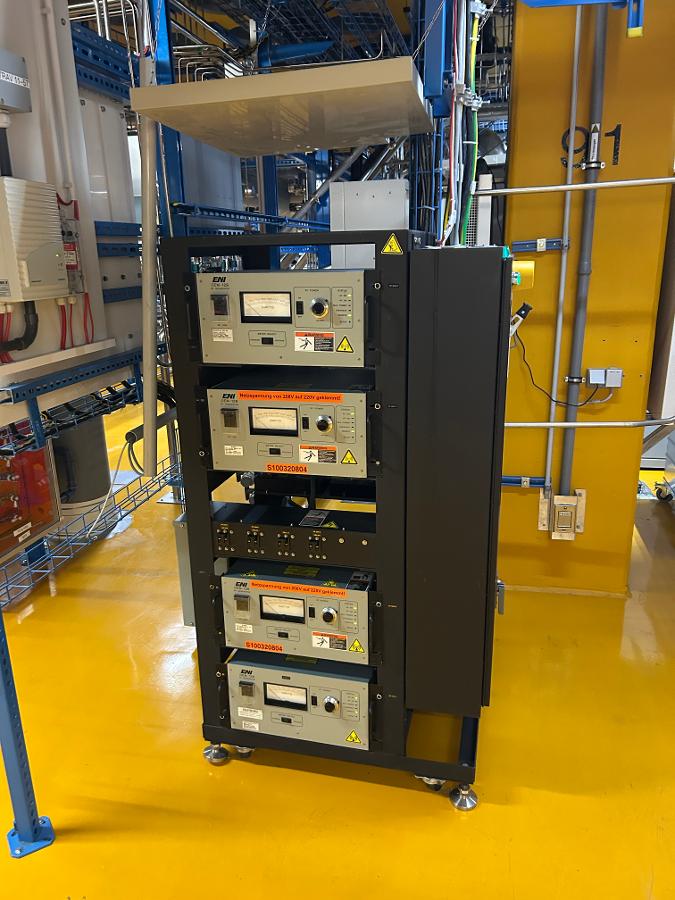

• OEM-12B RF generator
• RF match
• 20/1000 Torr Baratron
• Throttle valve
• Chemraz-bonded slit valve
• Lift pin
• Process kit
• C-Chuck

Gas configuration:

• C2F6 – 2,000 sccm
• O2 – 3,000 sccm
• NF3 – 100 sccm
• He/TEOS – 5,000 sccm
• He/TEPO – 3,000 sccm

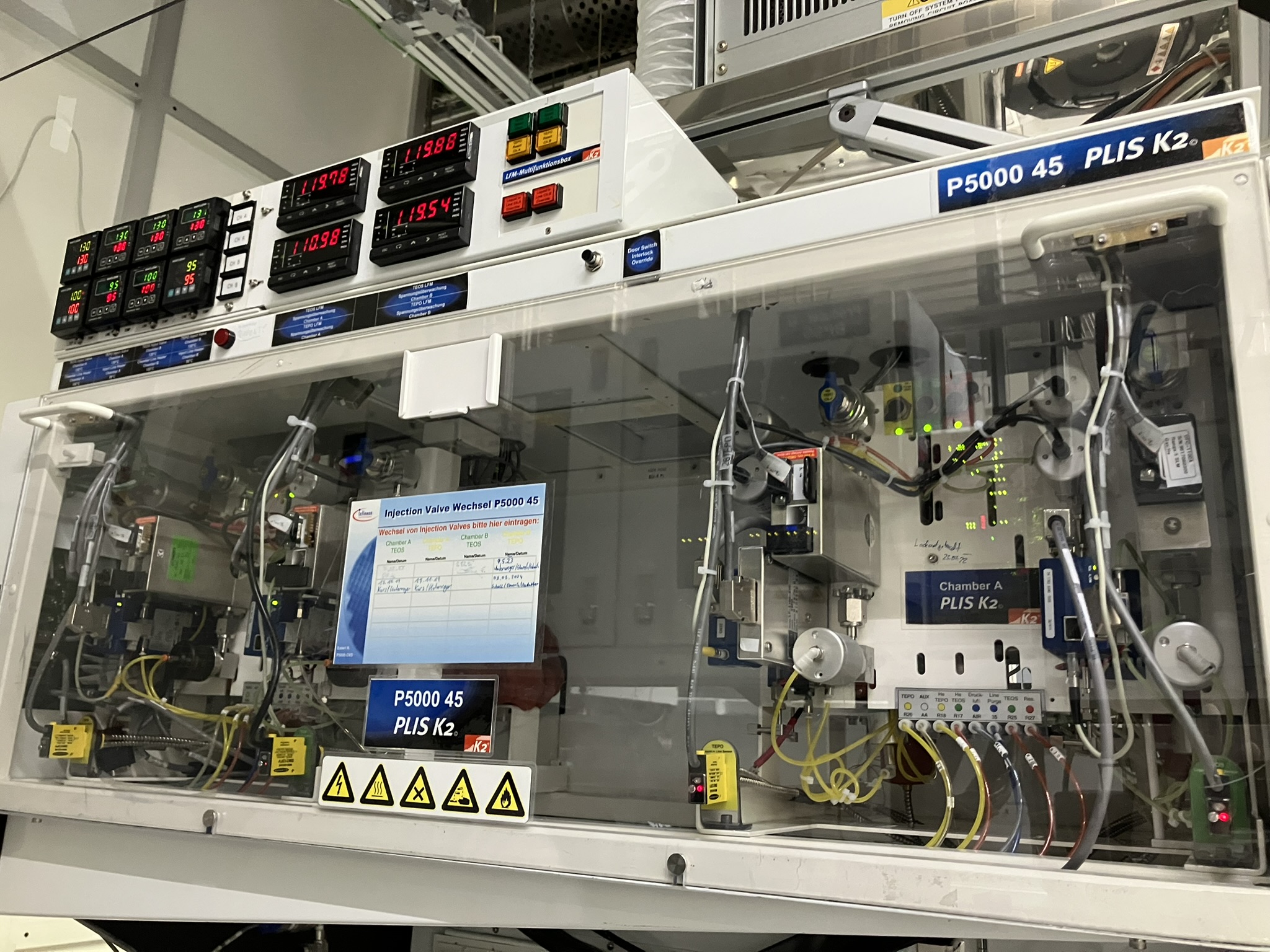

Liquid delivery includes Horiba STEC TEOS and TEPO components.

• IV – TEOS
• IV – TEPO
• LFM – TEOS, 3 g
• LFM – TEPO, 0.1 g

Chamber B – Universal CVD / TEOS

Chamber B provides a second Universal CVD process position.

Included configuration:

• OEM-12B RF generator
• RF match
• 20/1000 Torr Baratron
• Throttle valve
• Chemraz-bonded slit valve
• Lift pin
• Process kit
• C-Chuck

Gas configuration:

• C2F6 – 2,000 sccm
• O2 – 3,000 sccm
• NF3 – 100 sccm
• He/TEOS – 4,000 sccm
• He/TEPO – 4,000 sccm

Liquid delivery includes Horiba STEC TEOS and TEPO components.

• IV – TEOS
• IV – TEPO
• LFM – TEOS, 3 g
• LFM – TEPO, 0.1 g

Chamber C – MKII Etch

Chamber C is configured as an MKII etch chamber.

Included configuration:

• OEM-12B RF generator
• RF match
• 1 Torr Baratron
• Throttle valve
• Chemraz-bonded slit valve
• Lift pin
• Process kit

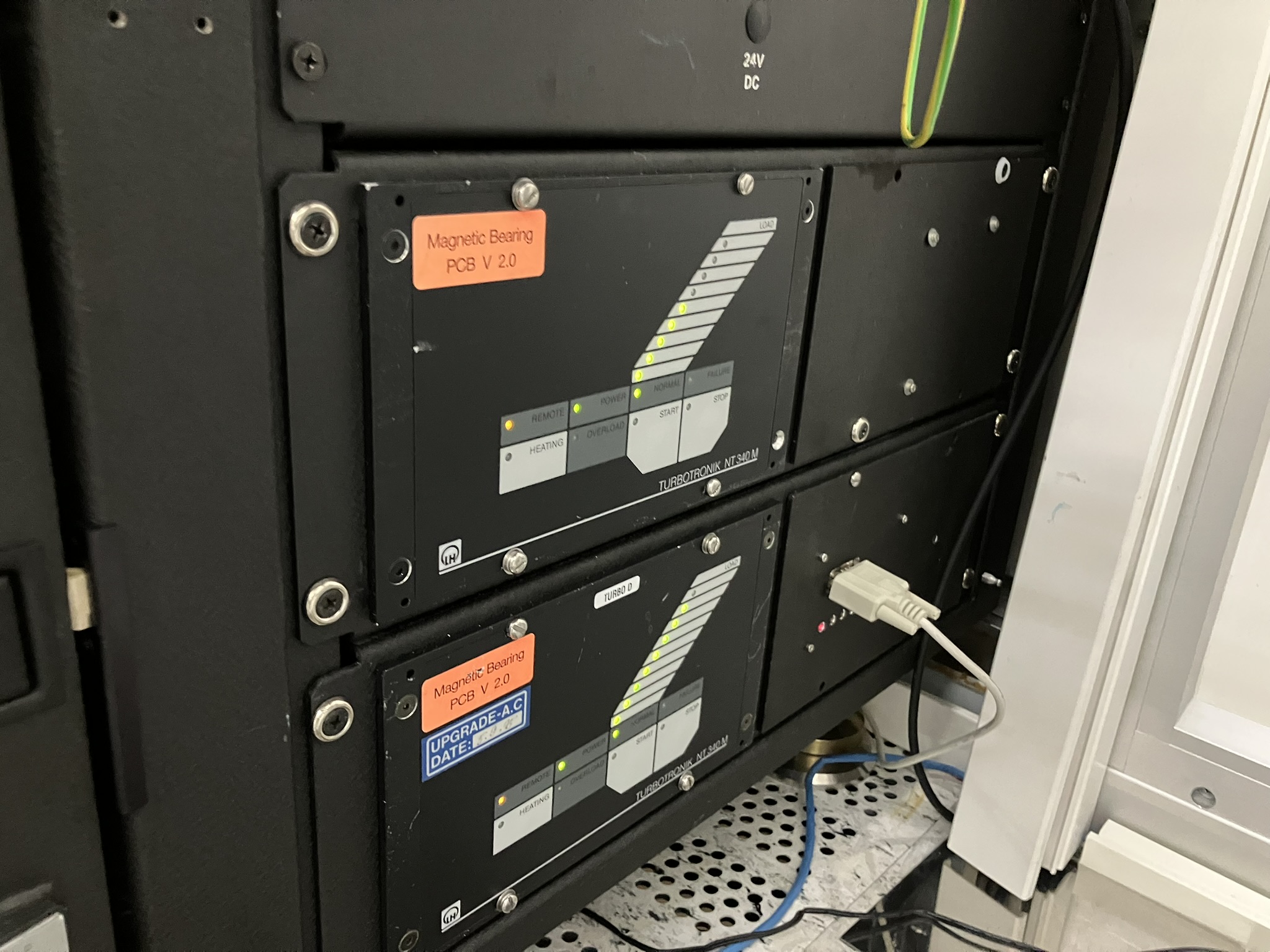

• Turbo/controller
• Pedestal

Gas configuration:

• N2 – 500 sccm
• O2 – 20 sccm
• Ar – 100 sccm
• O2 – 200 sccm
• CF4 – 200 sccm

Chamber D – MKII Etch

Chamber D provides a second MKII etch process position.

Included configuration:

• OEM-12B RF generator
• RF match
• 1 Torr Baratron
• Throttle valve
• Chemraz-bonded slit valve
• Lift pin
• Process kit
• Turbo/controller
• Pedestal

Gas configuration:

• CF4 – 200 sccm
• Ar – 100 sccm
• O2 – 200 sccm
• O2 – 20 sccm
• N2 – 500 sccm

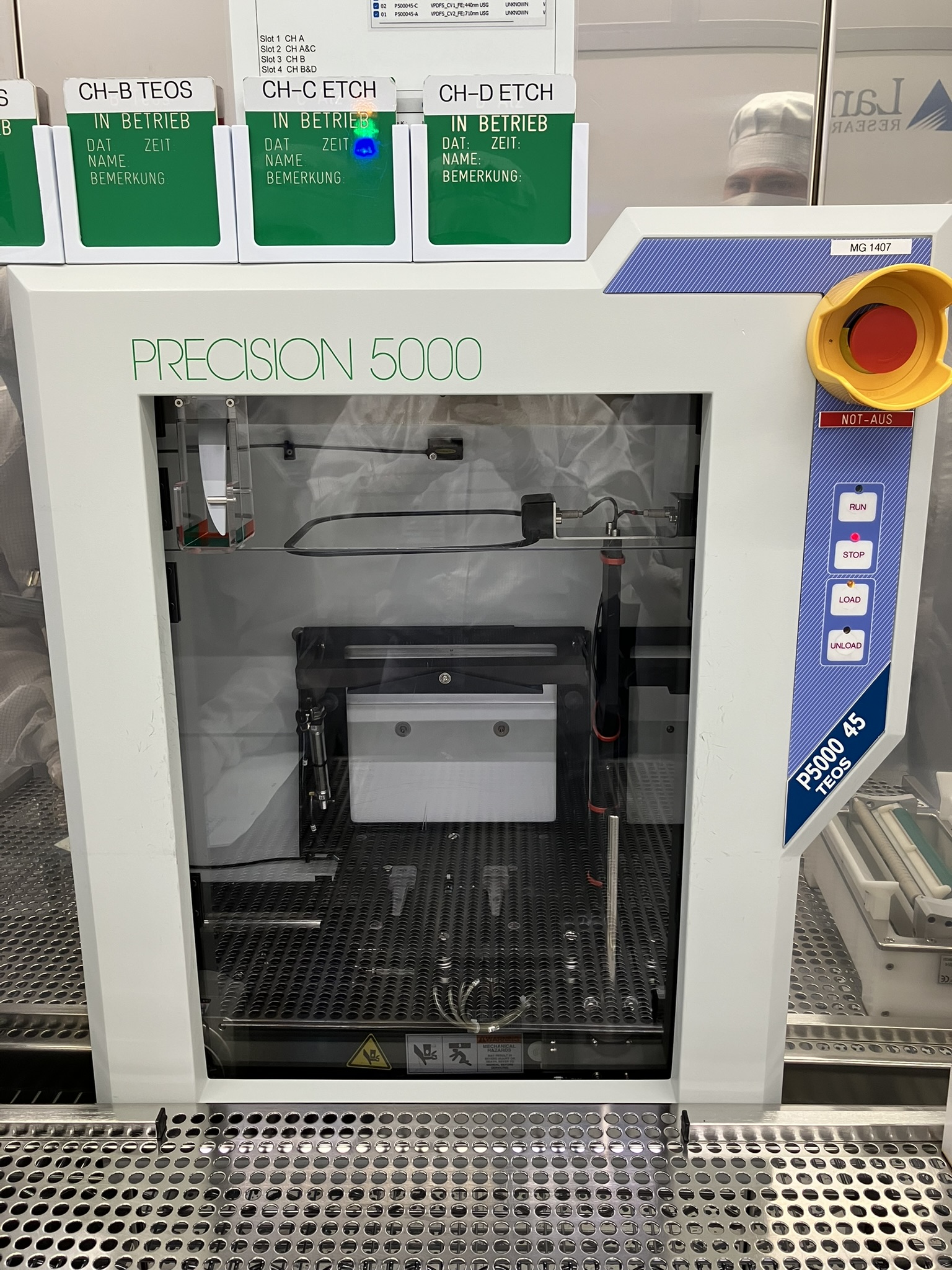

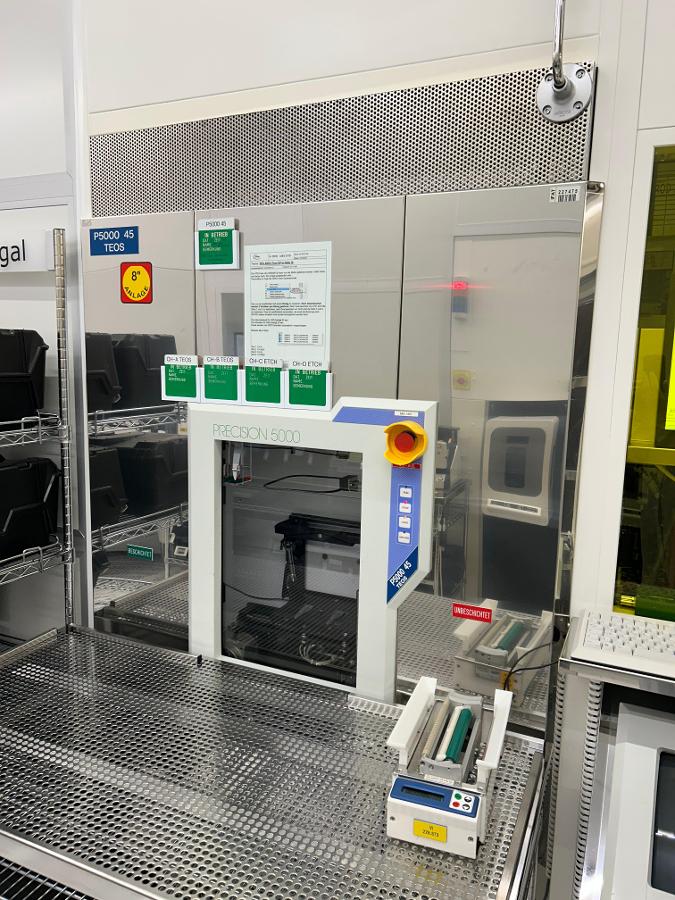

Mainframe and Wafer Handling

The P5000 is fitted with the standard mainframe configuration.

Wafer-handling equipment includes:

• MKII robot
• Manual two-cassette loadlock
• 15-slot storage elevator
• SMC flow switch
• WPS
• Mini controller
• Power rack

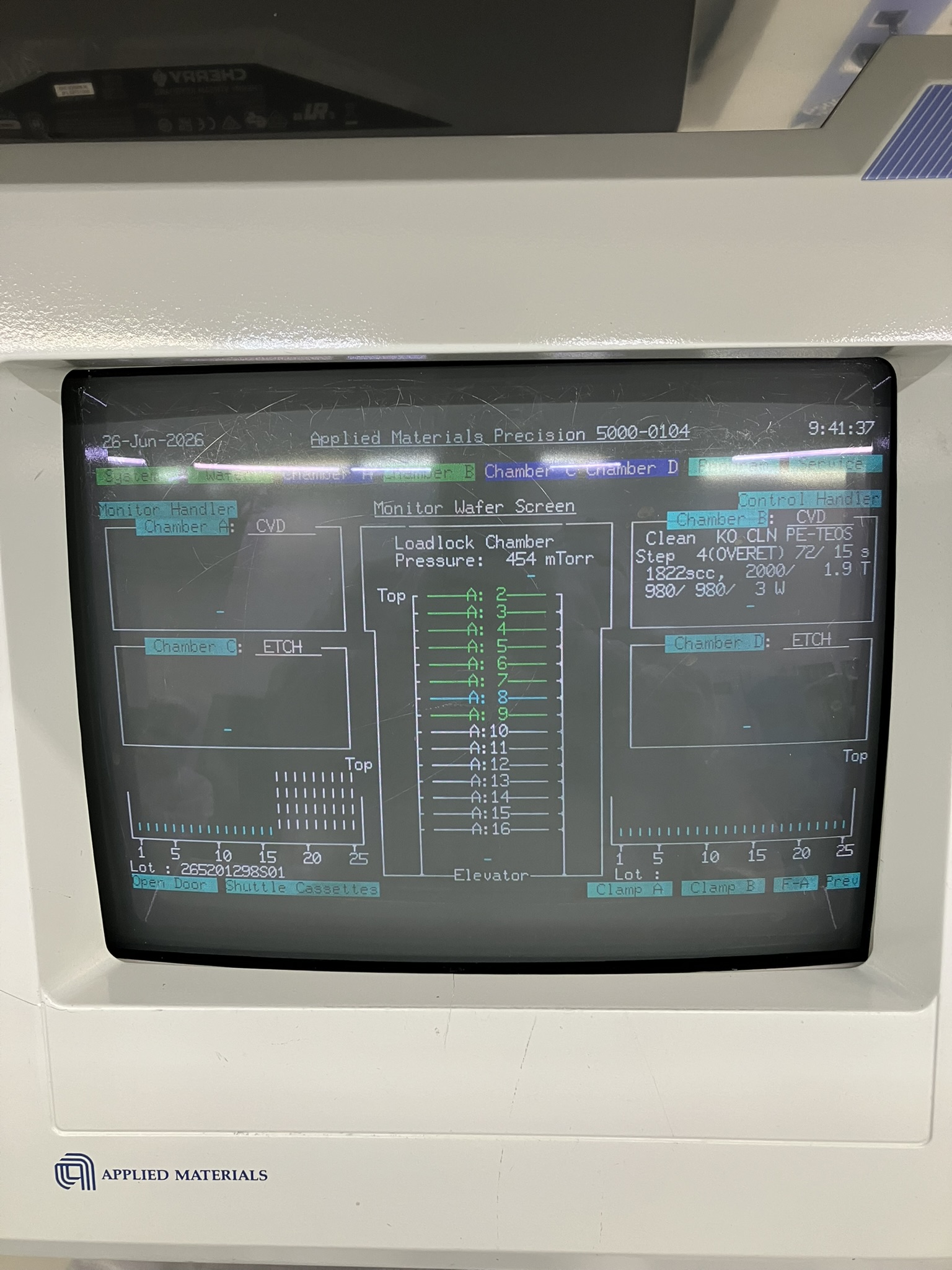

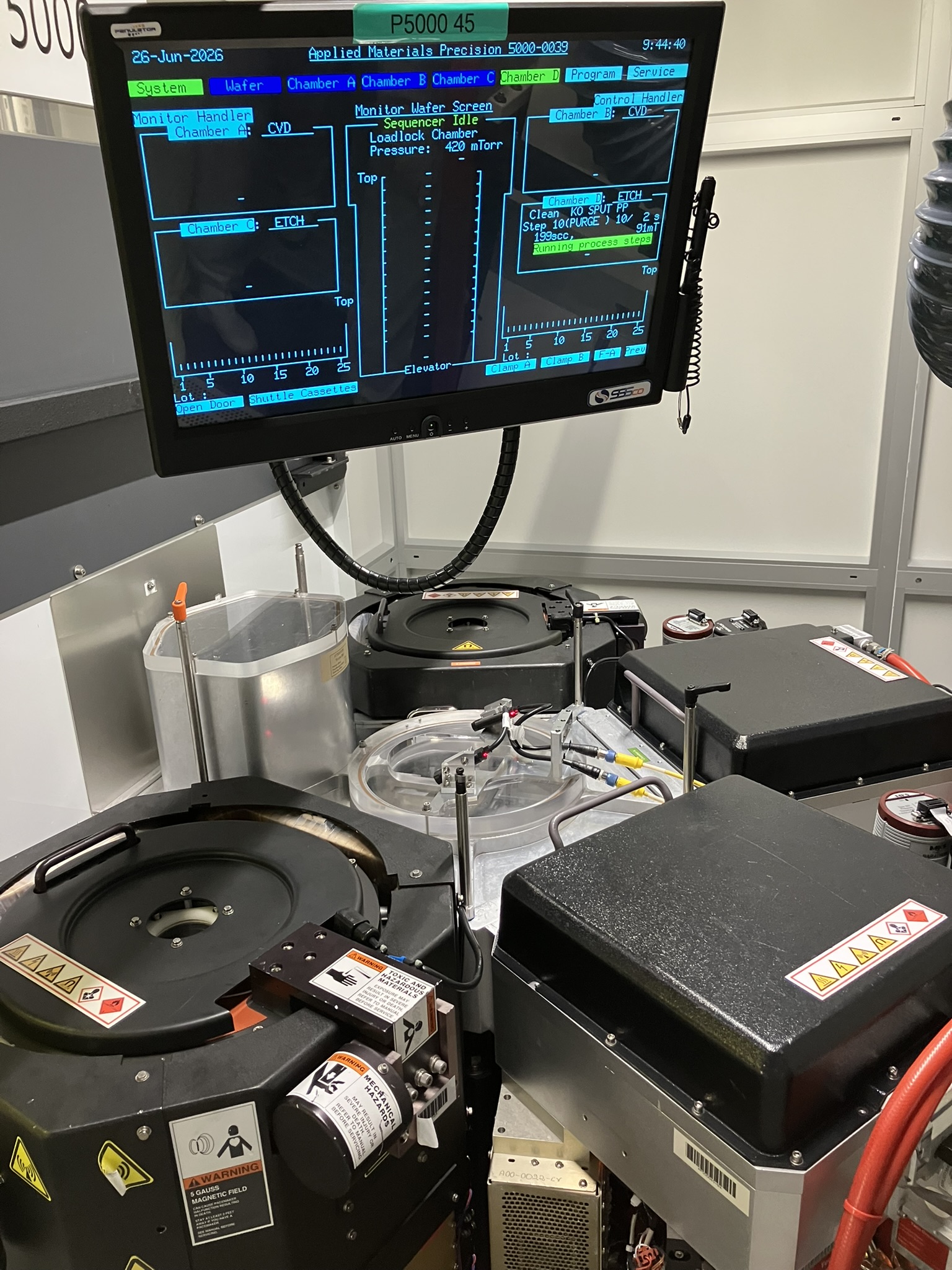

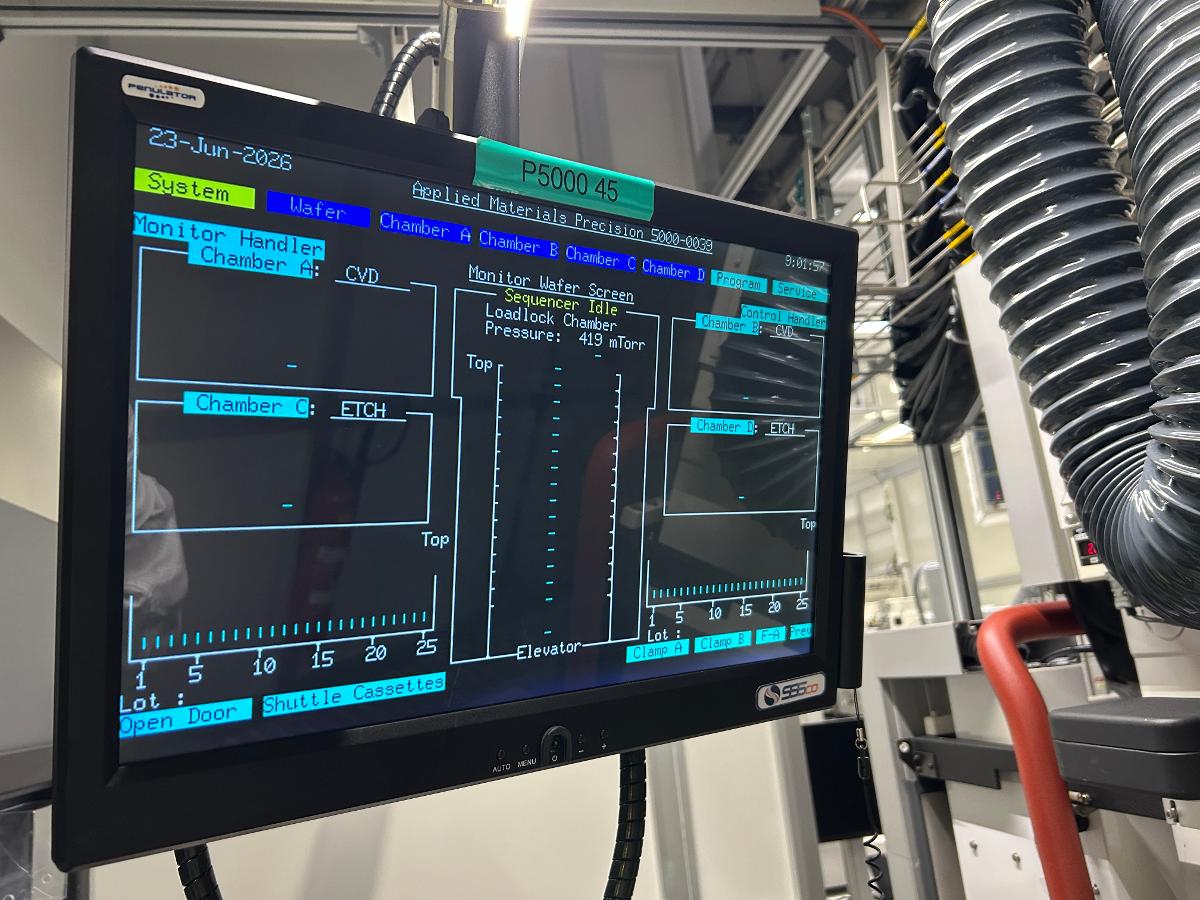

Two system monitors are listed in the configuration.

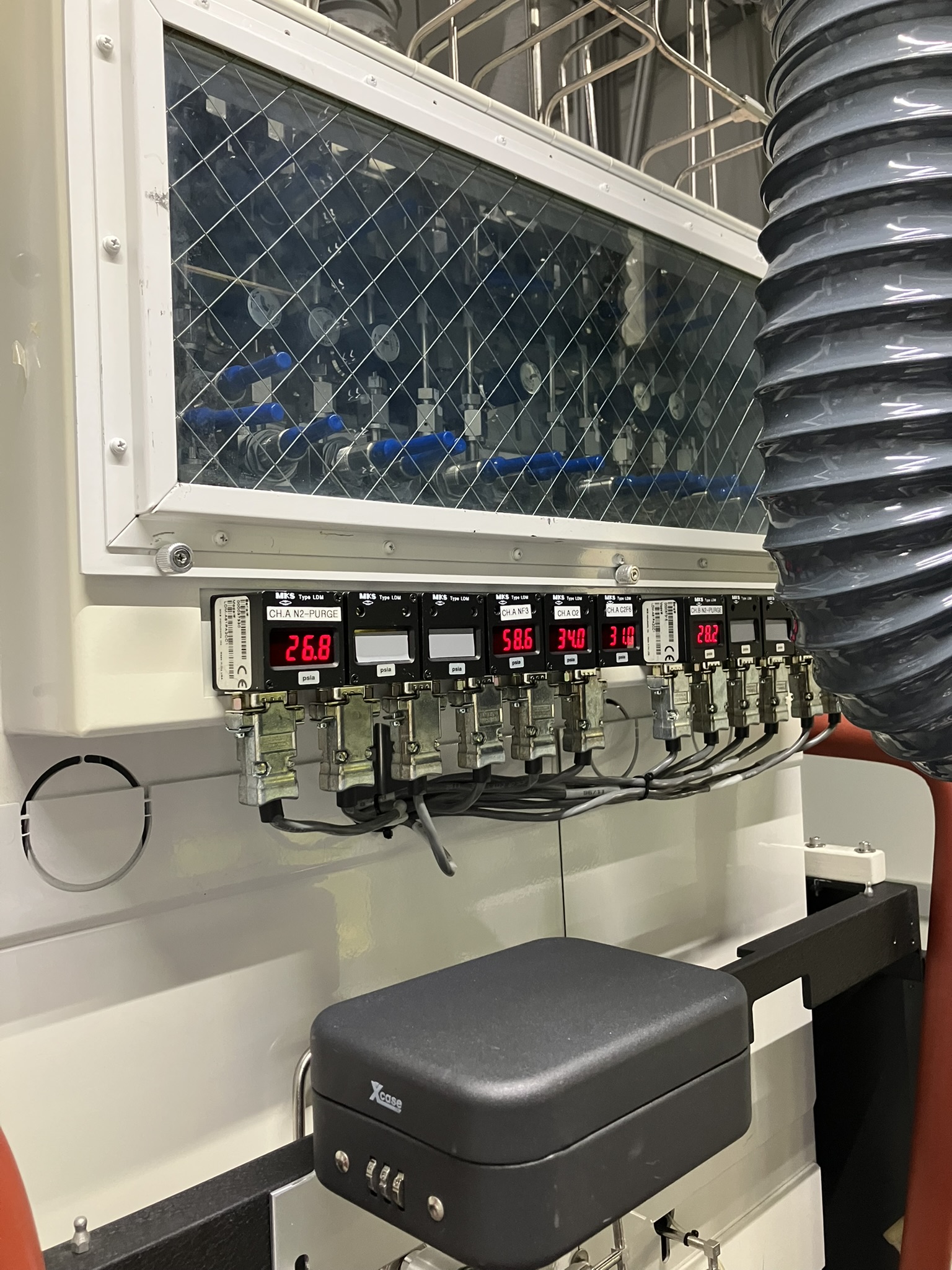

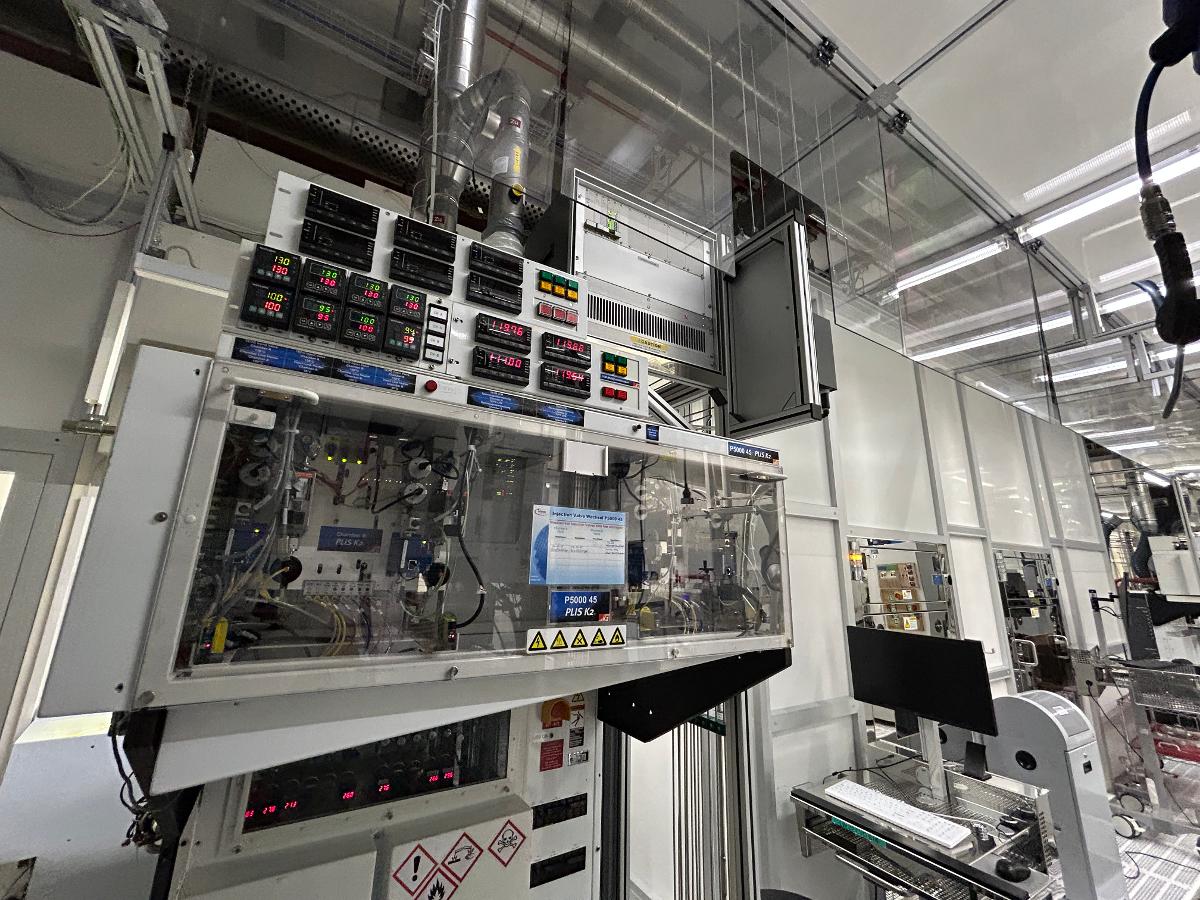

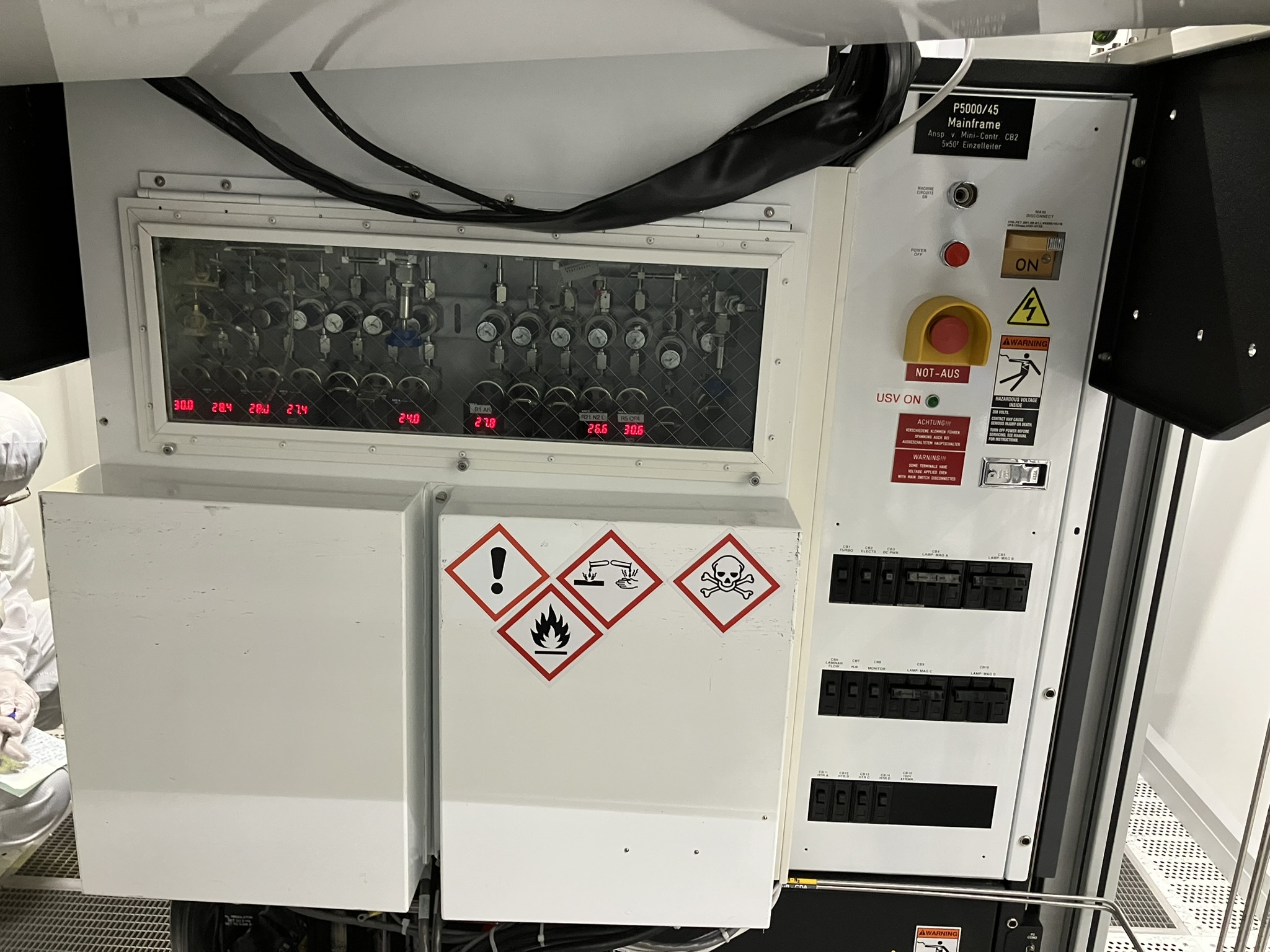

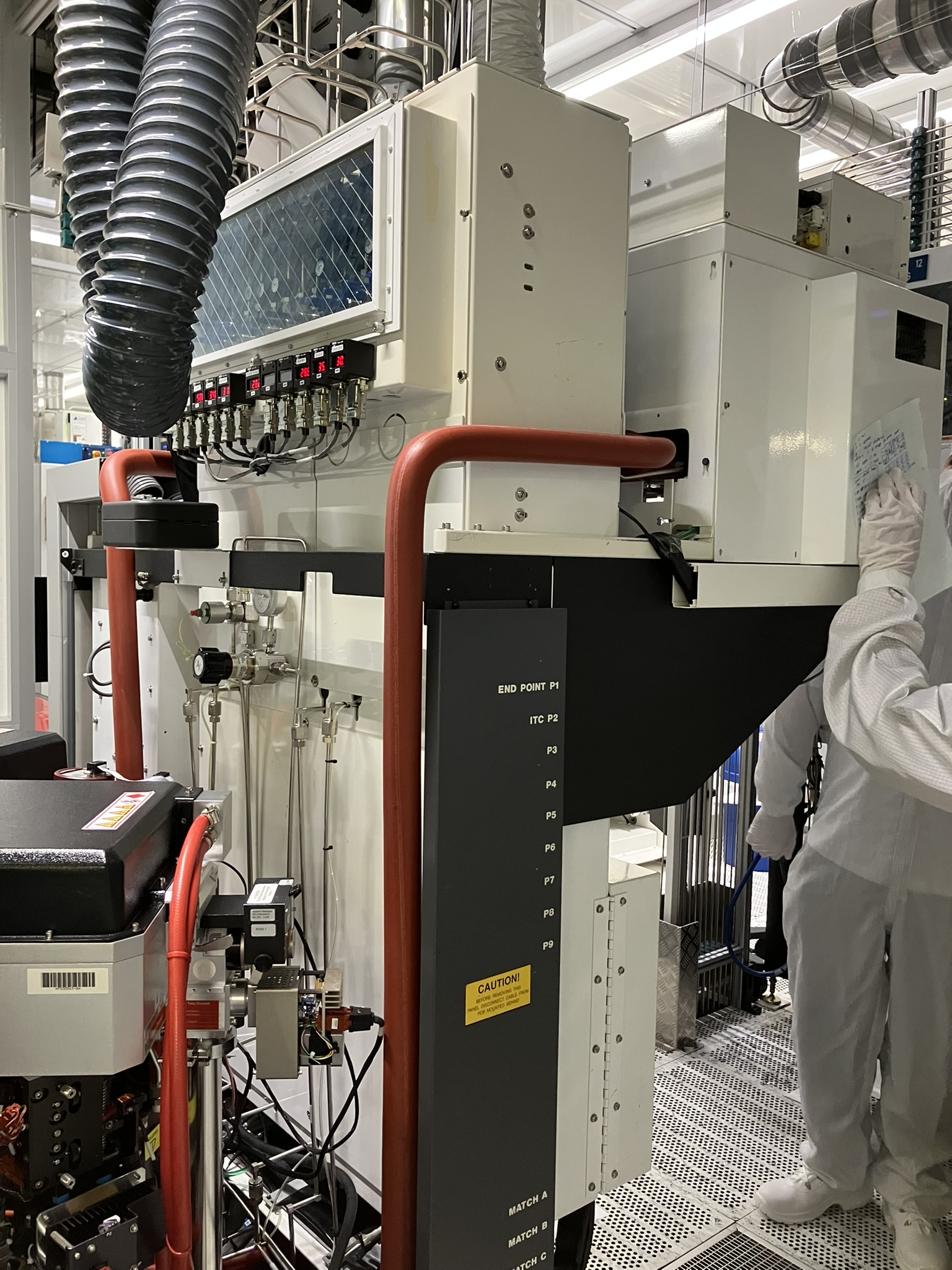

Gas Delivery

The system configuration identifies:

• Aera 7800 MFC hardware
• STEC 4400MC components
• Unit C8161
• Fujikin 5 Ra Max
• Veriflo 10 Ra Max
• Millipore components
• Mott components

Final installed quantities and component part numbers should be confirmed before purchase.

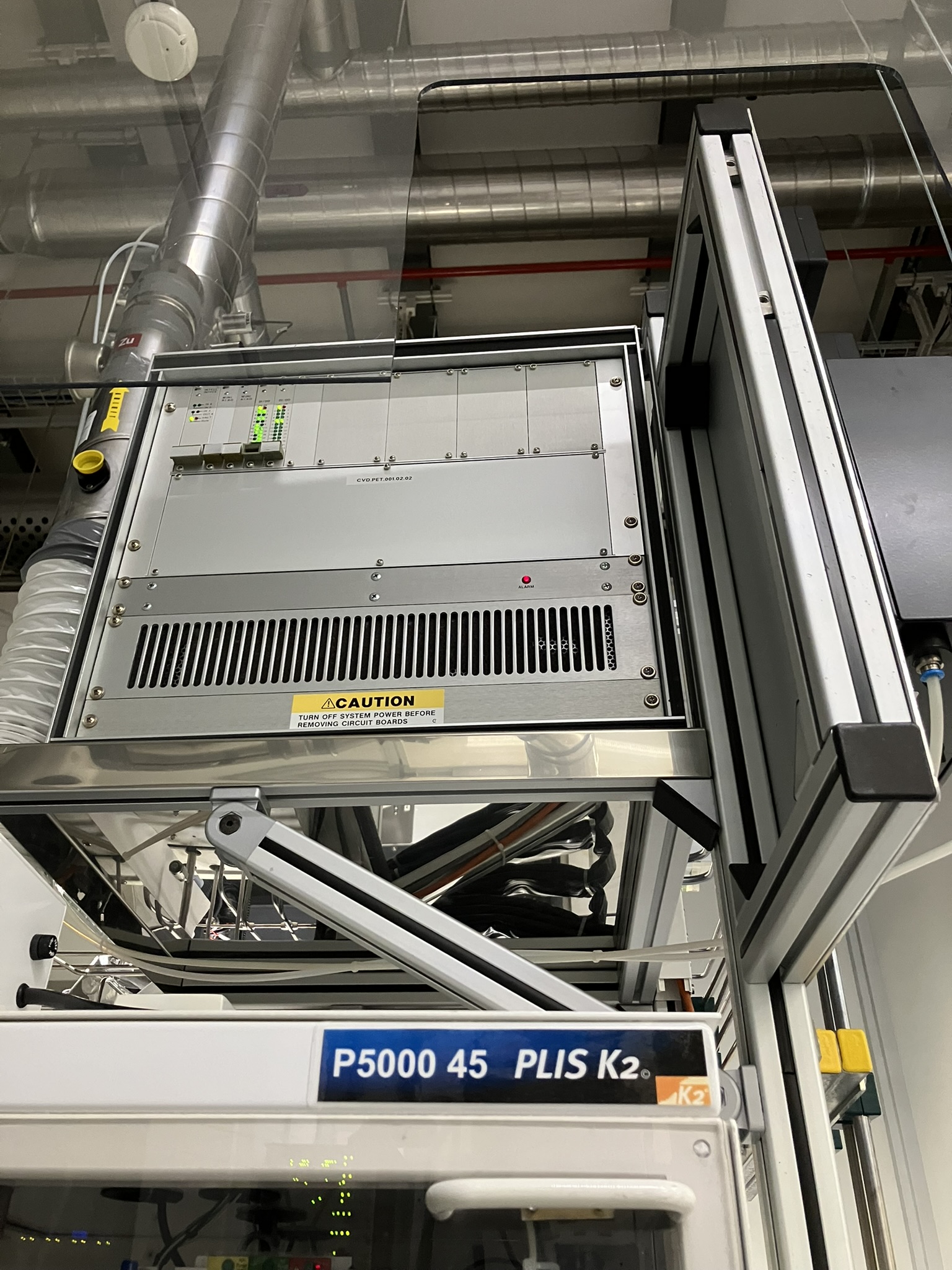

System Controller

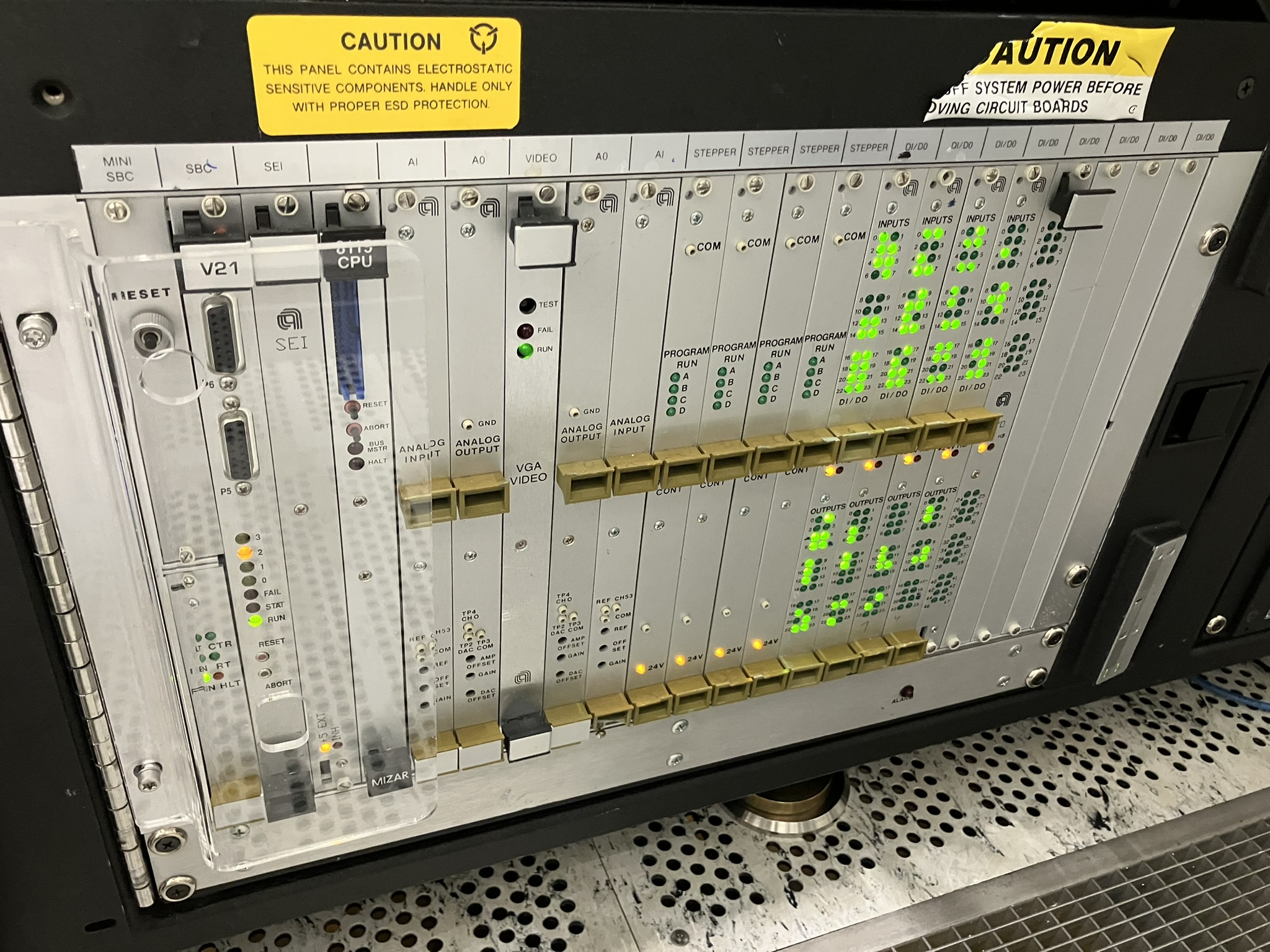

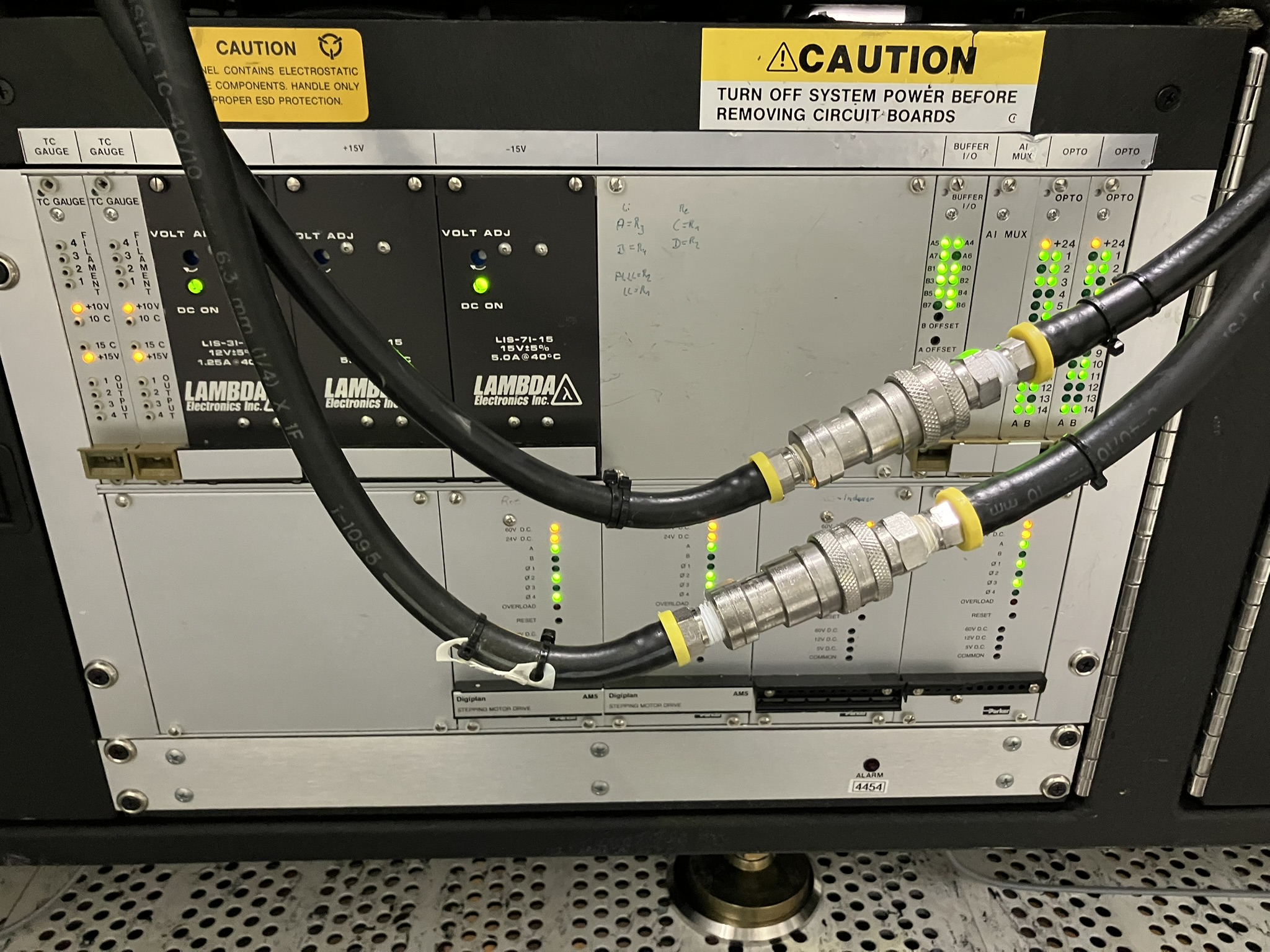

The VME/system controller configuration includes Mini SBC, SBC, SEI and CPU hardware.

The configuration also identifies analog I/O, digital I/O, video, stepper control, TC gauges, buffer I/O, and AI Mux hardware.

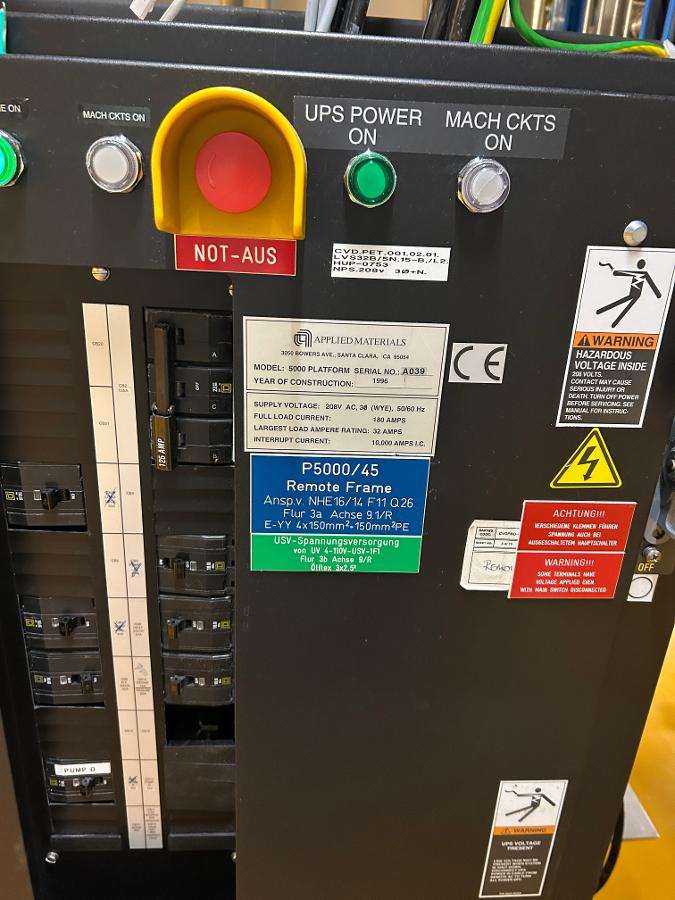

Electrical Requirements

• Line voltage: 200/208 V
• Line frequency: 50/60 Hz
• Line current: 180 A

Cooling

Cooling configuration references an AMAT HX unit.
