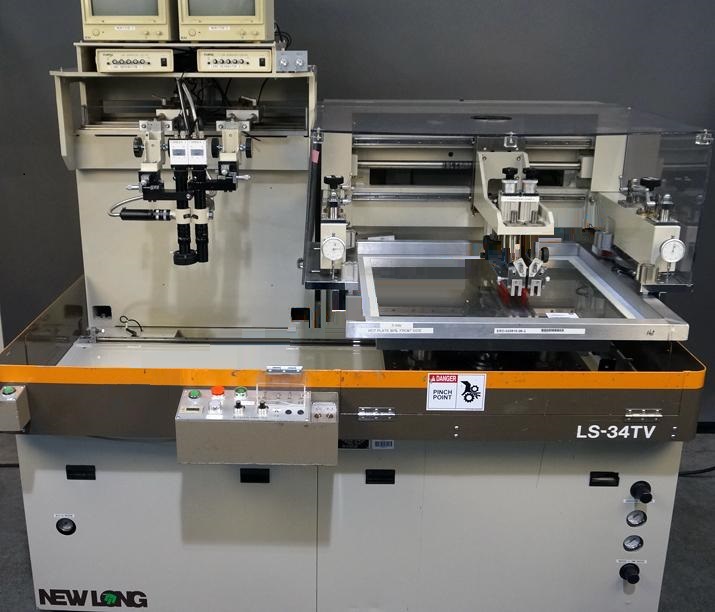

1999 New Long Seimitsu Kogyo Co. LS-34TV screen printer

The LS-34TV Screen Printer by New Long is built with efficiency in mind. This high precision screen printer is most suitable for glass board, print board, and thermal applications

• Excellent rigidity
• STabilized high precision printing
• TV manual alignment gives you easy set-up

• TV's visual alignment gives the operator the high precision alignment at an accelerated set-up time.
• A high-rigid frame ensures stable and high precision printing.
• The entire squeegee head is lifted by SW operation for easy removability of the squeegee and for easy remove of the screen frame.
• High-speed printing is possible at cycle time of 7.5 sec. (At squeegee speed 270 mm/sec).

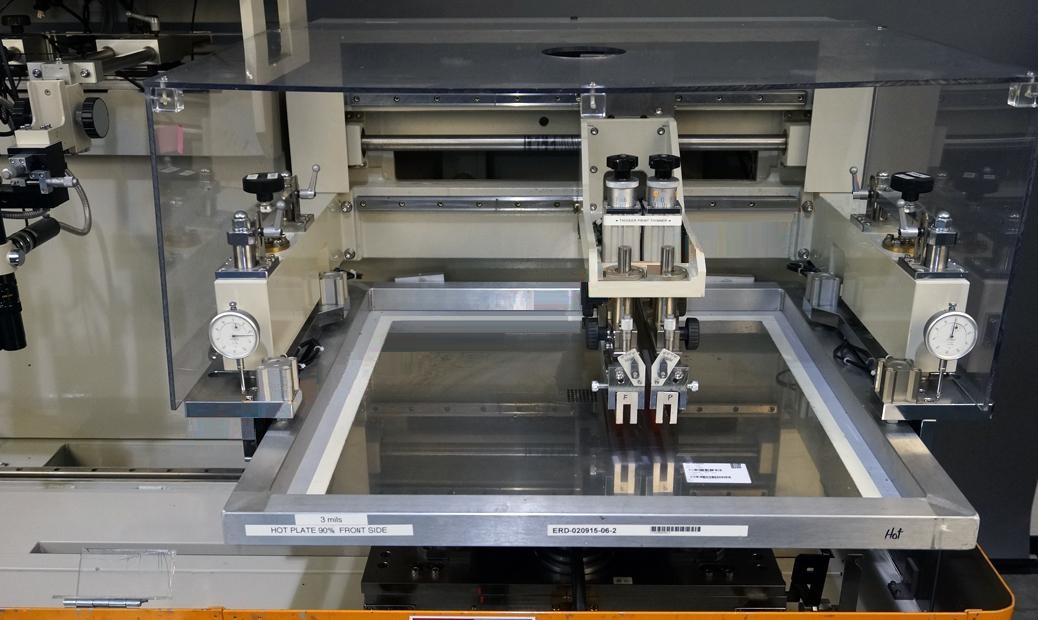

• The screen frame is easily inserted by sliding action and it can be installed by one-touch control.
• Easy selection of various printing mode.
• Standard printing.
• Double squeegee mode.
• The table moves horizontally from side to side, so safe and compact machine layout becomes possible.
• Metal mask stencils can be used for S.M.T. application

Printing parts

• Printing area 300x400 mm(Max)
• Screen frame size 550x650 mm650x750 mm
• Table size 450x550 mm
• Squeegee speed 40~300 mm/sec
• Printing pressure 0~0.4 MPa(Variable)

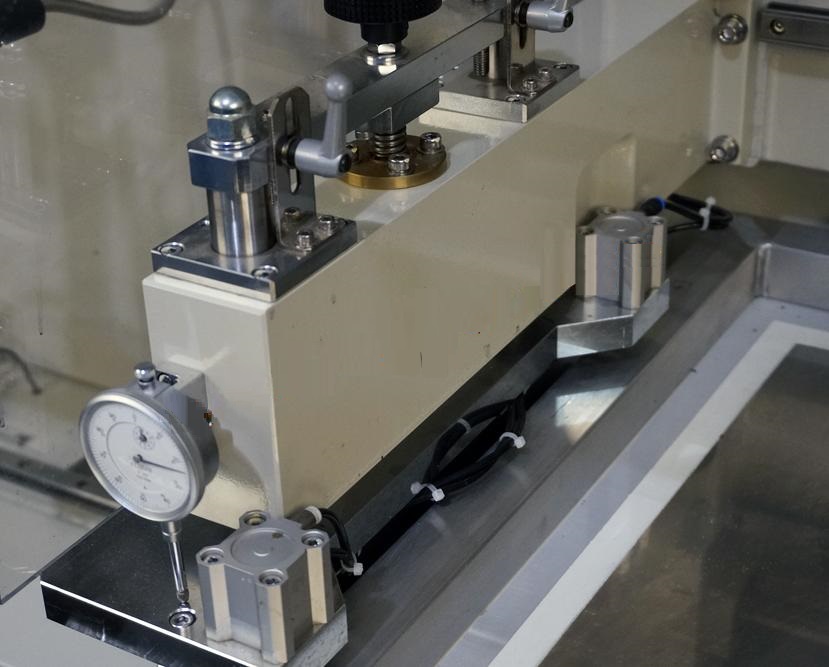

• Positioning (Fine adjustment of screen frame) 1)X,Y direction 10 mm2)Theta direction ±3°
• Clearance adjustment Z direction 20 mm
• Machine repetition precision ±0.01 mm
• Power requirement AC200V 3 phases1.0 KW
• Air pressure 0.5 MPa or more20 L/minute(ANR)
• Machine's weight about 800 kg
• Machine's dimensions (W)1840x(D)1080x(H)1320 mm

Alignment parts

• Camera Use CCD
• Optical field range 3x4 mm (at 40 times)
