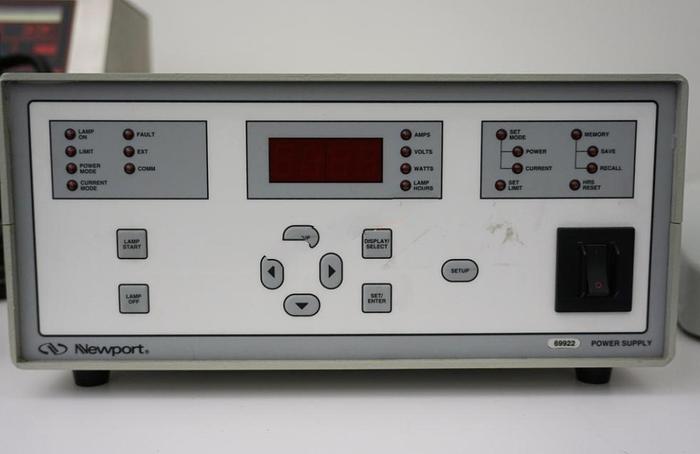

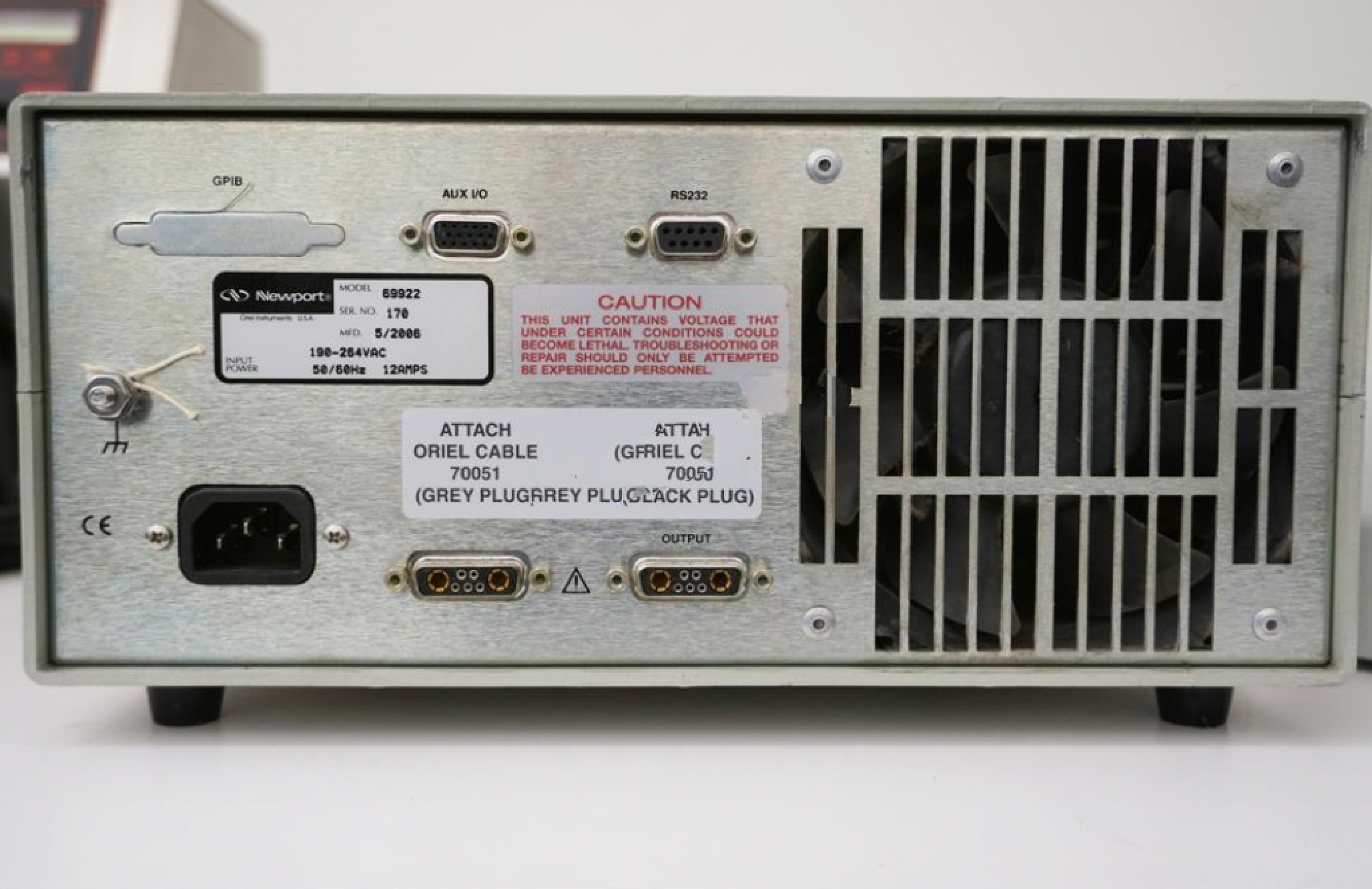

Newport 69922 arc lamp power supply 800-1800watts

The 69922 Universal Arc Lamp Power Supply is used to power 1600 W Solar Simulators. It is highly regulated and maintains a very stable light output.

For long-term stability-critical applications, order the 68951Digital Exposure Controller. It compensates for factors beyond the power supply's control, such as lamp aging, electrode erosion, and gas adsorption and desorption. The 69922 has an RS-232 computer interface (and optional IEEE-488);

you can set the lamp parameters, monitor the light output, and turn power on/off remotely.

Because of the extremely high intensity of these sources, we suggest operating the lamps remotely. 800 to 1800 Watt.

Technical Specs

• Lamp Wattage
• 800 - 1800 W

• Operating Mode
• Constant Power or Constant Current
• Light Ripple
• < 1% RMS
• Digital Meter Resolution, Current
• 0.1 A
• Digital Meter Resolution, Power
• 1 W
• Digital Meter Resolution, Voltage
• 0.1 VDC
• Accuracy
• < 0.1% (% full scale)
• Line Regulation
• 0.01%
• Power Requirements
• 190 - 264 VAC, 47 - 63 Hz
• Operating Temperature
• 10 - 40°C
• Safety Interlock Voltage
• 12 VDC/GND
• Input Circuit Breaker
• 15 A, 2 Pole
• Dimensions
• 16.0 x 12.0 x 5.18 inches [406 x 305 x 131.6 mm] (L x W x H)
• Weight
• 20 lbs. [9 kg]
