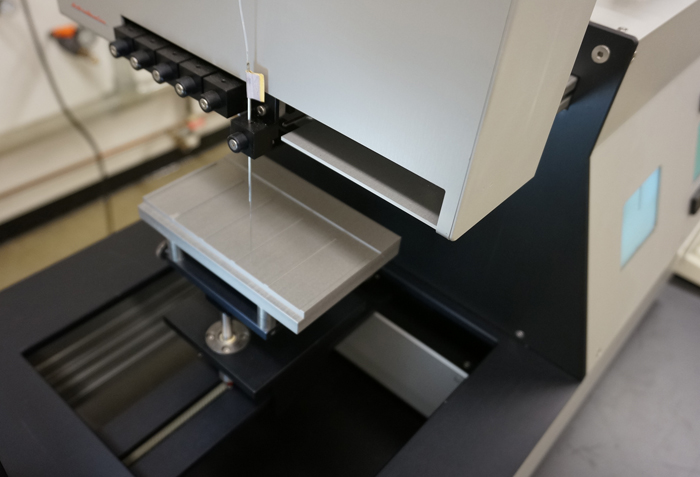

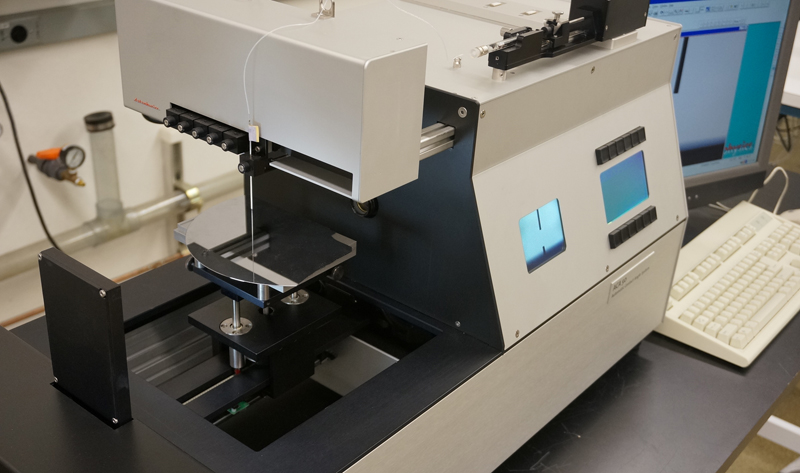

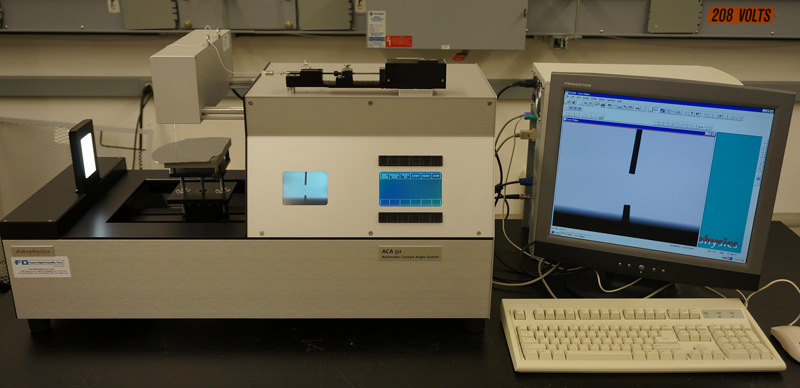

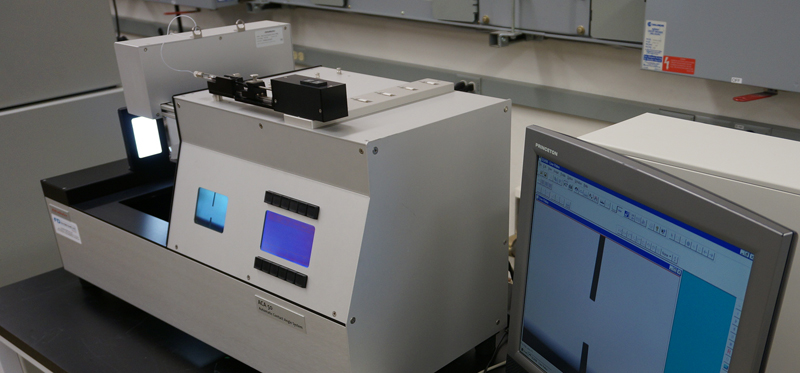

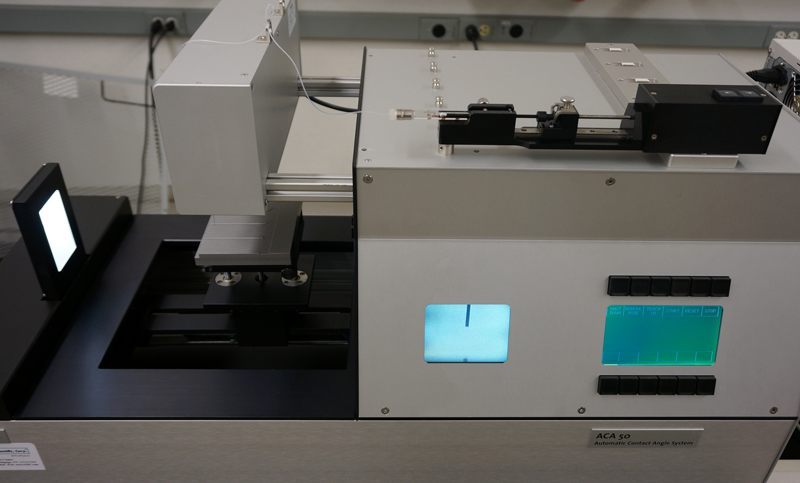

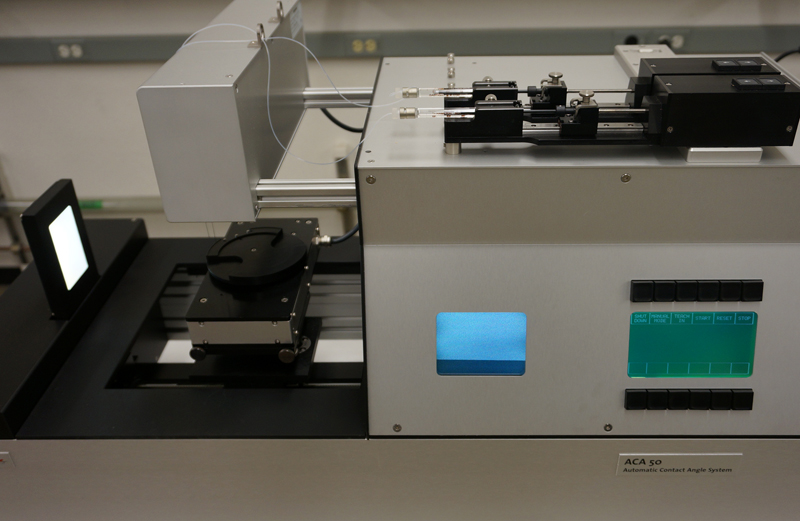

DataPhysics ACA50 Dynamic Contact Angle with programmable stage

Fully automatic and programmable video based measurement of static and dynamic contact angle according to the Sessile and Captive Drop Method.

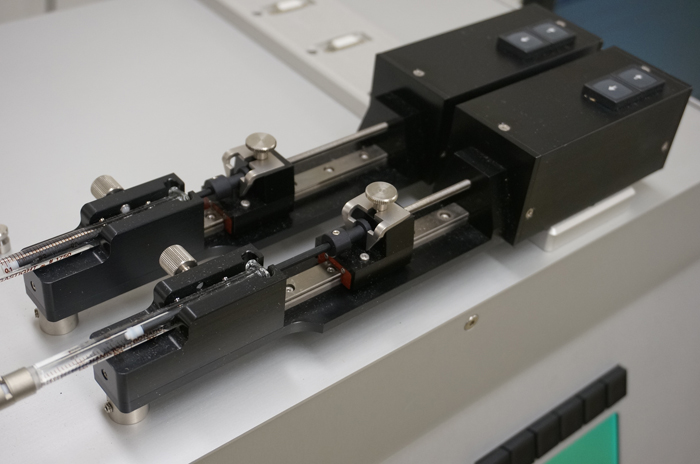

Multiple dosing unit holds maximum of 6 ES-A electric dosing modules.

SCA-50 software package ver. 1.21 Build 74

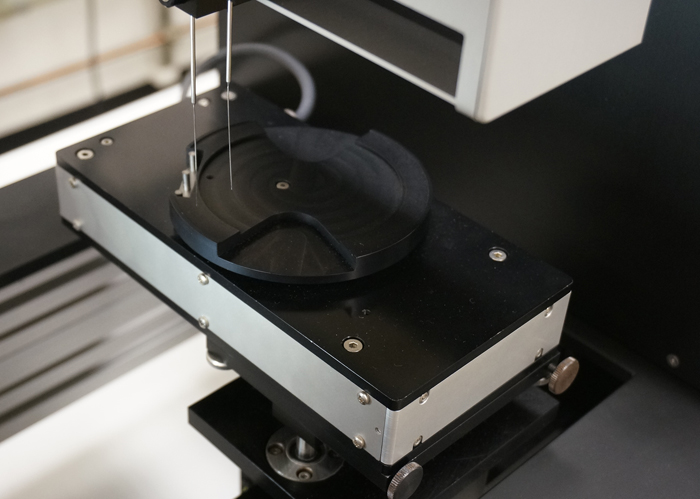

WT200E motorized measuring stage adjustable in 3 axes.

Lens mount with motorized adjustable tilt.

Motorized zoom with software controlled aperture, magnification, and focus.

High resolution CCD camera with video frame grabber.

Windows NT 4.0 running full graphical user interface with 32 bit software.

Analysis of drop according to Pendant Drop method.

Multiple sample holders available including 100mm, 150mm and 200mm wafer holders.  Specify size required.
