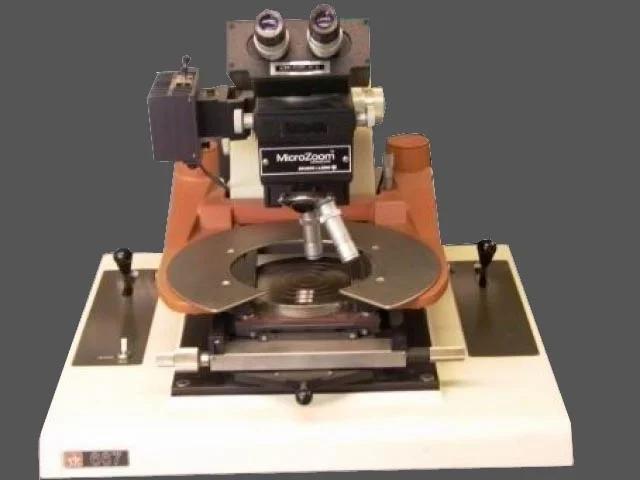

Rucker & Kolls 667 Prober

6"MANUAL PROBE STATION WITH MICRO ZOOM OPTICS AND 2 OBJECTIVESThe R&K 667 is a part of the advanced 600

Series of probers from Rucker & Kolls.

This series is based on a universal probing

concept for full spectrum evaluation/functional/failure

analysis probing capability on devices ranging from

discrete to VLSI.

The R&K 667 offers a full six inches of X-Y travel,

and can be used with probe cards, manual micropositioners

OR both positioners and cards simultaneously

including fine-adjust “diagnostic” probes

The R&K 667 incorporates ring carrier design and the proven

R&K dual post support system for raising and lowering probes (Z motion).

In addition, the R&K 667 is thoughtfully human

engineered for optimum operator convenience and

performance. Z-motion is deck mounted and duplicated on each side of the probe station for either right,

left or both-hand operation. X and Y motion of the stage is controlled by dual knobs on front side of stage.

Model 667

Manual Analytical Prober

Model 667 comes equipped with B&L Micro Zoom optics for magnifications up to 2000X.

Optional low-profile ring carrier provides clearance for hi-X optical turrets and accepts up to

eight plug-in test leads for Model 329 diagnostic probes. For a complete description of R&K

analytical prober configurations.
