Instec Cryostage HCS622V for Photon Systems Mini PL 5.0 Raman Spectrometer Temperature range -190C to 600C

Cryo stage (Instec HCS622V)

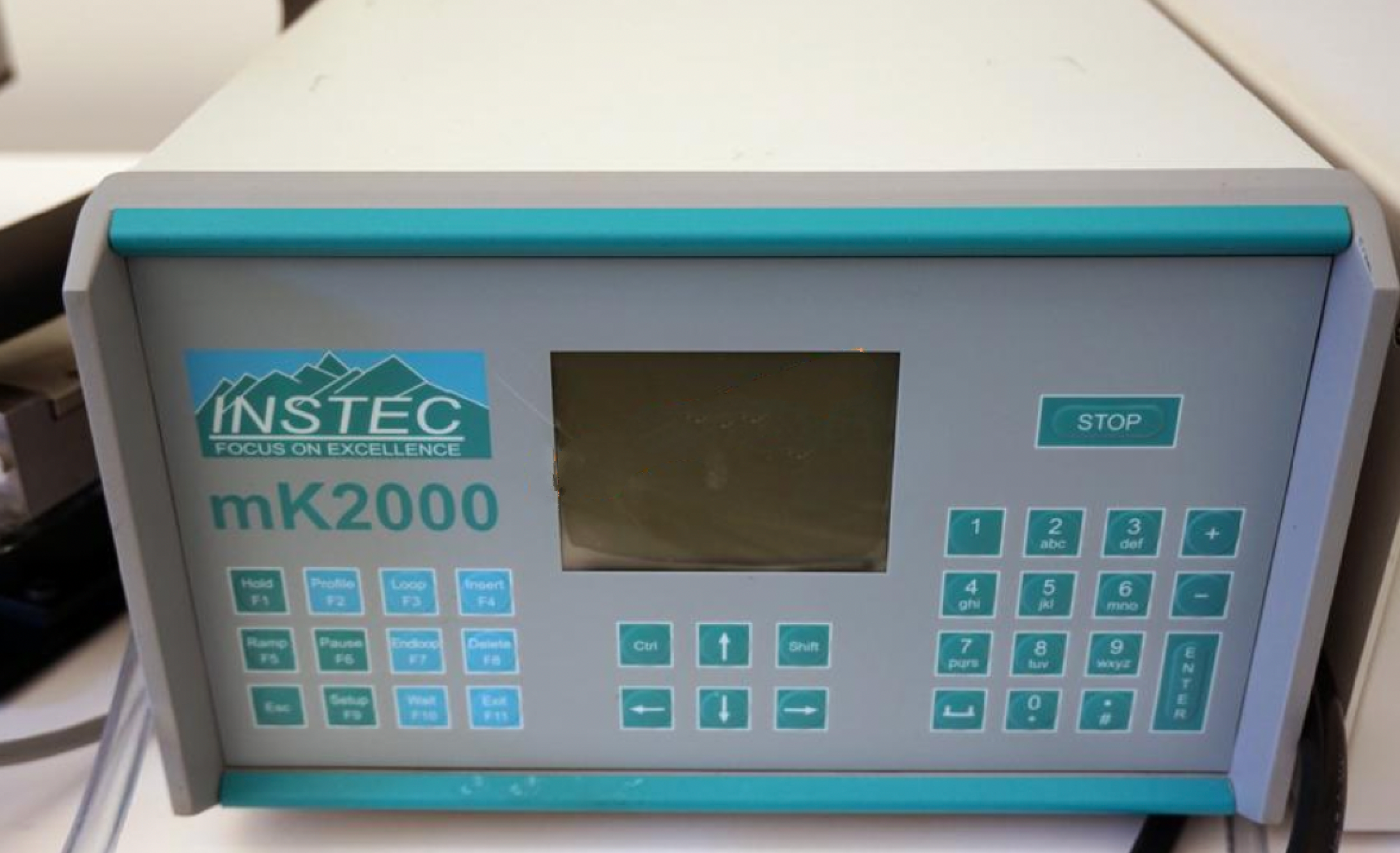

MK2000 temperature controller

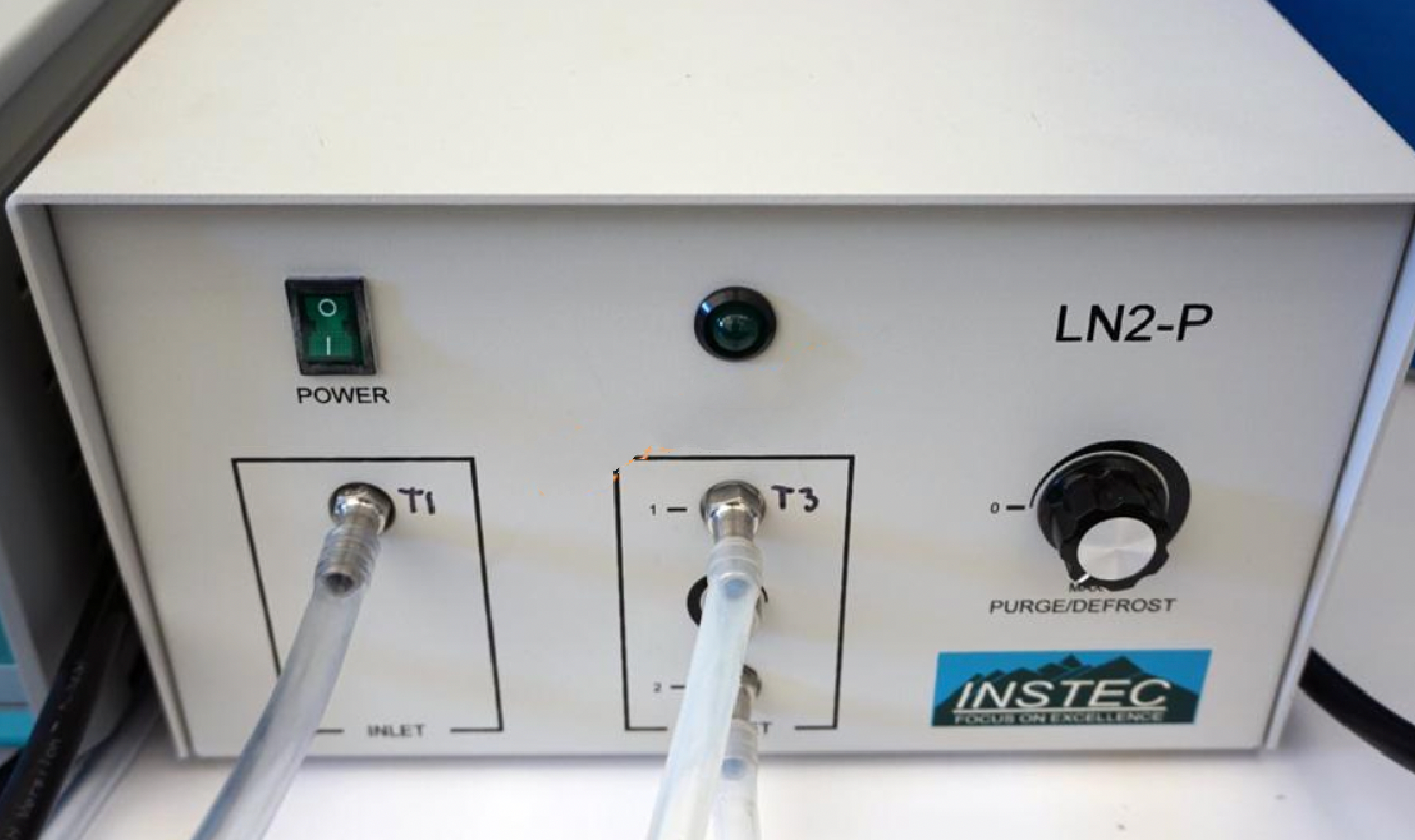

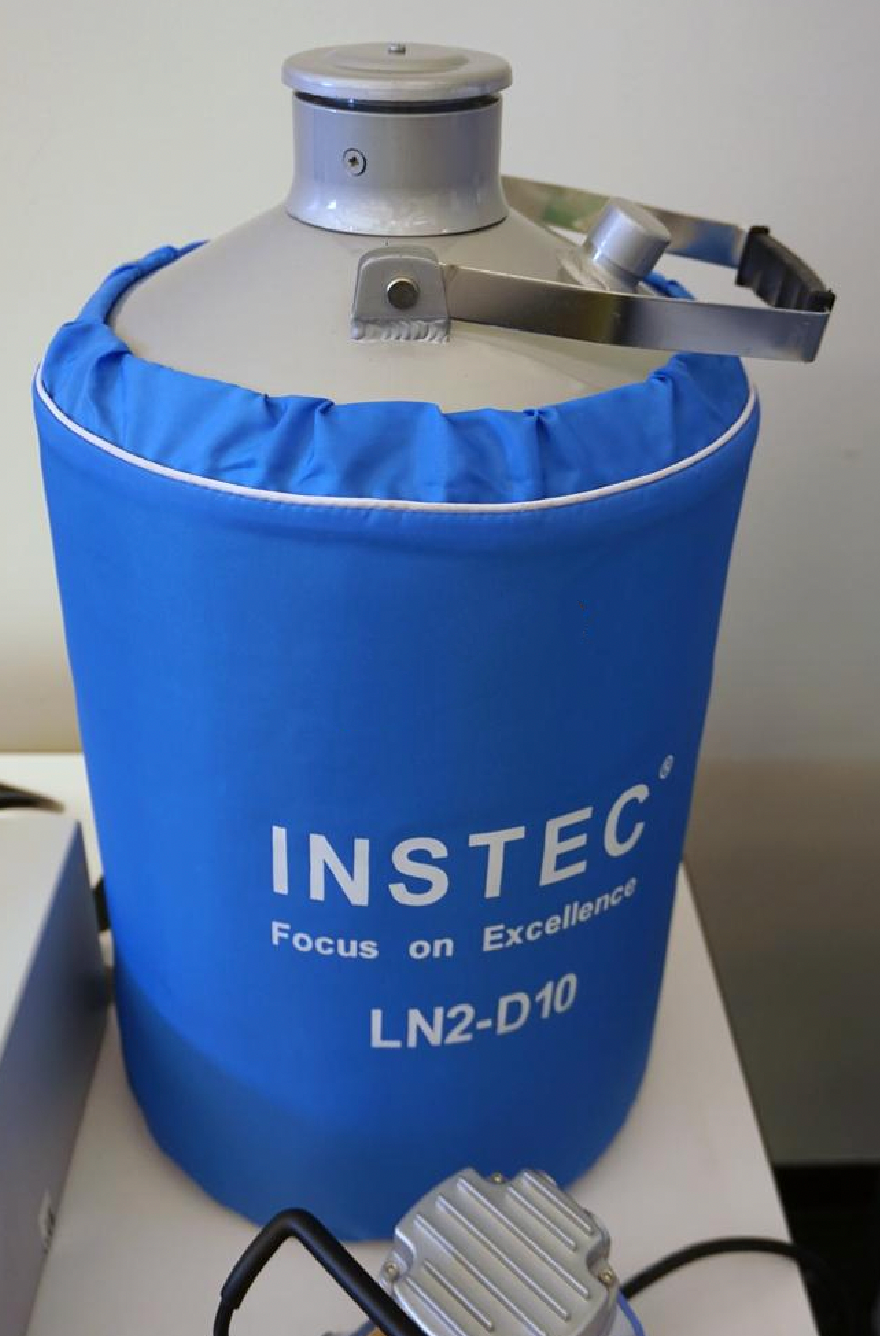

LN2-P2A liquid nitrogen controller with dewer

Technical Specifications:

Temperature Range -190°C to 600°C

Below ambient operation requires optional cooling accessory

Temperature Resolution 0.01°C

Temperature Stability ±0.05°C at 100°C

Minimum Heating and Cooling Rate ±0.1°C per hour

Maximum Heating Rate +180°C per minute at 100°C

Maximum Cooling Rate -60°C per minute at 100°C

Temperature Control Method Switching PID

Temperature Control Sensor 100 Ω Platinum RTD

Minimum Objective Working Distance 5.5 mm; 5.2 mm with XY

Minimum Condenser Working Distance 15.4 mm; 11.8 with XY Sample Area 38 mm x 38 mm

Chamber Height 3 mm

Sample Viewing Aperture 2 mm for transmitted light

26.5 mm for reflected light Vacuum Port (vacuum-tight models)

KF25 X-Y Micropositioner (optional) 10 μm resolution

Weight 1,050g; 1,350 g with XY
