1996 AMAT Centura HDP→5300Omega
1996 AMAT Centura HDP→5300Omega
Contact us for price
Description
As is, where is
2ch:SiO2 D/E CH-A/B
Process Contact window dry etching
Wafer Size 8”
Wafer Shape Notch
Wafer Cassette 8" Plastic Miraial
SMIF Interface NO

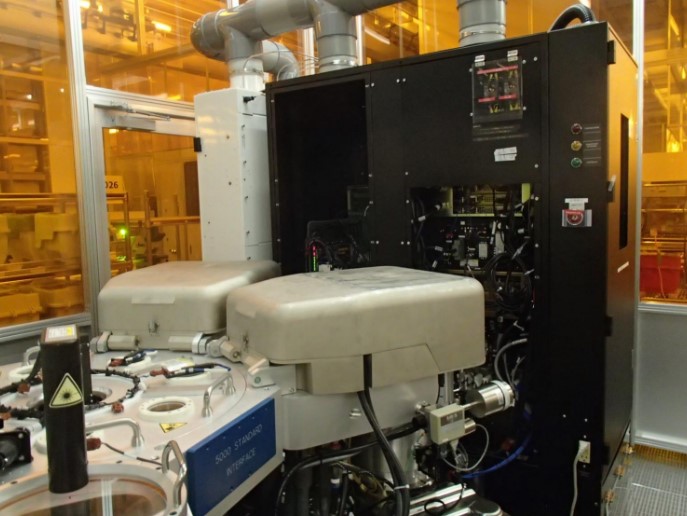

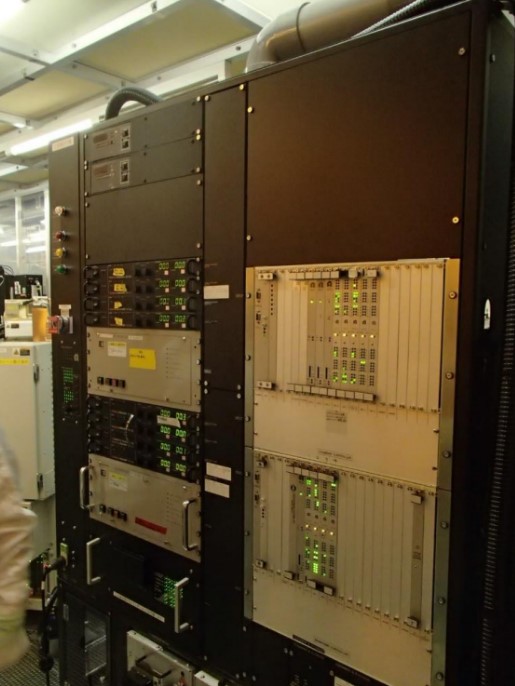

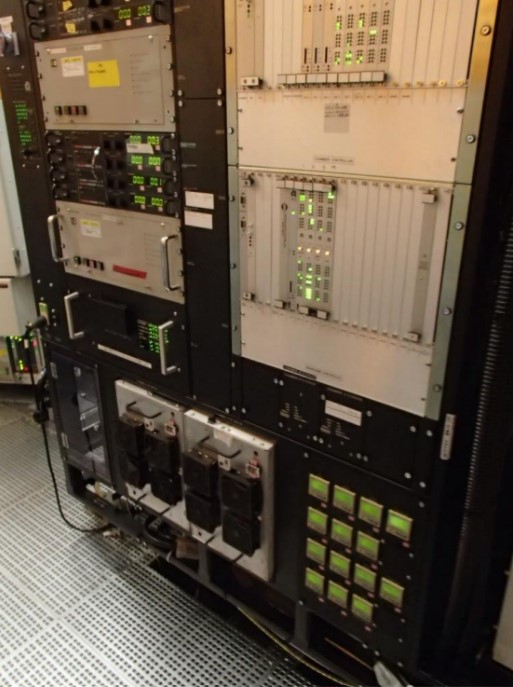

Equipment composition 1.Equipment body
2.Primary AC box
3.Rf Gen
4.Heat exchanger/Chiller
1.Equipment body

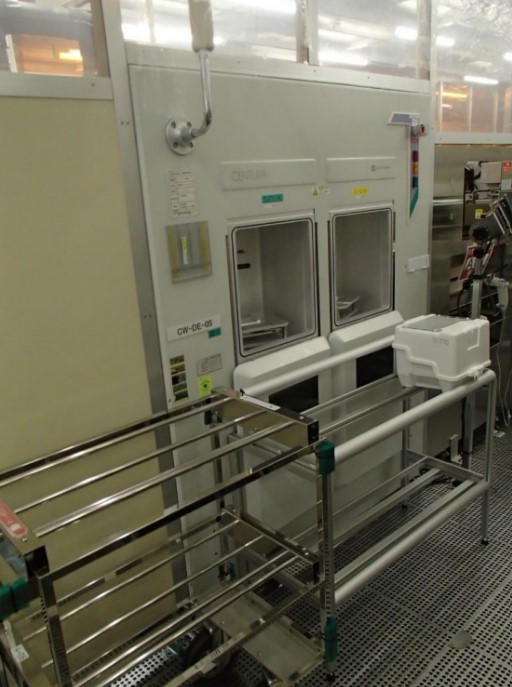

1-1 L/L Chamber 2Module (right L/L,Left L/L) 1L/L-1Casset
Cassette platform Vertical movement Compatible cassette:Fuluoroware A-192
Material Aluminium

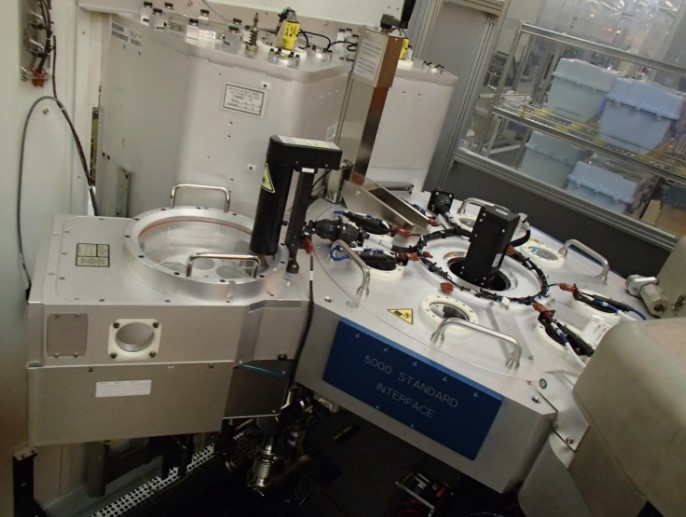

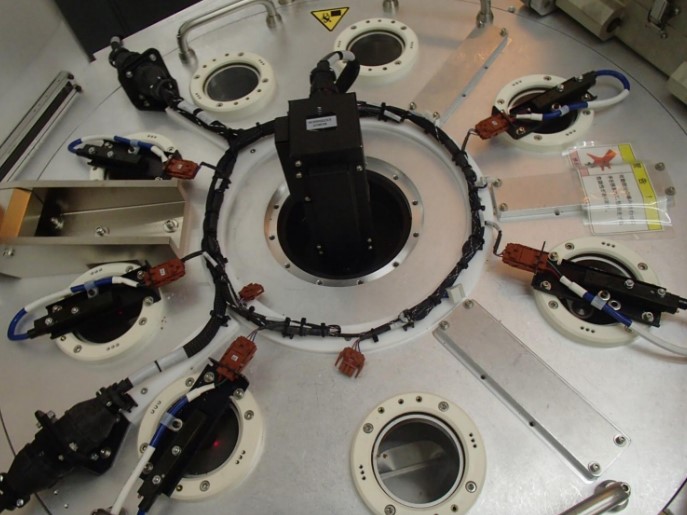

1-2 TM Chamber 1Module
Wafer transfer robot Magnet coupling method High vacuum compatible wafer transfer robot
Wafer transfer by rotation and expansion / contraction
Material Aluminium
1-3 Wafer orienter Mounting position Position F
Compatible with orientation flat and notch type wafers
Flat, notch position and center position detection function by CCD sensor

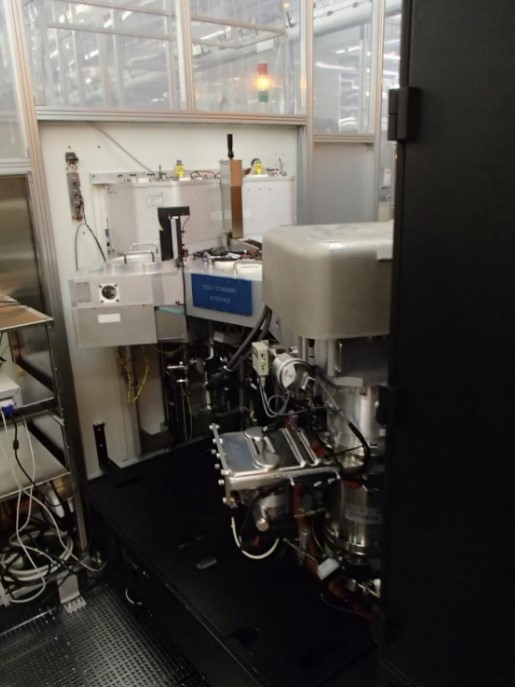

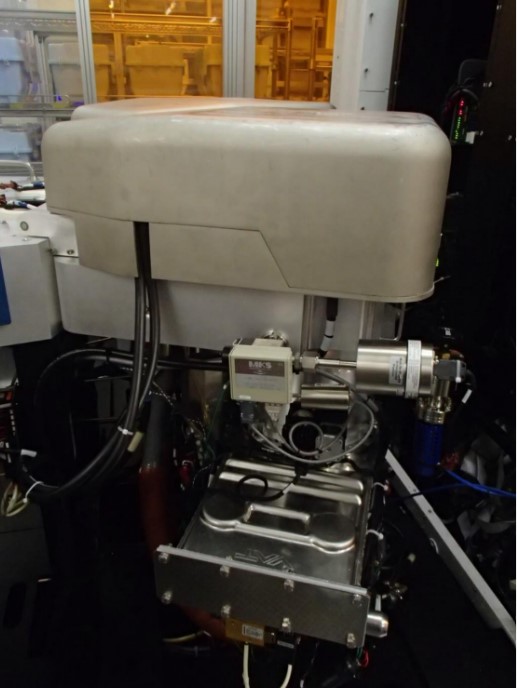

1-4 Process Chamber Chamber concept Multi-turn antenna Inductively coupled plasma source
Variable bias RF power(Independent control of ion density and ion energy)
Wafer holding mechanism Electrostatic chuck
Wafer cooling system Helium Pressure Controlle
Temperature control Closed loop temperature control with thermocouple
Material Aluminium
1-5 Gas Panel MFC Model AERA FC-770AC
Gas Type(8Line+N2) 1 C2F6:50
2 C3F8:50
3 C4F8:20
4 N2:200
5 N2:200
6 O2:1000
7 Ar:200
8 -
N2

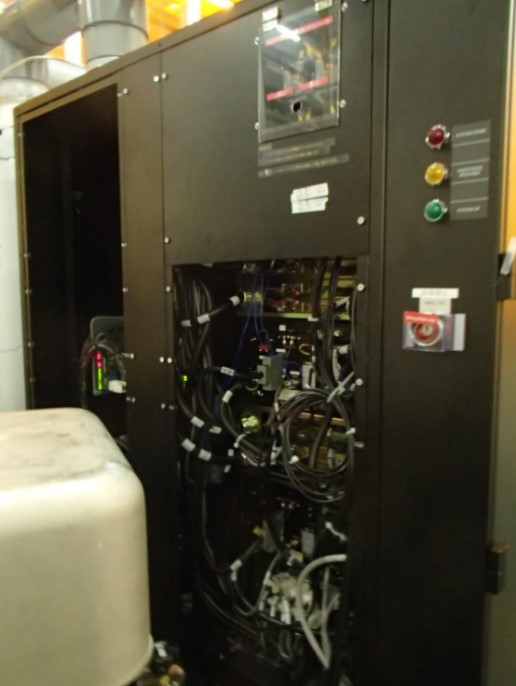

1-6 Secondary AC box specifications
200VAC,3P-Δ 4Line,110A,50/60Hz Primary AC Box~Secondary AC Box
Main circuit breaker
24V Power supply
EMO
100V Service outlet

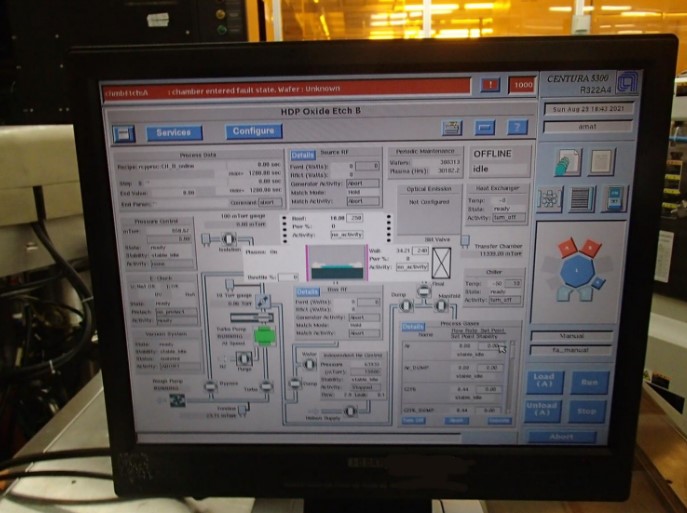

1-7 Control system MasterFab Central Controller
Object-oriented interface
Software R264
Hardware SUN MICRO SYSTEM SPARC STATION 5Work station
1-8 Other RF Matching box High-speed matching by solid state with no moving parts
Dual RF matching system
2.Primary AC box 200VAC,3P-Δ 4Line,225A,50/60Hz Primary side~Primary AC Box
Power distribution to each facility module of this system
Main circuit breaker
24V Power supply
EMO
Earth leakage relay system Operates for leakage of 100 mA or more
100V Service outlet
3.RF Gen ETO 80S-03
Dual RF system Source RF:Frequency 2.0Mhz Max Power 4000W
Bias RF:Frequency 1.8Mhz Max Power 2000W
RF oscillation power supply:200/208VAC,3P-Δ 60A,50/60Hz
Cooling method:Self-water cooling system with DI water circulation
4.Heat exchanger/Chiller BAY VOLTEX :
TEMPRYTE LT-HRE 1650-4580-MC-
DC-AM-FLT
Chiller:Coolant circulation system(GaldenHT-200)
Heat exchanger:Coolant circulation system(GaldenHT-70)
Specifications
Manufacturer | AMAT |
Model | Centura HDP→5300Omega |
Year | 1996 |
Condition | Used |
Stock Number | BM2215 |
