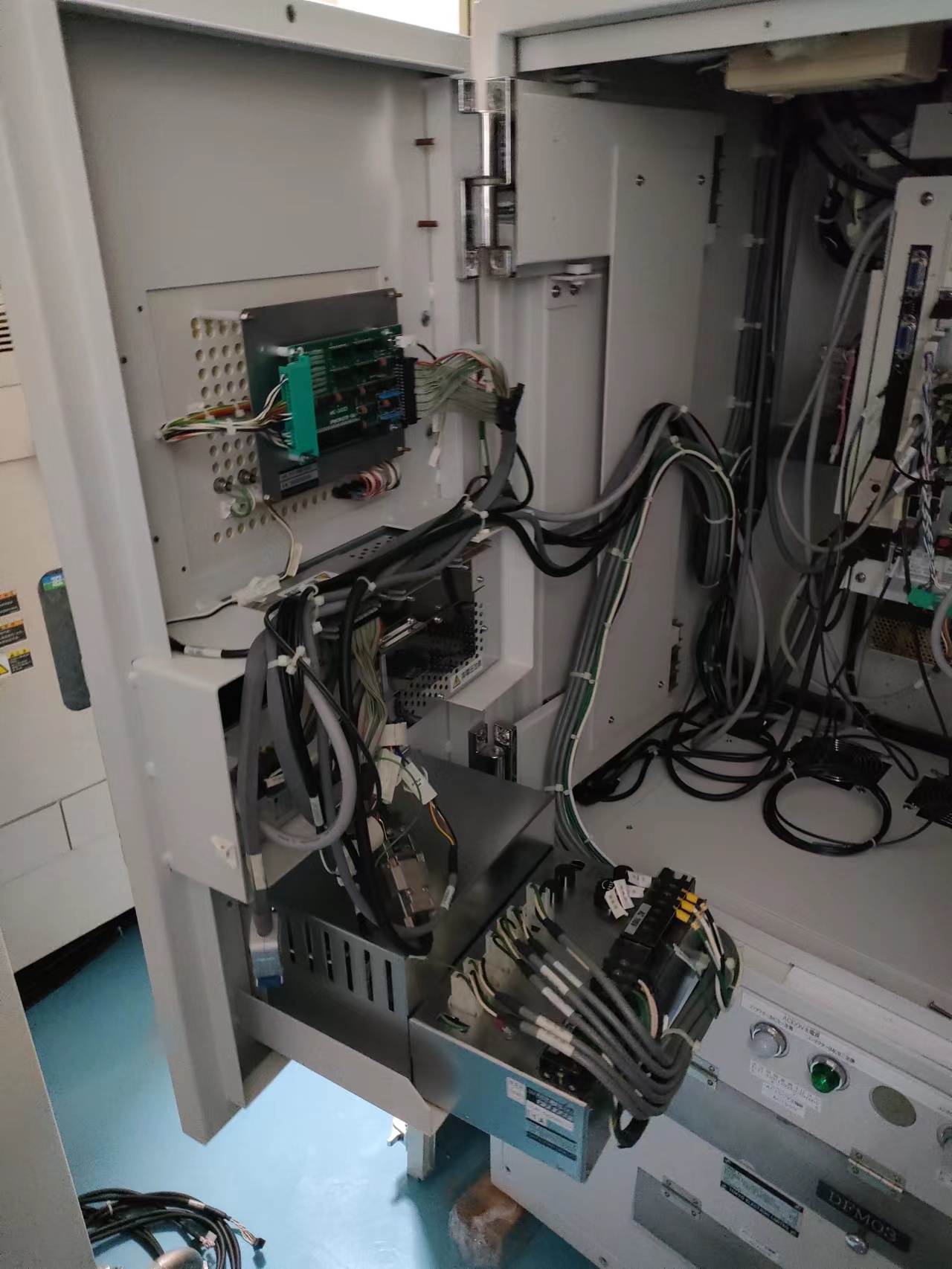

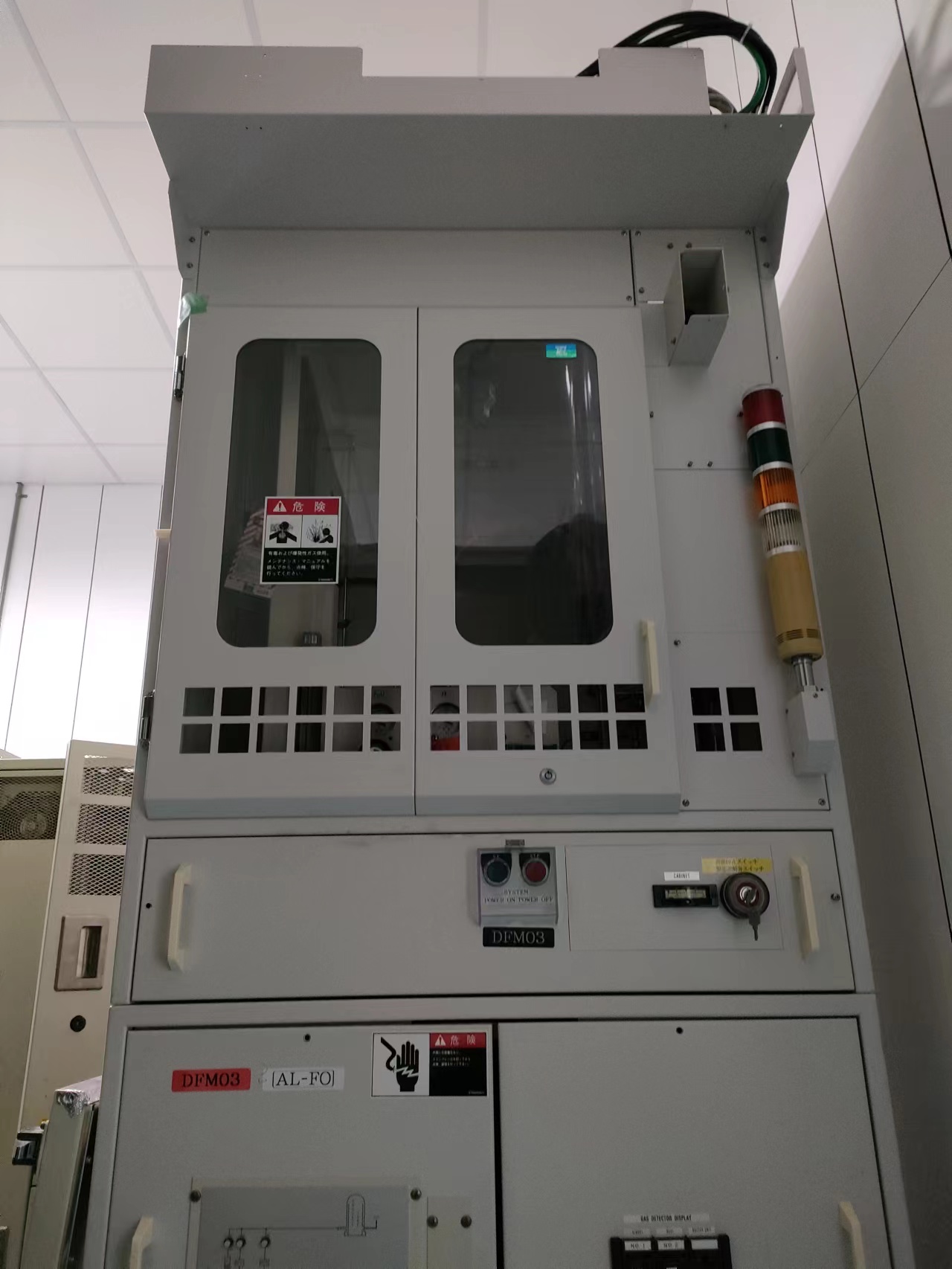

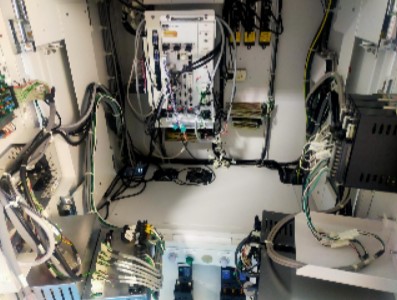

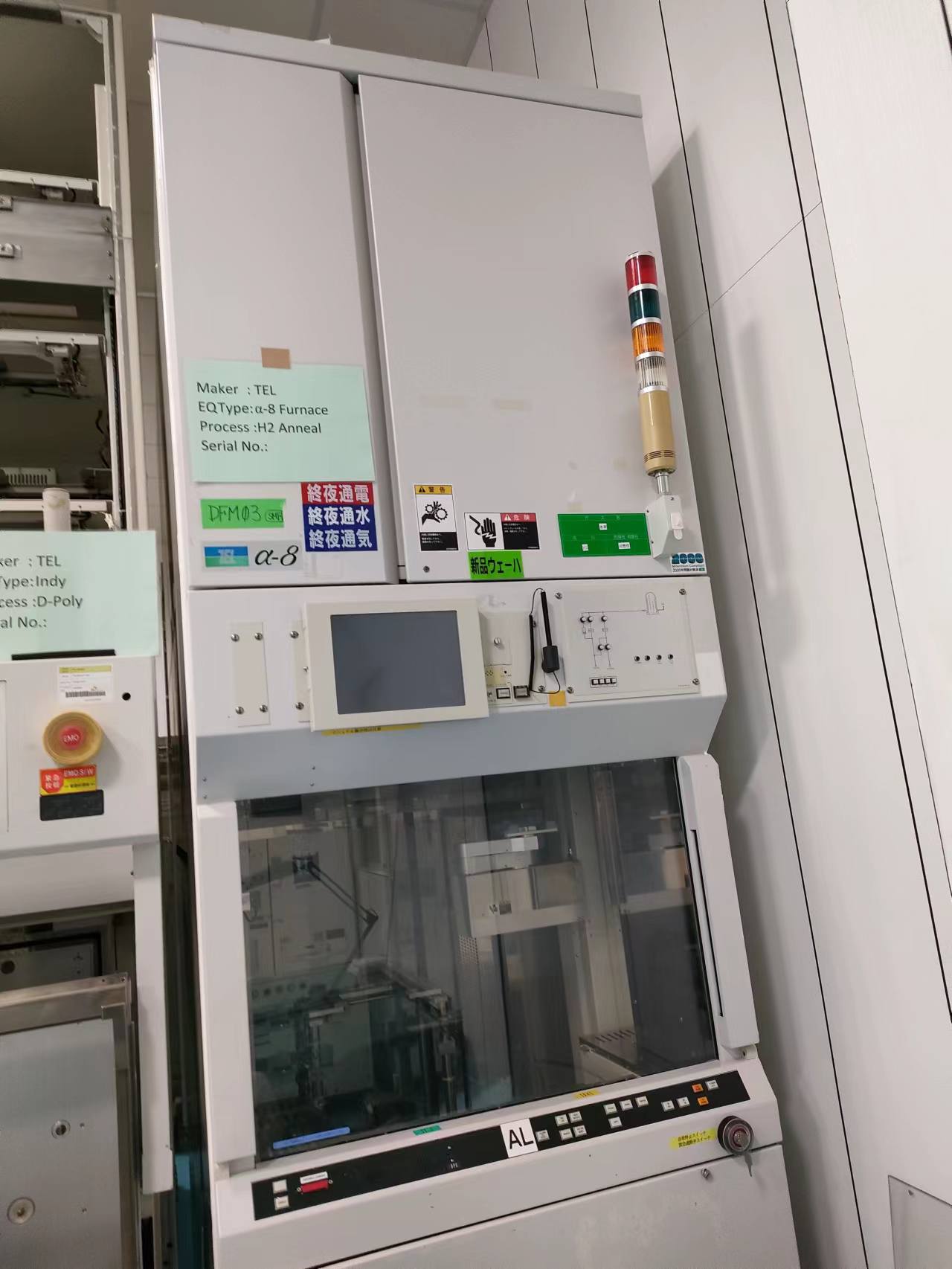

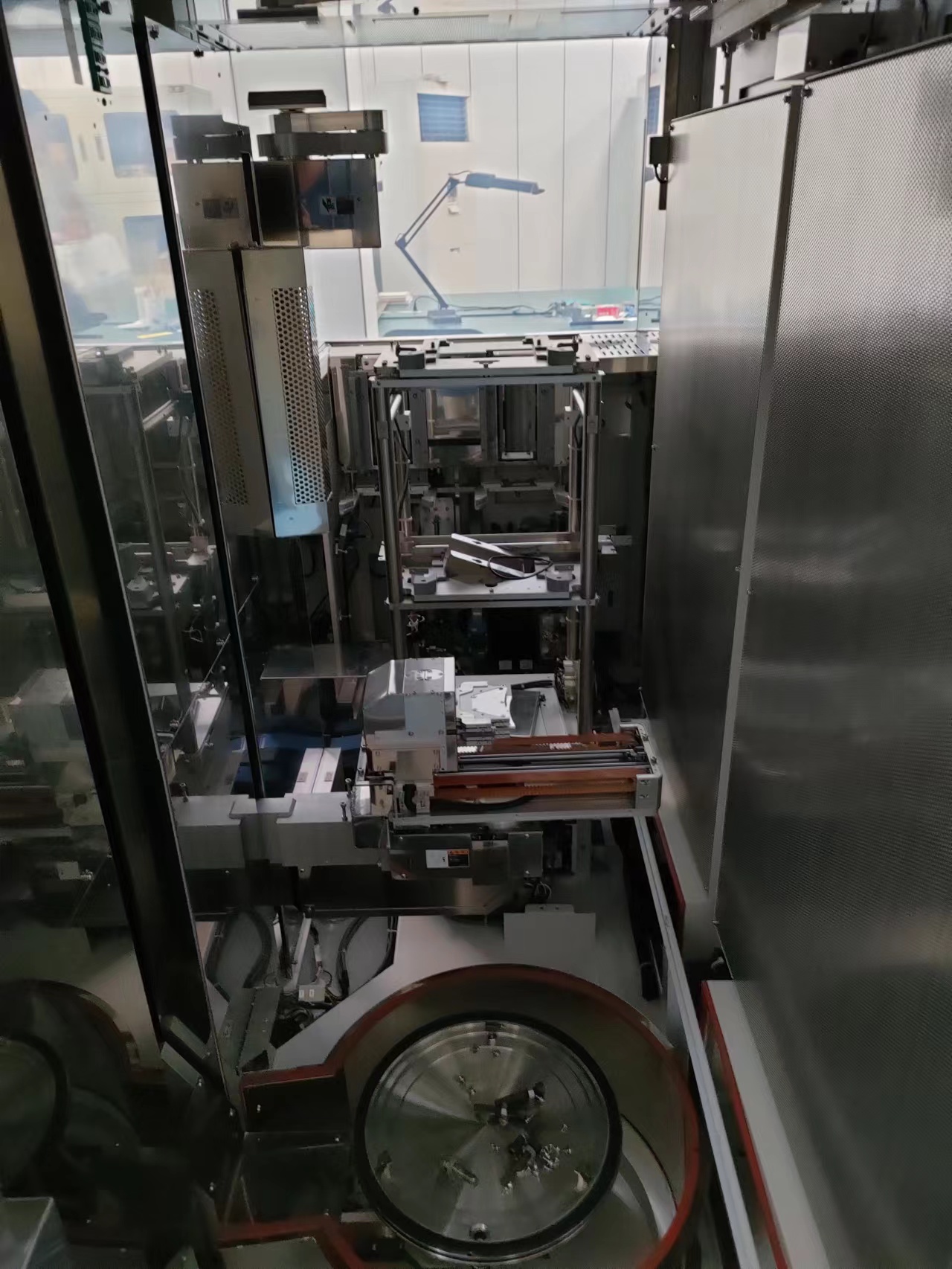

TEL Alpha-8

As is condition

General Configuration:

Process ALLOY

Wafer Size 200mm

Process Wafer Qty 126

Process Type ALLOY

I/O Port / Smif I/O port

Load Lock NO

Carriet Slor 25 Slot

boat type Single

System Control:

System Controller PS4100Z

Operation Screen Touch Screen

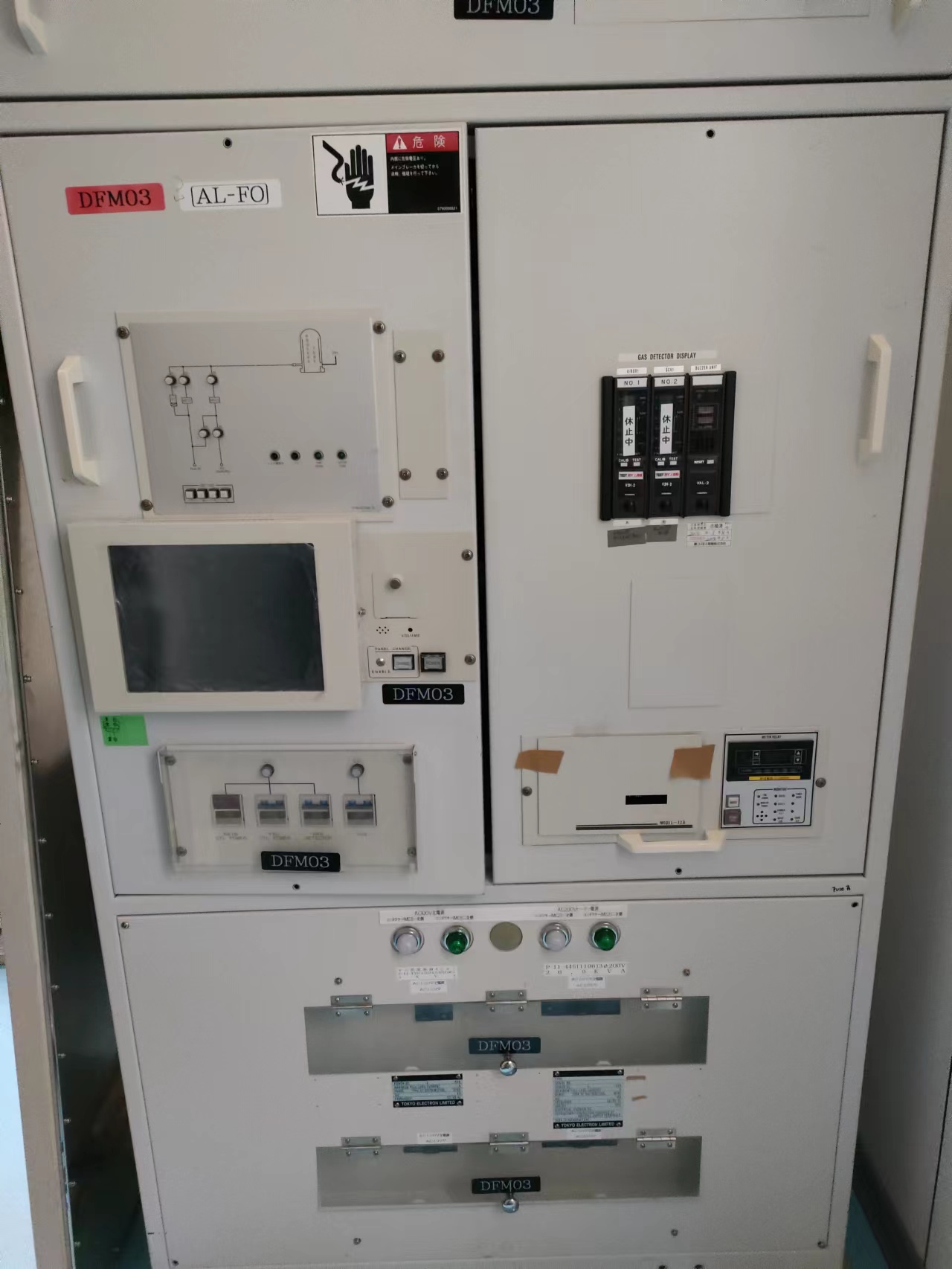

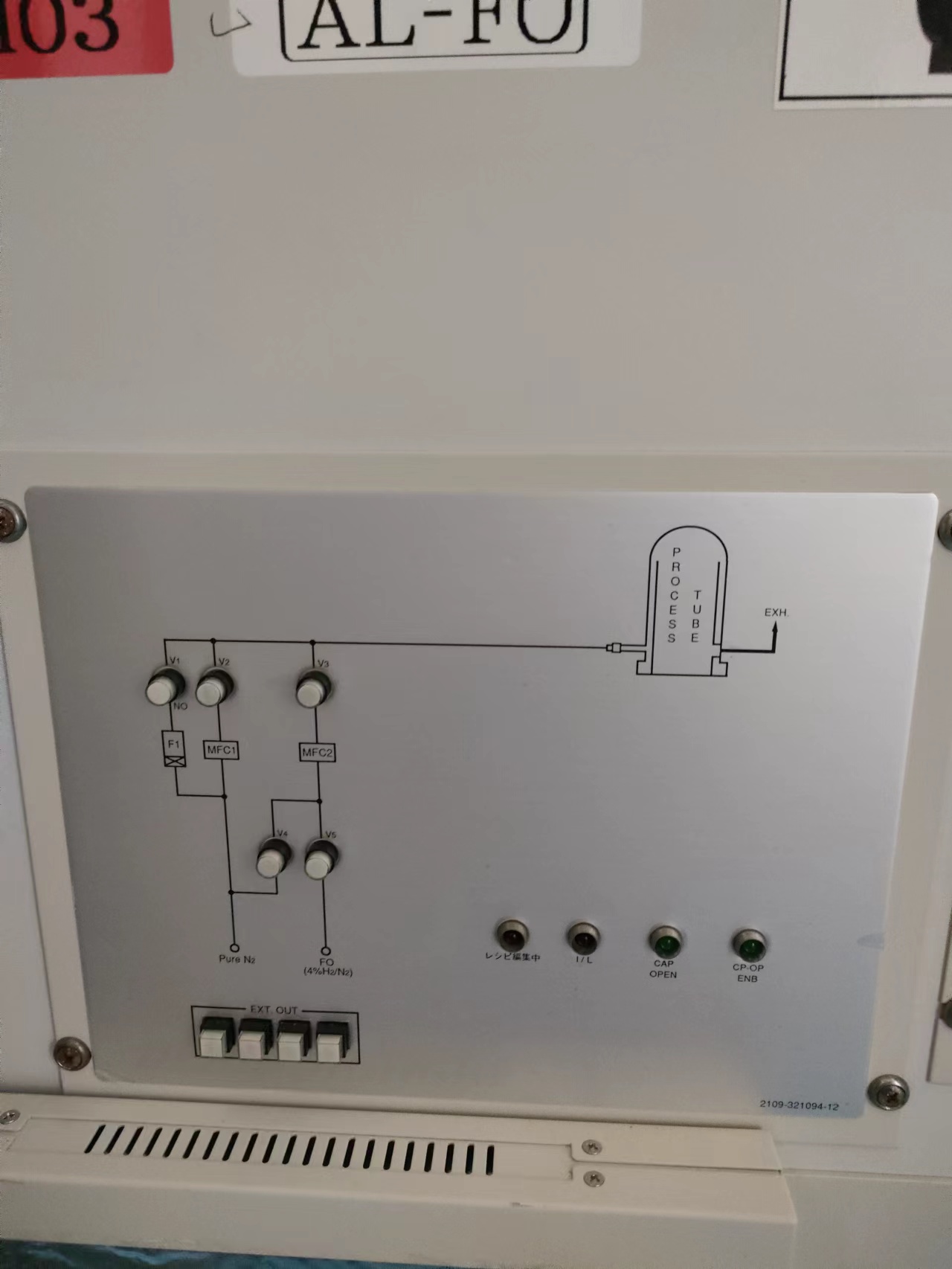

Gas Flow Chart (Fornt & Rear) ◎ ◎

Temperature Controller M120

Vacuum Pressure Control N/A

Controller Transformer 1Φ 208V

Heater Transformer 3Φ 208V

Oxygen Analyzer N/A

HEC Pyro Ctl N/A

Process Gasses Available None

1 Process Gas 1 PN2

2 Process Gas 2 FO(4%H2/N2)

3 Process Gas 3 ---

4 Process Gas 4 ---

5 Process Gas 5 ---

6 Process Gas 6 ---

7 Process Gas 7 ---

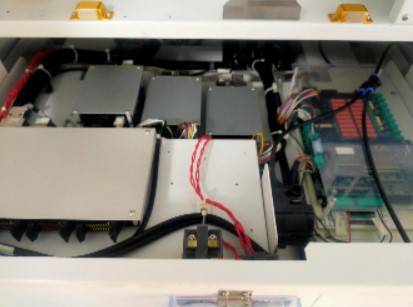

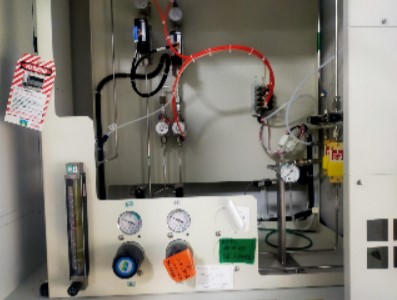

Gas Distrubution System Available None

1 Basic Style Conventinal

2 Tubing Matrial SUS-316L

3 Tubing Finish VCR

4 Manual Valve N/A

5 Air-Operated Valve Fujikin

6 MFC Aera

Exhaust Distribution System Available None

1 Air-Operated Valve Type VCR Connect

2 Main Valve Fujikin

3 Cold Trap ◎

4 Pump Line ◎

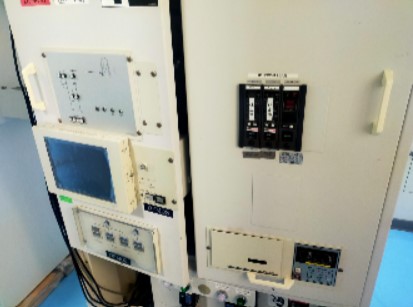

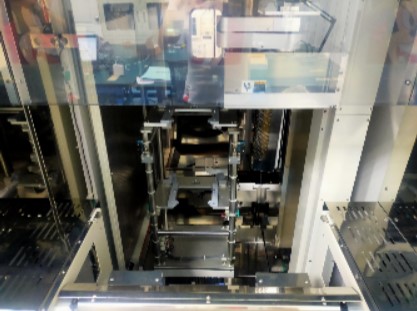

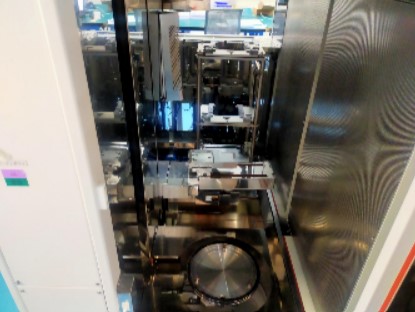

Wafer/Cassette Handling Available None

1 Wafer Alignment ◎

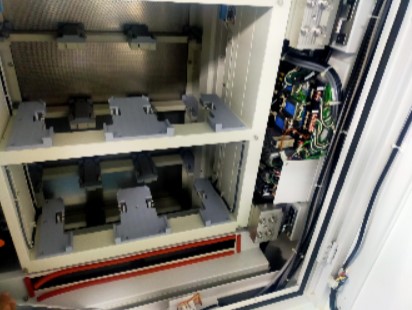

2 Casstte Storage Qty 16

3 Casstte In/Out Port ◎

4 Casstte Handling Robot ◎

5 Wafer Transfer Type 1

6 Fork Matrial Ceramic

7 Fork Qty 1

8 Fork Variable Pitch ◎

9 Fork Wafer Presence Sensor ◎

Elevator Handling Available None

1 Boat Elevator ◎

2 Auto Shutter ◎

3 Boat Rotation ◎

4 Mechanical Parts ◎

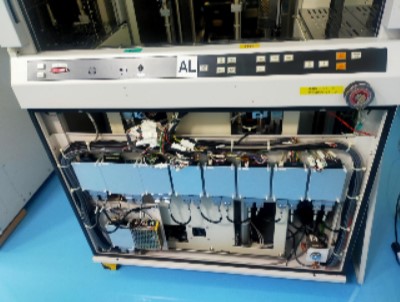

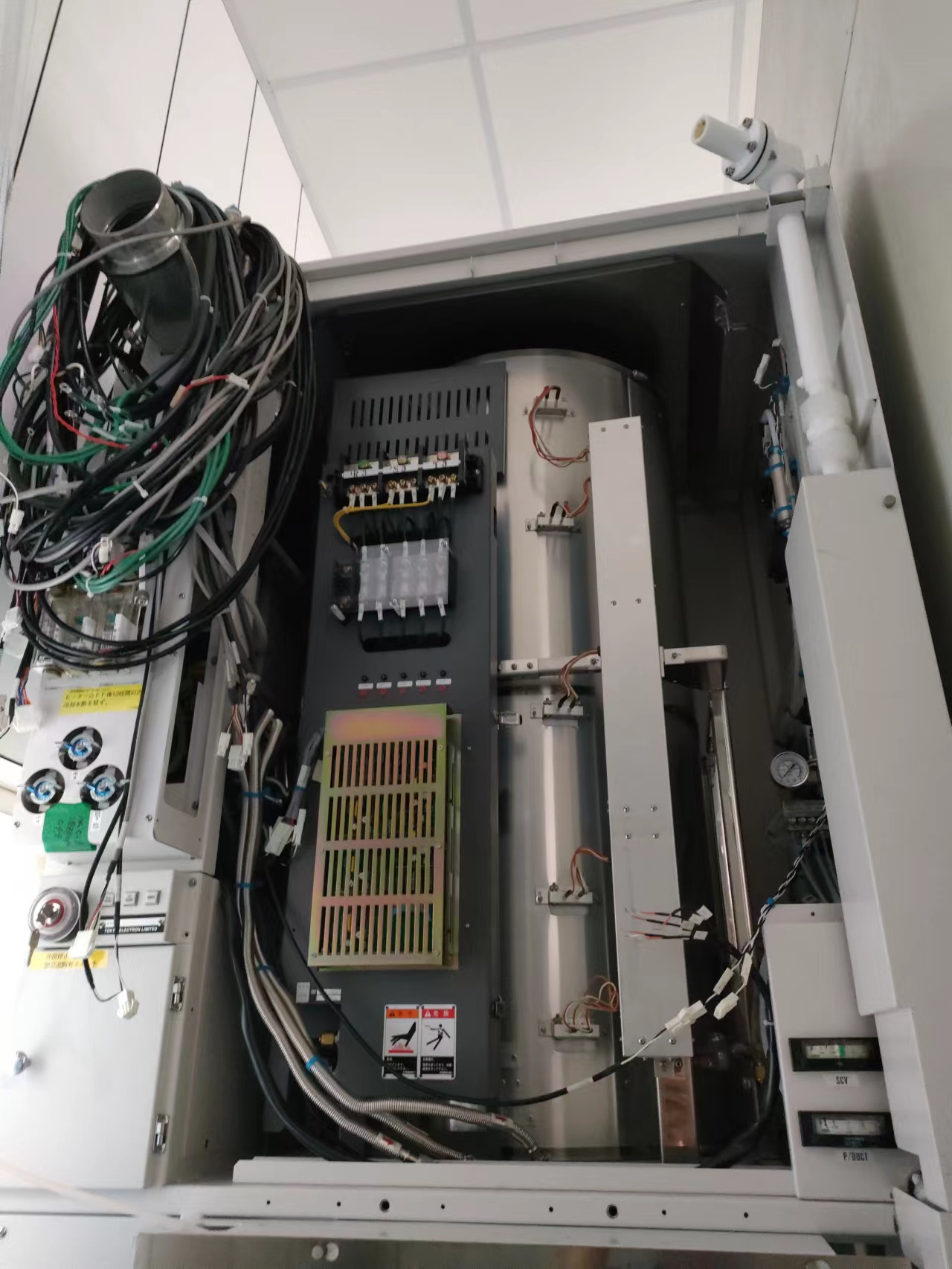

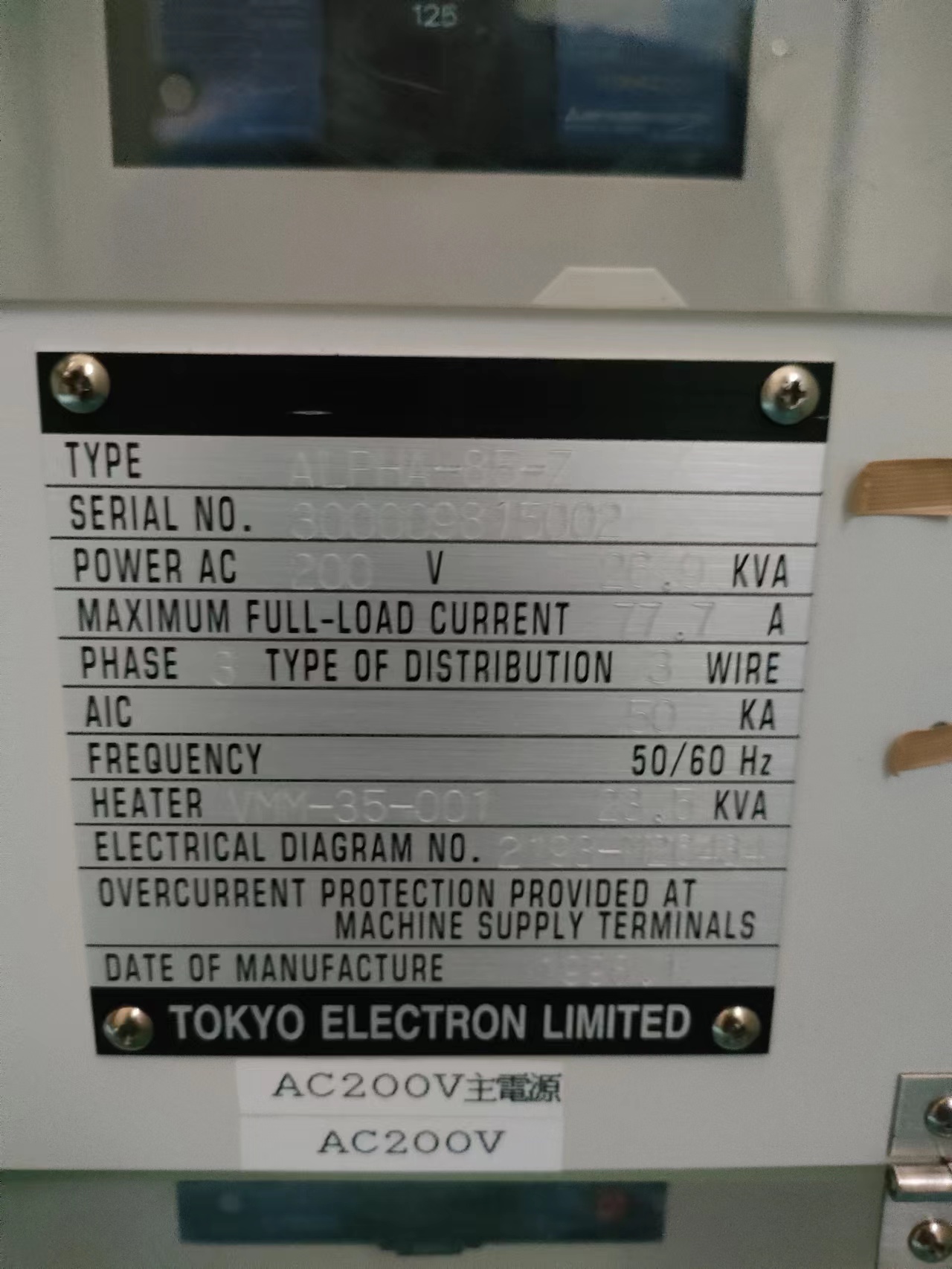

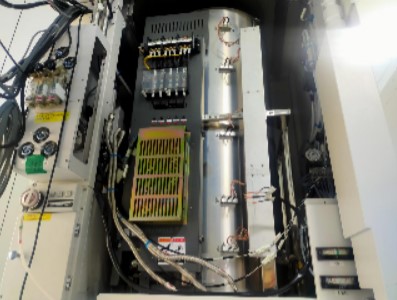

Heating Chamber Available None

1 Heater Type VMM-35-001

2 T/C Type 5

3 Spike T/C 5
