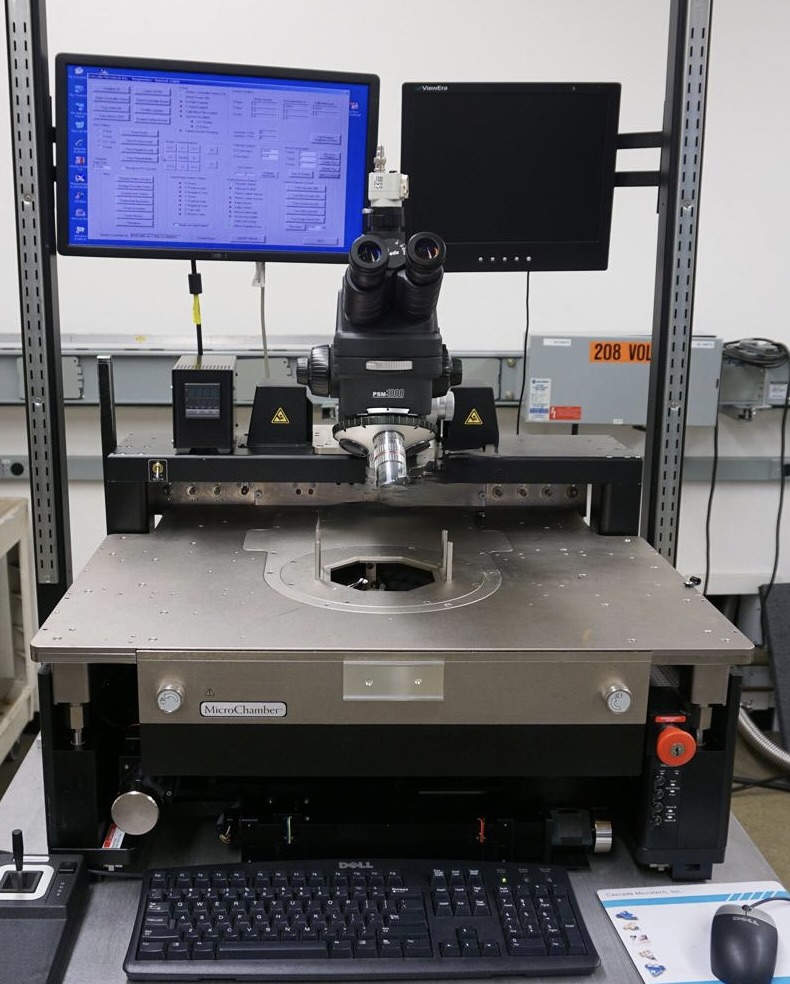

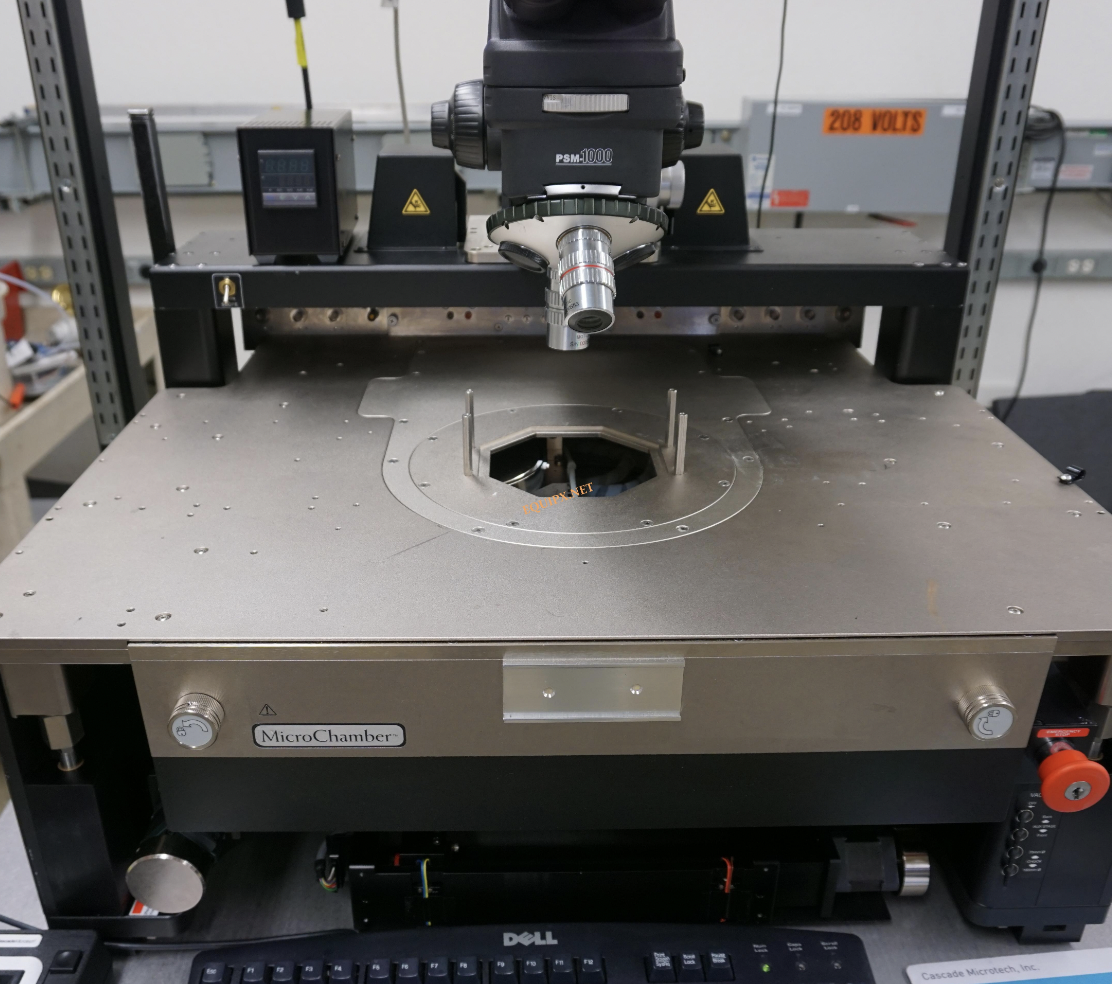

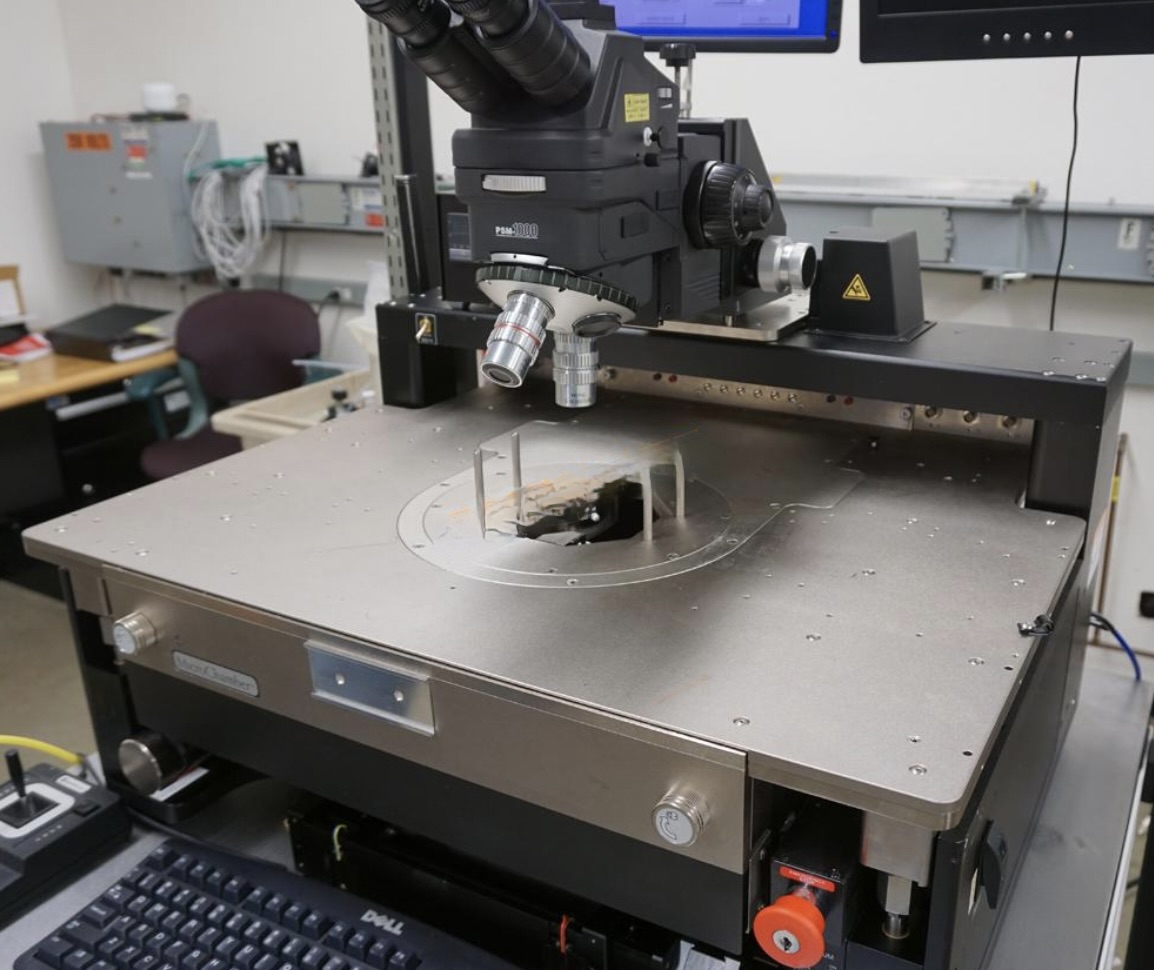

Cascade 12000 semiautomatic prober with 150mm thermal chuck, Motic PSM-1000 microscope and microchamber

High stability bridge mount for optics

Pneumatic microscope lift

Motic PSM-1000 microscope with 5x/10x/20x/50x objectives

Motic Fiber optic illuminator

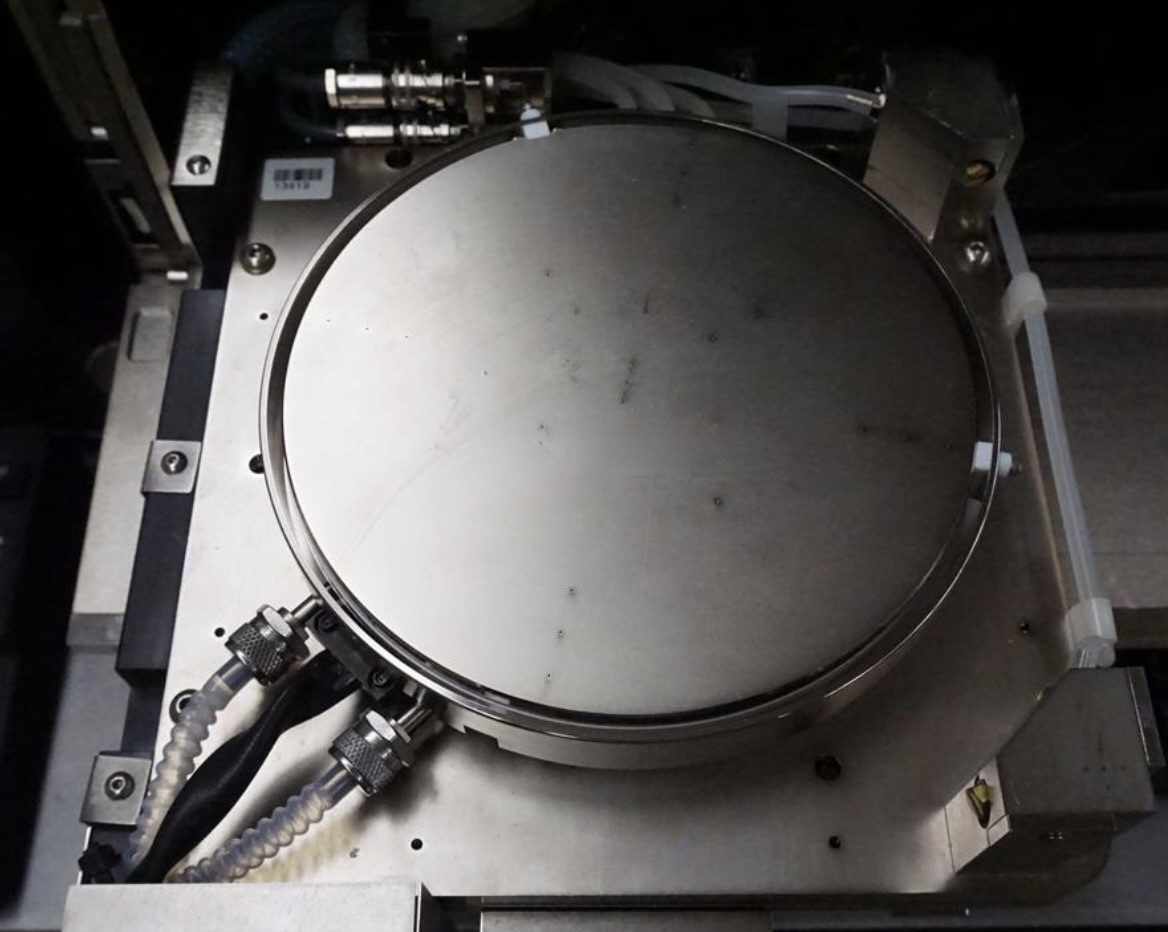

150mm thermal vacuum chuck -65 to 200C temperature range

Triaxial chuck and cables allow very low leakage measurements

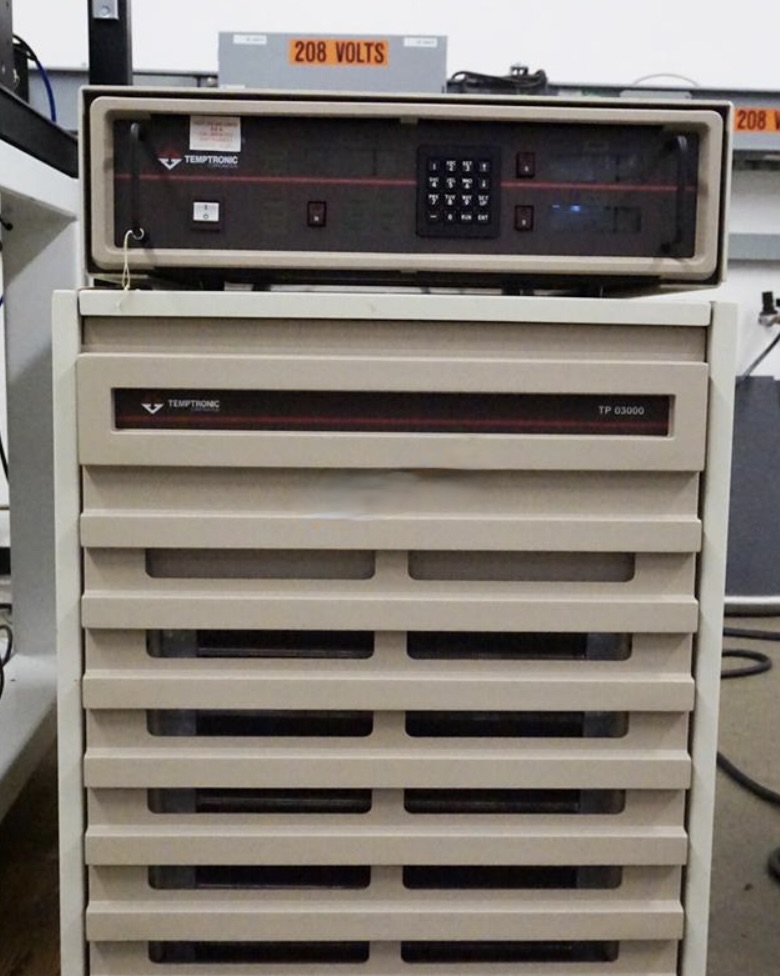

Temptronic TPO-3000A-2300-1 temperature controller and chiller

microchamber with top hat assembly for dark probing

Kinetic Systems vibration isolation table

(4) Cascade DCM-210V Micropositioners with magnetic base and 100TPI lead screws

Optional: Probe card holder available

Cascade PC with Nucleus ver. 3.2.7 software installed
