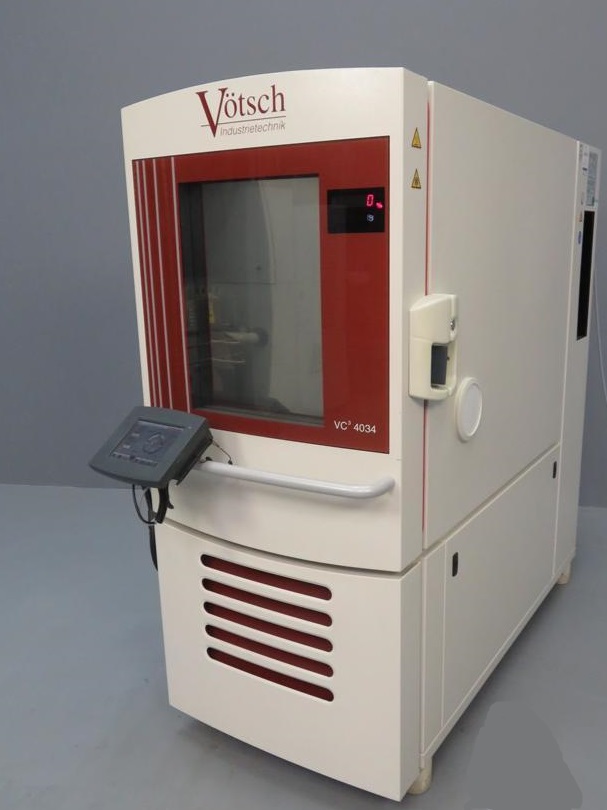

Votsch Climate Chamber VC³ 4034 (newer model)

                air cooled

         (Upgraded to refrigerant R-452A, new refrigerant)

Test room content: approx. 335 liters

Temperature range: -42°C to +180°C

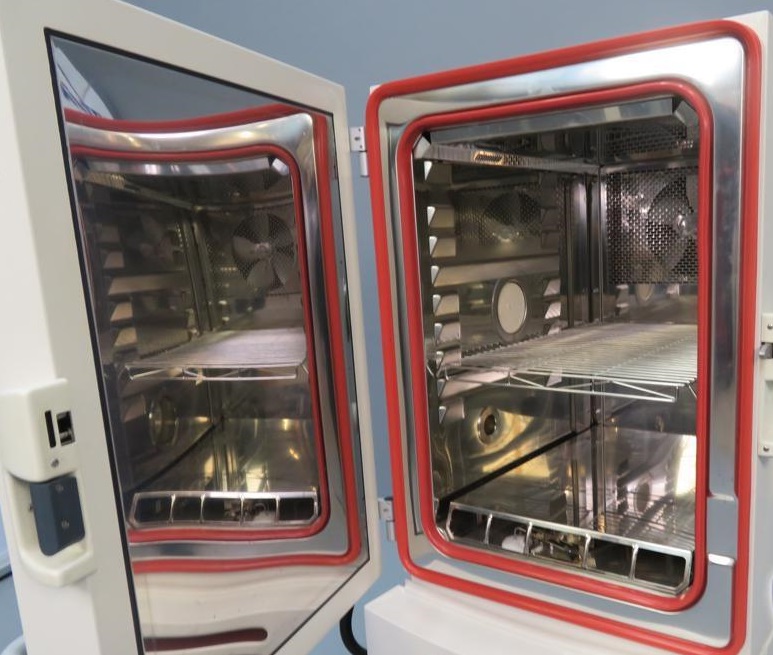

Test room dimensions: width 580 x depth 765 x height 750 mm

Case dimensions: width 780x depth 1758 x height 1800 mm

Characteristic values for temperature tests:

Temperature range: -42°C to +180°C

temporally ± 0.1 to ± 0.5 K

spatially ± 0.5 to ± 1.5 K

Rate of temperature change according to IEC 60068-3-5

Heating: 3.2K/min

Cooling: 4 K/min

Characteristic values for climate tests:

Temperature range: +10°C to +90°C

Temperature deviation in the steady state, according to IEC 60068-3-5

depending on the test room temperature temporally ± 0.1 to ± 0.3 K spatially ± 0.5 to ± 1 K

Humidity range: 10% to 98% RH.

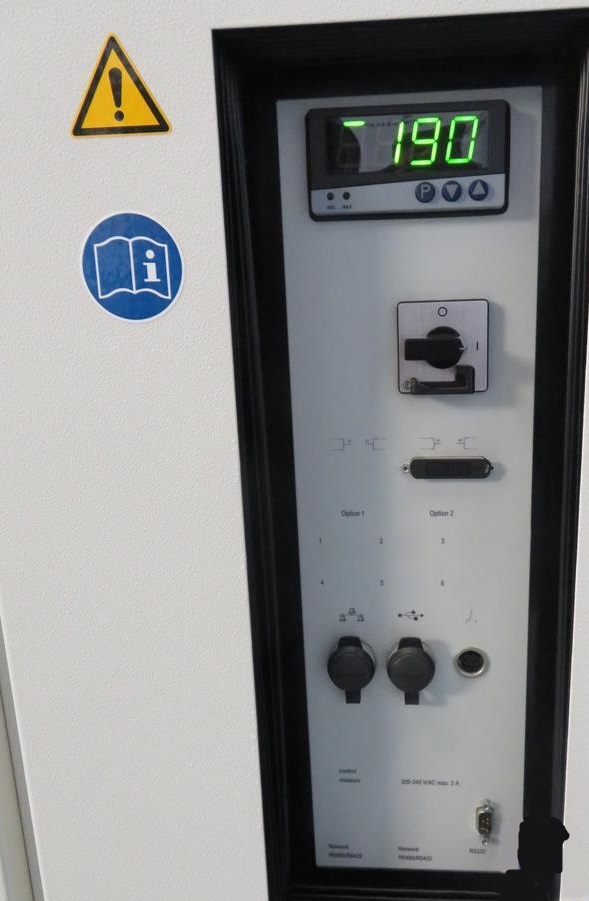

Electrical connection: Rated voltage: 3/N/PE AC 400V ±10% 50Hz

Rated power: 4.1 kW

Rated Current: 14A Fusing: 16 A slow-blow,

Refrigerant: R-452A

Weight: approx. 515 kg net
