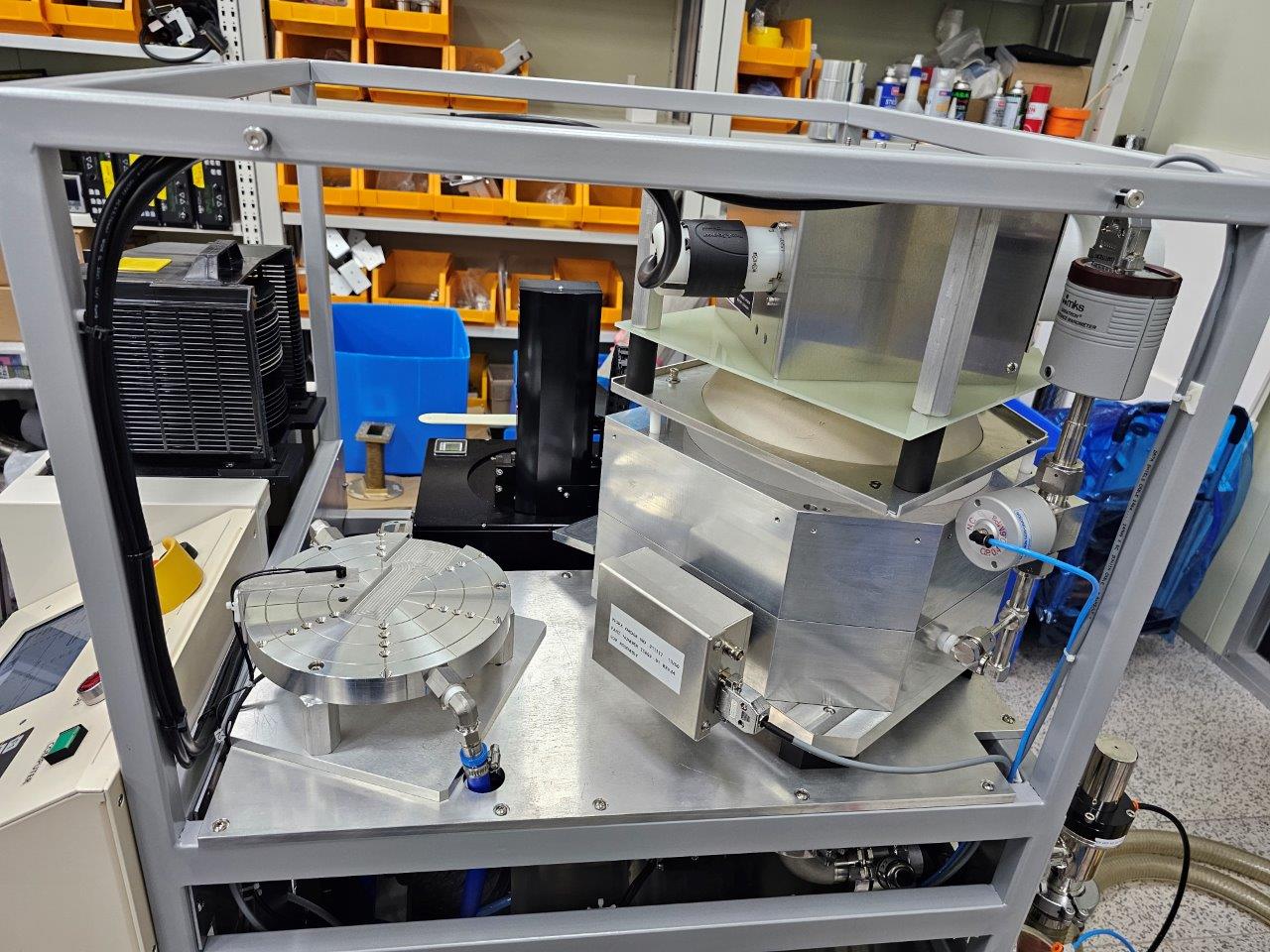

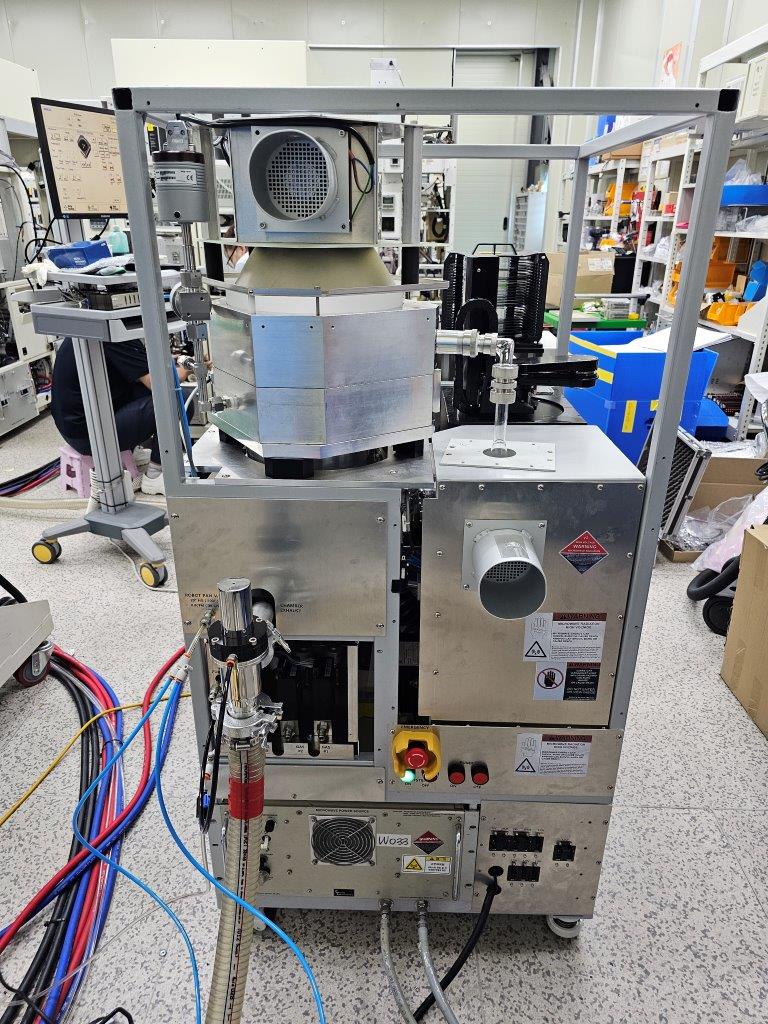

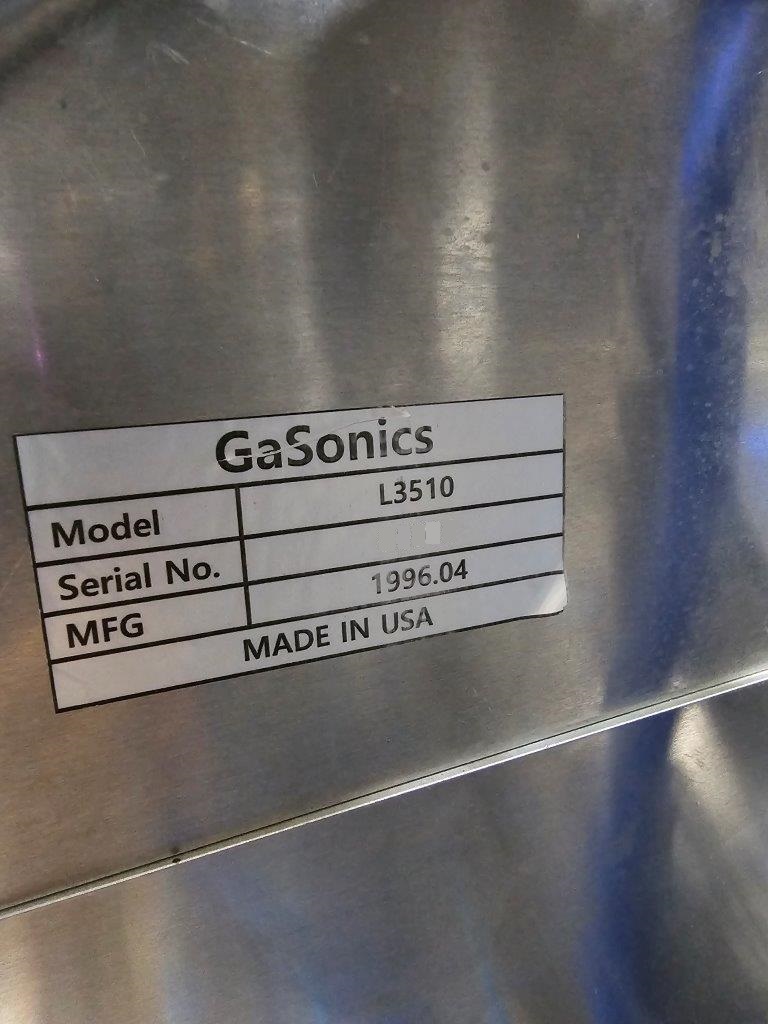

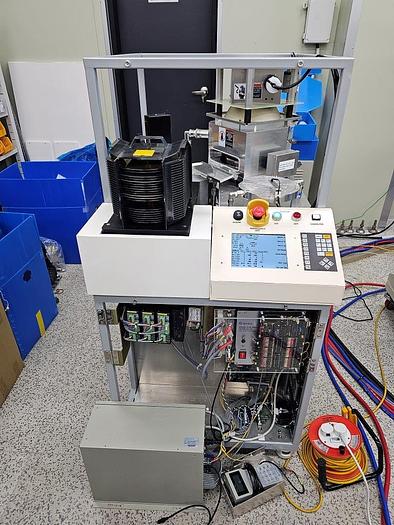

1996 Gasonics L3510

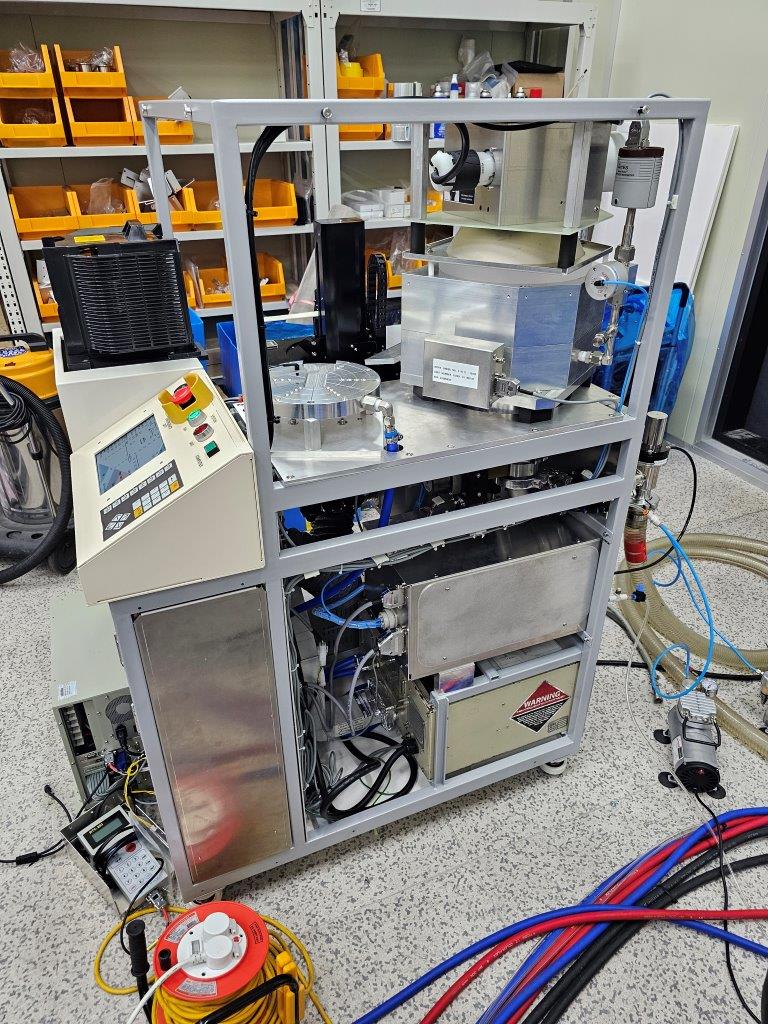

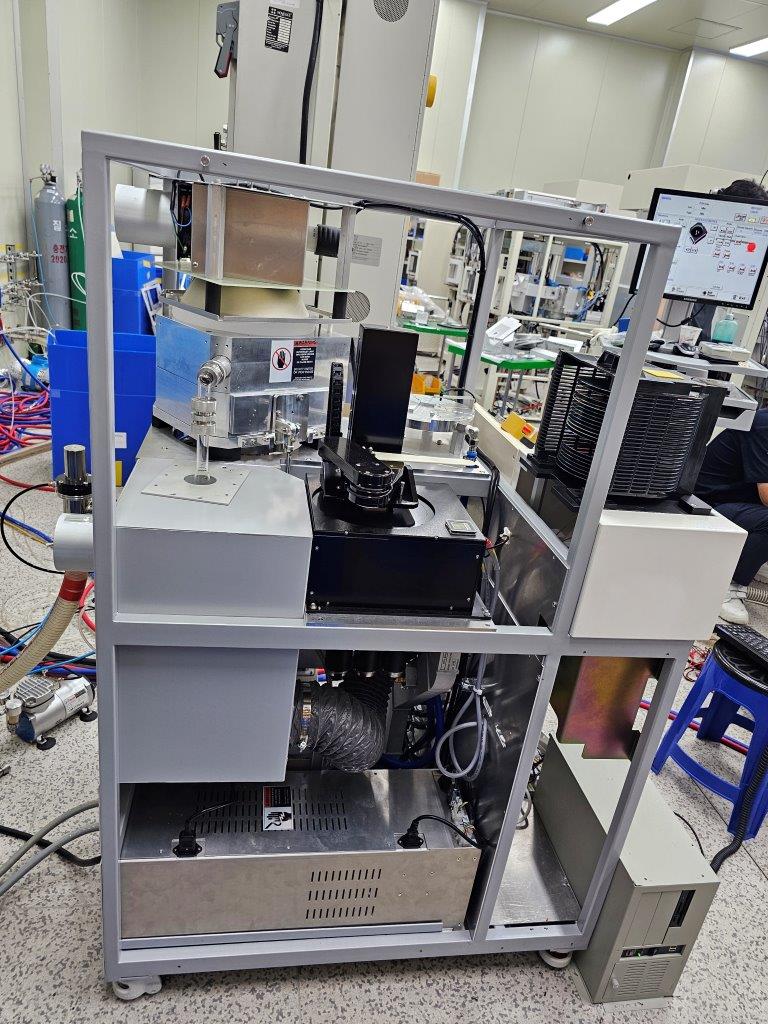

GASONIC L3510 Single Wafer Downstream

Photoresist Asher

8” configured (can change to 6” )

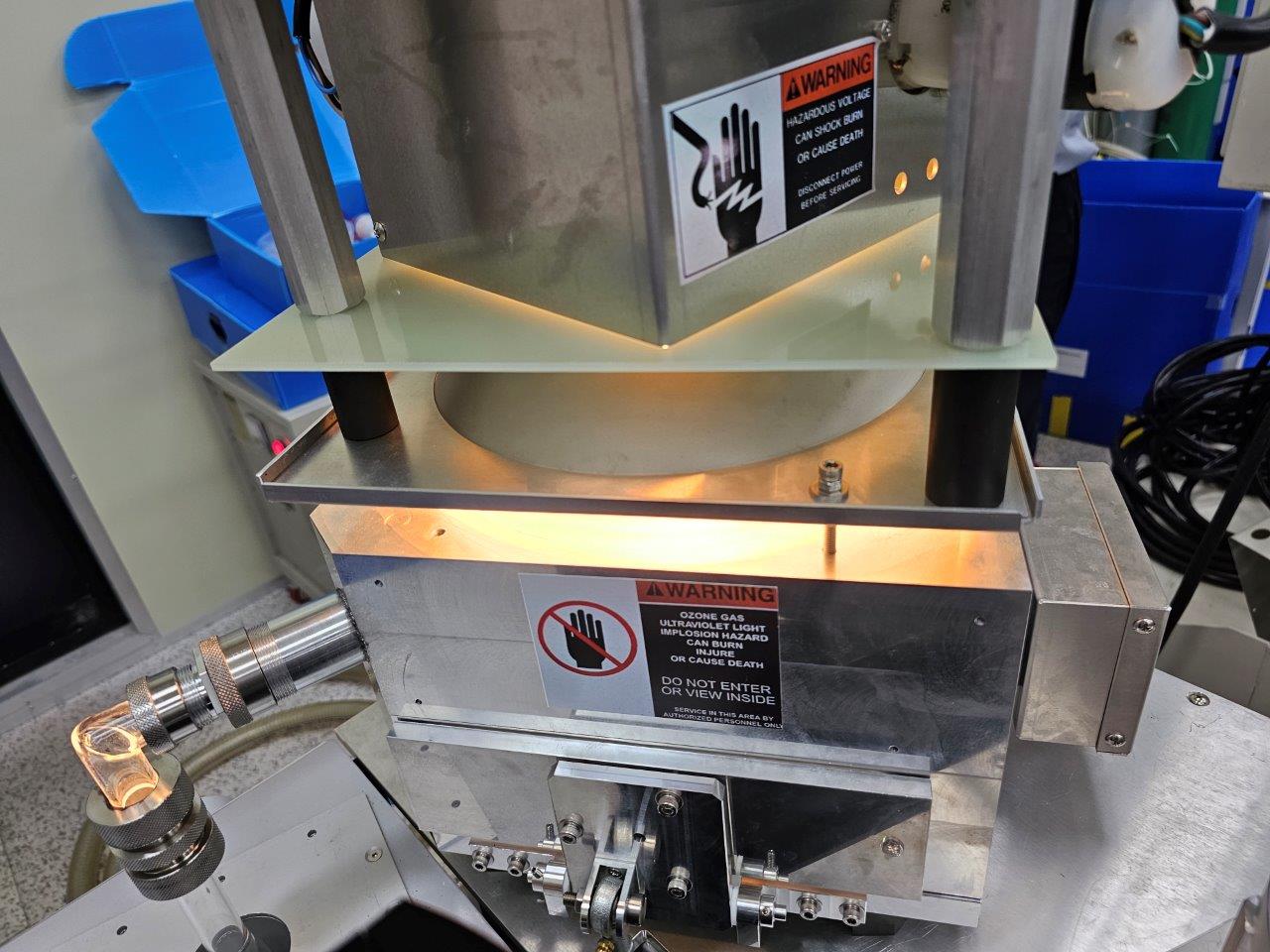

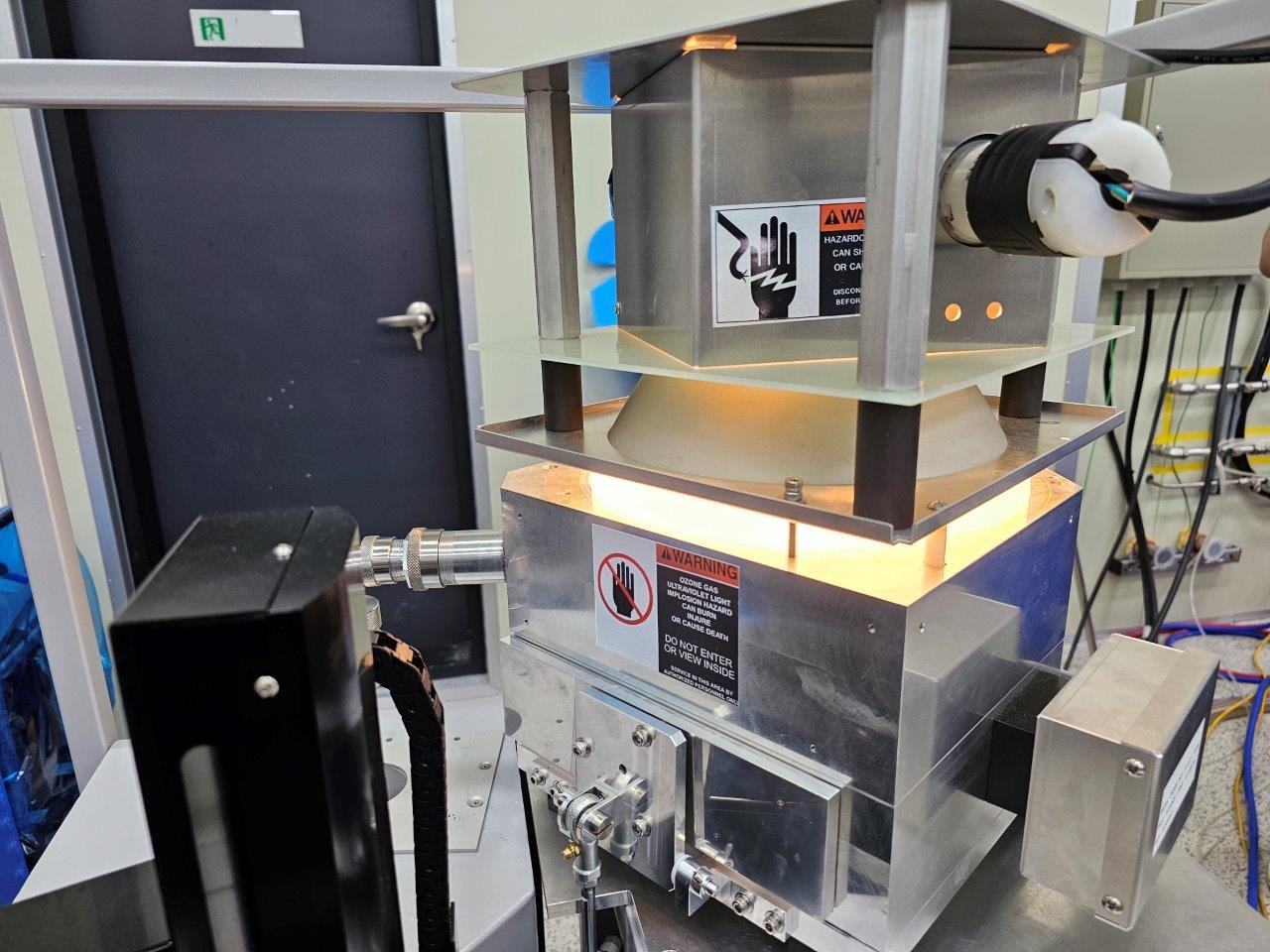

Quartz Plasma Tube and Baffles

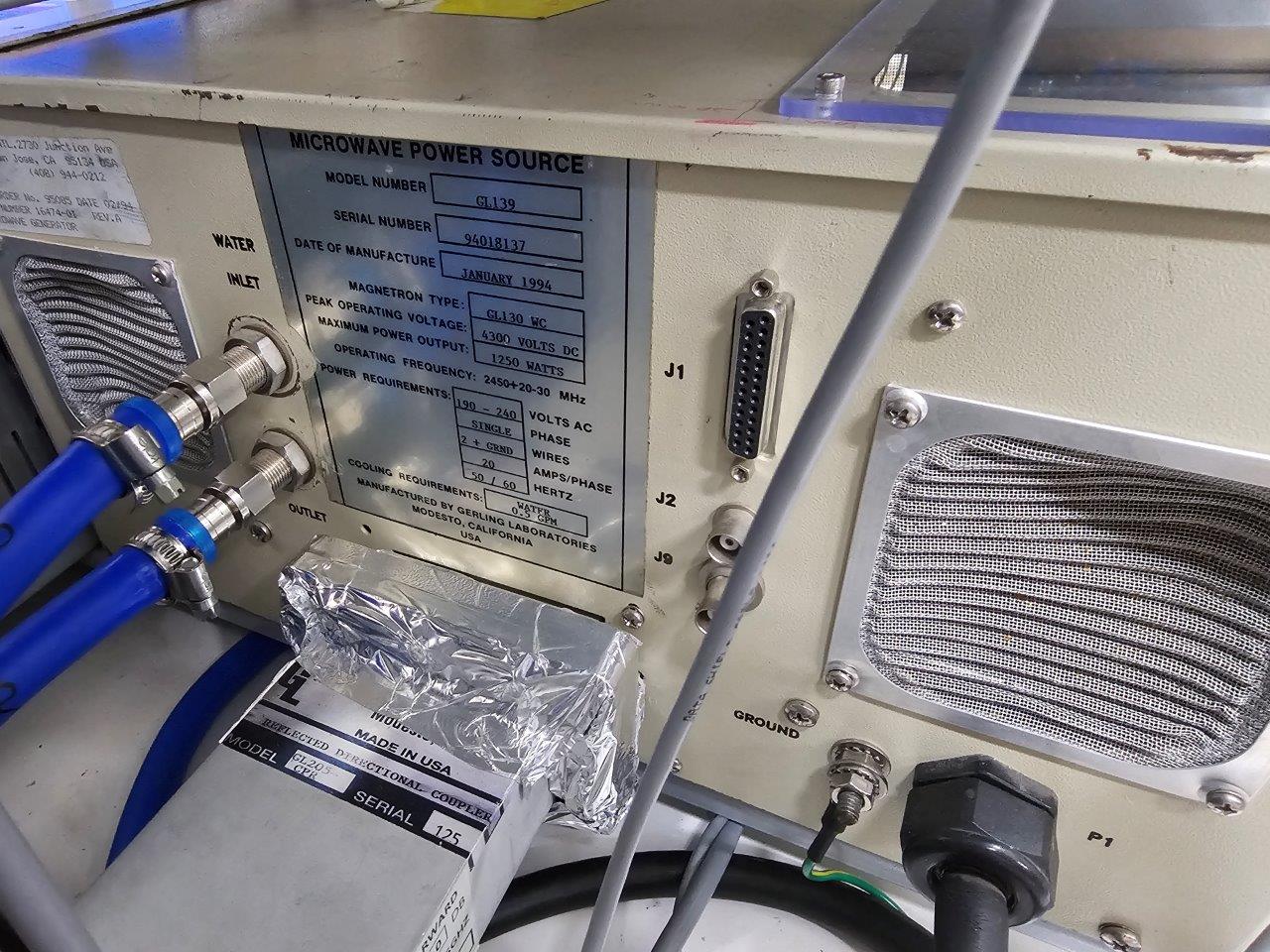

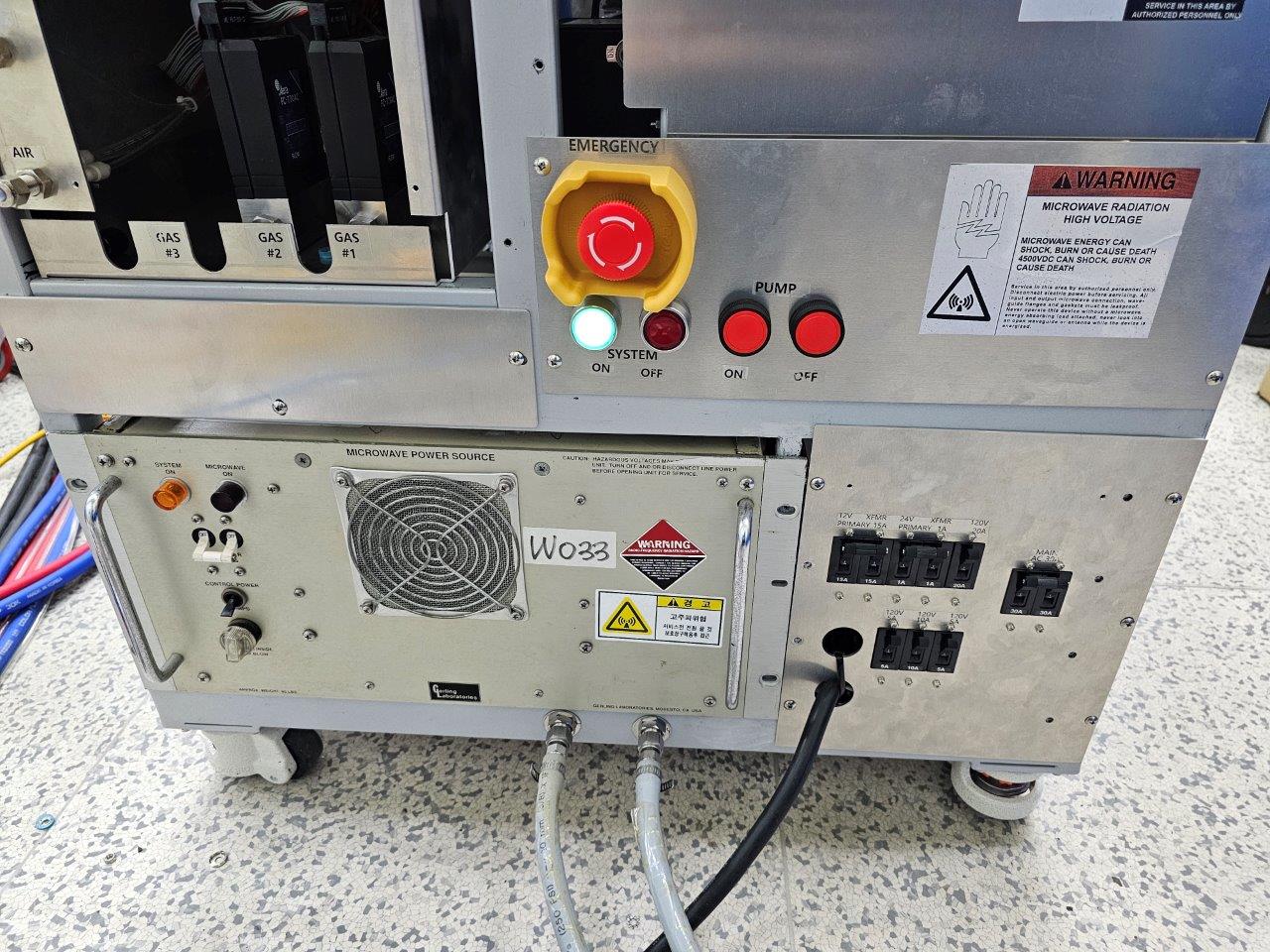

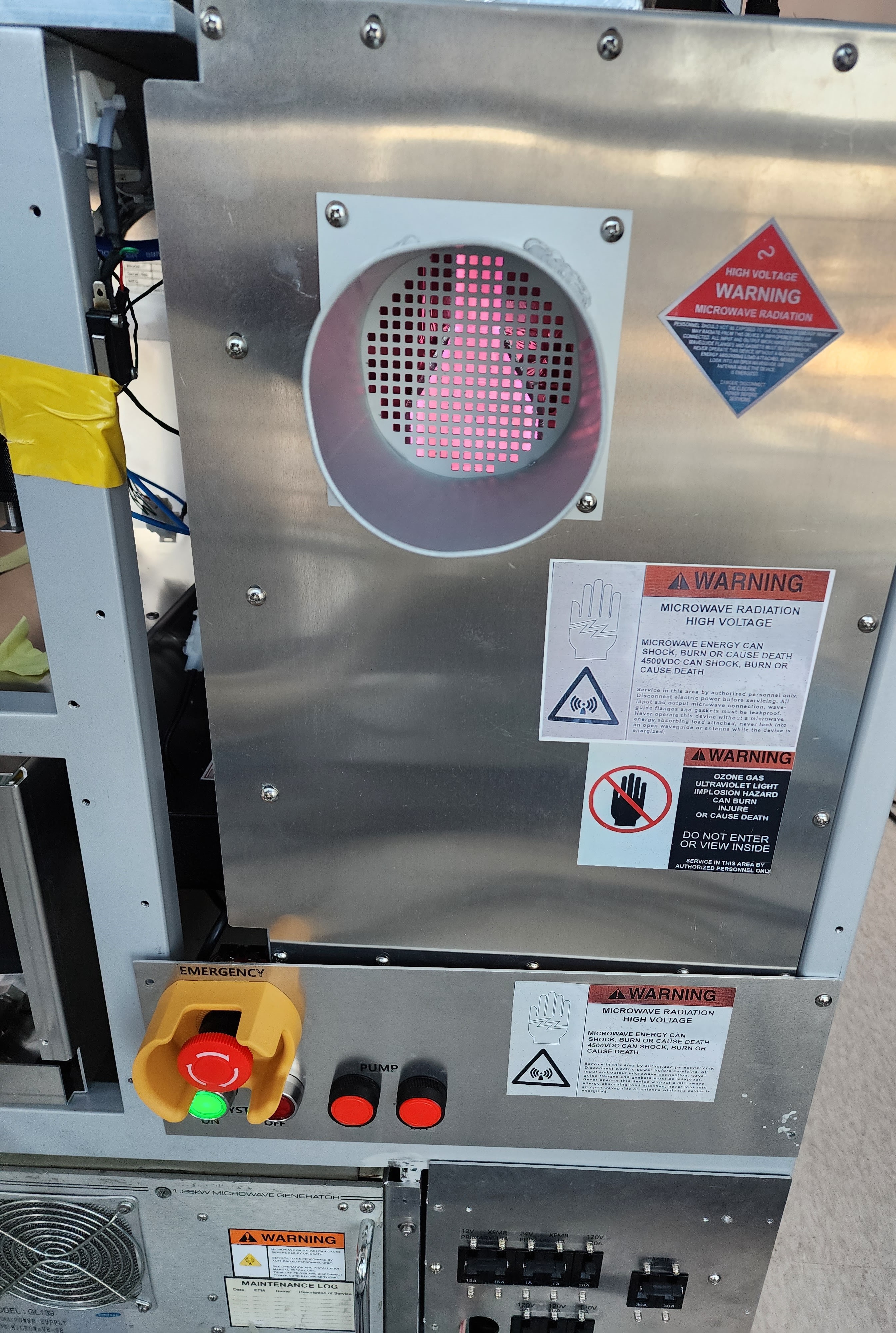

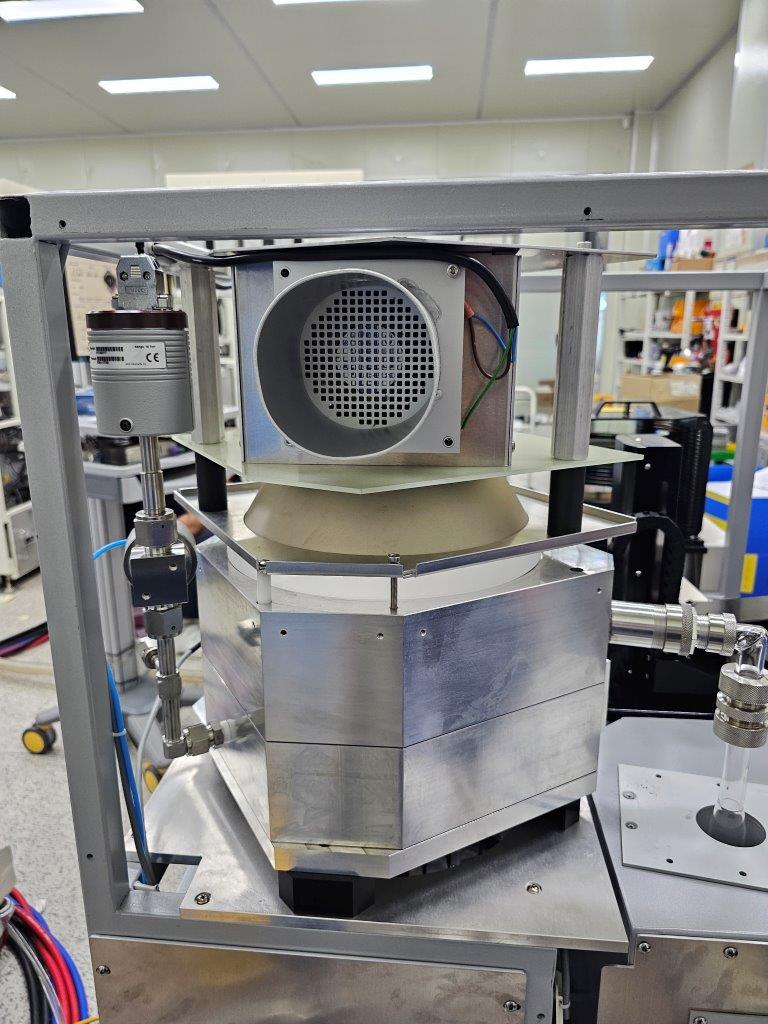

ASTEX Microwave 1.2kw

Temperature Controlled

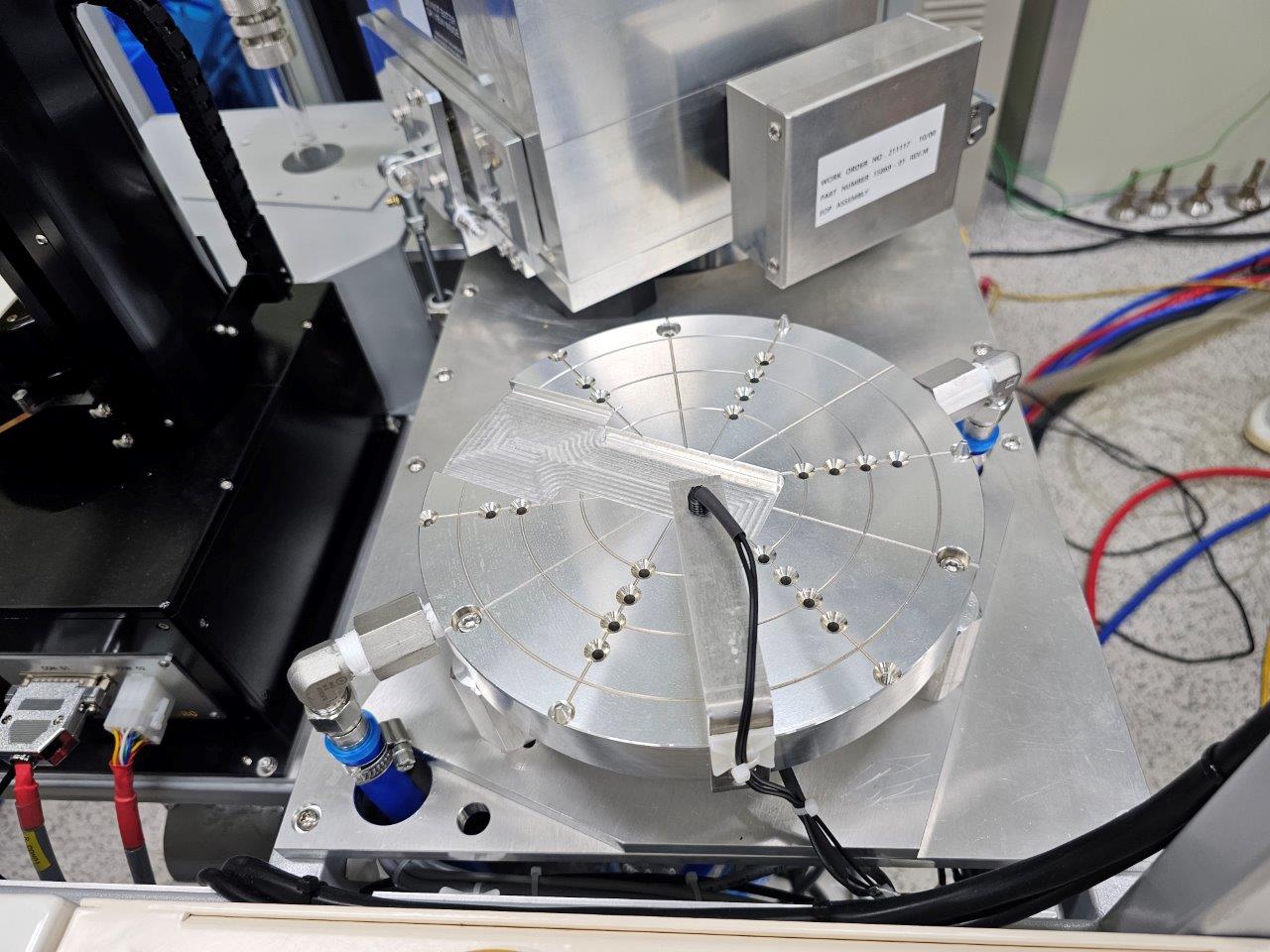

Wafer Cooled

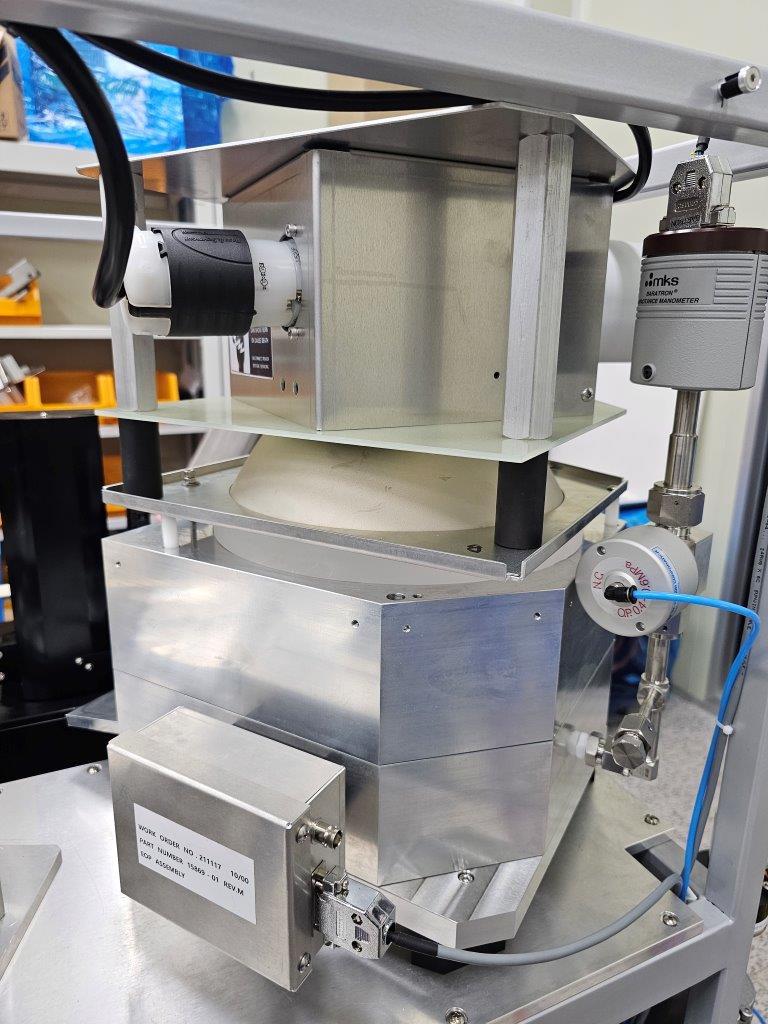

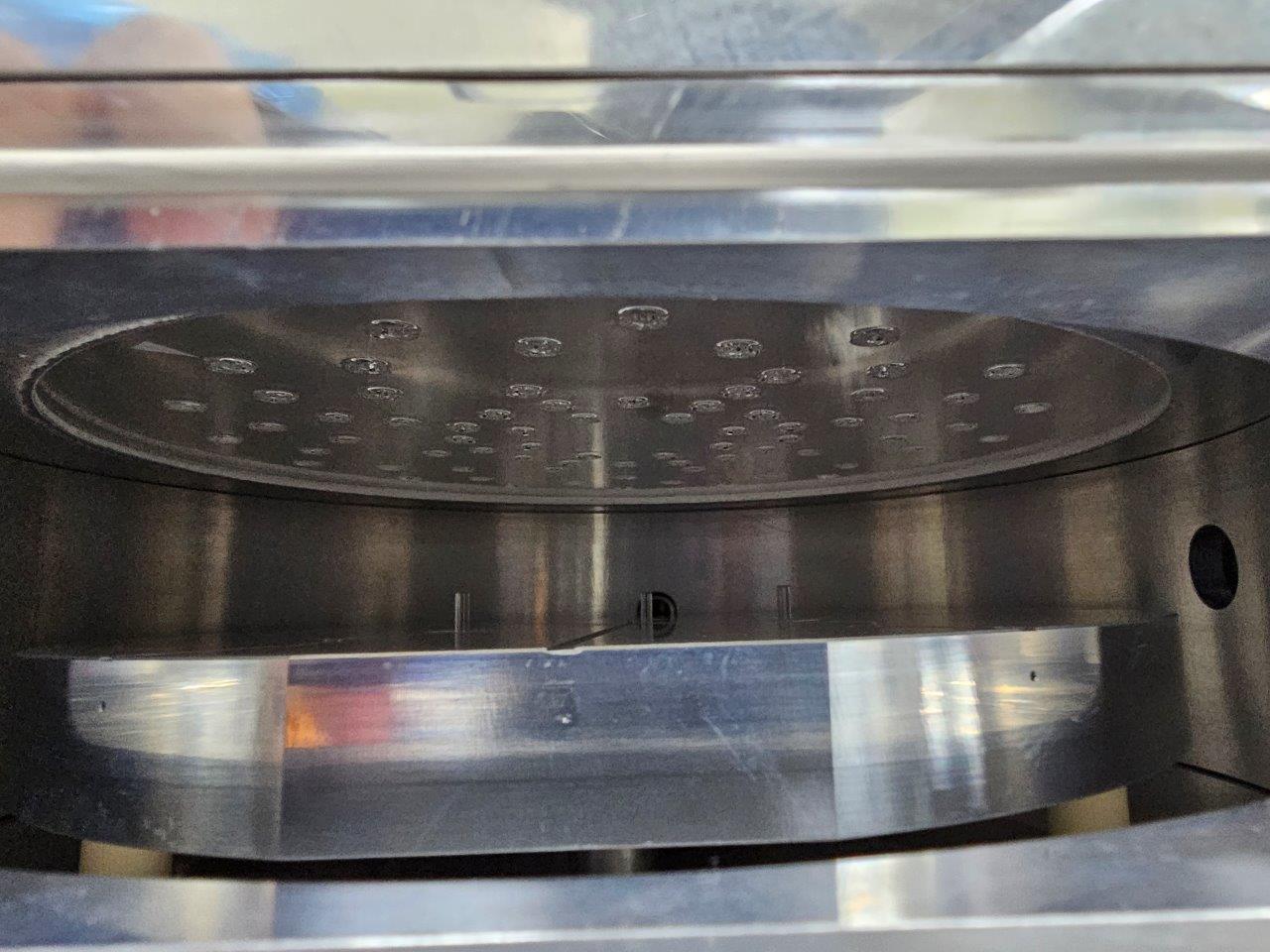

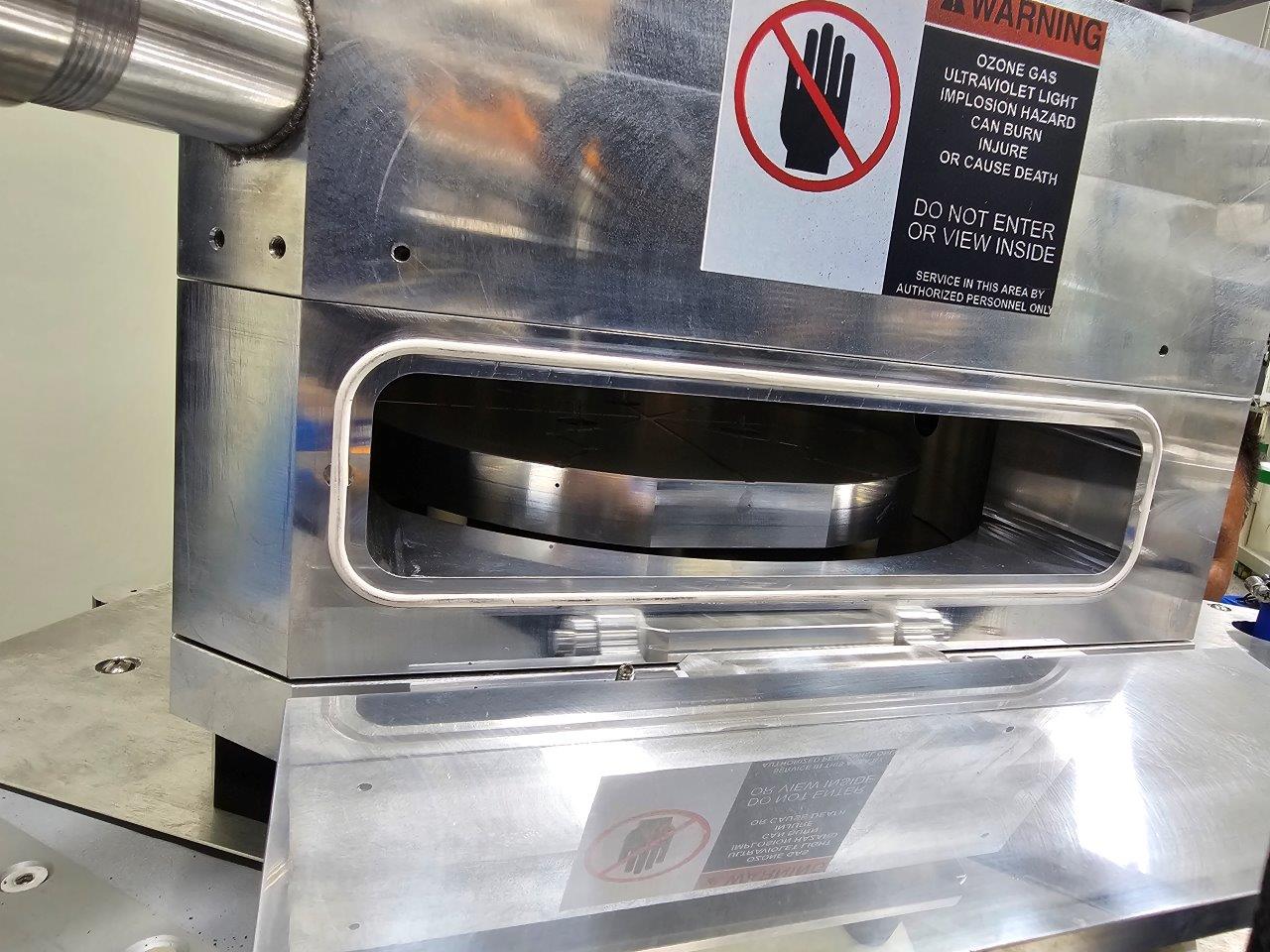

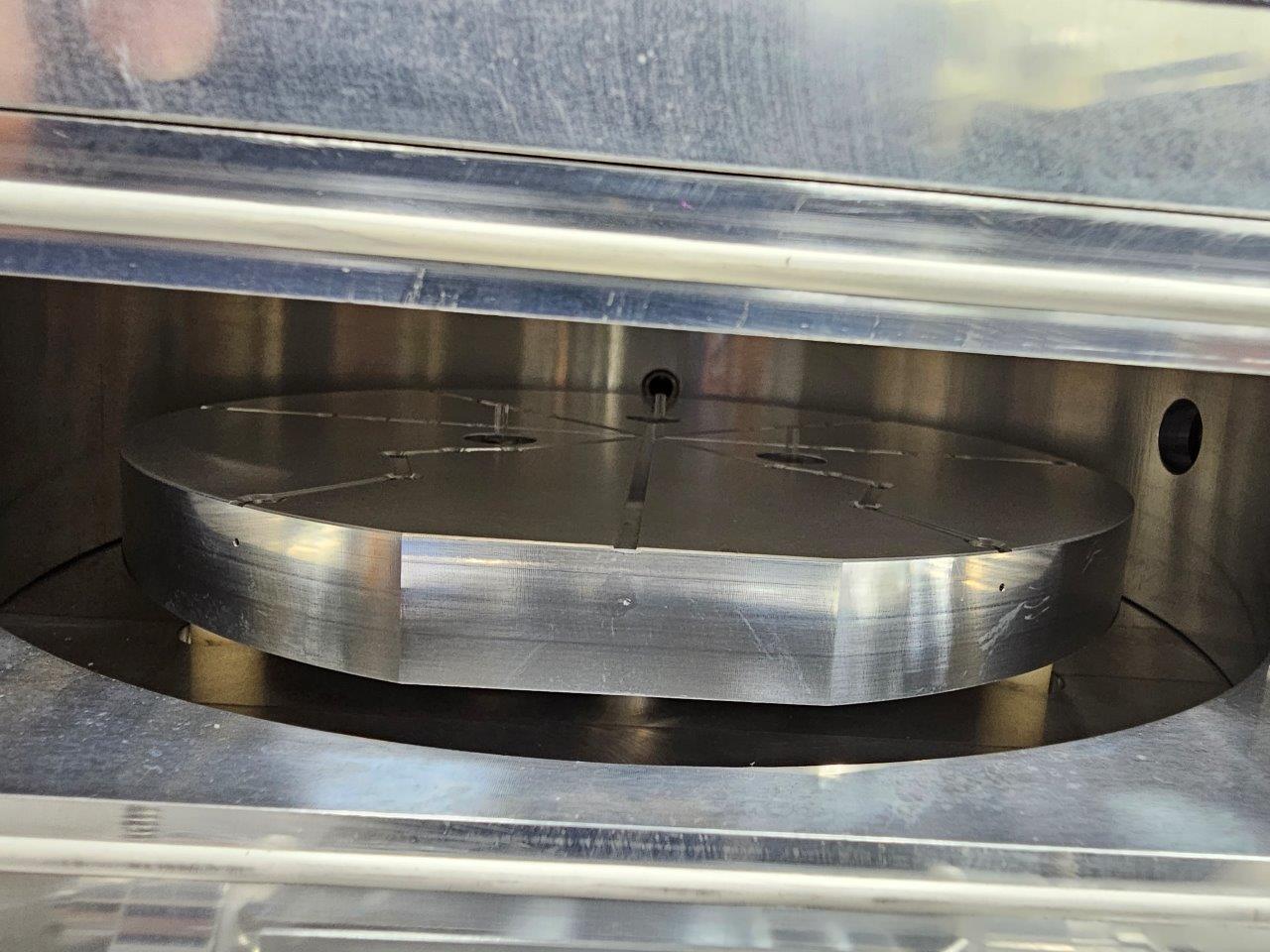

Aluminum Process Chamber

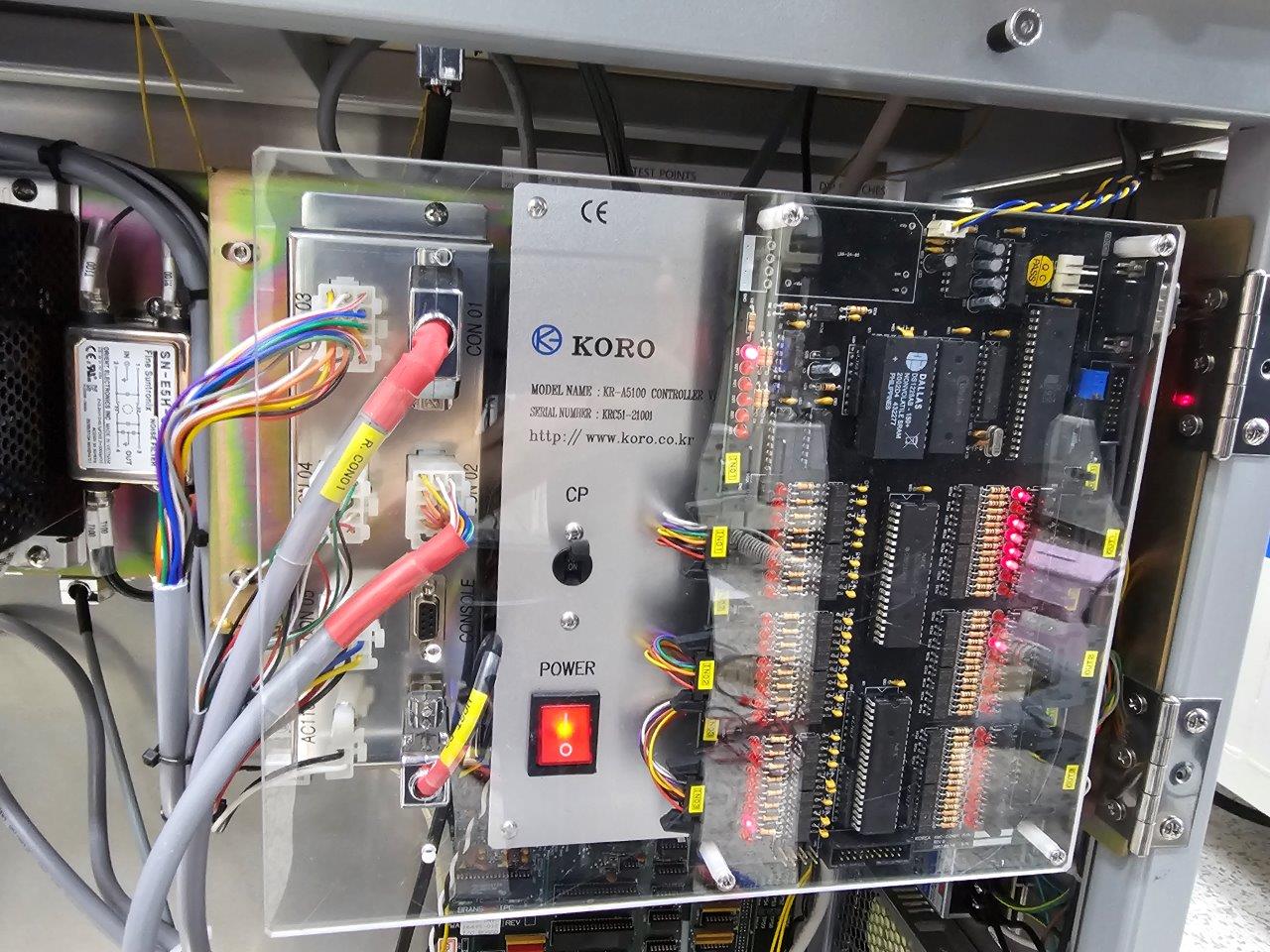

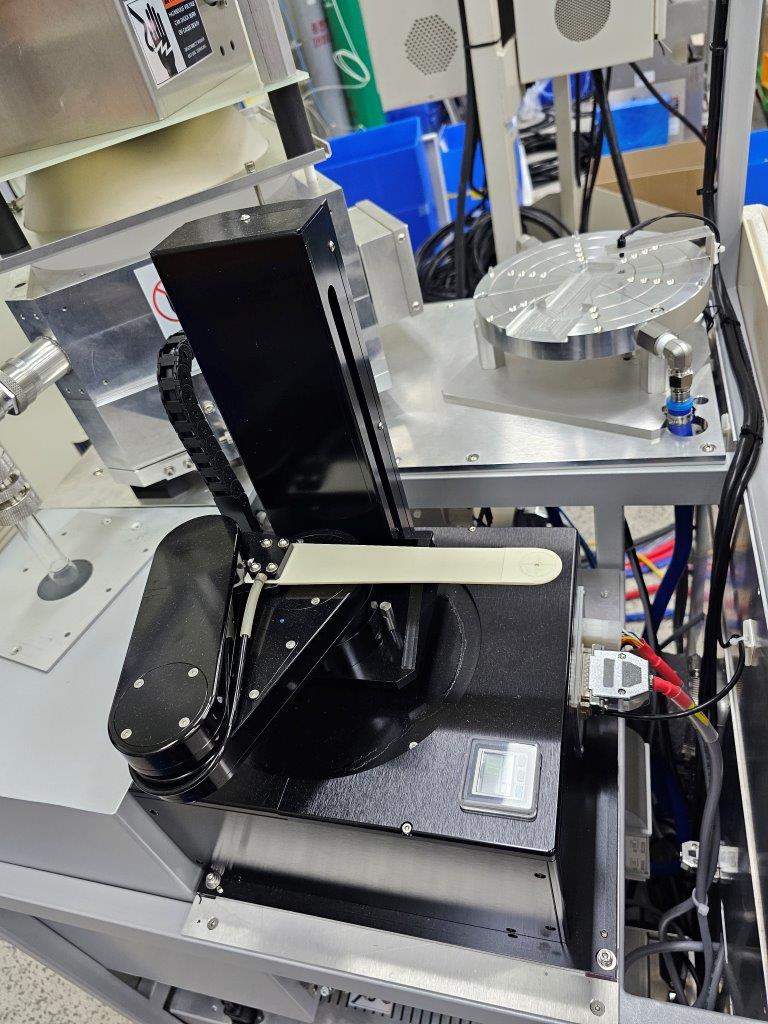

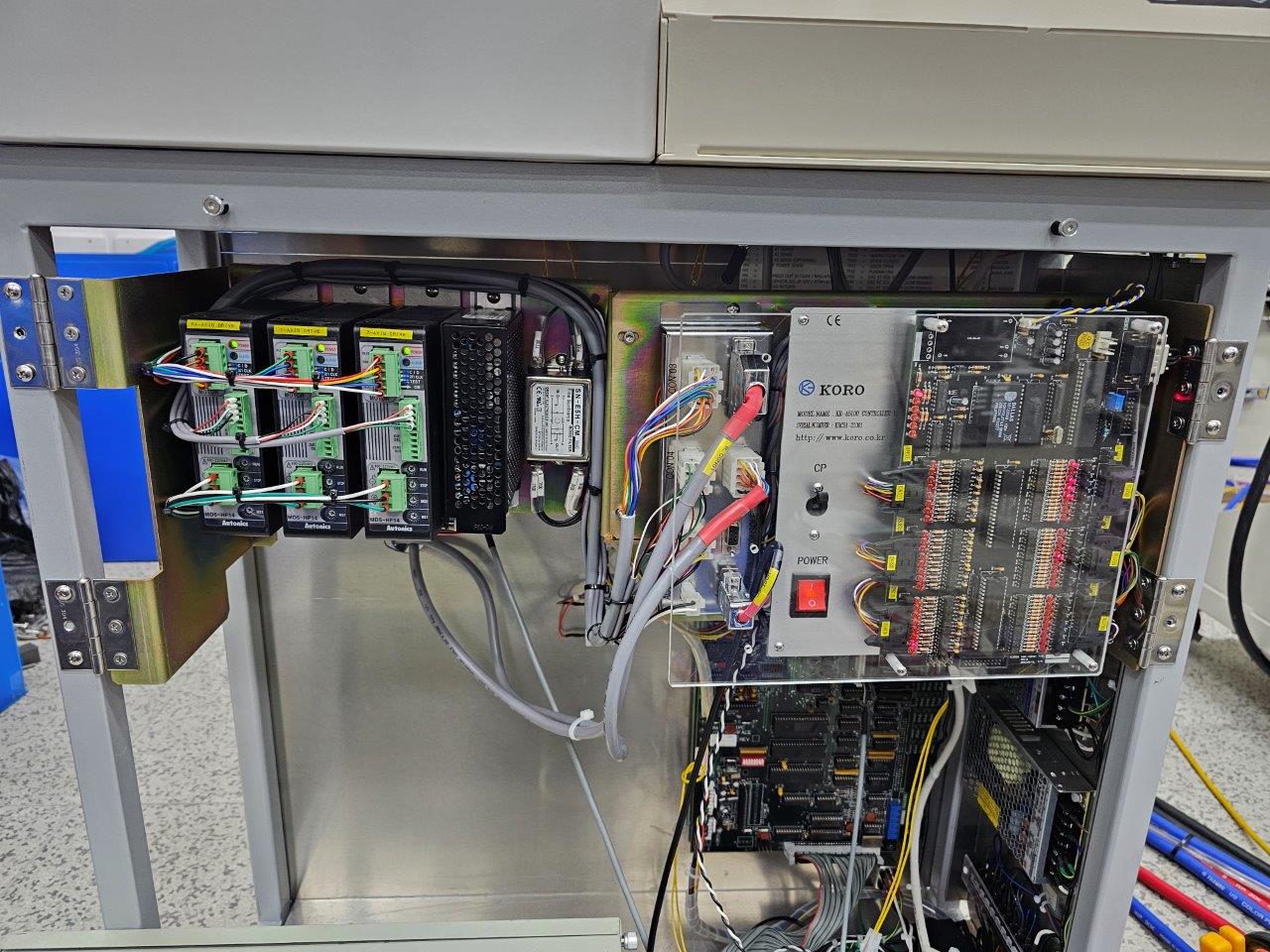

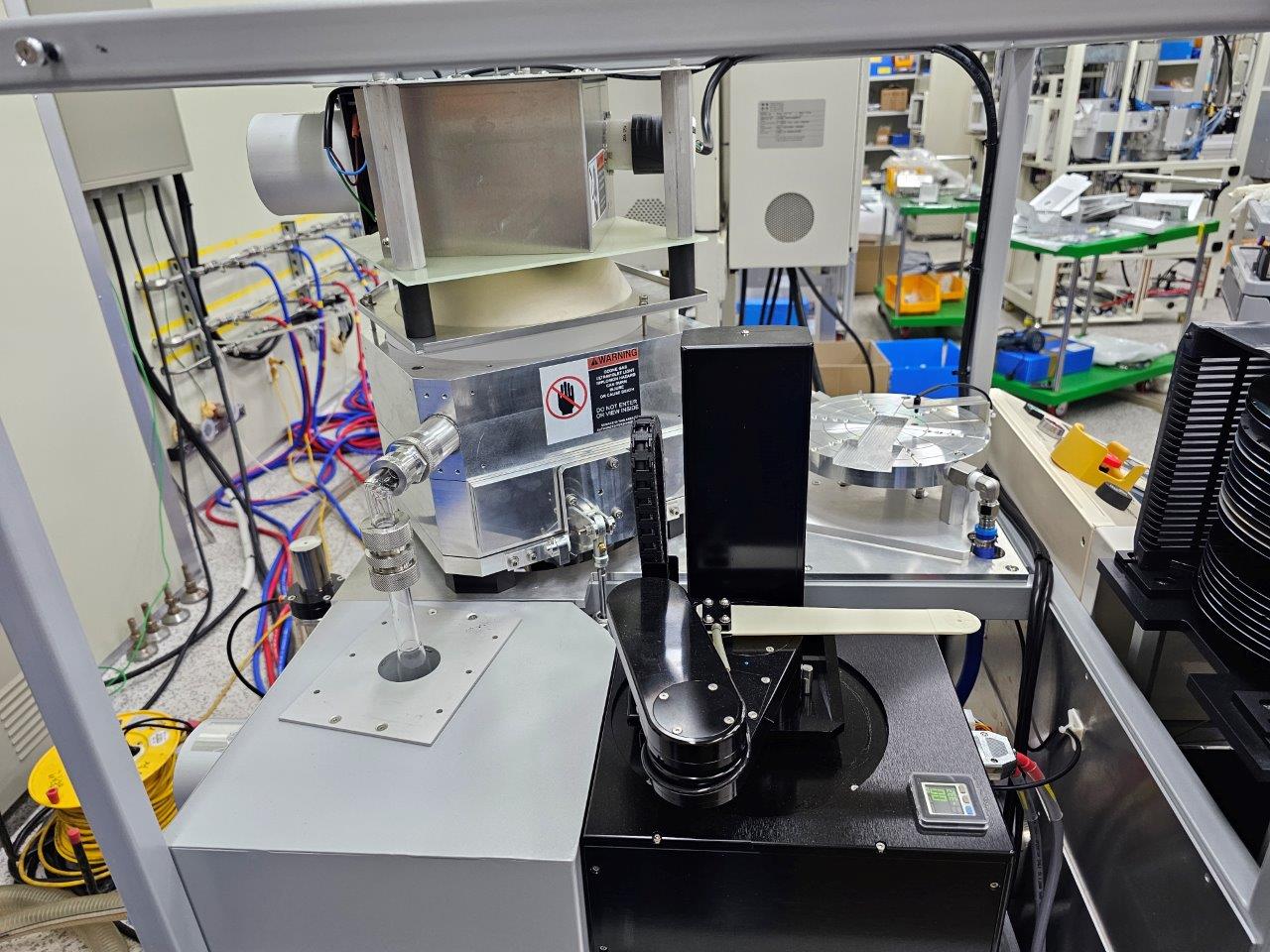

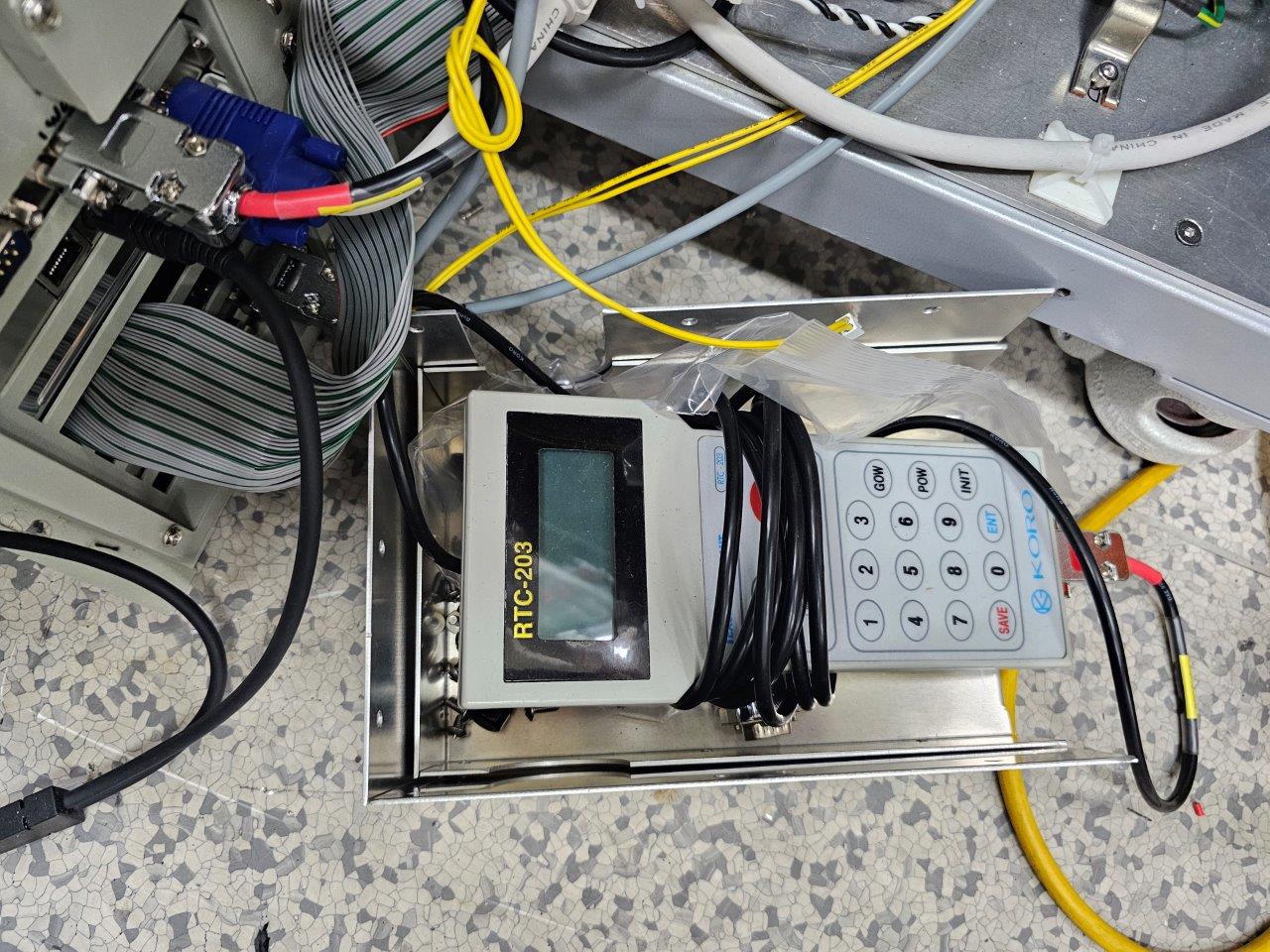

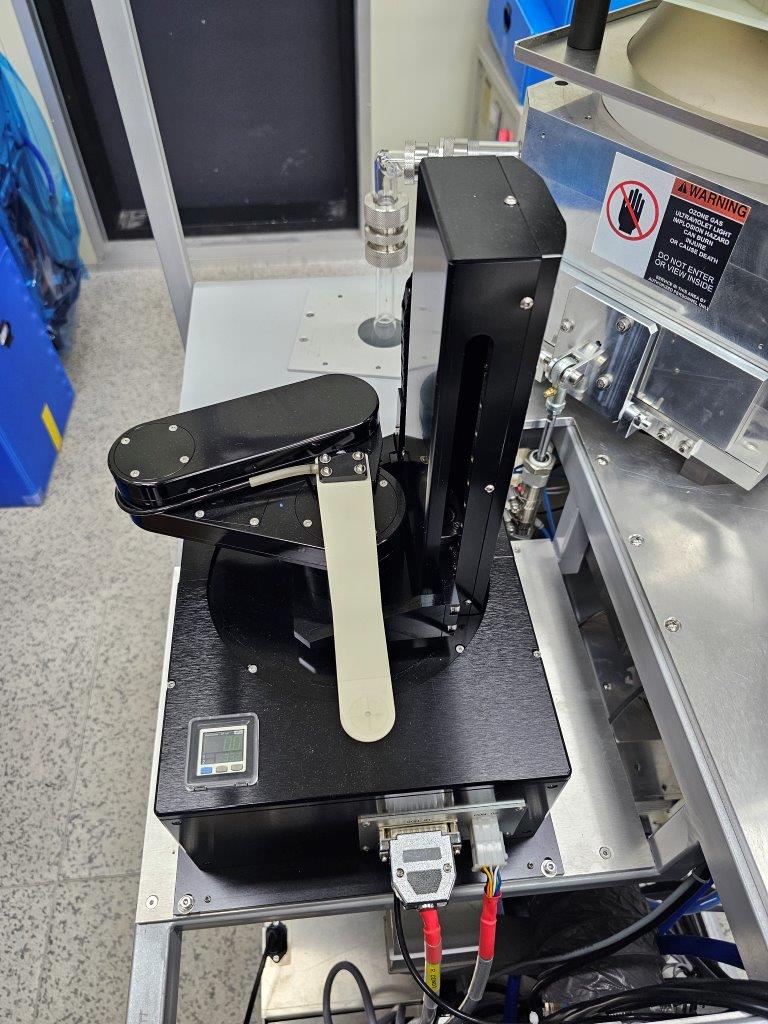

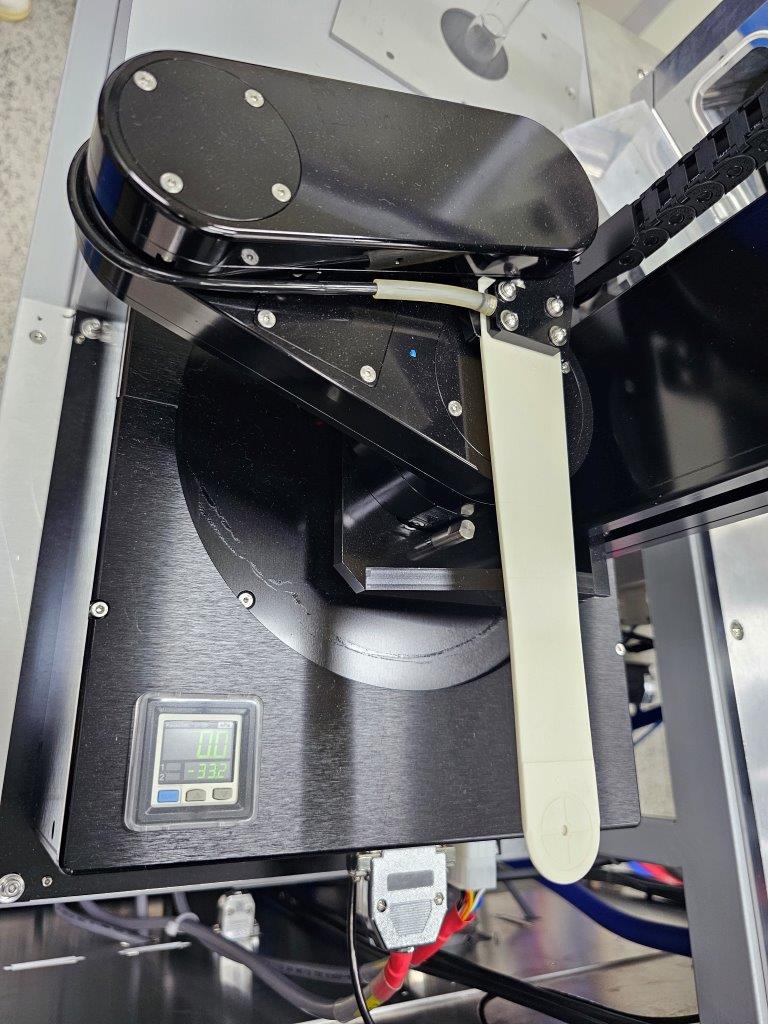

Robotic Pick and Place Wafer Handler ( KORO )

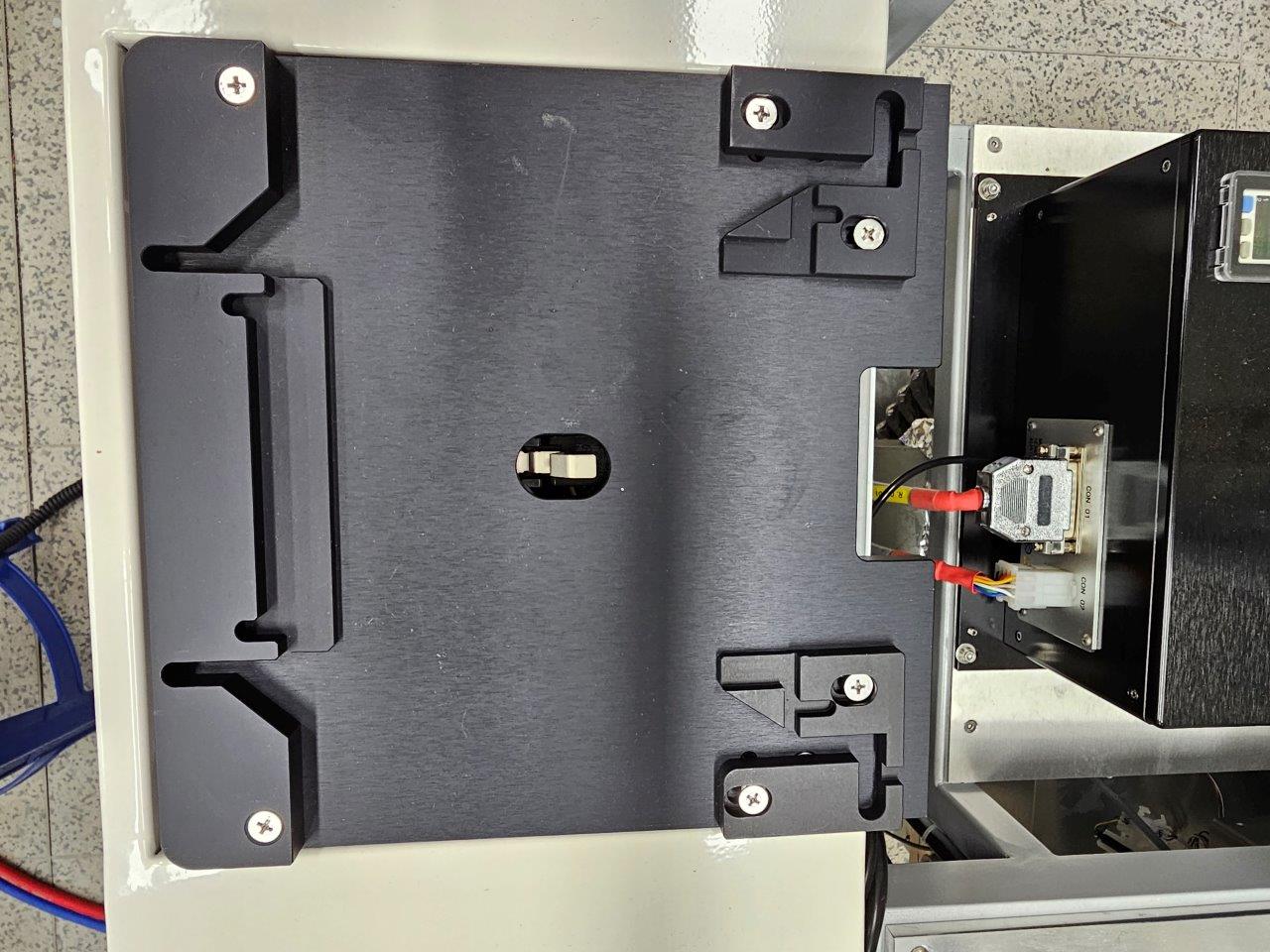

Fixed Position Single Cassette Station

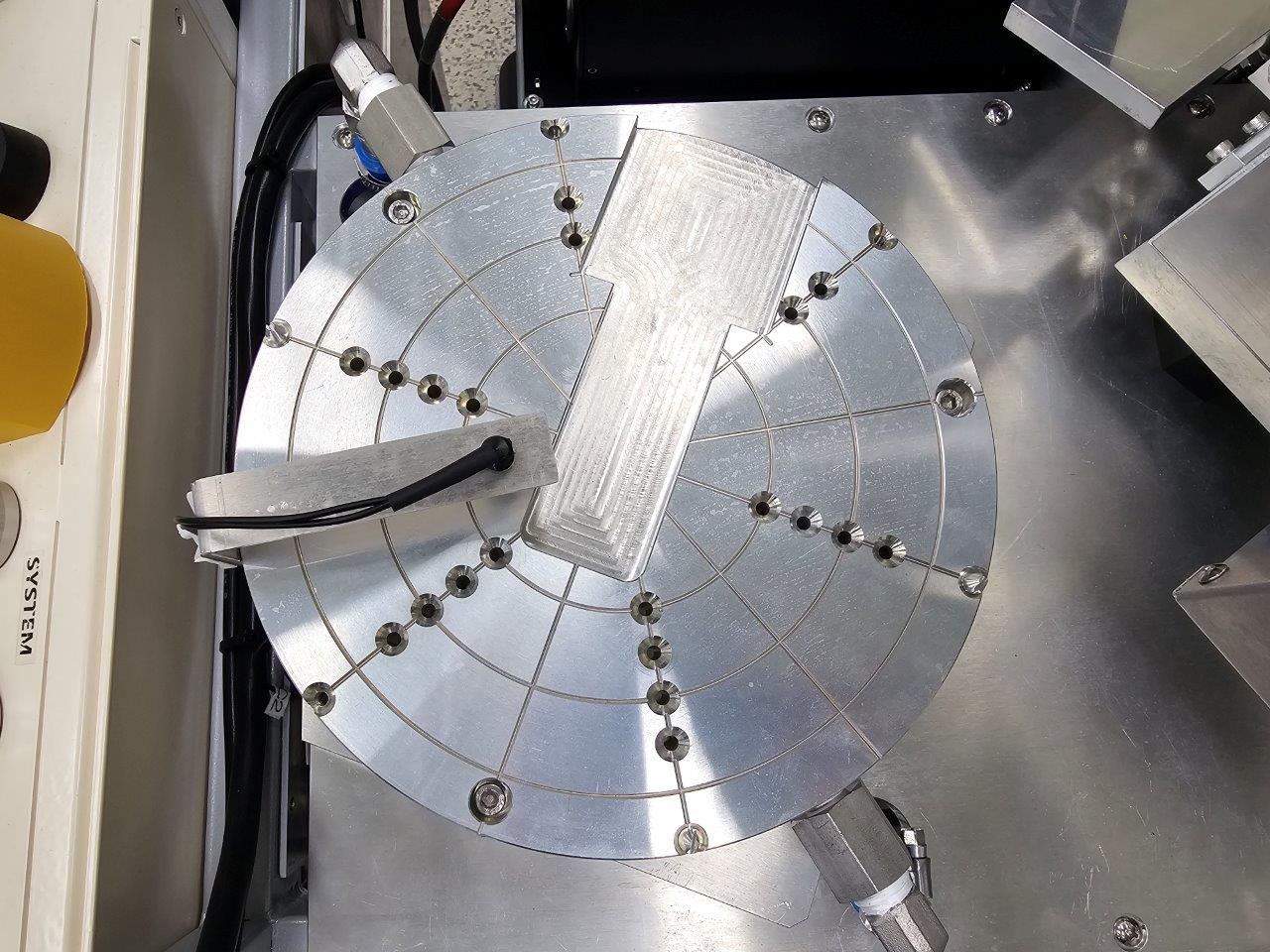

Post Process Cooling Station

Downstream End Point Detection

SEMI SECS ⅱ Software

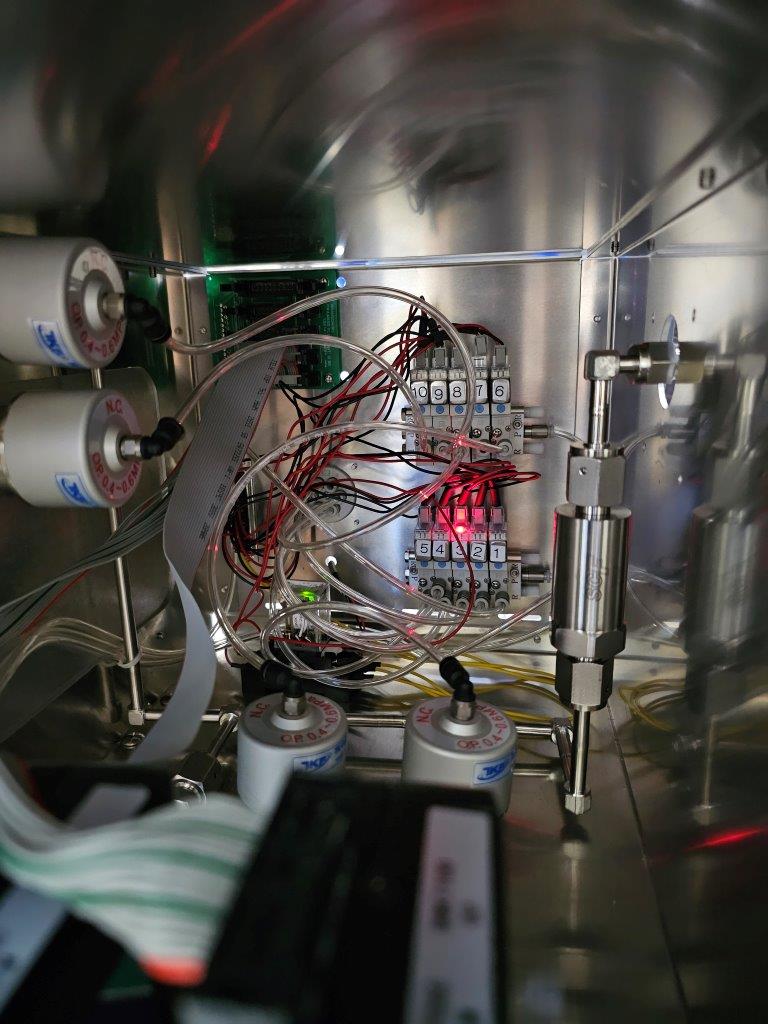

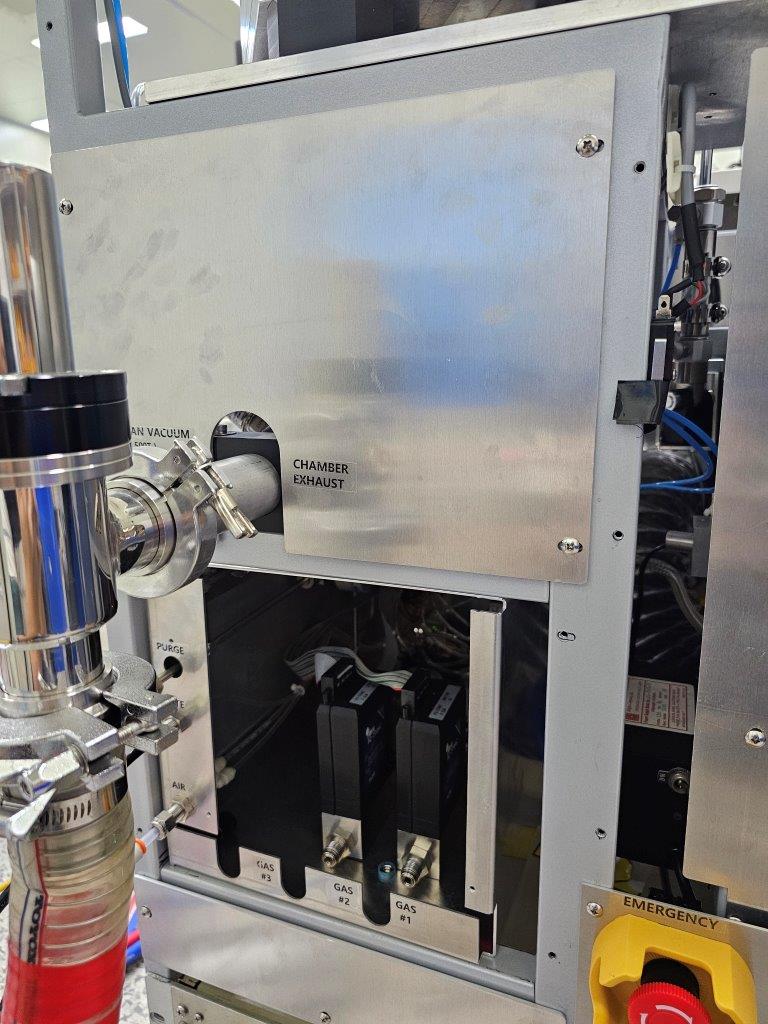

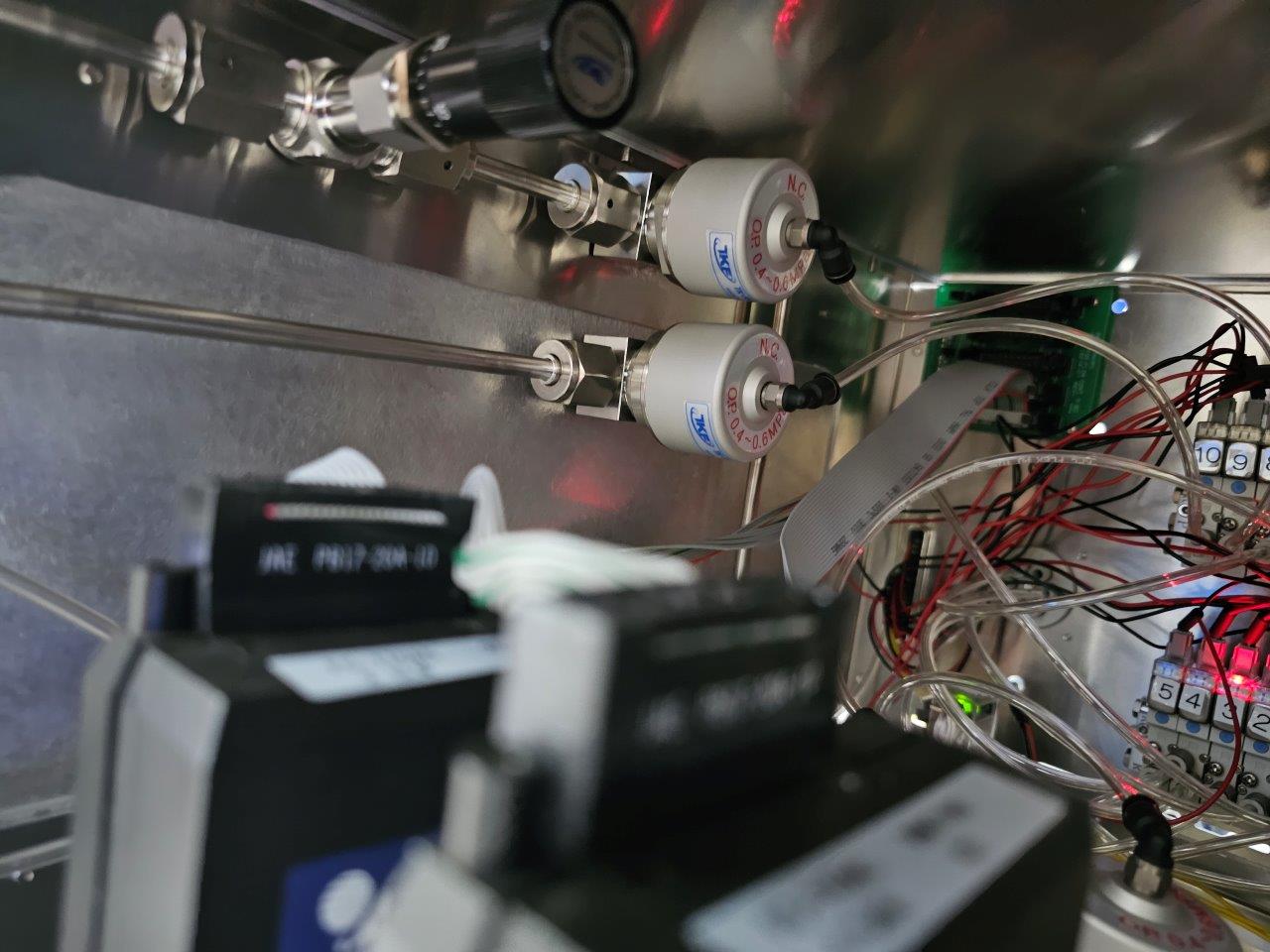

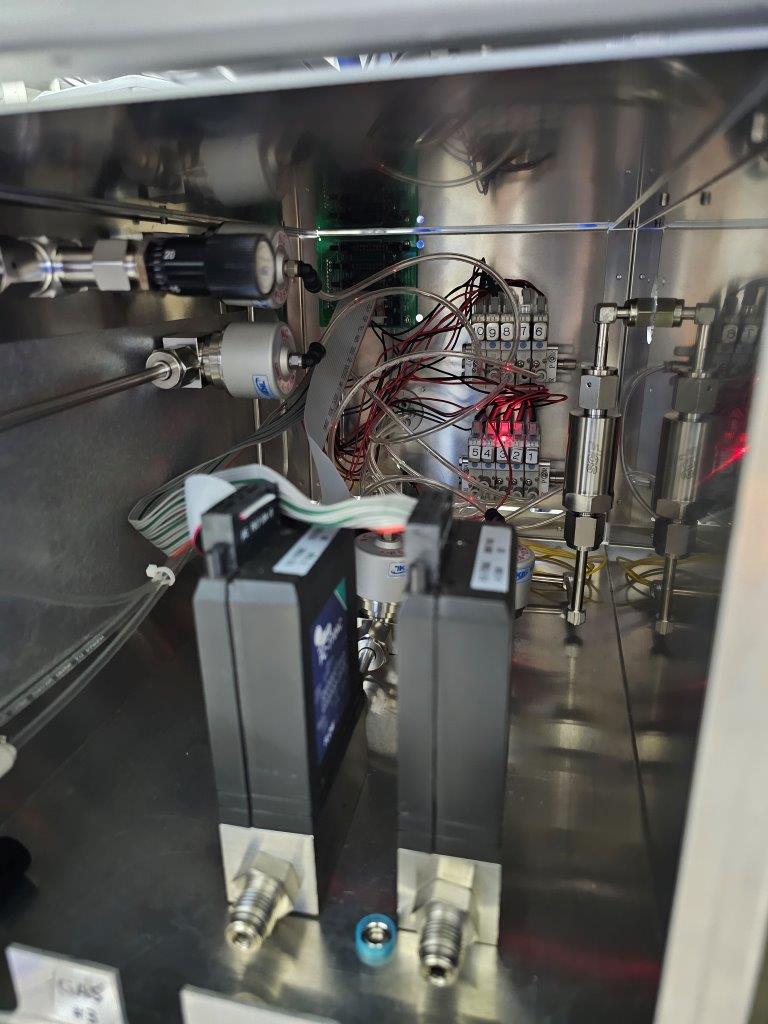

2 Gas Mass Flow Controller : O2 4slpm , N2 2slpm

System Power : 208 VAC , 60 A, 3 Phase, 50/60Hz
