Agilent 1260 system

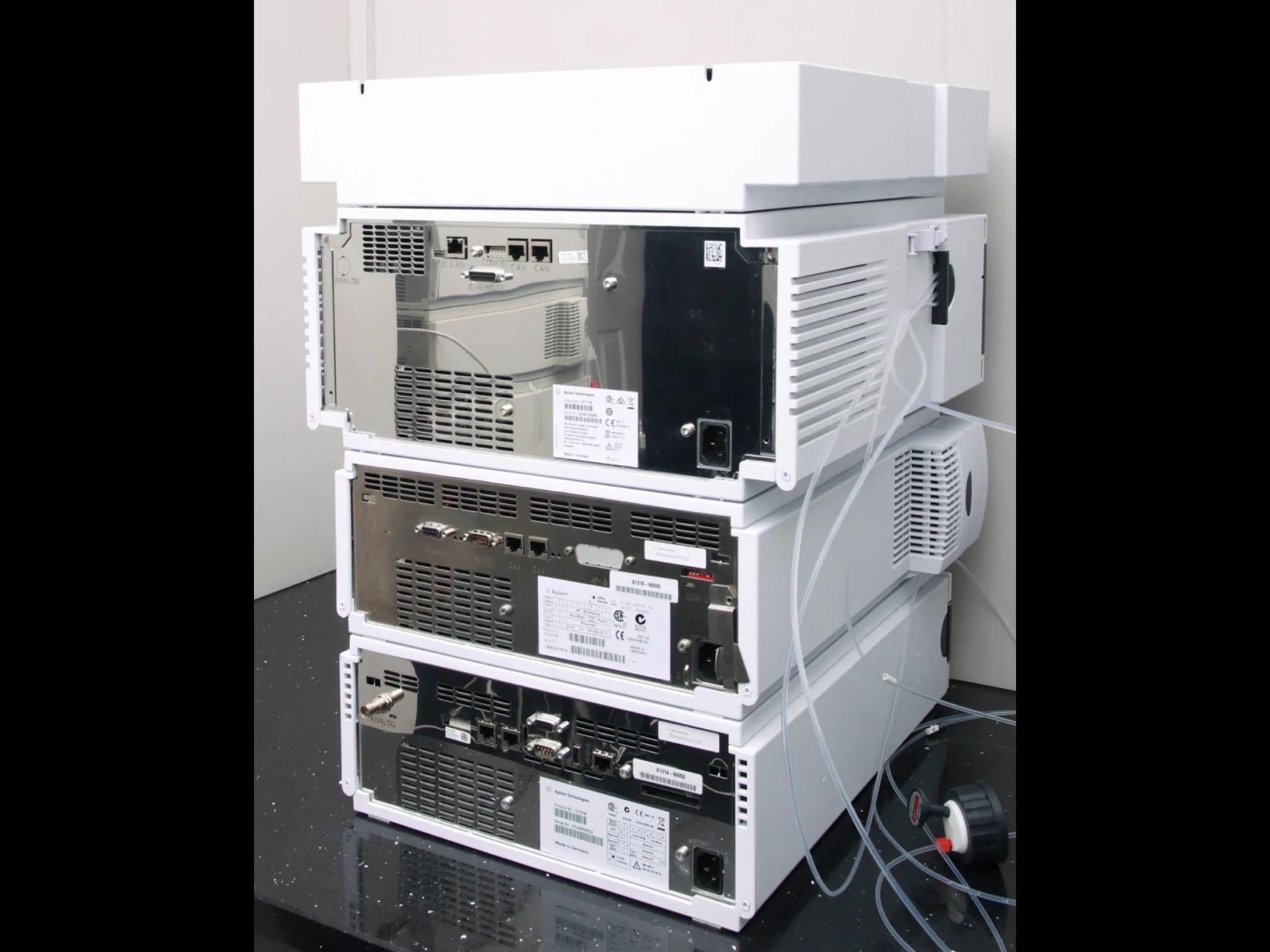

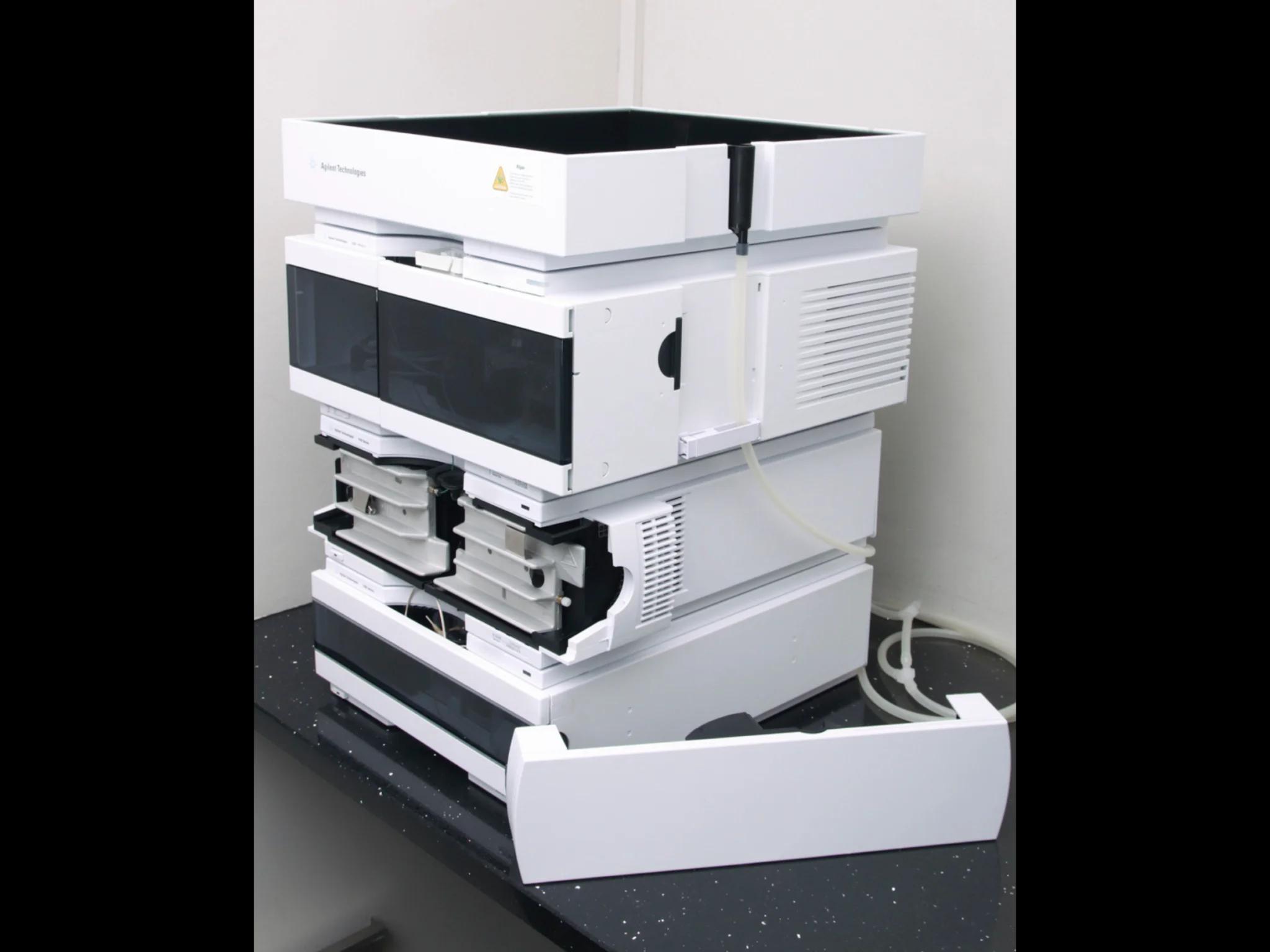

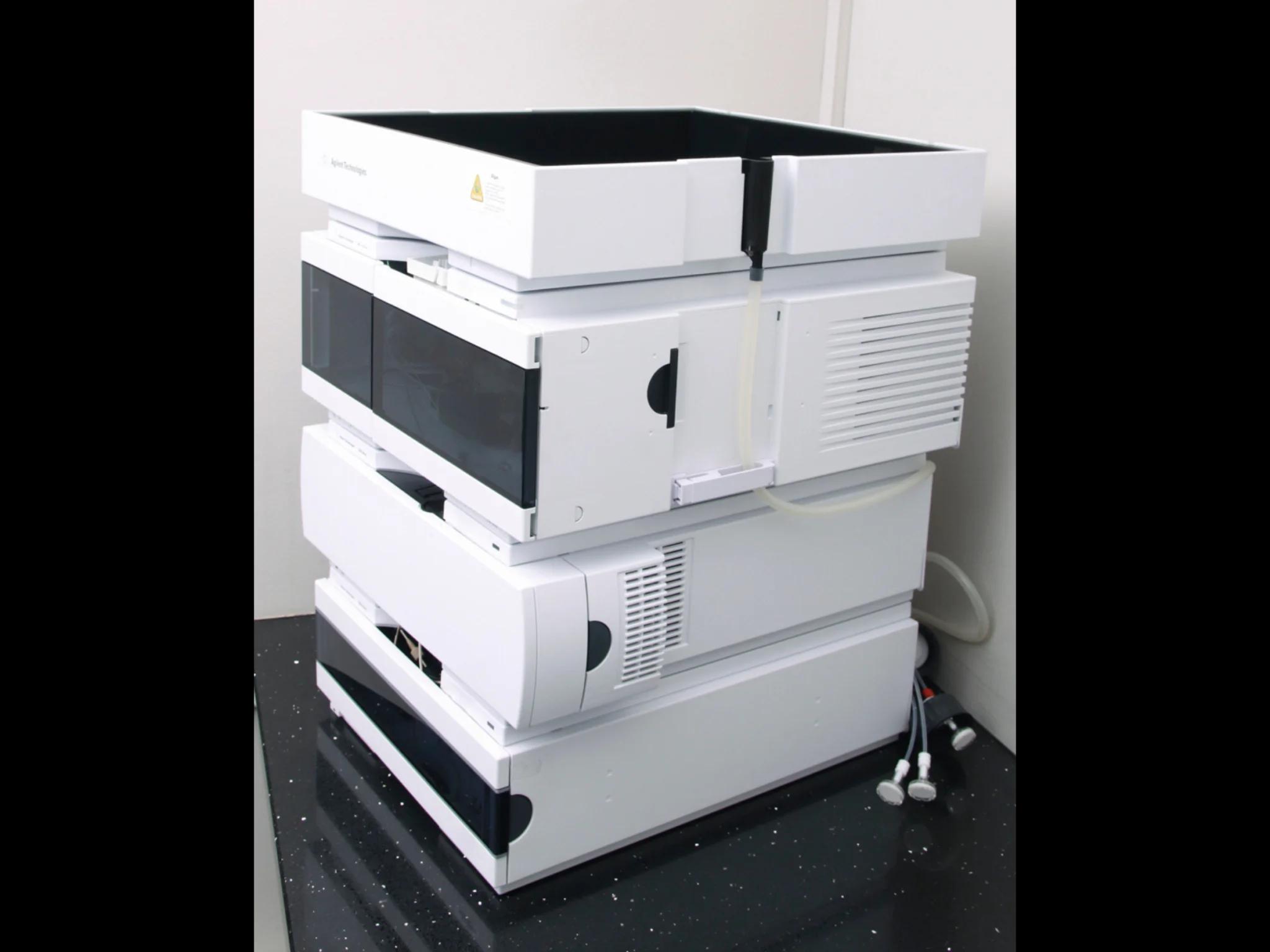

This Agilent 1260/1100 HPLC system includes a 1260 Infinity II Quat Pump, 1100 ColComp and 1260 Infinity VWD.

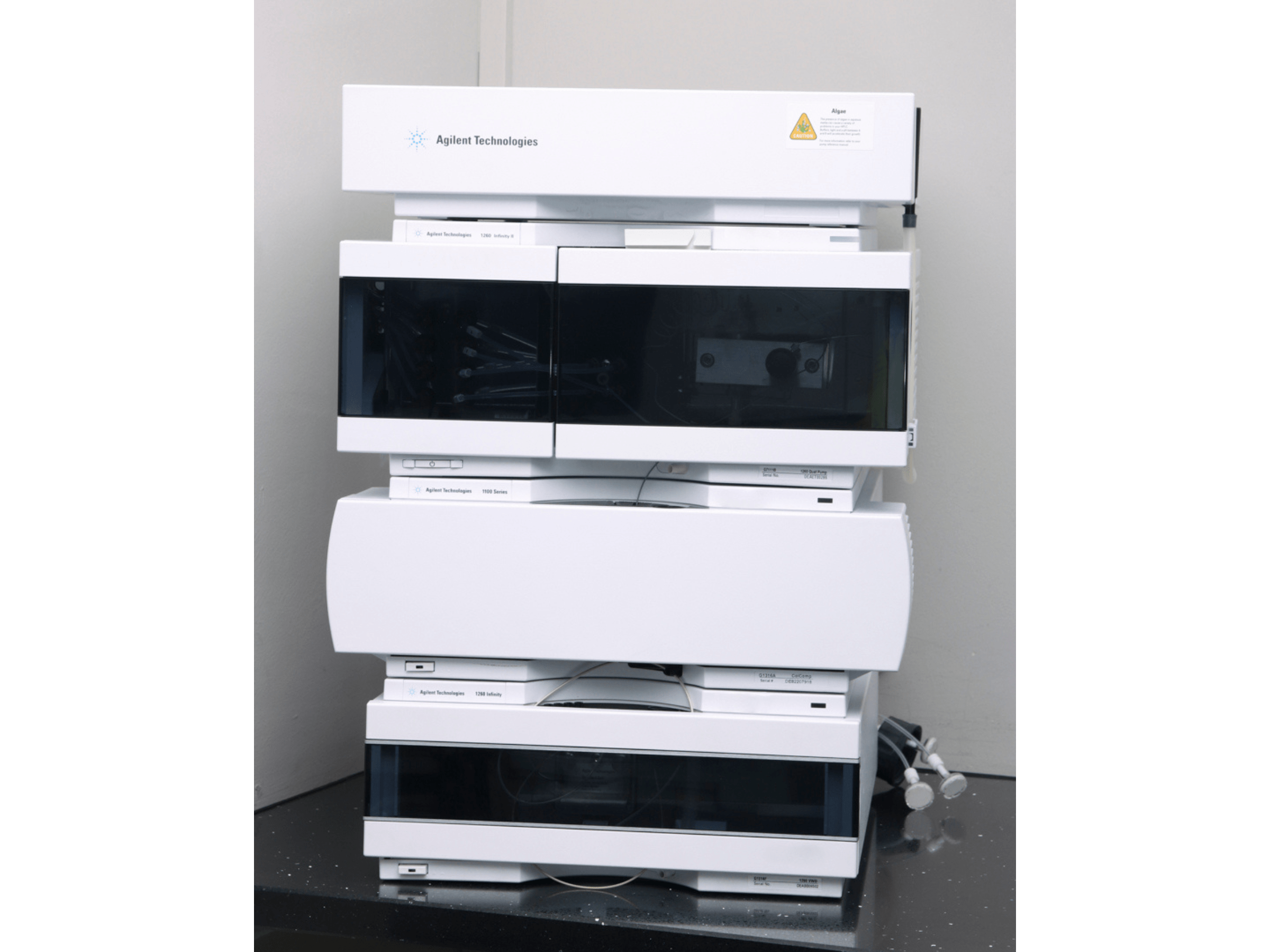

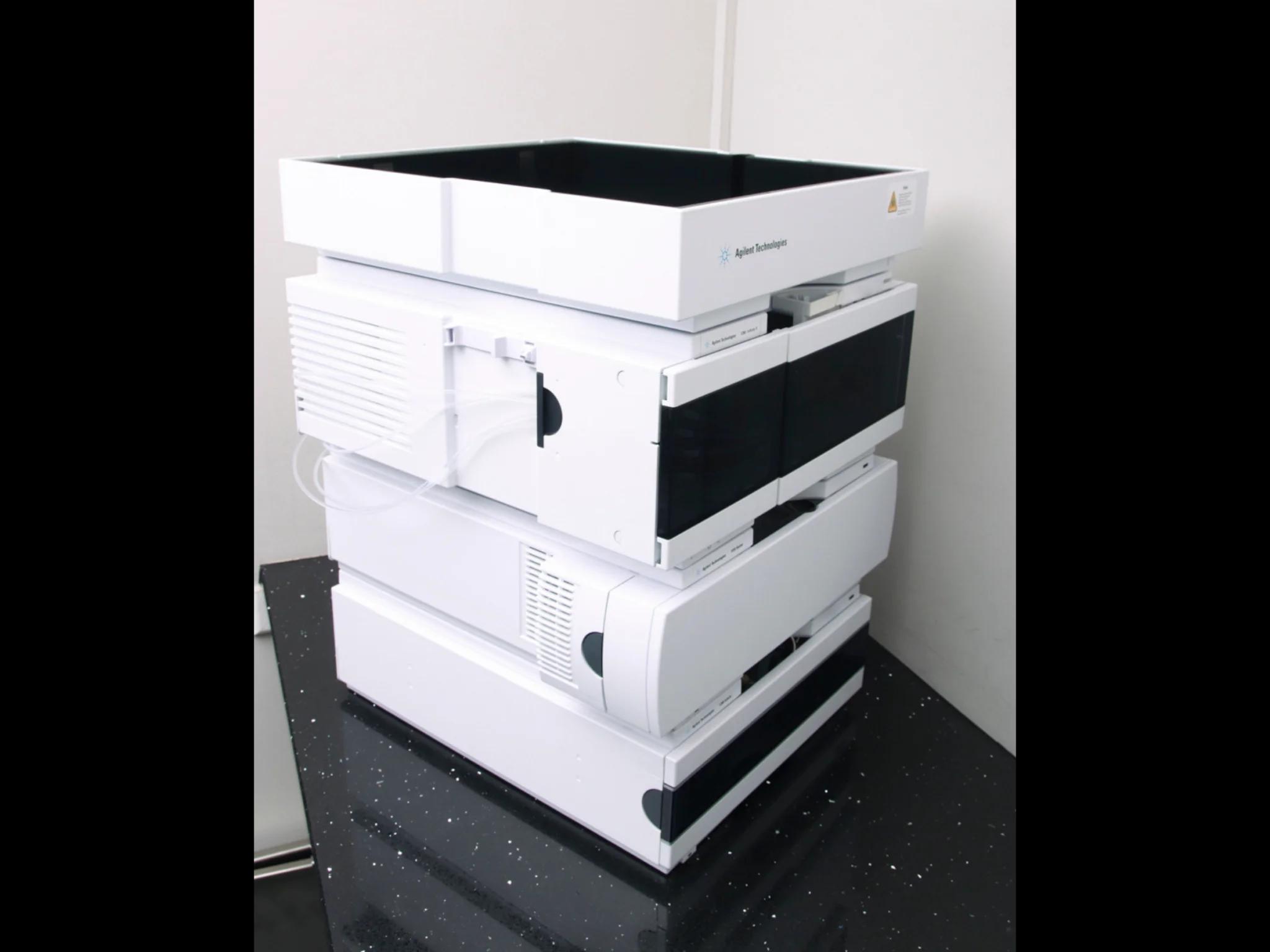

The Agilent 1260 Infinity/1100 HPLC System is a high performance liquid chromatography instrument thus providing reliability and robustness for daily use. The system will feature:

• 1260 Infinity II QuatPump G7111B
• 1100 Series ColComp G1316A
• 1260 Infinity VWD G1314F
• PC & Software

Module Breakdown of the Agilent 1260 Infinity/1100 HPLC System with Quat Pump, Colcomp and VWD

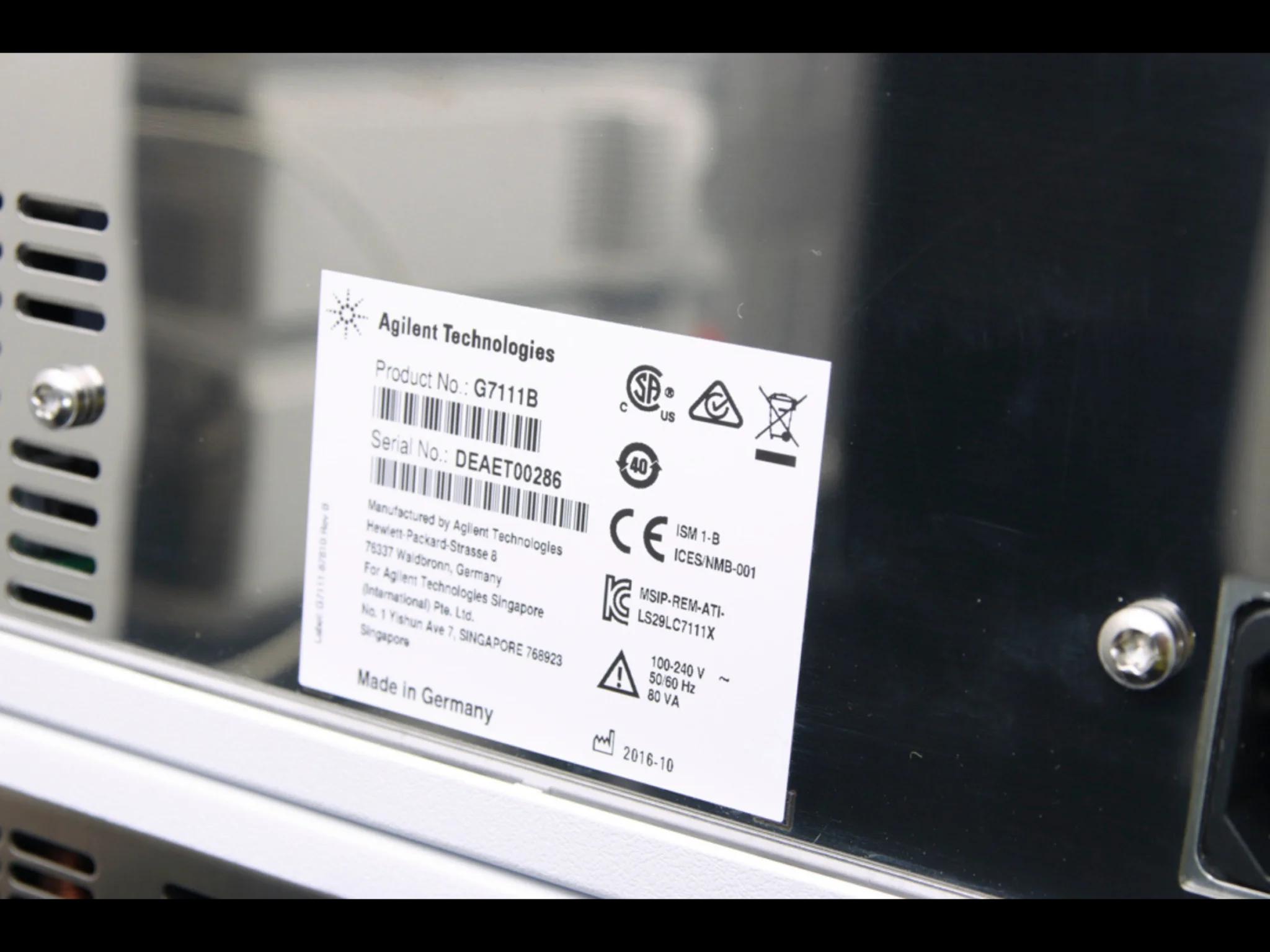

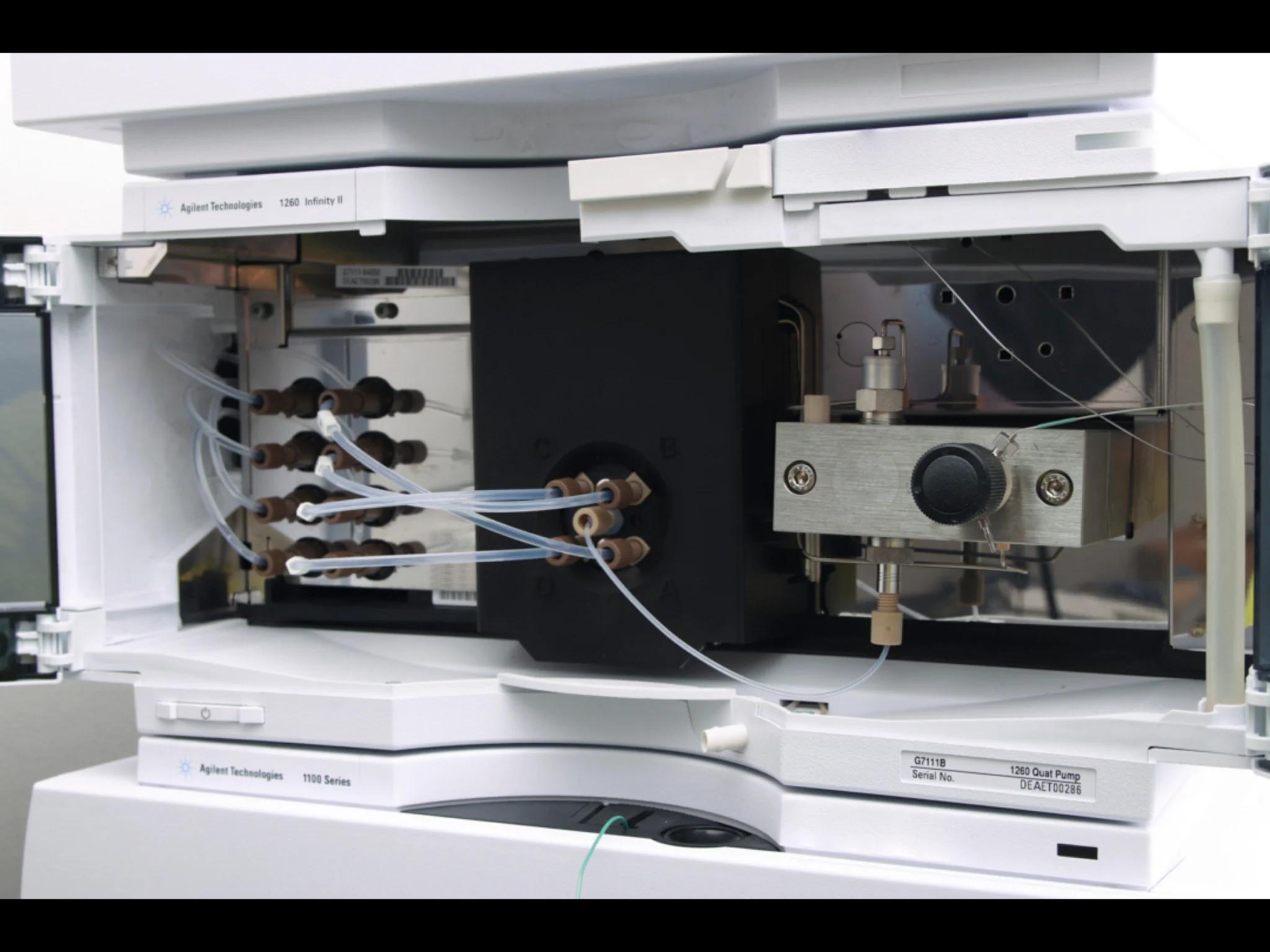

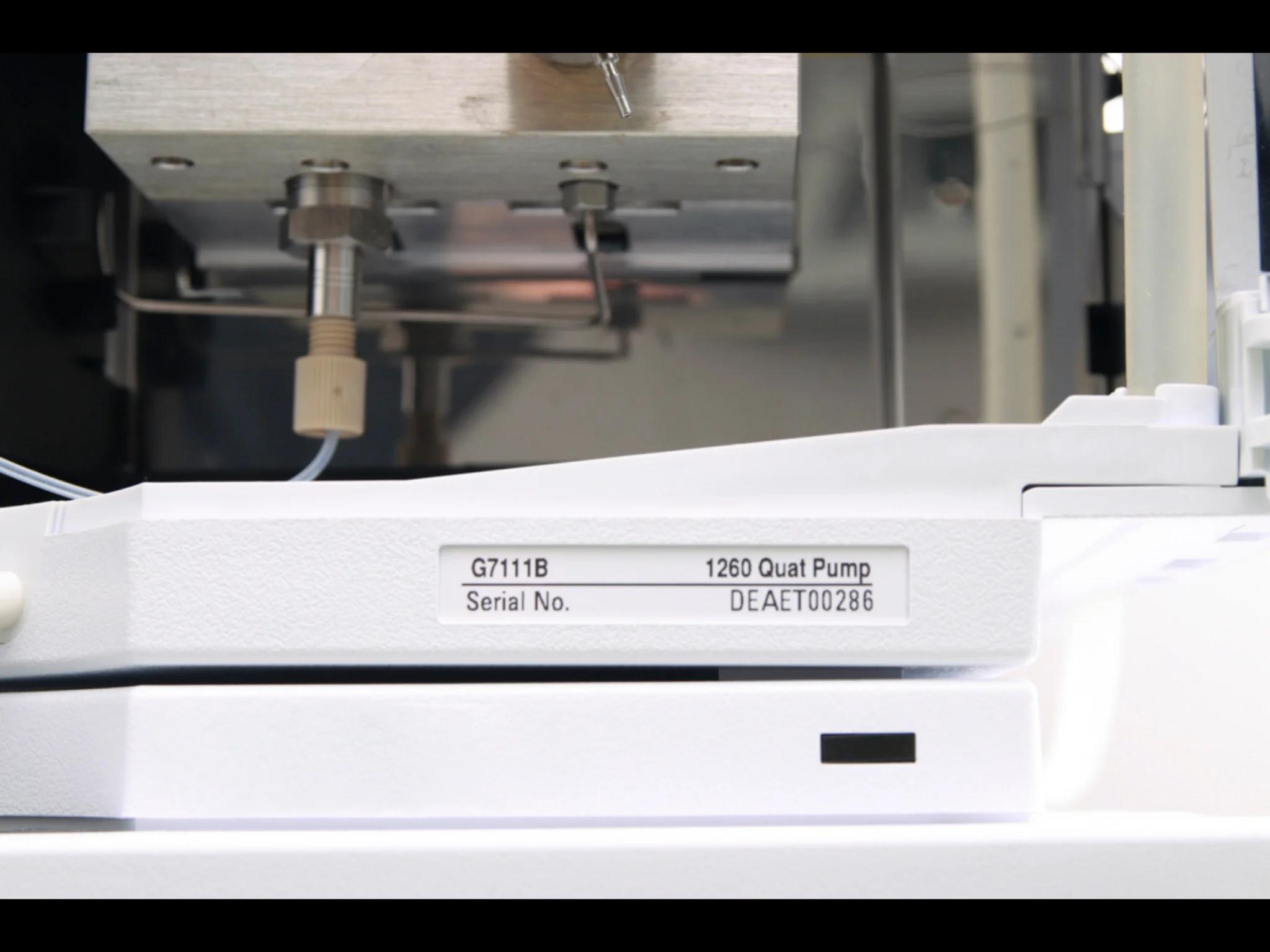

The first module of the Agilent 1260/1100 HPLC System is a 1260 Infinity II Quaternary Pump.

 Features of Agilent 1260 Infinity II Quaternary Pump:

• Extended power range of up to 600 bar, allowing the use of smaller particle size columns as well as higher viscous solvents, resulting in higher resolution and faster separations
• Virtually pulse-free, well mixed and stable solvent flows, thanks to its dual floating, precise servo-controlled pistons
• Ideal for research and routine applications in the food, environmental and pharmaceutical and for method development
• Wide flow range of up to 10 mL/min
• Convenient access speeds up method development, preparation of mobile phases and system flushing as well as providing greater flexibility
• Easy, fast and secure transfer of methods from HPLC to sub-2-micron columns

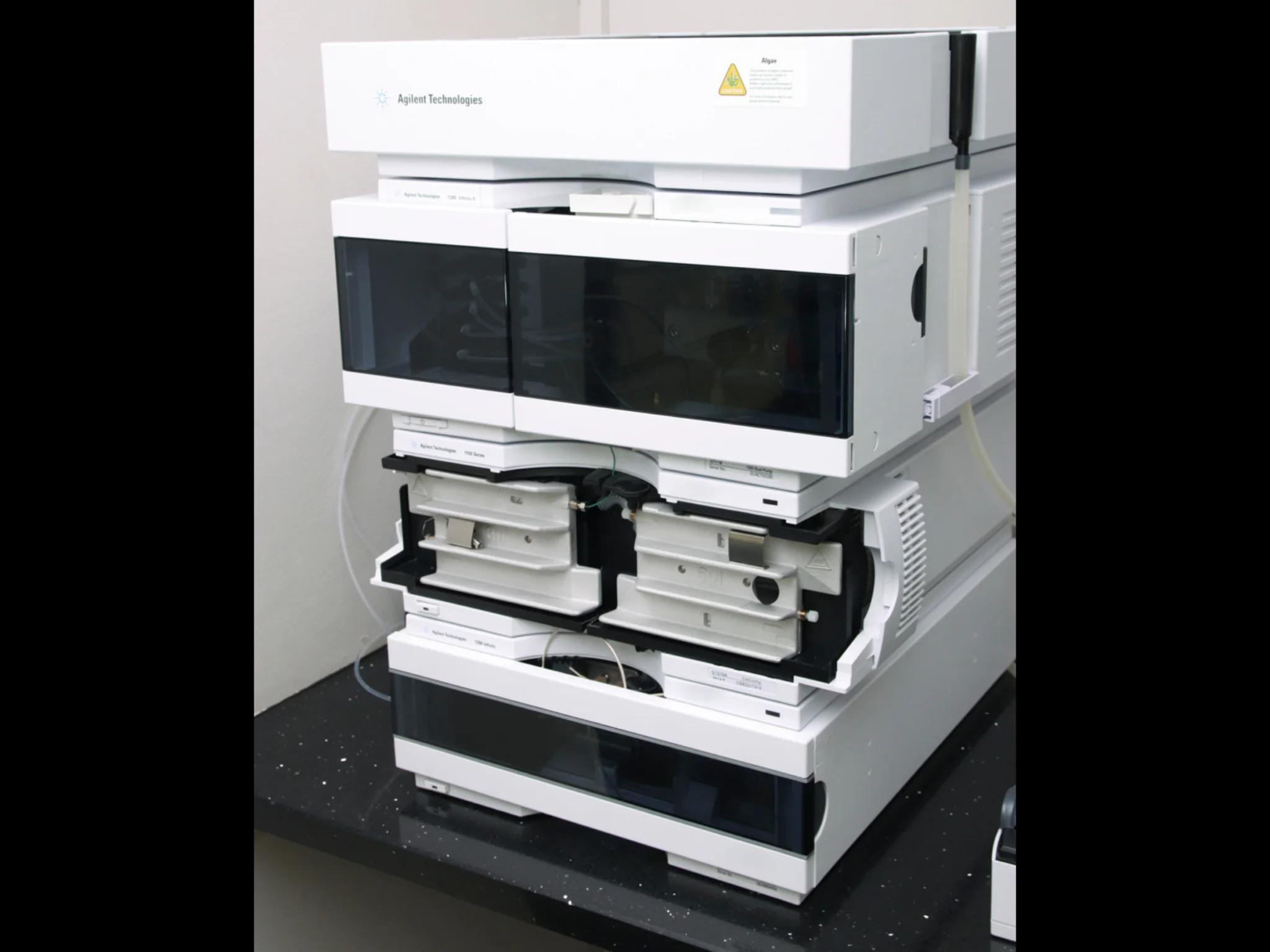

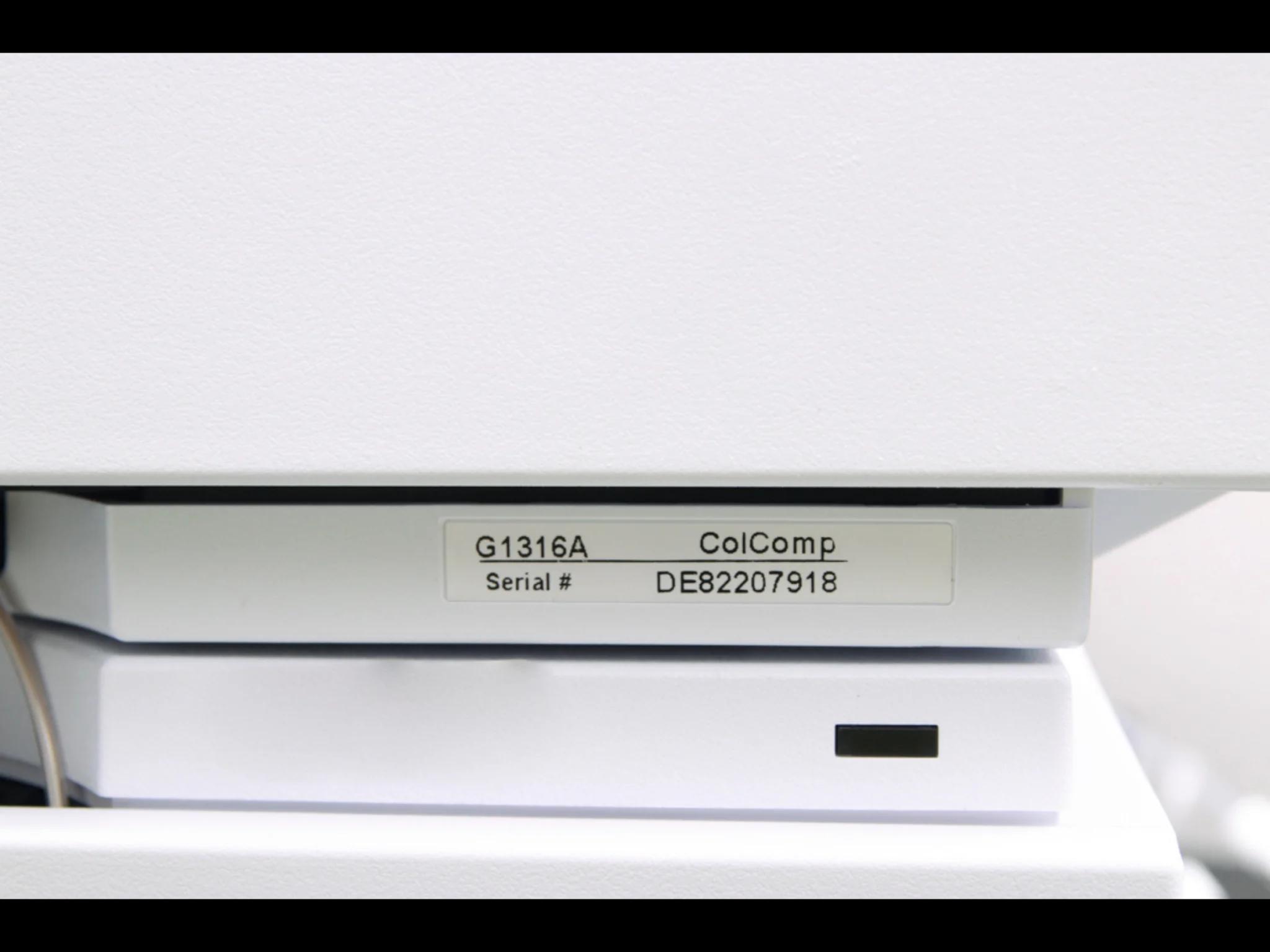

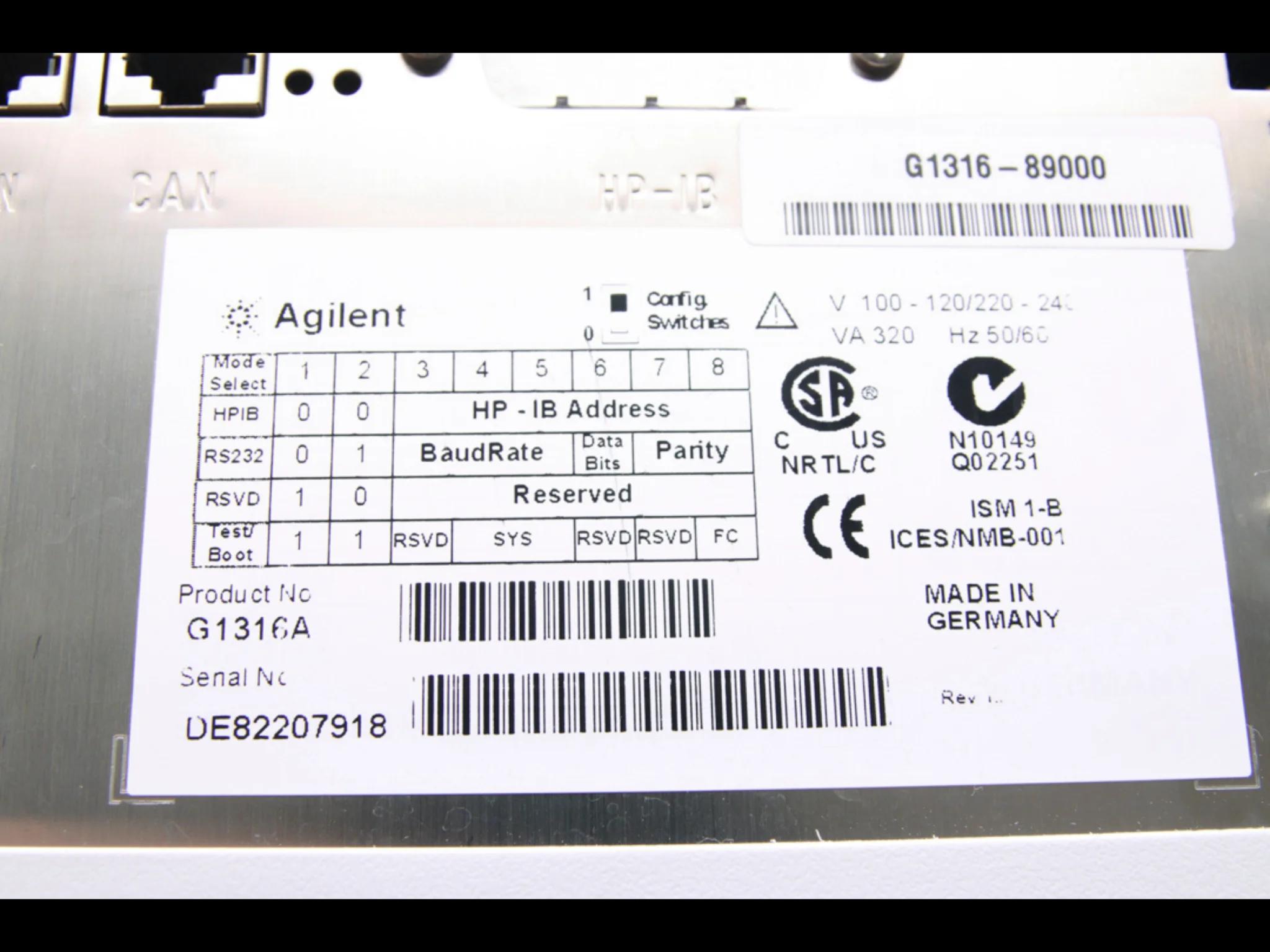

The second module of the Agilent 1260/1100 HPLC System is an 1100 Thermostatted Column Compartment.

Features of Agilent 1100 Series ColComp

• Peltier heating and cooling from 10 degrees below ambient up to 80 degrees Centigrade
• Holds up to three 30-cm columns
• Two independently programmable heat exchangers
• Electronic column-identification module

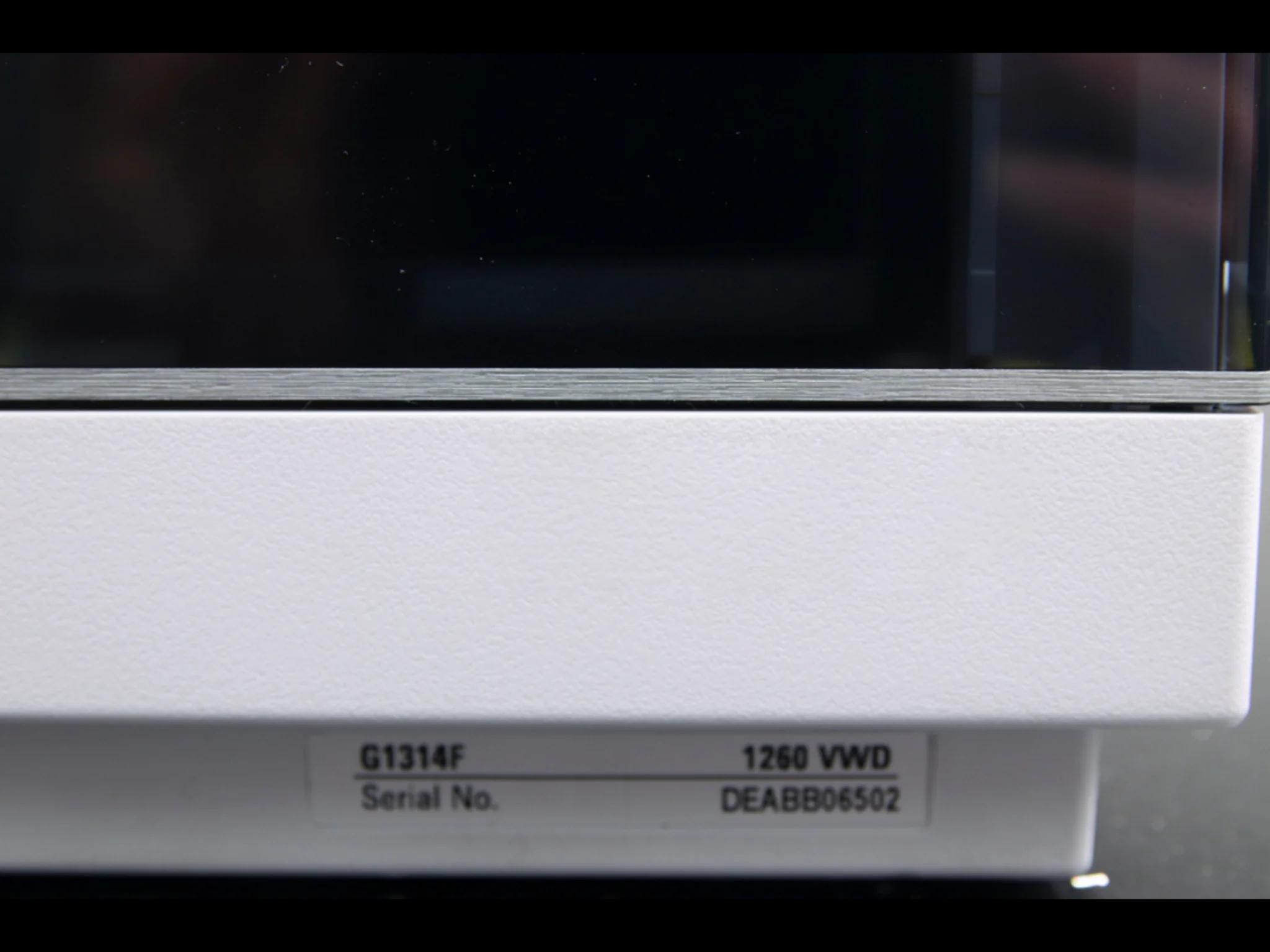

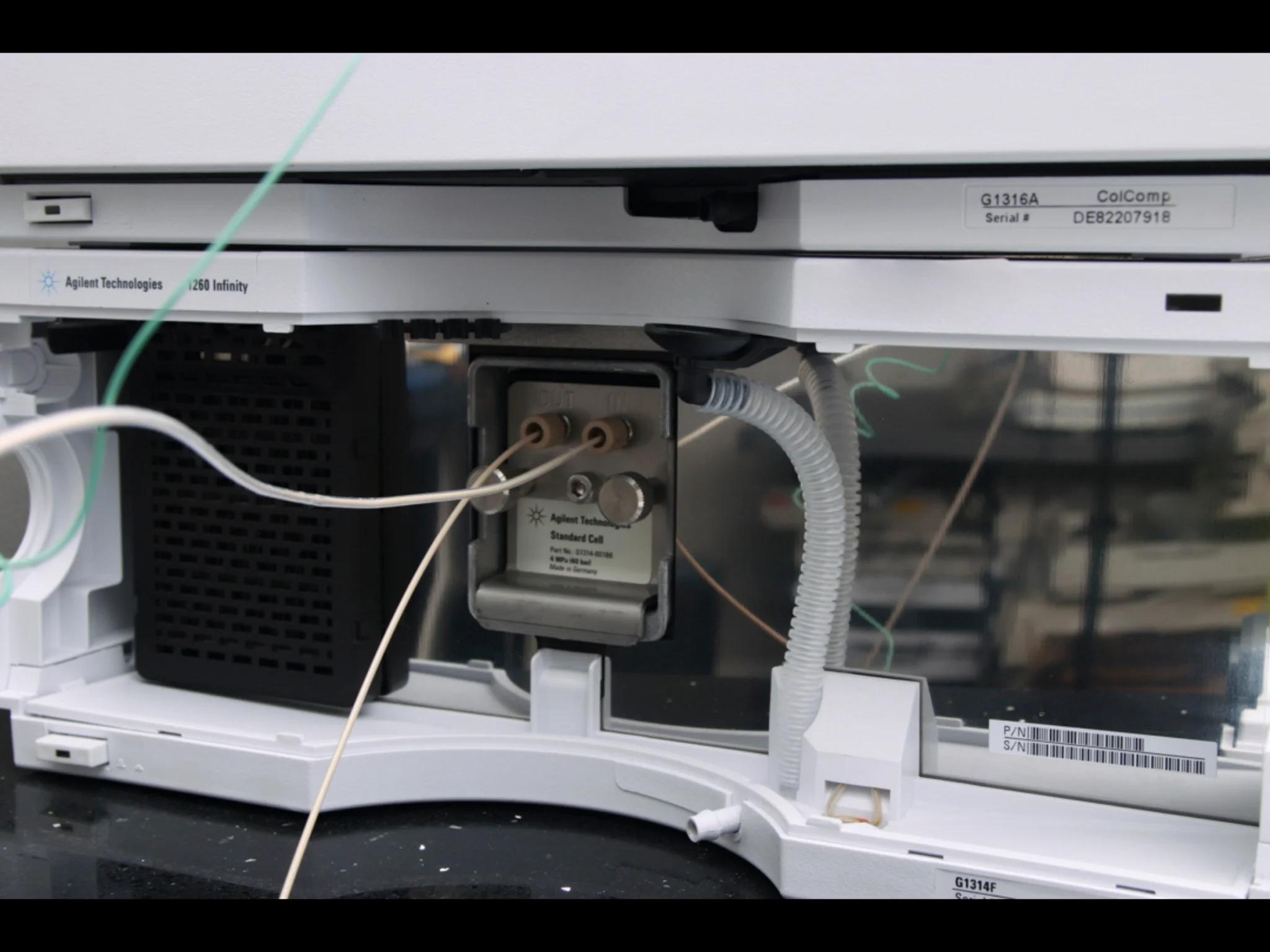

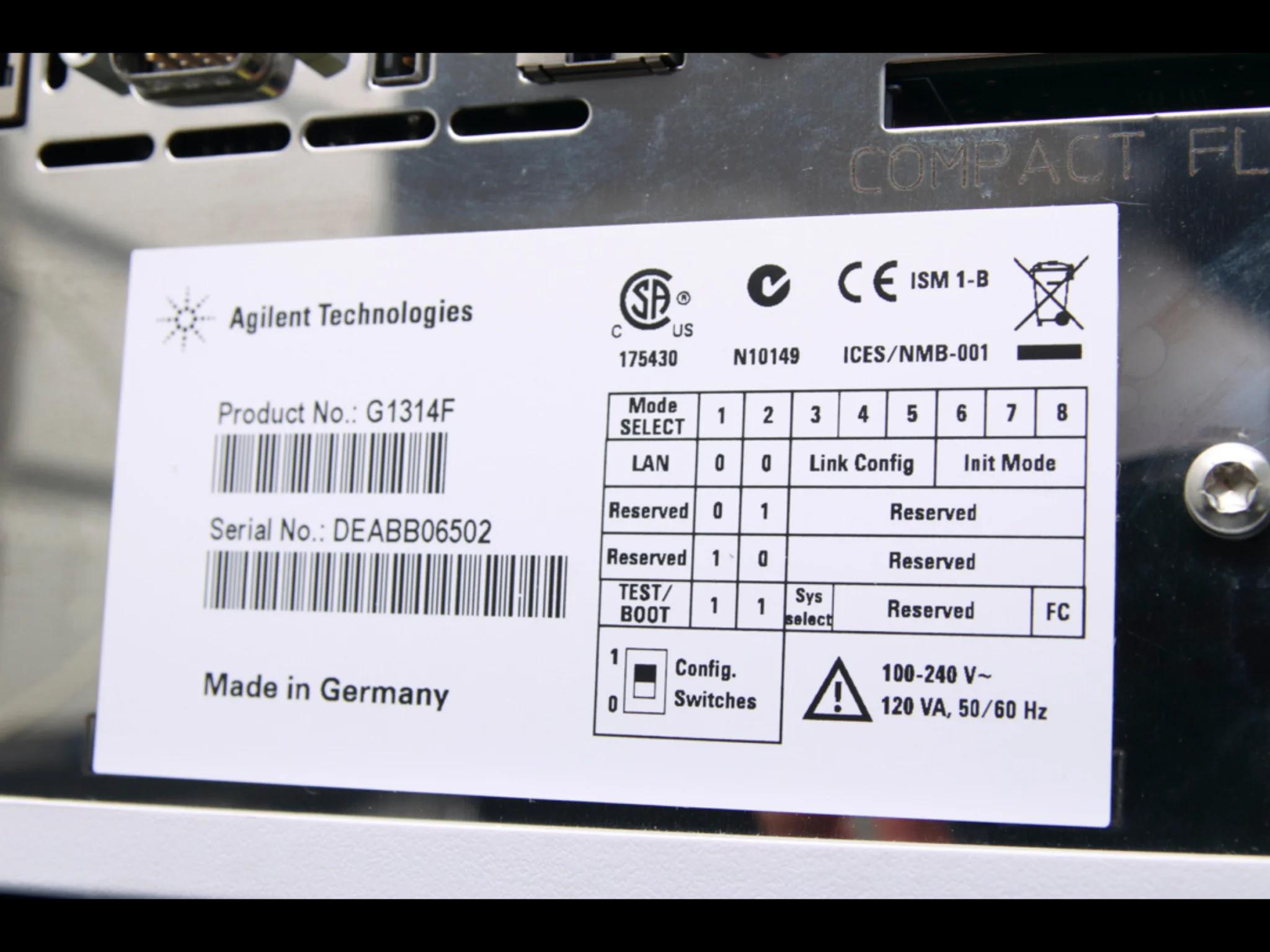

The third module of the Agilent 1260/1100 HPLC System is a 1260 Infinity Variable Wavelength Detector, designed to deliver robust quantification of trace level components and more analyte information per run.

Features of Agilent 1260 Infinity VWD :

• Deuterium lamp for high-intensity and low detection limit over a wavelength range of 190 to 600 nm
• Easy front access to the lamp and flow cell for quick replacement
• Built-in holmium oxide filter for fast wavelength accuracy verification
• Dual-wavelength capabilities for more analyte information per run
• Fast wavelength optimization with stop-flow wavelength scanning
• Radio frequency identification technology for flow cells as well as lamps for maximum data traceability

fully operational
