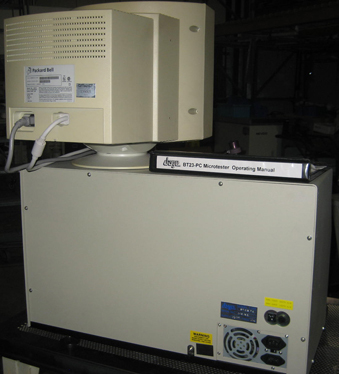

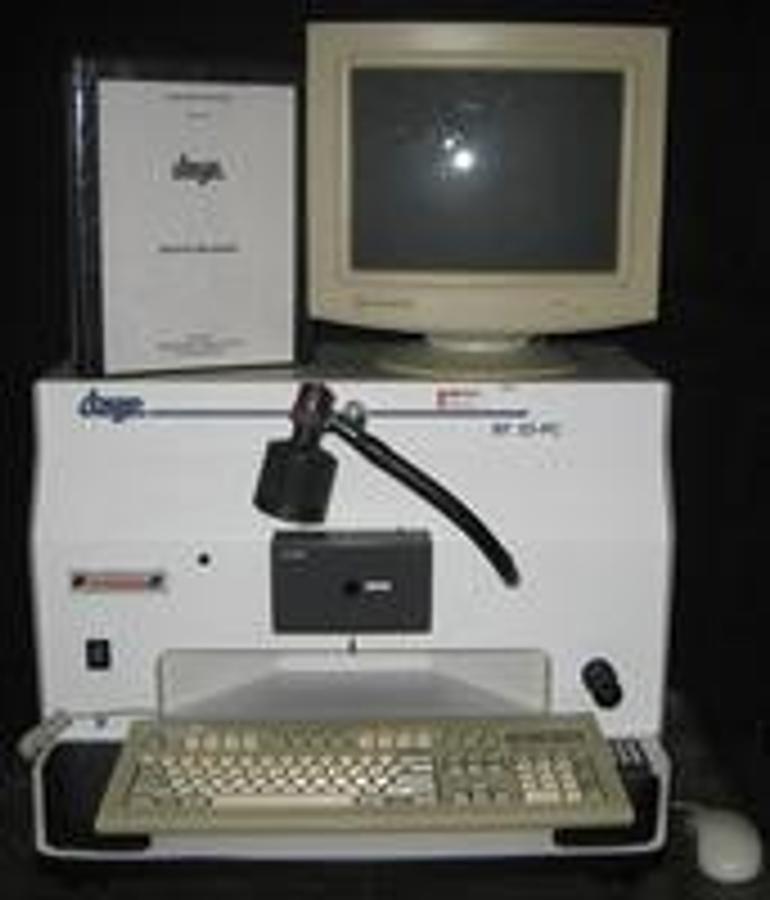

1995 DAGE BT23-PC

Die Shear Tester with LC200 Die Shear Load Cell

Shear Tester for Ball Bonds and Tab Bump

LC200 Load Cell

Destruct/Non-Destruct Testing

2.0mm (0.08in) X-Axis Travel

0.15mm (0.006in) tip width – Shear Tool Size

3 to 7g (0.107 to 0.25ozf) Tool Landing Force

0.5mm (0.02in) full scale – Load Beam Deflection

X-Axis – left to right, Shear Test Direction

Condition Excellent

Year of Manufacture 1995

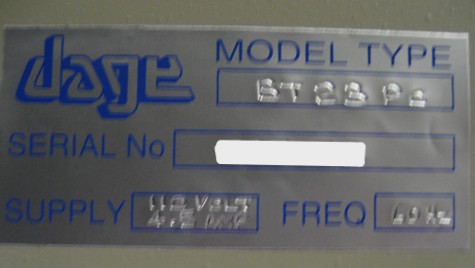

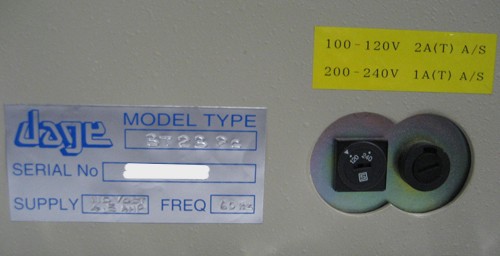

Power Requirements 110 V   4.5 A   60 Hz

CE Marked YES
