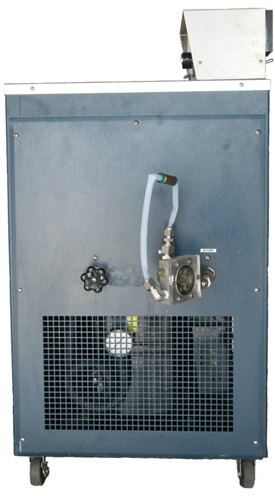

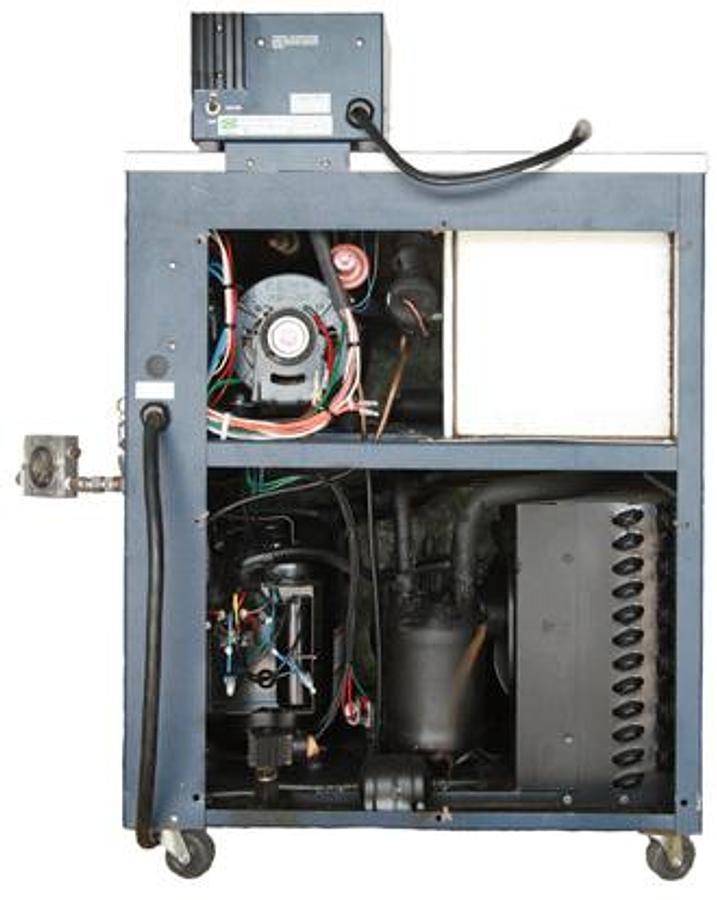

NESLAB HX-75 Chiller

Recirculating Water Chiller w/Analog Temp Ctlr, Air Cooled

• Cooling System   External Cooling Air Cooled  Pump type/Model PD-1  Cooling Capacity 2,000  W  (6,821 BTU/hr)
• Minimum Temperature 5  ºC  (41 ºF, 278.00 ºK)
• Maximum Temperature 35  ºC  (95 ºF, 308 ºK)
• Temperature Control   Control Stability ± 0.100 ºC
• Heat/Cool Controls   Control Type Analog Setpoint
• Max Flow 3  GPM  (11.40 l/m)
• Maximum Pressure 50.000  PSI  (3,447.65 mbar, 344,765.00 Pa)
• Capacity/Liquid 18.93  L  (5.00 gal)

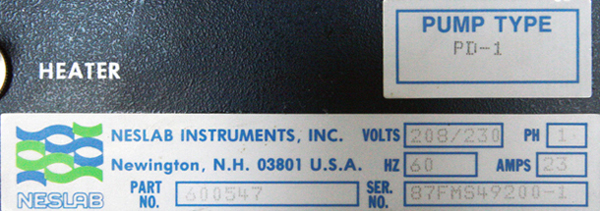

• Other Information Part Number 600547
• Air Cooled Compressor
• +5°C to +35°C Temperature Range
• ±0.1°C Temperature Stability

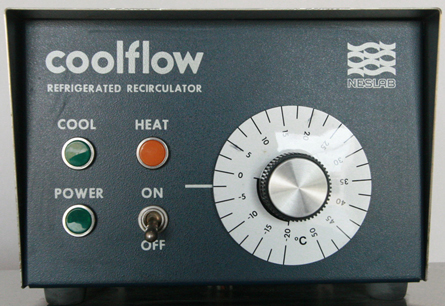

• Analog Temperature Control
• 5 Gallon Reservoir Volume
• Pump Type – PD-1

Power Requirements 230 V   9.0 A   60 Hz
