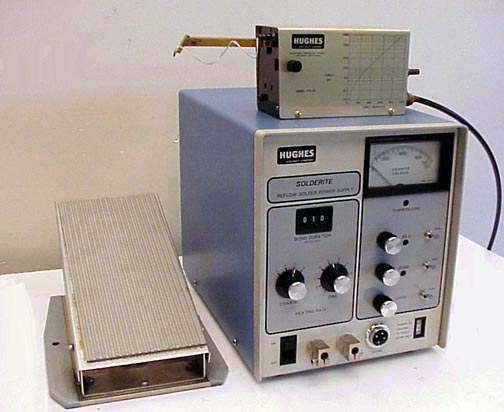

Hughes VTA90 Parallell Gap Bonder

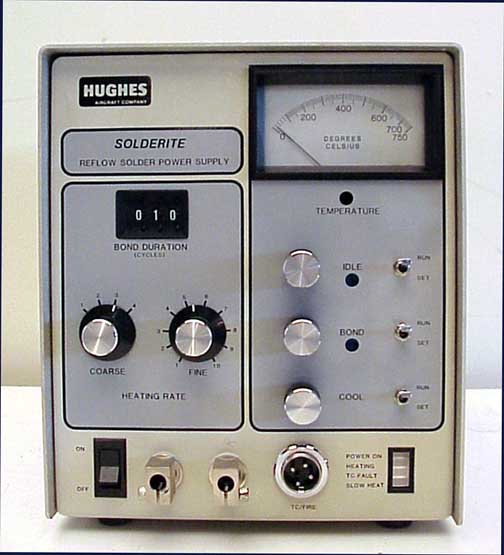

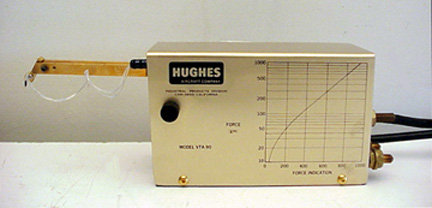

Manufacturer Hughes Model VTA90 Description VTA 90 w/HTT 600 Power Supply Maximum Rating .17  KVA Maximum Rating 20  watt-sec Weld Force Minimum 0.22  lb  (0.10 kg) Weld Force Maximum 2.01  lb  (0.91 kg) Weld Head Type Opposed Electrode Holder Type Parallel Gap Power Leads Opposed Power Supply Included YES Power Supply Model HTT-600 Foot Pedal Included YES Other Information Flexline foot pedal Electrode stroke: 0.25" Electrode holder: 0.125 x 0.078" Digital thumbwheel duration timer Coarse and fine temperature heat rate adjustment 0 to 750°C analog temperature meter Does not come with base plate. Soldering tip is NOT included Power Requirements 115 V     8.0 A     50/60 Hz     1 Phase Condition Excellent Exterior Dimensions   Width 2.500  in  (6.3 cm)   Depth 7.500  in  (19.1 cm)   Height 4.000  in  (10.2 cm) Weight 12  lb  (5 kg)
