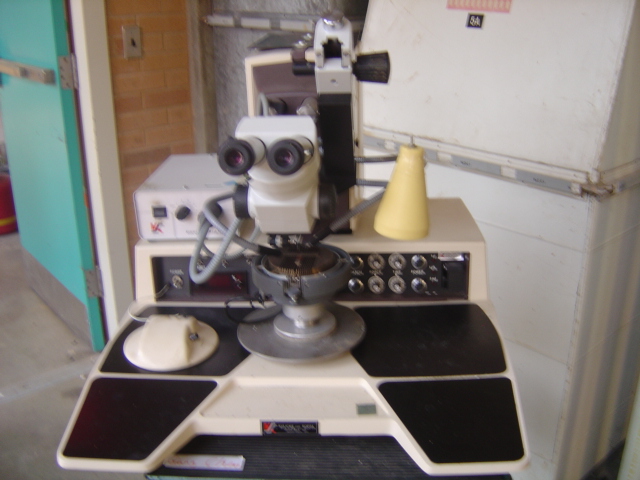

Kulicke and Soffa (K&S) 4123 Wire Bonder

Kulicke and Soffa (K&S) 4123 Wire Bonder

General Specs:

Wire Diameter Range : Gold - 0.5 to 3.0 mils (12.7 to 76.2 µm)

Aluminum - 1.0 to 3.0 mils (25.4 to 76.2 µm)

Spool Size: TC-1 Gold Ribbon: .05 mil x 2 mils to 1 mil x 5 mils (12.7 µm x

63.5 µm to 25.4 µm x 127 µm) max.

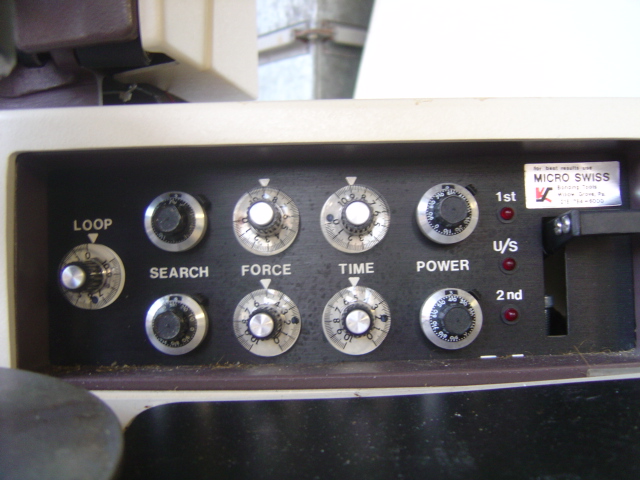

Performance Cycle Time: 850 ms (incl. 100 ms bond time)

Bond Force: 5 to 160 gr

Bond Time: 10 to 100 ms

Ultrasonic Power: Low: 1.3 W. max. High: 2.0 W. max

Machine Wire Trajectory: 30 / 45

Throat depth: 5" (127 mm)

Reset to overtravel, overall: 0.20: (5.1mm)

Search / Loop height range: 0.015" under reset to 0.015" above Overtravel

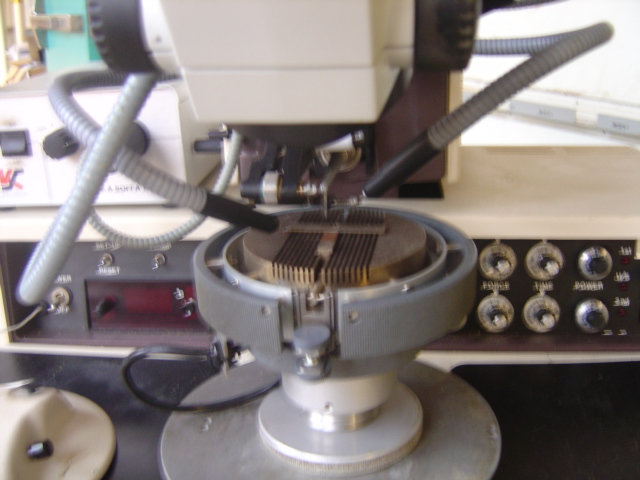

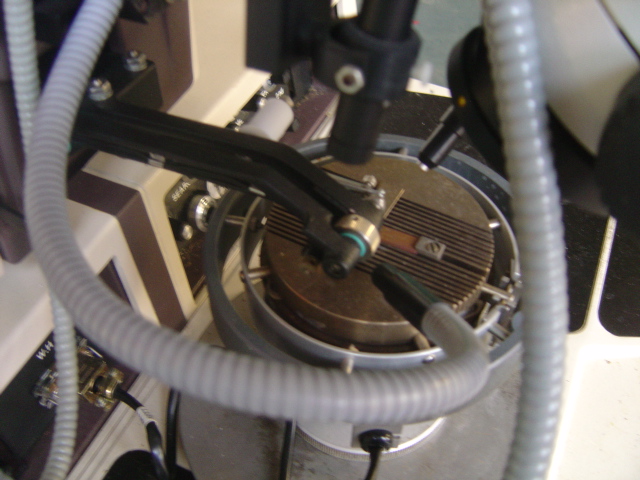

Table Motion: Gross: 6.5" diameter Fine: 0.5" diameter Bonding area:

3.75" x 3.75"

Chessman Ratio: 6:1

Tail Length: Constant, mechanically adjustable

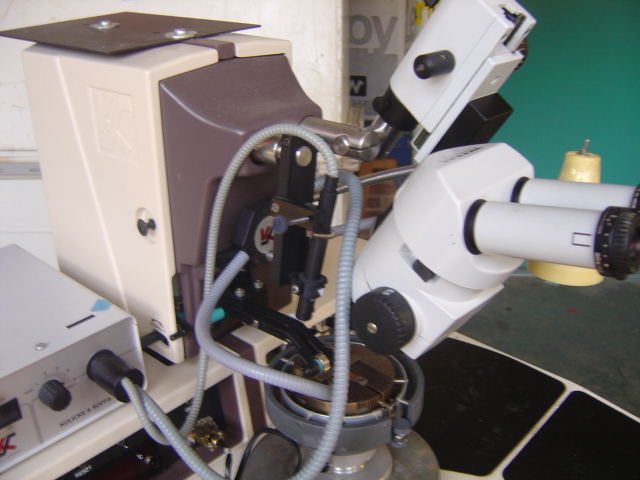

Optics: B&L Scope, Top mounted

Temperature Range: 50 to 400 C

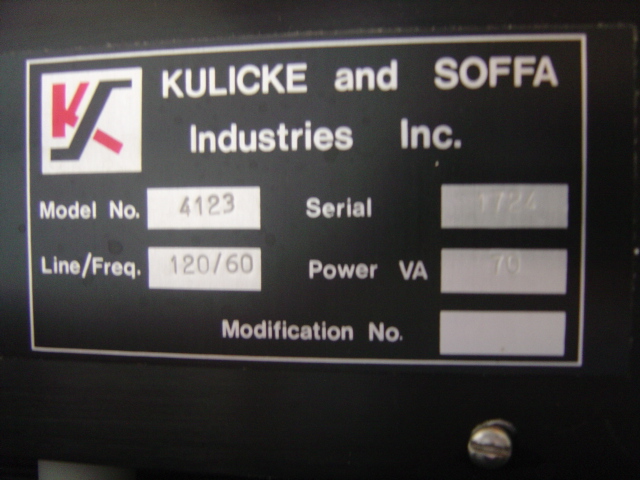

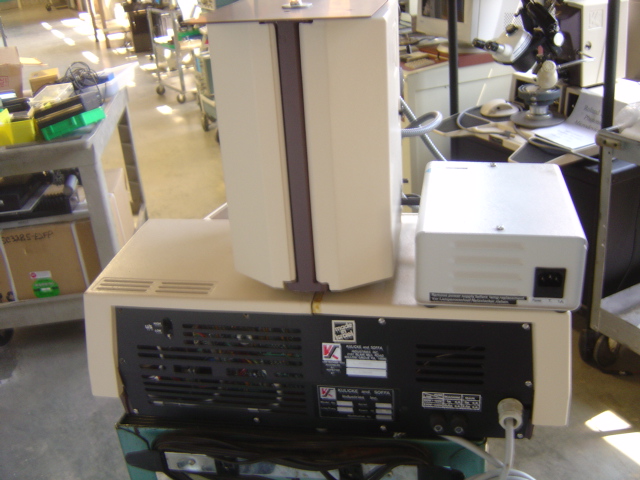

Electrical Requirements: 120 VAC 50 / 60 Hz 55 VA max
