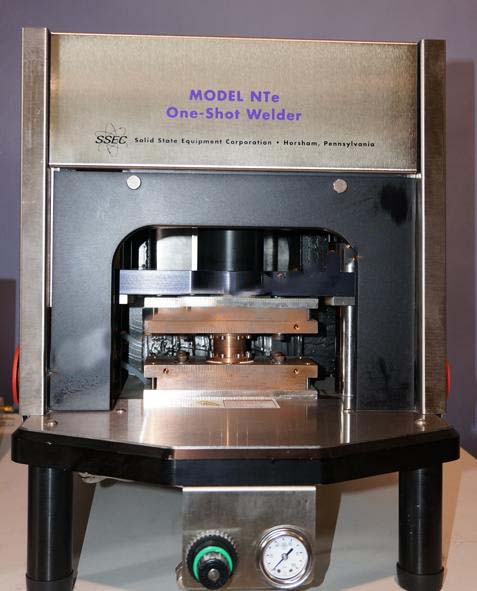

NTe hermetic package sealer- one shot welder

software controlled

vacuum sealing and inert gas backfill

field upgradeable to up to 4 stations

over 5000 Joules stored energy

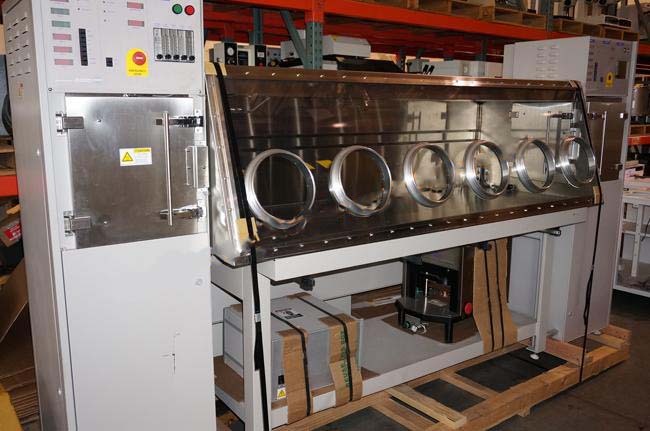

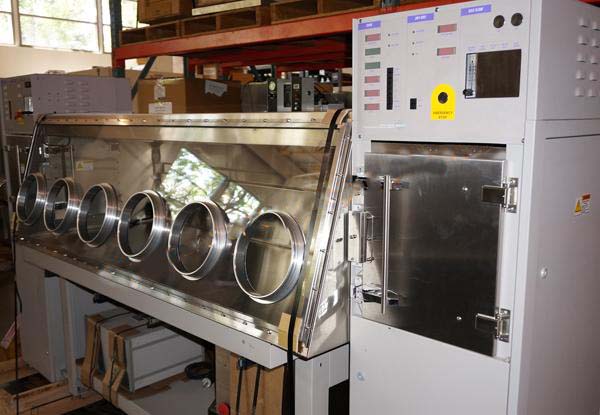

Model 2000 stainless steel environmental enclosure with 6 glove ports

84"w x 22"h x 30"d

static dissipative viewing window

integrated lighting

Front loading stainless steel interchange box 16"x16"x16" with electronic interlocks

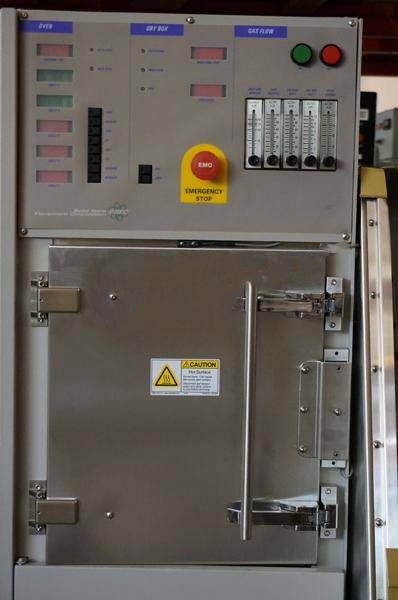

Model 2000 moisture removal oven

dual 13"x13" active heated stainless steel shelves with heated top plate for uniformity

max temp 200C

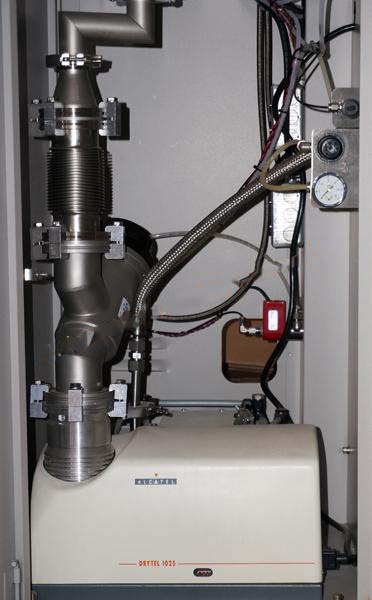

Alcatel model 1025 dry pumping system includes a 1.4m3/hr oil free AMD4 diaphram pump and 7.5l/s Alcatel MDP5011molecular drag pump

Interlocked front and entry doors

Digital display of oven pressure

Vacuum levels of 10-3 to 10-4

Flowmeter for backfill gas

power requirements 208v-240v, 50/60hz, 1 phase, 30 amps
