TMC 784 Performance series optical breadboard 36x72x8 with gimbel isolation base

Cleantop II optical breadboard with gimbel isolation base pn 784-439-02R (top breadboard in photo)

36"x72"x8"

1/4-20 holes 1" on center

3/16 skin

maximum damping

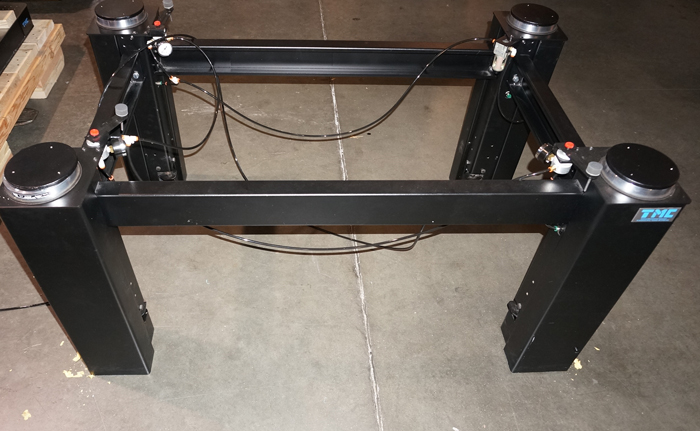

base pn 14-41H-24 with gimbel piston isolators

784 Performance Series

Research Grade CleanTop Optical Top – Features

• Maximum Structural Damping – Research Grade
• CleanTop® individual nylon cups under each tapped hole are airtight.
• 3/16 inch thick (5 mm) 430 alloy stainless steel top skin
• All steel construction, no wood or plastic layers
• Smallest honeycomb cell size, highest honeycomb core density
• Damped, formed steel channel sides, vinyl covered
