Gasonics 9104

Contact us for price

orCall +353 (0) 87 192 1110

Description

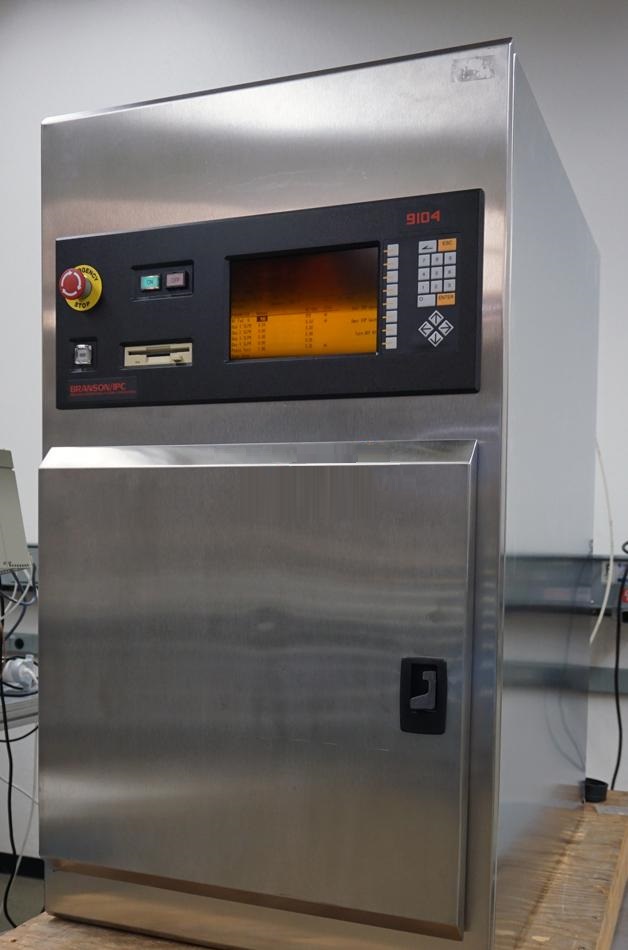

Gasonics 9104 plasma asher (never installed with new control box)

Features and Specifications

Gasonics/IPC 9104 Ash/Etch system

12"(dia) x 20"(D) quartz barrel

soft pumping and purge valving

low particulate design

2ea mass flow gas inputs with VCR fittings

all SS plumbing,

multi channel/single board computer controlled, with floppy storage

temperature monitor


ENI OEM 12B 1250W RF Generator

  • Wafer Size: 4", 6", 8" capability

  • Capacity: 50 8" wafers, 50-75 6" wafers, 100 4" wafers.

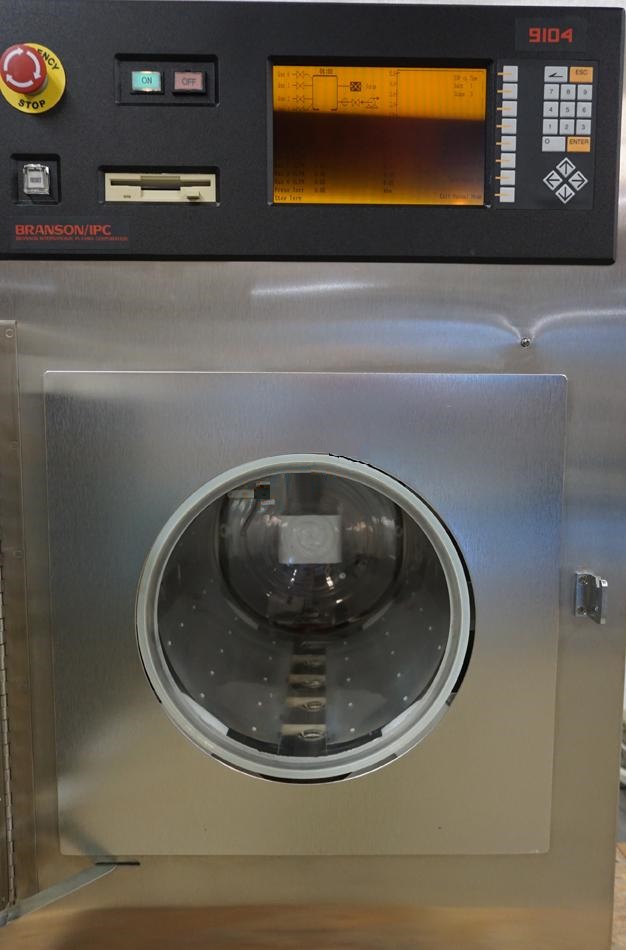

  • Chamber: Quartz, compatible with fluorinated chemistry. 12" diameter x 20" deep. External RF electrodes.

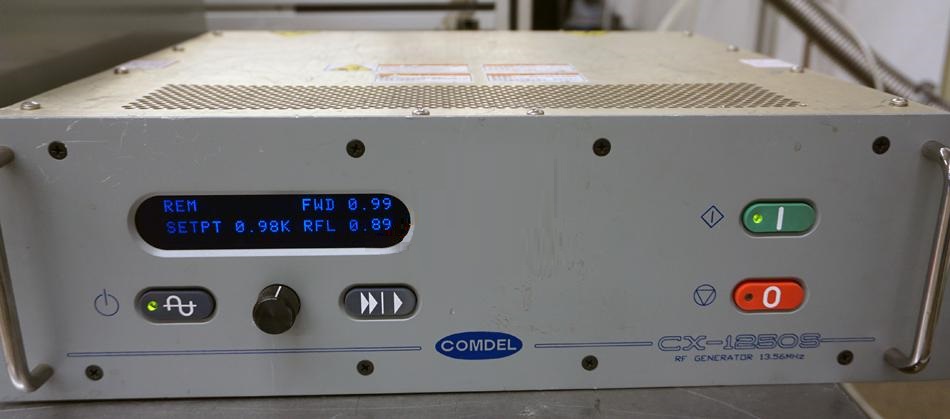

  • RF Generator: 1250 watt 13.56 MHz air cooled with automatic impedance matching network. Water cooled optional.

  • Process Pressure: Approx. 120 - 2000 mtorr.

  • Stainless Steel Plumbing.

  • Temperature Monitor: Quartz-coated thermocouple located in the process chamber.

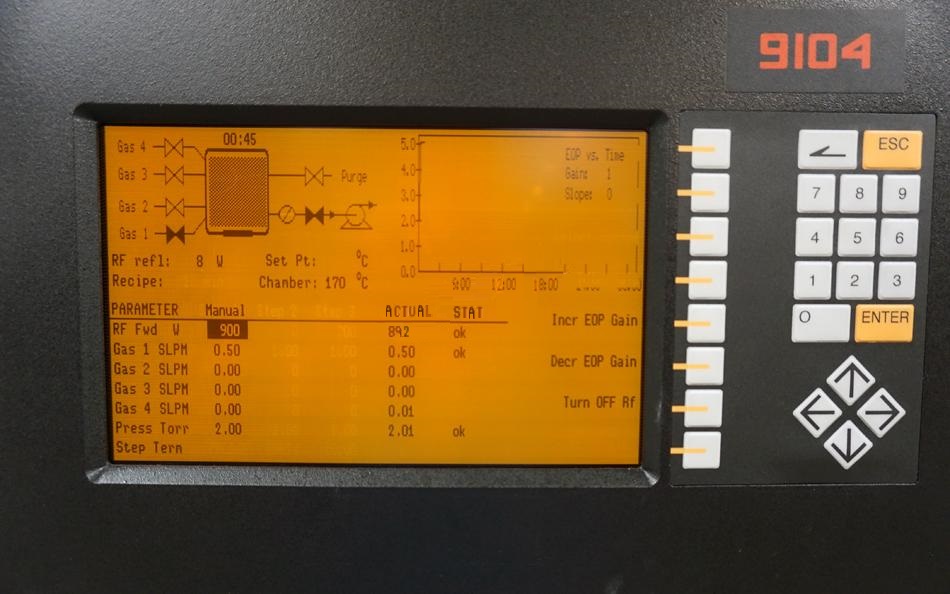

  • Display: Color 12.1" touch screen for control and monitoring of process parameters, automatic recipes, or manual plasma treatments.

  • Four user specified gases, with 500 sccm Stainless Steel MFCs come standard with an optional 3rd and/or 4th gas channel available.

  • Power Requirements: 208 - 240 volts, 3ø, 50/60 Hz 5 wire "wye".

  • A NEMA-12 wall mounting enclosure with locking handle contains the AC power control for the asher, power supply, and pump, allows for a single source drop for the complete system.

  • CE Certified.


Specifications

ManufacturerGasonics
Model9104
ConditionUsed
Stock NumberEM955
