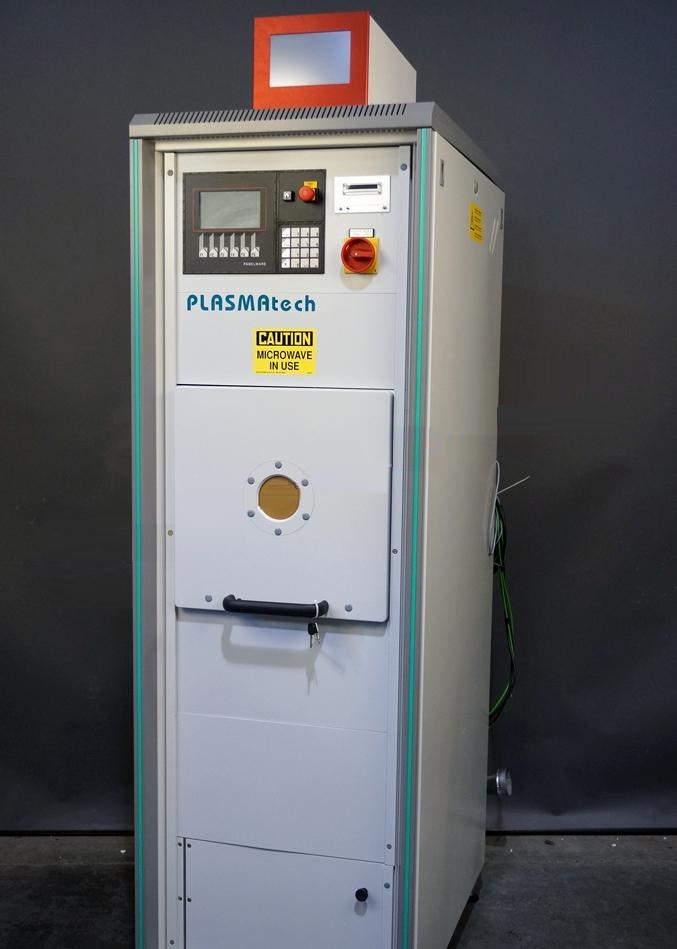

PlasmaFinish V55-G

PlasmaFinish V55-G

Vacuum chamber 340 x 400 x 450mm

Door with auto unlock feature after end of process

Microwave excitation 2.45GHz magnetron, maximum adjusted power 1200W

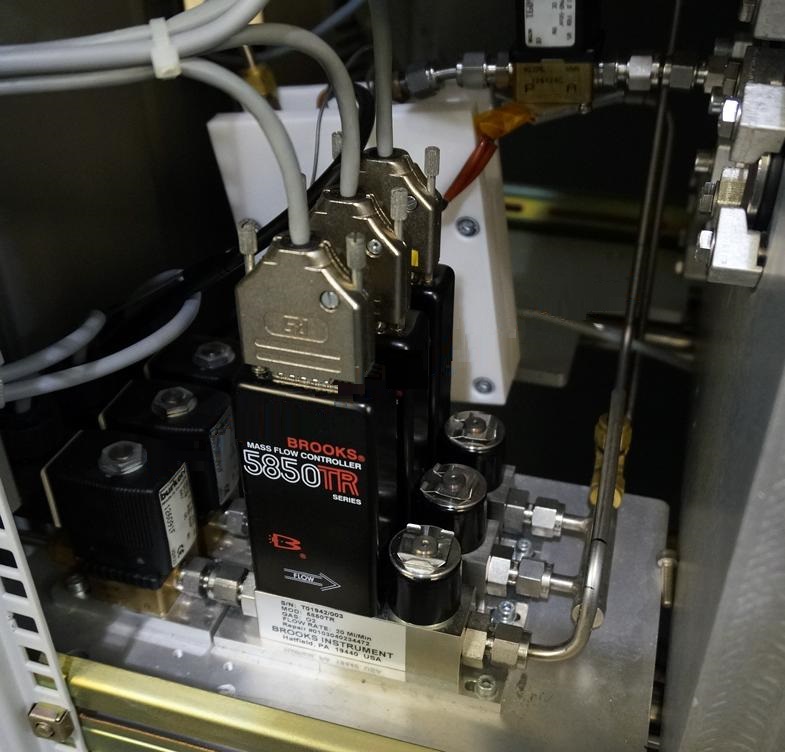

3 gas channels with Brooks MFC: N2, Ar, O2

Power req. 120/208v

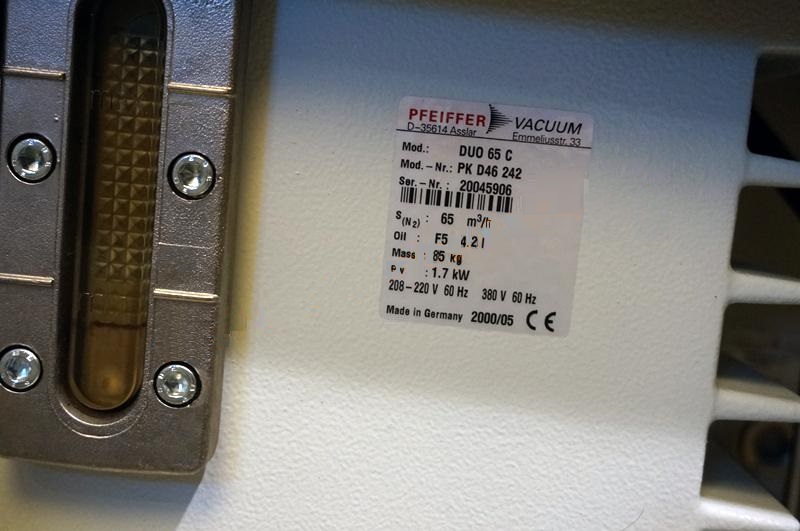

Pfeiffer DUO65C vacuum pump with Fomblin oil (PFPE)

Pressure gauge: Baratron absolute transducer

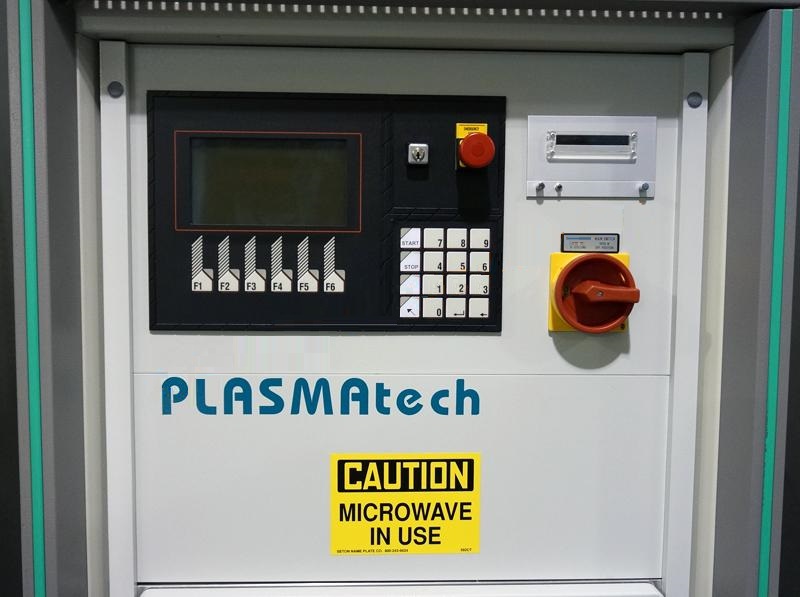

PLC process controller with RS232
