Veeco Dektak 3030 Auto II PROFILOMETER

Manufacturer Veeco

Model Dektak 3030 Auto II

Description Profilometer

Controller Type Microprocessor Controller Type

Accessories Thermal printer is included

Environmental shield is not included

• Other Information Measuring Range: 100Å to 1310kÅ
• Scan Speed Range: Low, Medium, High
• Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range
• Data Points per micron: 0.04-- 40
• Scan Length 50 microns to 50 mm
• Leveling: 2 point programmable or cursor leveling
• Maximum sample thickness: 1.75 inches

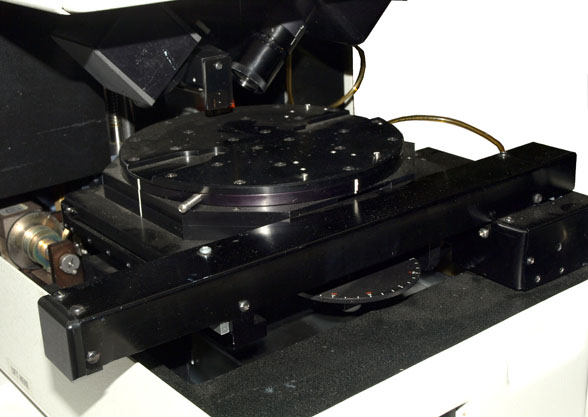

• Motorized stage
• Sample stage diameter: 6.375 inches
• Sample stage translation (from center): X Axis, ±3 inches, Y Axis -3 inches
• Stylus 12.5 micron radius (other sizes are optional)

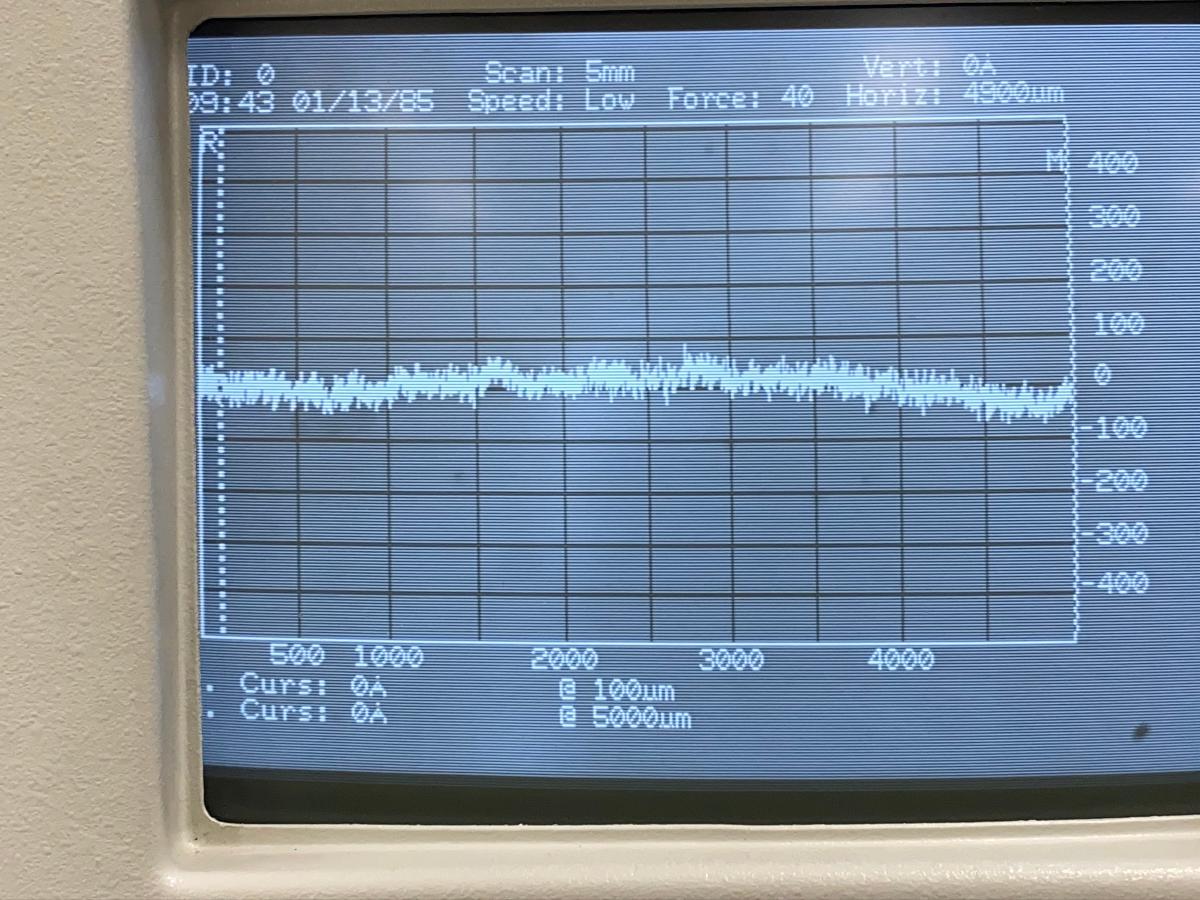

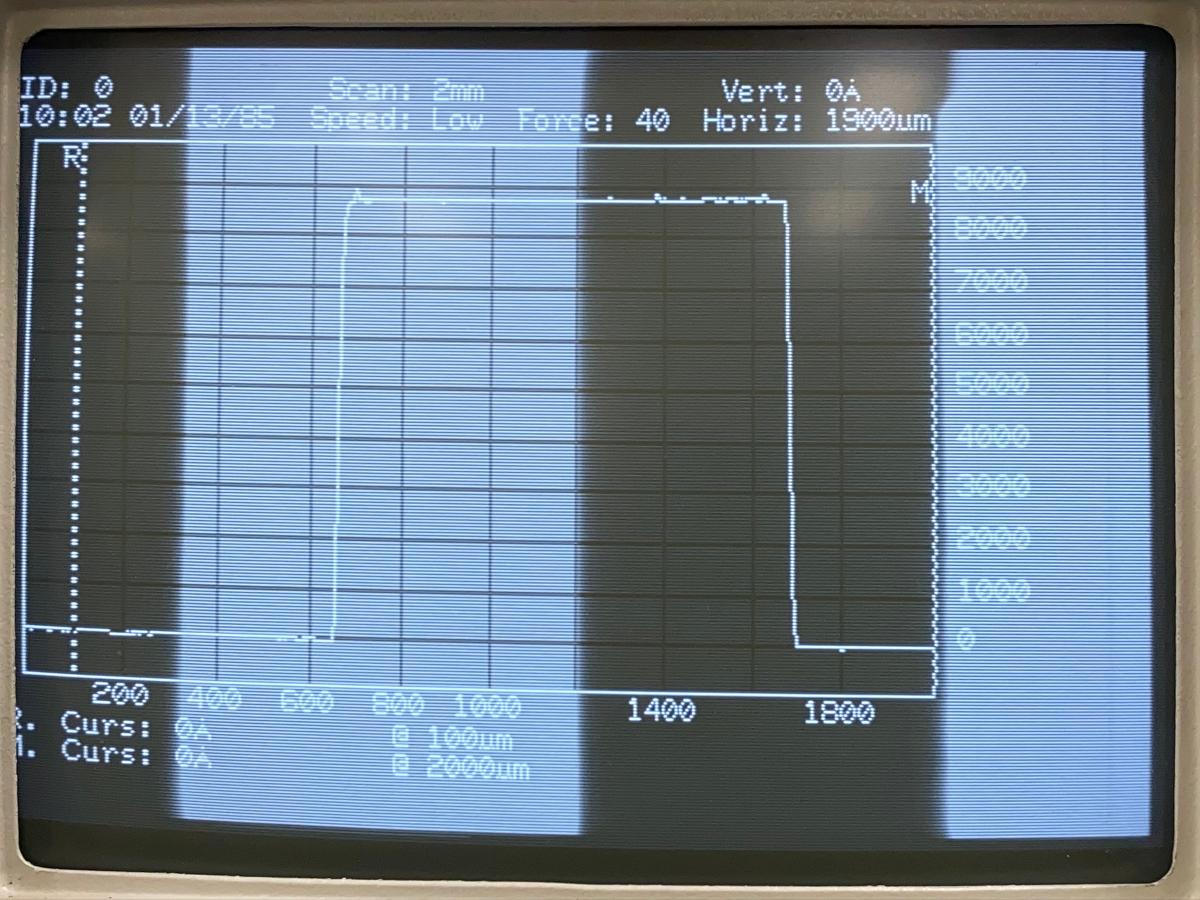

Unit is tested, see additional images 5 and 6 for sample scans

Power Requirements 120 V   2.0 A   50/60 Hz   1 Phase
