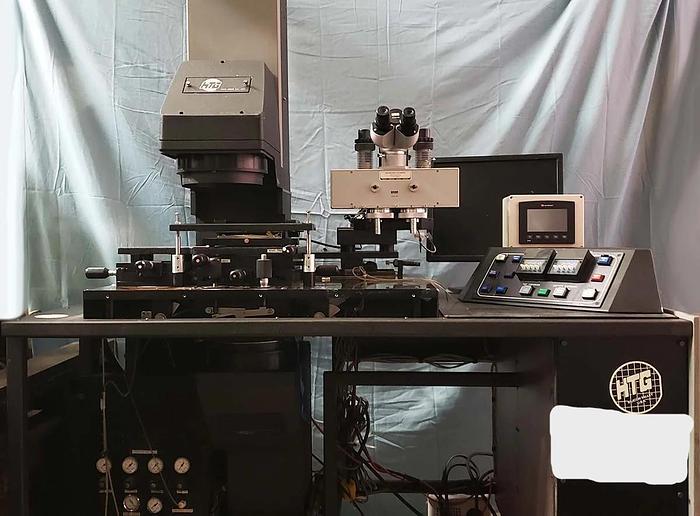

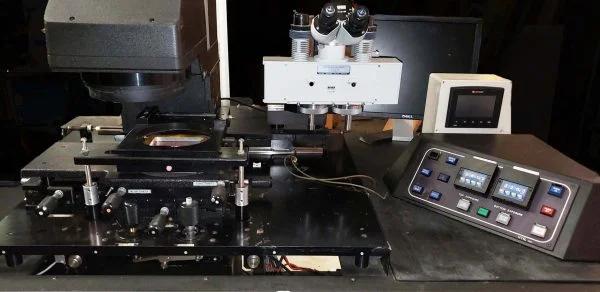

HTG DOUBLE SIDED MASK ALIGNER

HTG DOUBLE SIDED MASK ALIGNER

DUAL 7” DIAMETER LIGHT SOURCES, 200 WATTS

XY THETA MOVEMENT OF BOTTOM MASK AND SUBSTRATE

NEW SPLIT FIELD VIDEO CAMERAS WITH CROSS HAIRS FOR BOTTOM MASK ALIGNMENT

CARL ZEISS SPLIT FIELD MICRSCOPE FOR TOP ALIGNMENT

OPTION TO UPGRADE MICROSCOPE TO NEW VIDEO CAMERAS

NOTE:   SYSTEM WILL BE CONFIGURED FOR 3” or 4” WAFERS, OR ANY SMALLER SUBSTRATE

AND ANY MASK SIZE UP TO 5X5” (YOUR CHOICE)

SYSTEM WILL INCLUDE TOUCH SCREEN SHUTTER/TIMER AND

MECHANICAL MOVEMENT CONTROLS…REQURES 20% DEPOSIT BEFORE UPGRADE
