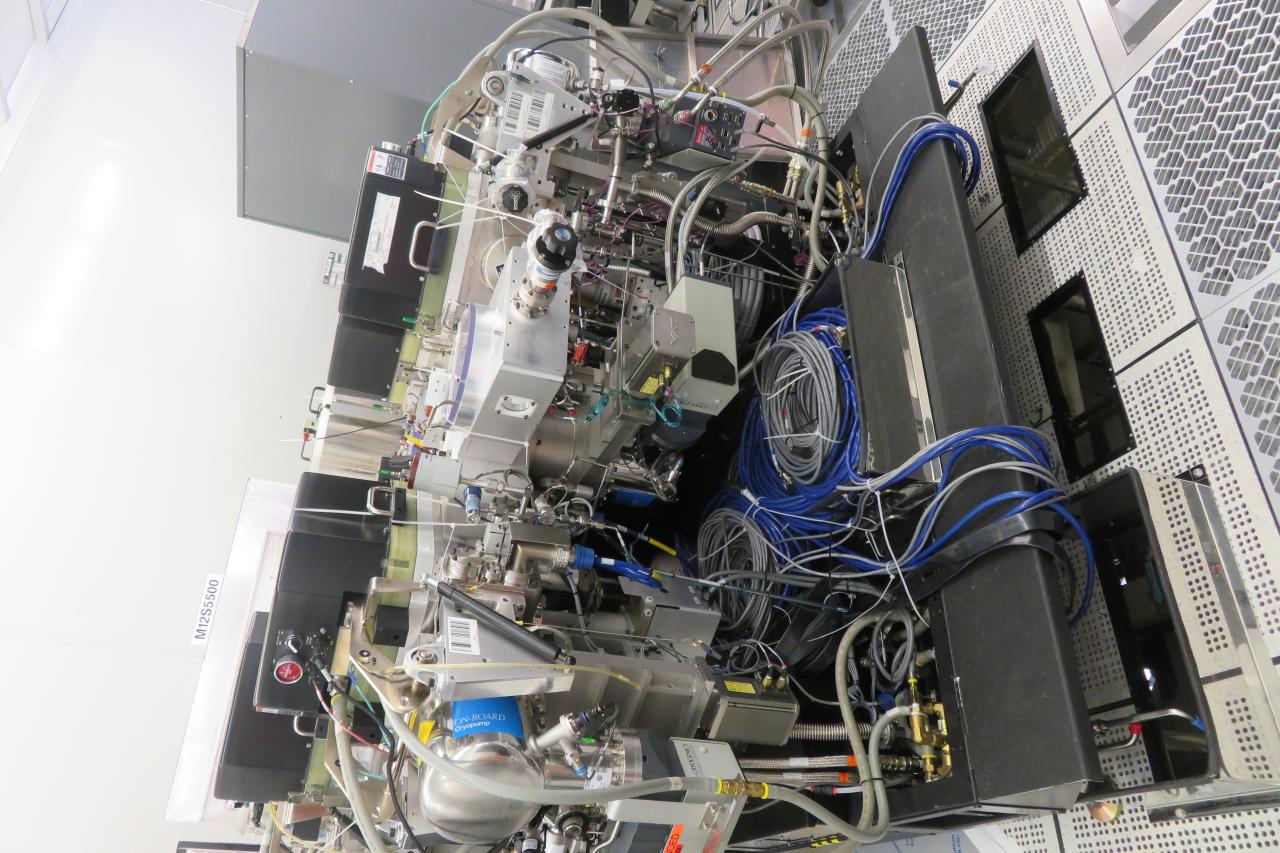

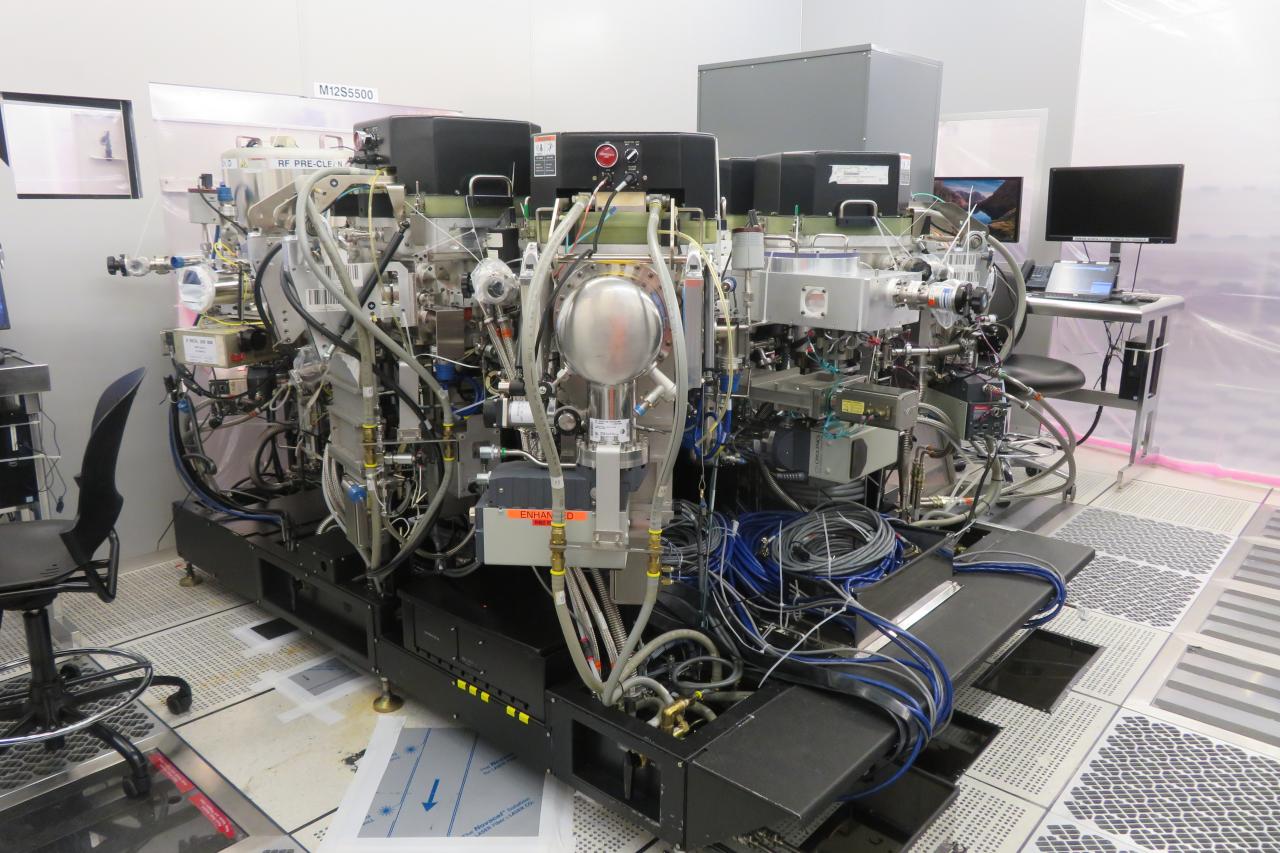

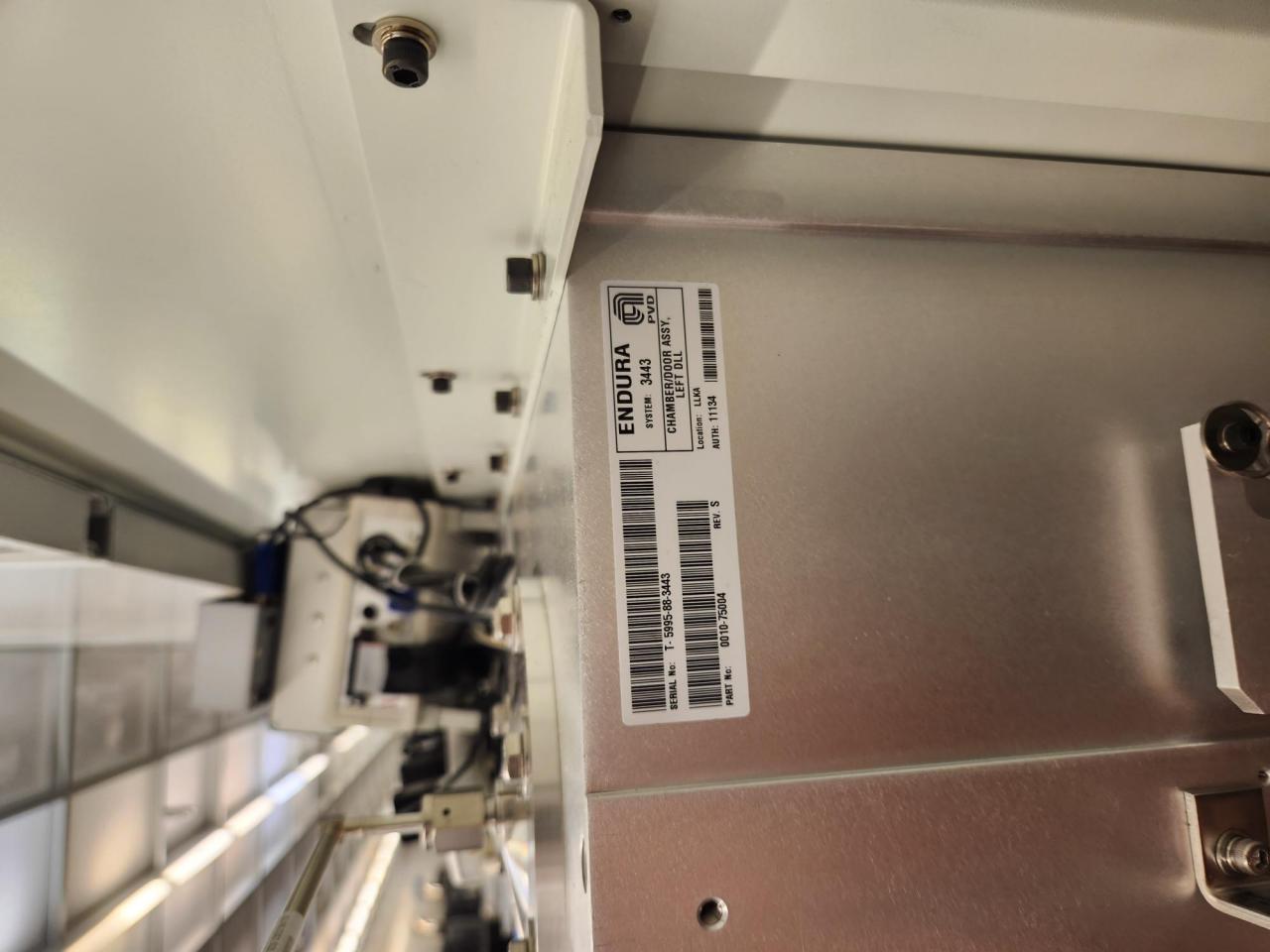

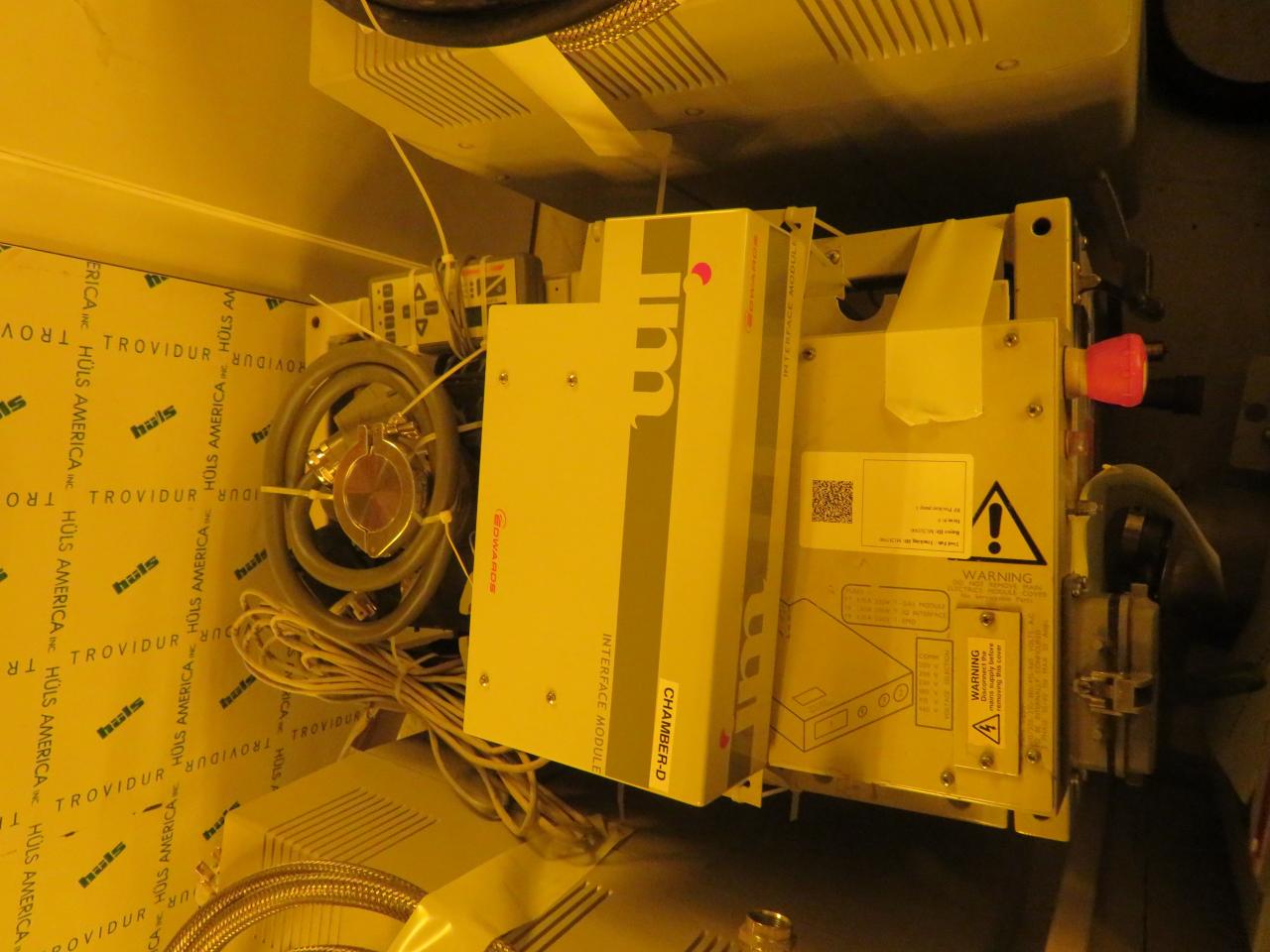

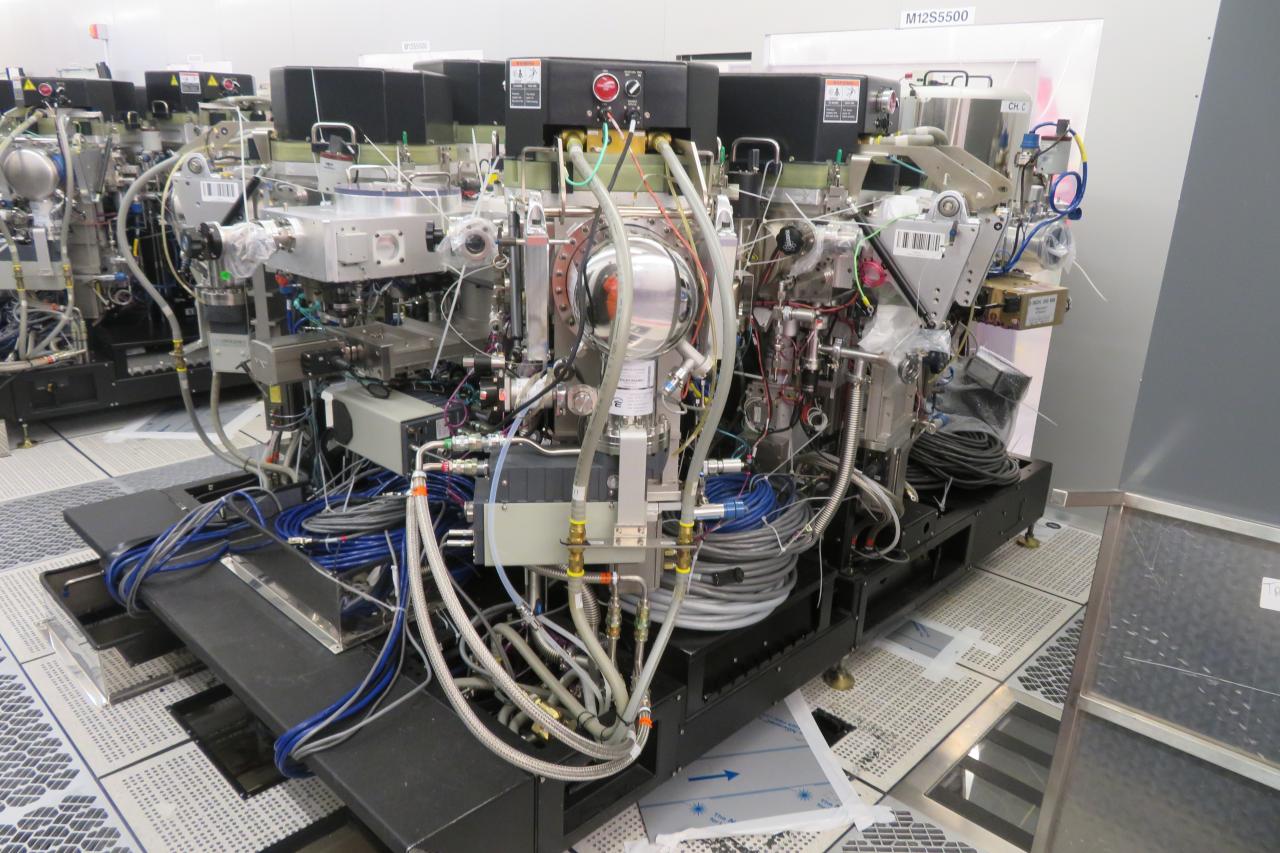

AMAT Endura 5500 Front-End Metallization

PVD (Physical Vapor Deposition)

Deposition Equipment

Currently Configured for: 200mm

Software: v8.89

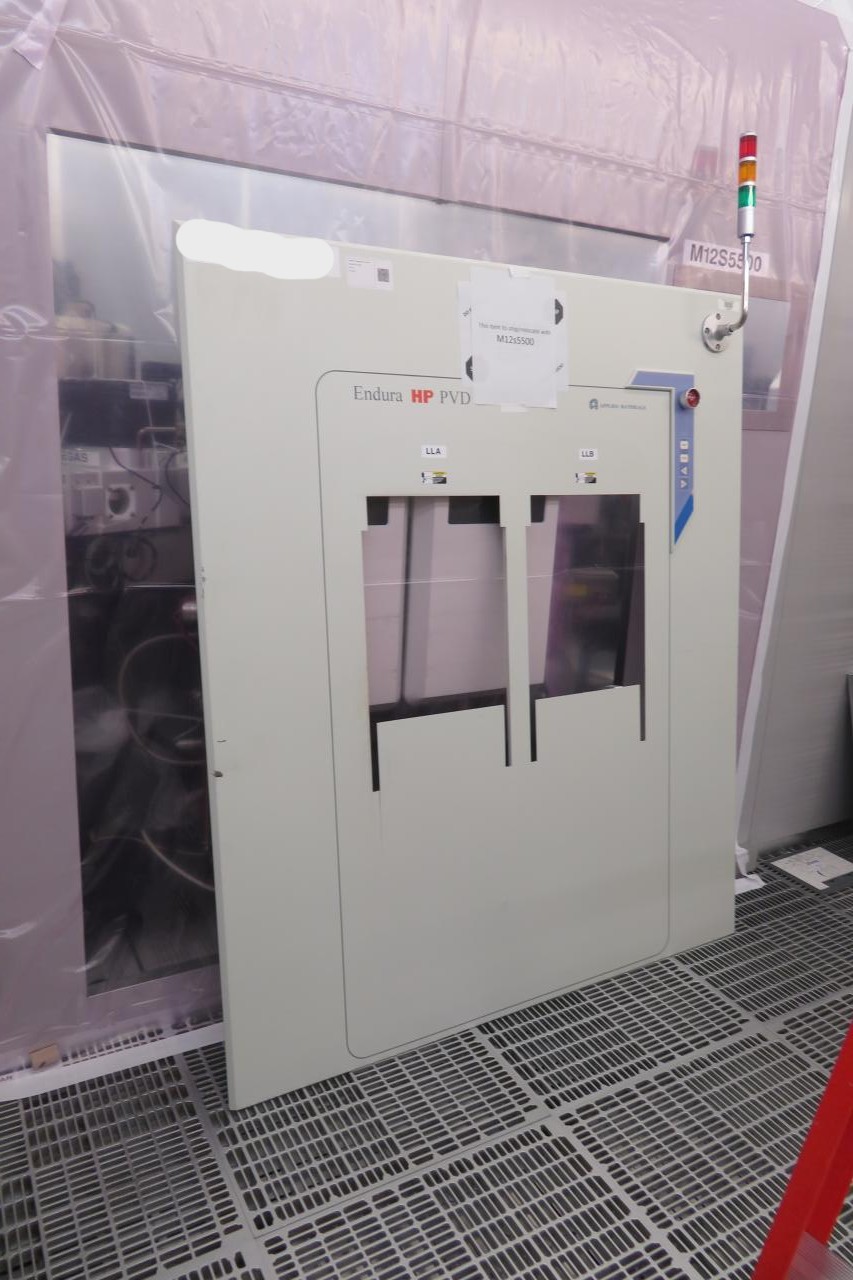

Mainframe: Endura 5500

Robot: HP

Chambers:

Qty 1 - Co

Pedestal - A4 Clamped

Qty 1 - AlSiCu

Pedestal - A4 Clamped

Qty 1 - CoTi

Pedestal - A4 Clamped

Qty 1 - TiN

Pedestal - A101

Qty 2 - RF PCII

Pedestal - Quartz

Auxiliaries:

Qty 1 - Neslab 3 HX

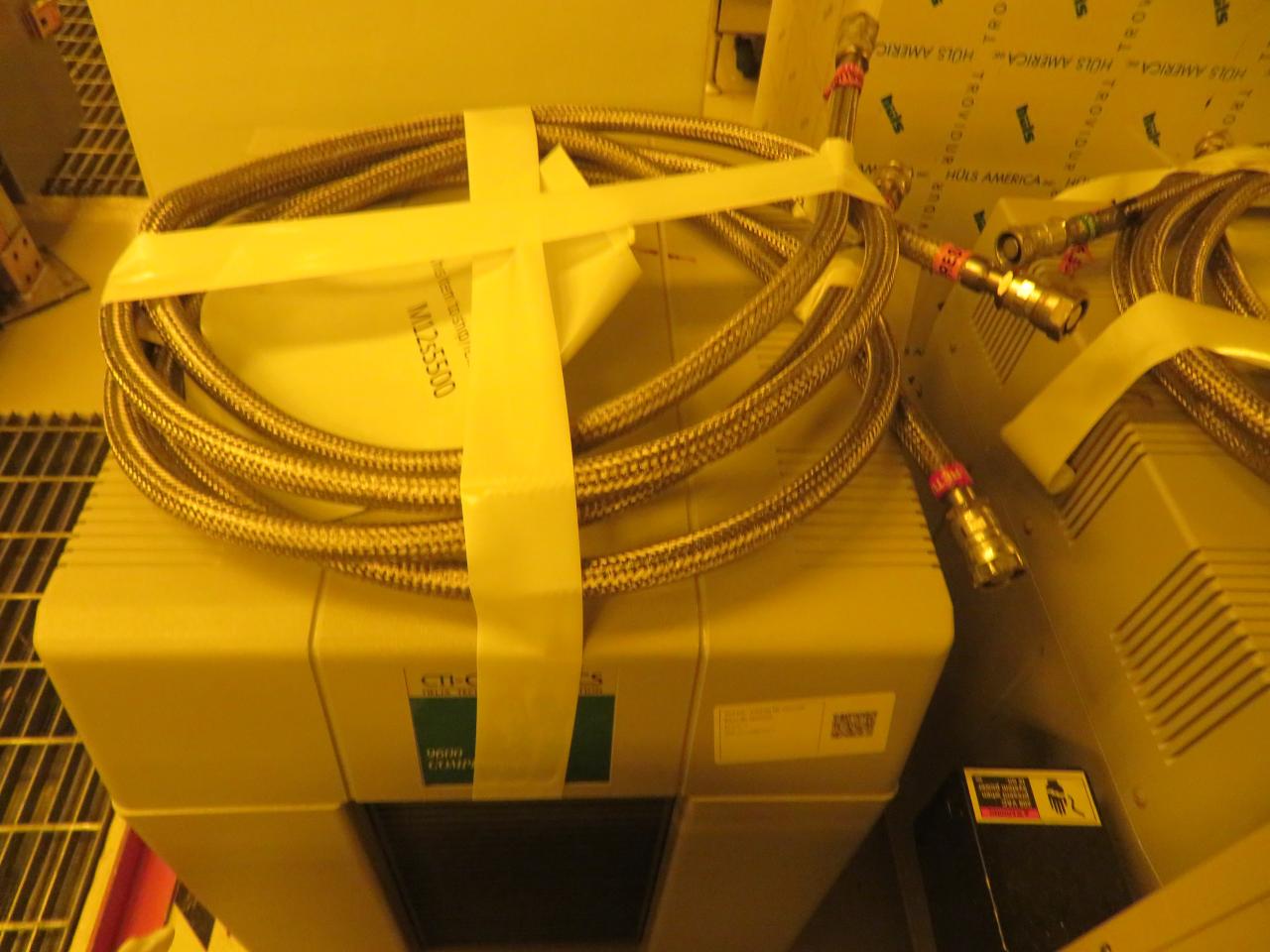

Qty 2 - CTI 9600 Cryo Compressor

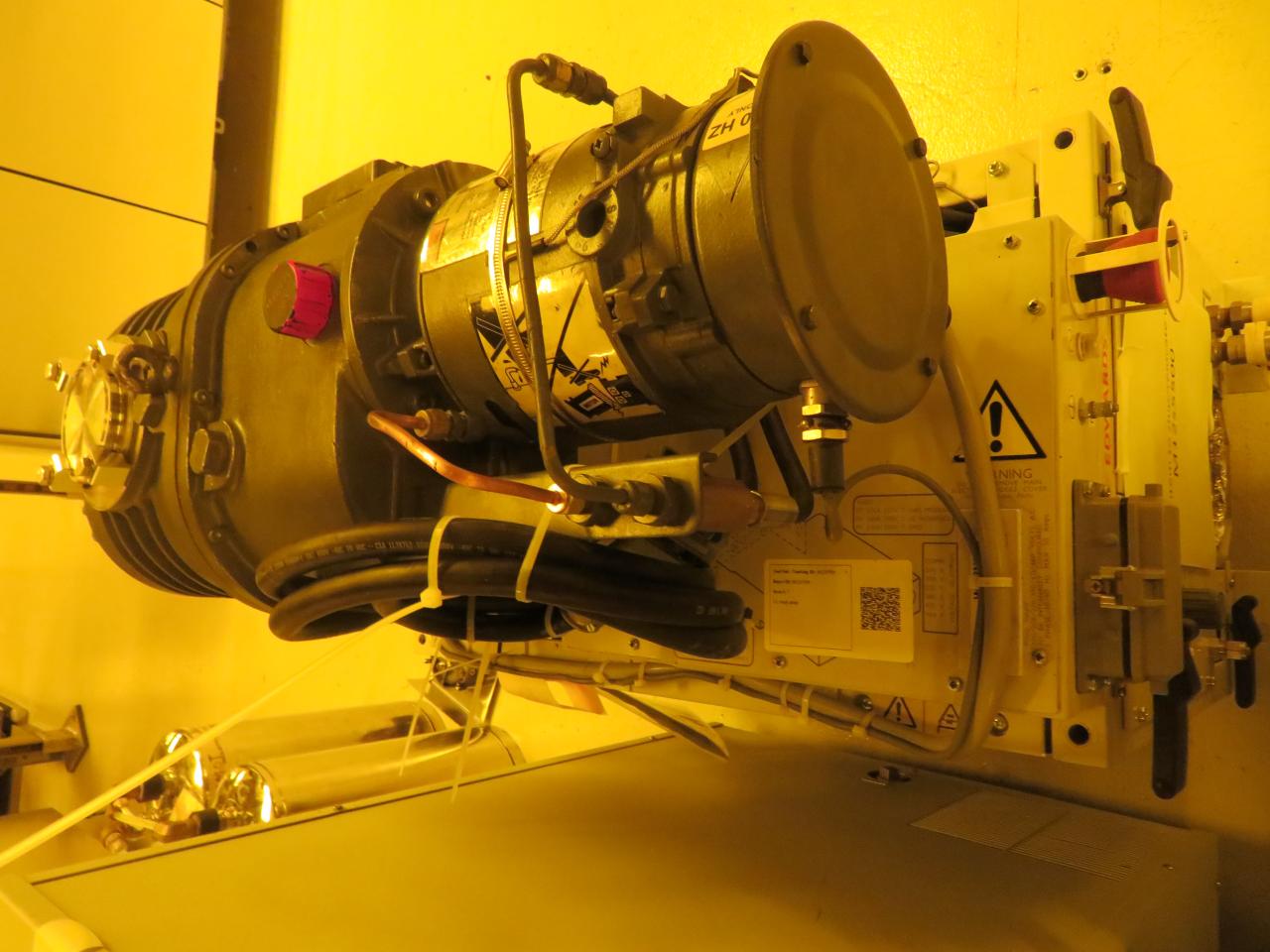

Edwards IQDP40/QMB250 Rough Pump

MFCs:

Unit 1660 - 2

Stec 440 - 13

Horiba Z500 - 2
