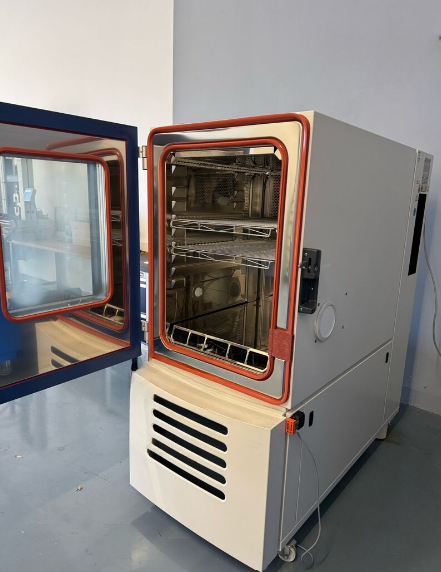

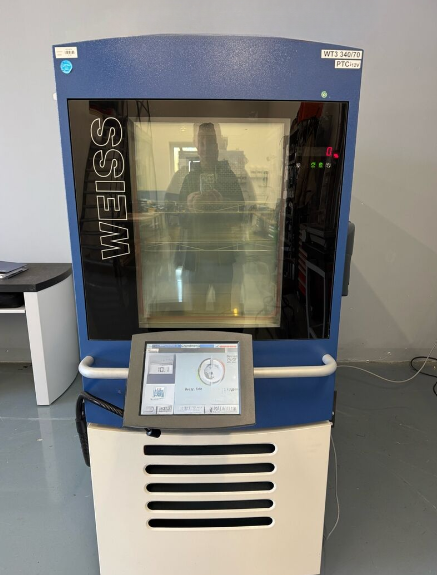

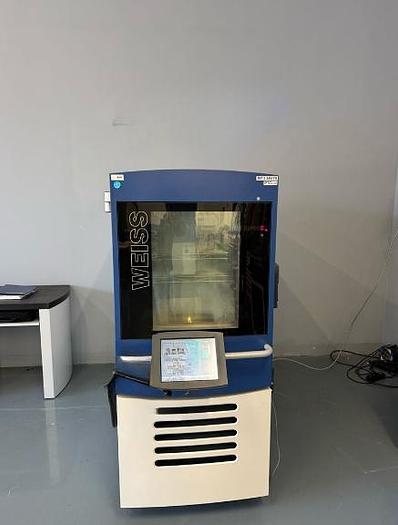

Weiss WT3 Temperature oven

Type: Weiss WT3-340/70

Very good condition

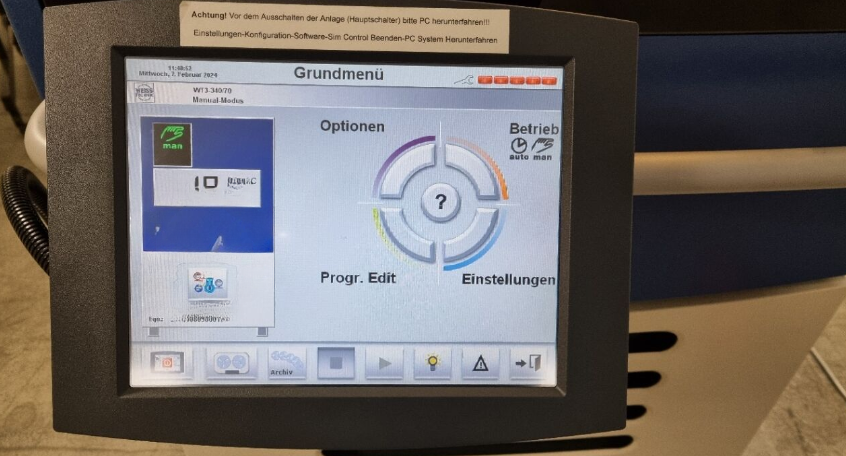

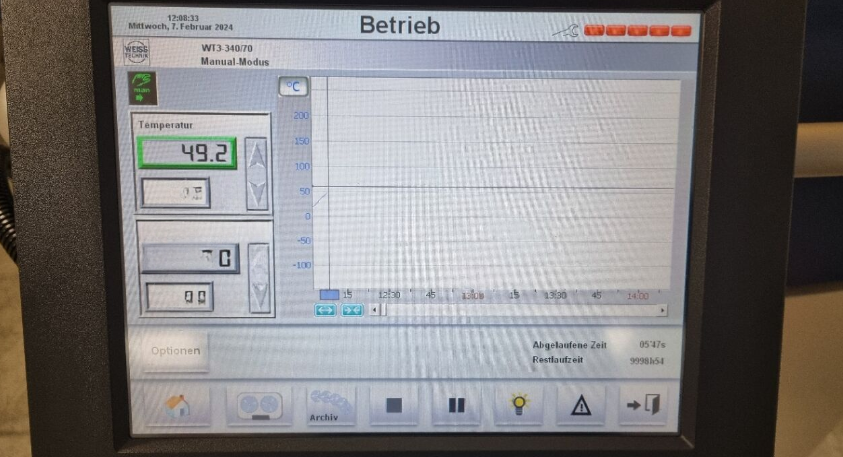

Weiss temperature cabinet with SIMCON / 32 control Air-cooled

(refrigerant (R-404A) (can be converted to R452A on request)

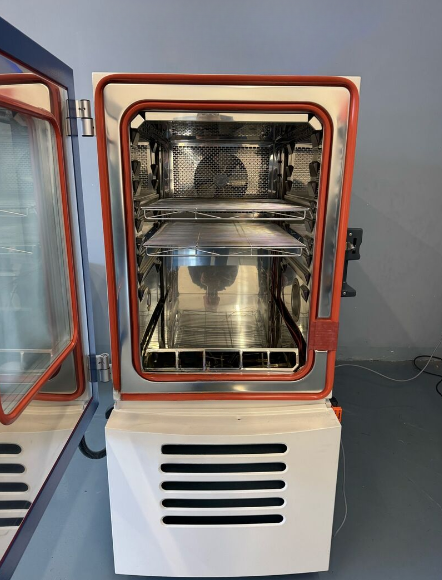

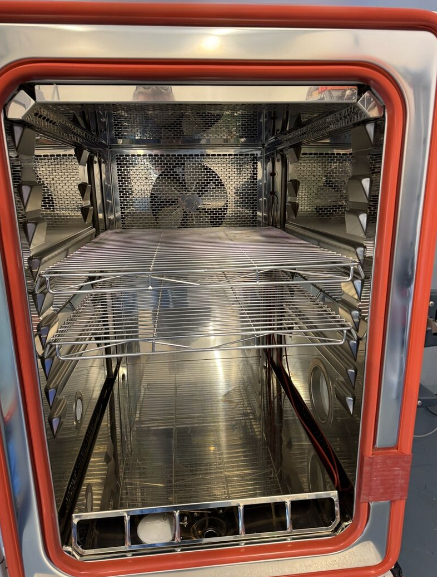

Test chamber volume: approx. 335 liters

Test chamber dimensions: height 750 mm, width 580 mm, depth 765 mm

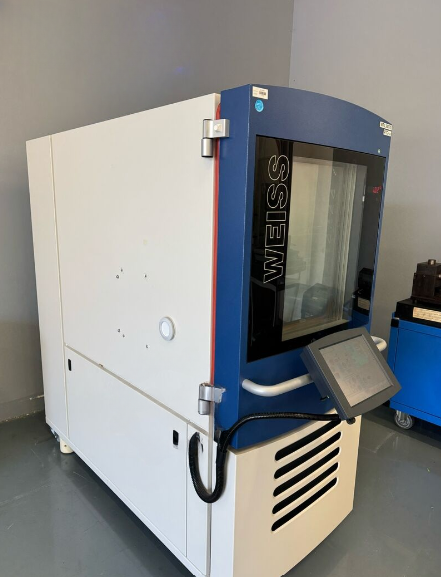

External dimensions: height 1775 mm, width 870 mm, depth 1600 mm

Data for operation:

Test chamber lighting halogen bulb 24V, 50W

Nominal voltage: 3/N / PE AC 400 V ± 10% 50 Hz

Nominal current: 12.5 A Nominal power 4.1 kW

Fuse provided by customer 16 A slow

blow Sound pressure level approx.

measured at a distance of 1 m from the front. 1 m height 58 dB(A)

Ce Hjv Edd Sjwmb A Aora

Data for temperature tests:

Temperature range: -72 to +180 °C

Temperature deviation over time in the center of the usable space: ± 0.1 to ± 0.5 K

Temperature deviation over space: ± 0.5 to ± 1.5 K

Temperature gradient

(according to IEC 60068-3-5): 1 to 4 K

Temperature change rate (according to IEC 60068-3-5)

Heating: 3.0 K/min

Cooling: 3.0 K/min

Heat compensation max. 1500 W

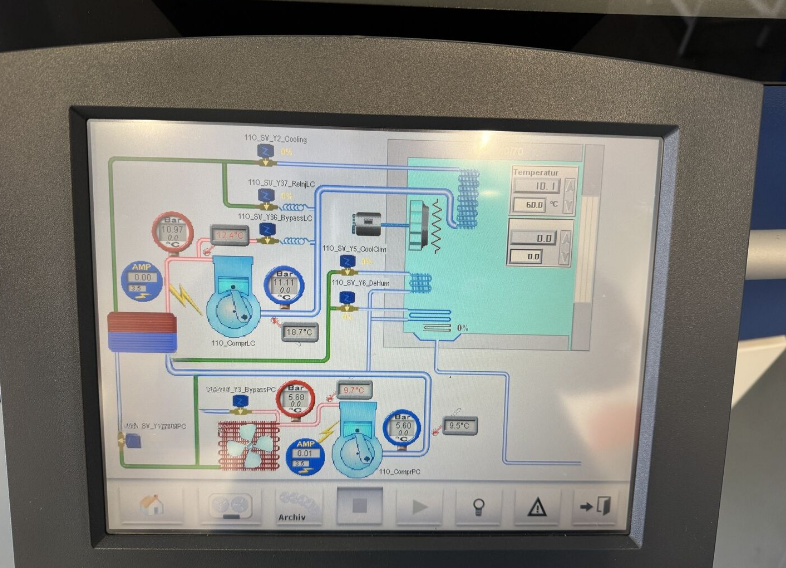

Refrigerant: R-404A / R-23

Weight: 585 kg

For your safety as a buyer, the following information is provided!

The following points are carried out on our chambers in advance:

1. Functional test and replacement of necessary components

2. If necessary, refilling with legally compliant refrigerant

3. Leak test with certificate

4. After successful testing, the chambers are subjected to a documented test run with calibrated measuring devices.

Condition: used / used Very good condition
