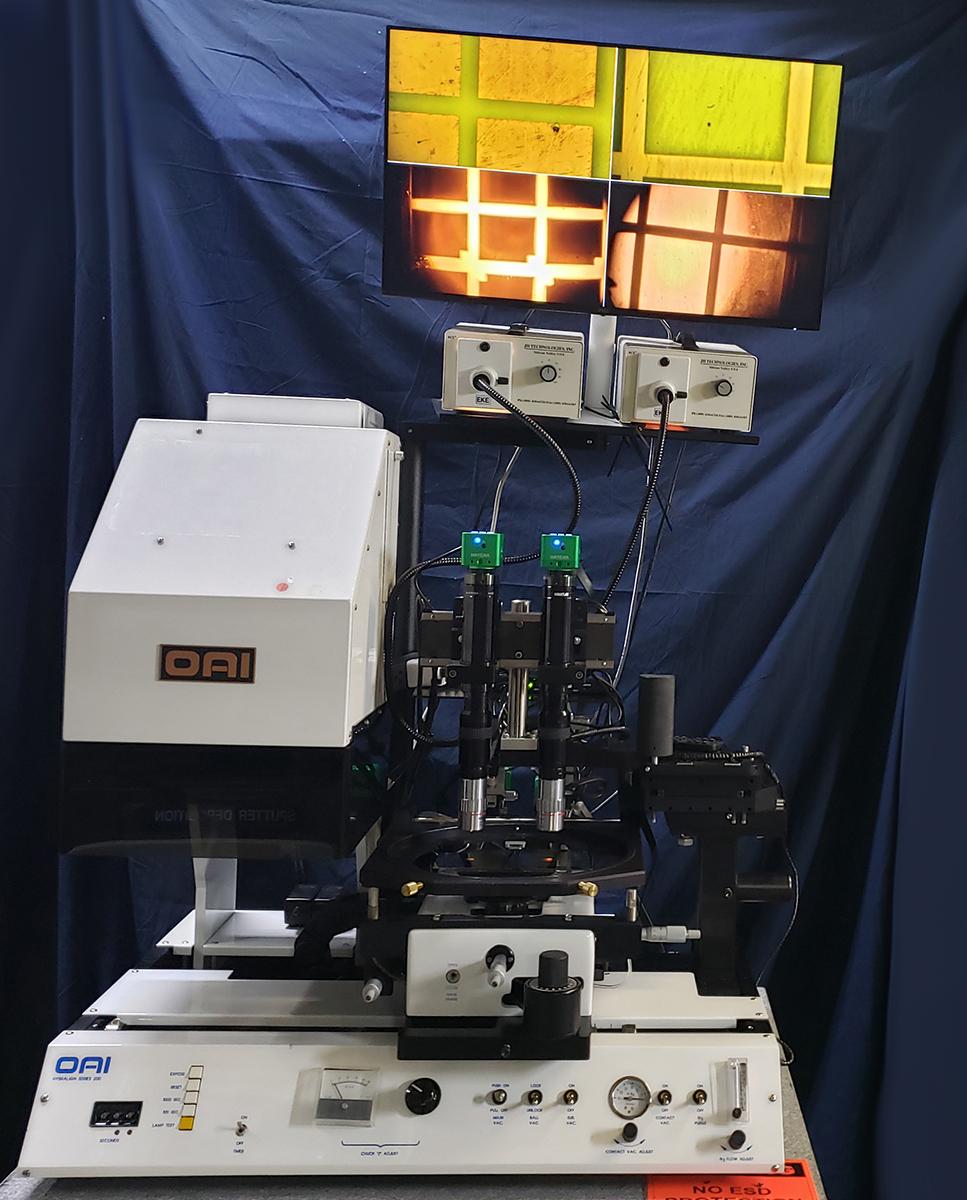

OAI 200 MANUAL MOVEMENT MASK ALIGNER

OAI 200 DOUBLE SIDED MASK ALIGNER

The aligner below will provide alignment with 4 top and bottom video cameras for aligning the top mask with the top and bottom of the substrate.

The substrates can be made of silicon or any other material

4 NEW COLOR VIDEO CAMERAS WITH CROSS HAIRS

XY MICROMETERS ON BOTTOM VIDEO CAMERAS

DUAL WINDOWS IN CHUCK FOR 4″ WAFERS (OTHER SIZES CAN BE QUOTED)

OPTIONAL WEDGE ERROR COMPENSATION CAN ALSO BE QUOTED

200 WATT POWER SUPPLY

               DIGITAL TIMER

                MANUAL MOVEMENTS (VERY DEPENDABLE)

CUSTOM CHUCK FOR 4” SUBSTRATES WITH WINDOWS TO ALIGN FEDUCIALS

Equipment below is sold in good condition, fully operational,

and does not include factory options unless otherwise stated
