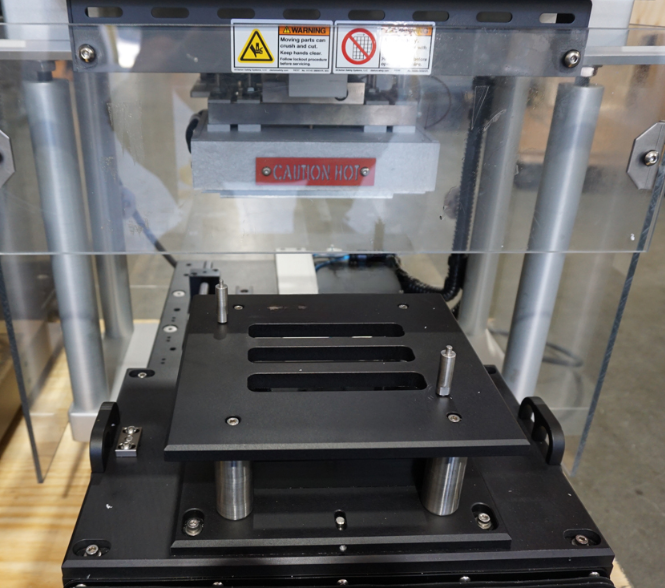

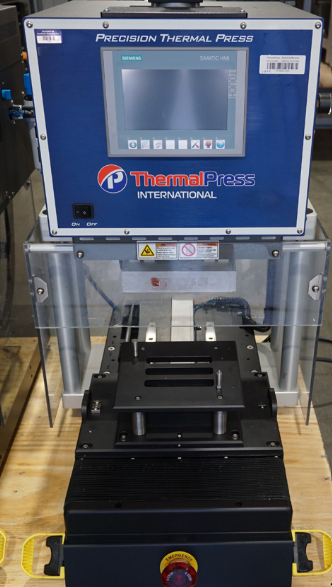

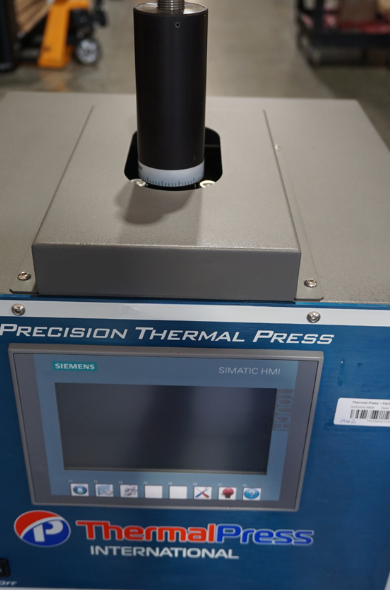

Thermal Press H50MM with H frame construction

SPECIFICATIONS:

Electrical: (Standard) 220VAC (15A MAX)

*Pneumatic (MAX): 10-100 psi (0.7-7 bar),

2-4 SCFM - Standard Stroke: 4 inches (102 mm) -

*Column Height: 10+ inches (250+ mm) -

*Width: 20+ inches (508+ mm) -

*Force Output (MAX): Model H50 = 3 tons (2722 kgs) -

*Weight (w/o tooling): 220 lbs (100 kgs) -

*Work Surface Requirements: 24”W x 32”D x 30”H

FEATURES: -

Rigid “H-Frame” Construction -

HMI Color Touchscreen (Operation & Setup) -

Recipe Storage via HMI Touchscreen -

HMI with Multi-Programmable USER/PW -

Integrated Digital PID Temperature Controls -

Integrated Timers & Linear Positional Data -

Programmable Process Parameter Alarms -

Programmable Digitally Controlled Motion -

OSHA, CE, NFPE, and NEC compliant -
