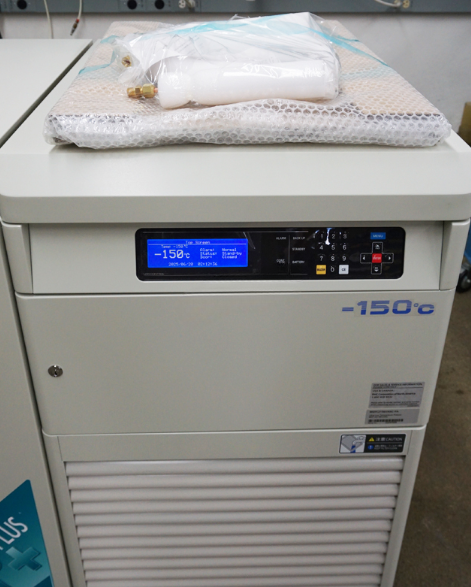

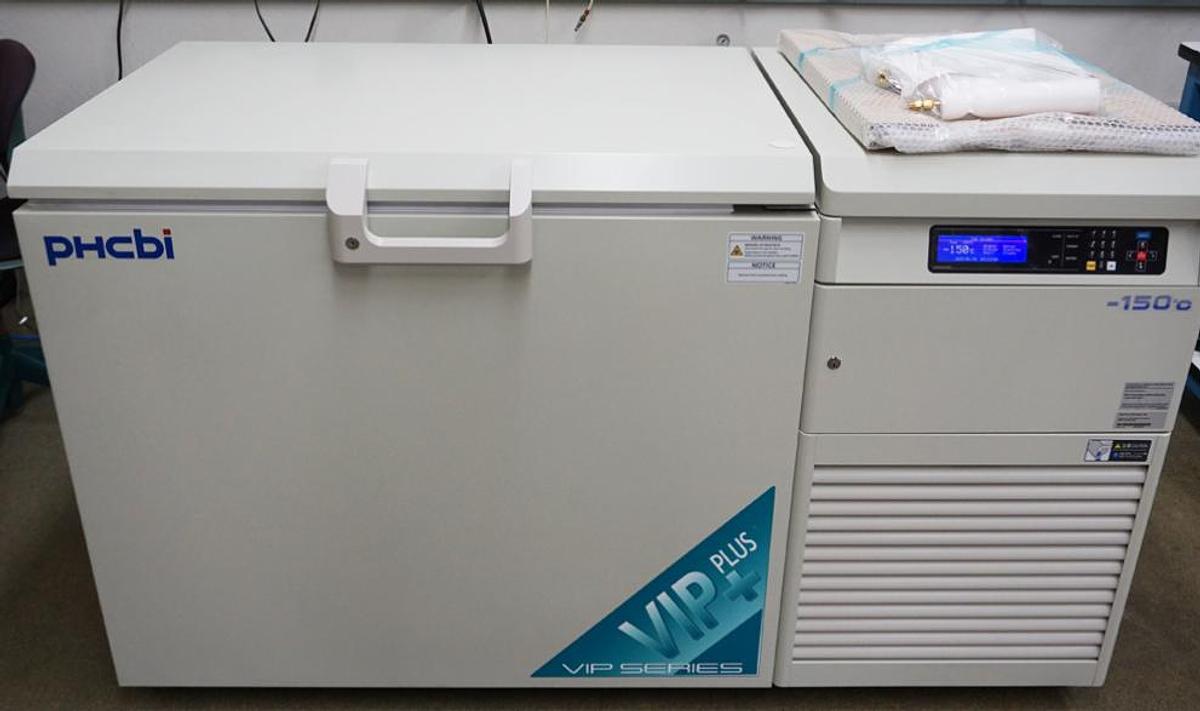

2022 PHCbi MDFC-2156-VANC-PA -150C Cryo-Freezer

Manufacture date 4-2022

Achieve -150C without LN2

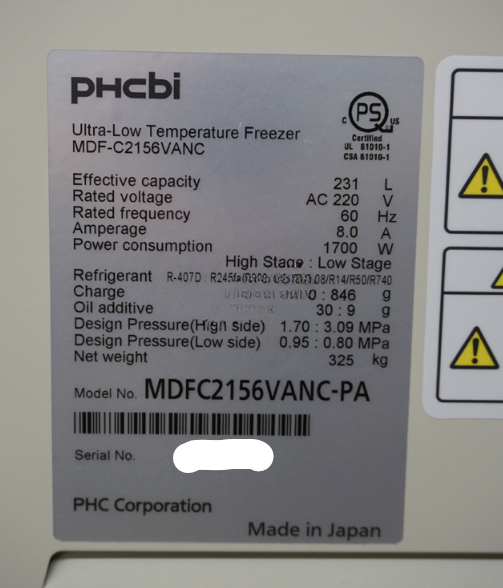

EXTERNAL DIMENSIONS68.1" W x 30.1" D x 39.8" H (1730 x 765 x 1010 mm)INTERNAL DIMENSIONS29.9" W x 19.5" D x 24.2" H (760 x 495 x 615 mm)EFFECTIVE CAPACITY8.2 cu.ft. (231 L)INSULATIONRigid foamed-in-place and VIP Plus vacuum insulation panelsACCESS PORT1: side table, Inner diameter 1.5 in (40 mm)NET WEIGHT716.5 lbs (325 kg)COMPRESSOR(1) 1100 W, High-stage hermetic type, (1) 1100 W, Low-stage hermetic typeEVAPORATORHigh-stage cascade condenser type, Low-stage tube on sheet typeREFRIGERANTHigh-stage R407D, Low-stage HFC mixed refrigerantTEMPERATURE CONTROL RANGE-125ºC to -150ºC (ambient temperature 30ºC, no load)ALARMSHigh temperature, low temperature, power failure, door alarm, filter checkCOOLING PERFORMANCE-150ºC center of the chamber (ambient temperature 30ºC, no load)TEMPERATURE CONTROL SYSTEMMicroprocessor control systemAREA FOOTPRINT13.07 sq.ft. (1.15 m2)DATA MANAGEMENTOptional with LabAlert Monitoring SystemENERGY CONSUMPTION AT 23oC AMBIENT40.8 KWh/daySOUND LEVEL51 dB(A) [background noise 20 dB(A)]STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES150STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES15STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES105STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES15

Model MDF-C2156VANC-PA Features

Mechanical, Air Phase Cryopreservation

The MDF-C2156VANC-PA cryogenic freezer is engineered from the inside out to create, maintain, and restore precise temperatures. The PHCbi brand mechanically refrigerated cryogenic freezer uses a reliable, high performance, hybrid cascade refrigeration system designed to achieve cryogenic temperatures of -150°C.

Mechanical cryogenic refrigeration eliminates the reliance on LN2 as a primary cooling medium for a more efficient storage medium known as "air phase" cryogenic storage. Air phase cryopreservation offers a more economical alternative to liquid nitrogen-based systems, with built-in redundancy safeguards for the ultimate in safe cryogenic preservation.

PHCbi VIP® Plus Insulation Technology

Inside-out engineering starts with our patented VIP Plus insulation composite which results in a highly efficient, thin-walled cabinet. The insulated inner lid improves temperature uniformity, minimizes cold air loss from frequent lid openings and extends warm-up times during power outages. The PHCbi VIP Plus cryogenic refrigeration offers superior performance providing unsurpassed uniformity in the chamber from top-to-bottom, side-to-side, and front-to-back.

High Capacity Storage, Minimal Cabinet Footprint

The VIP Plus cabinet design dramatically reduces wall thickness, allowing for increased cryogenic storage space in a smaller footprint. Store up to 165 2" boxes or 105 3" boxes.

Economic Alternative to LN2 Storage

The PHCbi MDF-C2156VANC-PA cryogenic freezer eliminates hazardous operating conditions as well as frequent maintenance and cost requirements of LN2 storage. It also minimizes the chance of cross-contamination among multiple samples in cryogenic storage.

Microprocessor Temperature Control

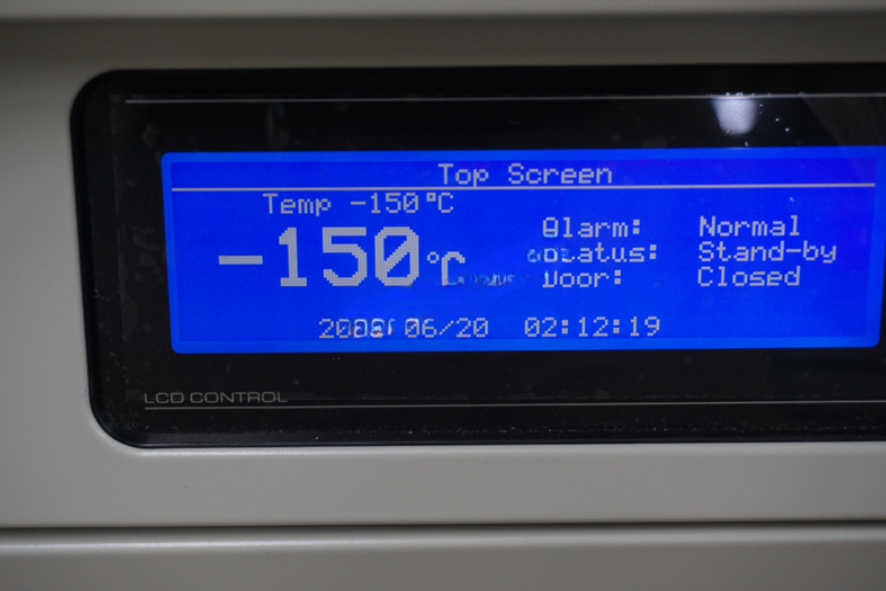

The integrated microprocessor-based controller and LCD graphic display allow for intuitive management and monitoring of critical set points. The controller uses an extremely precise and long-lasting platinum RTD sensor.

PHC Designed Compressors

The robust -150°C Cryogenic Freezer is powered by PHC designed compressors. This provides superior performance leading to faster pull-down speed and unsurpassed uniformity throughout the chamber.

Environmentally Friendly

Energy efficiency in VIP Plus freezers is achieved through balanced temperature performance and power management.

Overview

-150°C Cryogenic Freezer

The PHCbi VIP PLUS Cryogenic Series -150°C ultra-low temperature freezers offer superior performance. As a cryogenic freezer or cryogenic storage space, these products provide unsurpassed uniformity in the chamber, from top-to-bottom, side-to-side, and front-to-back.

The MDF-C2156VANC-PA, -150°C Cryogenic Freezer, cooling performance provides VIP Plus insulation for temperature uniformity for long-term storage, an economical alternative to LN2 storage, and maximum storage within a minimal footprint.
