2016 Carver 4387NE 40 ton Pellet press

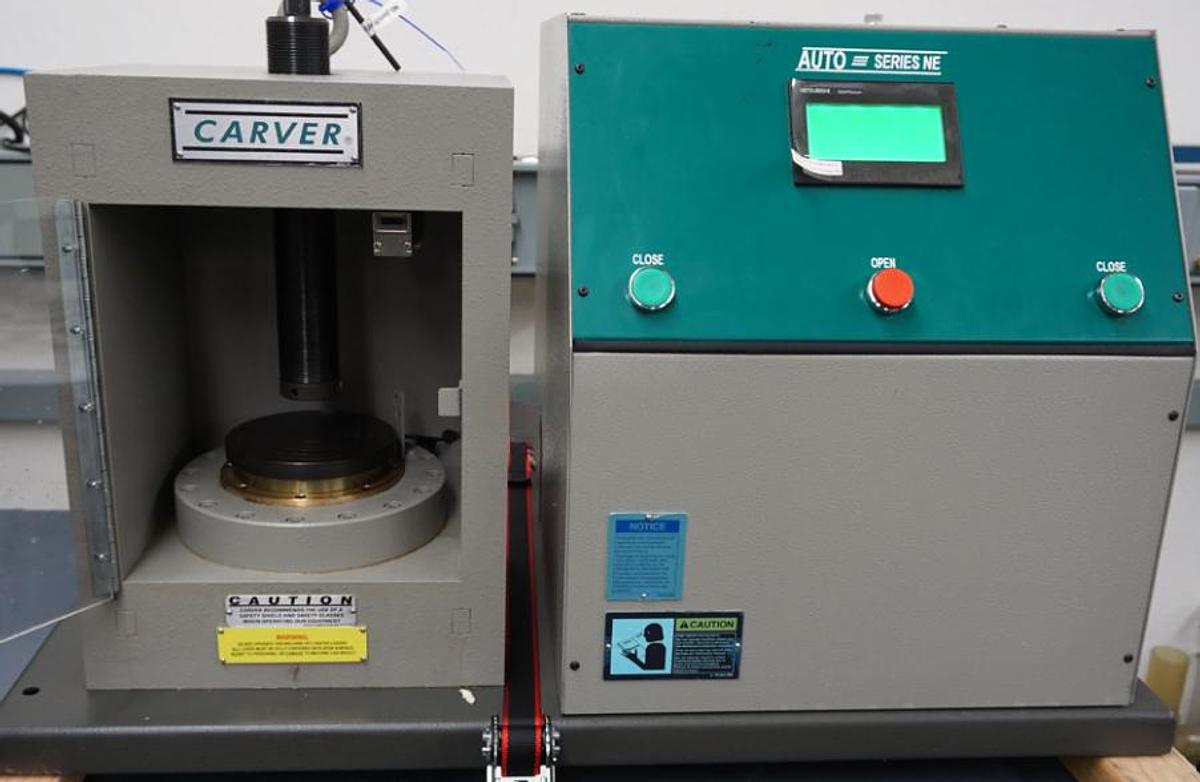

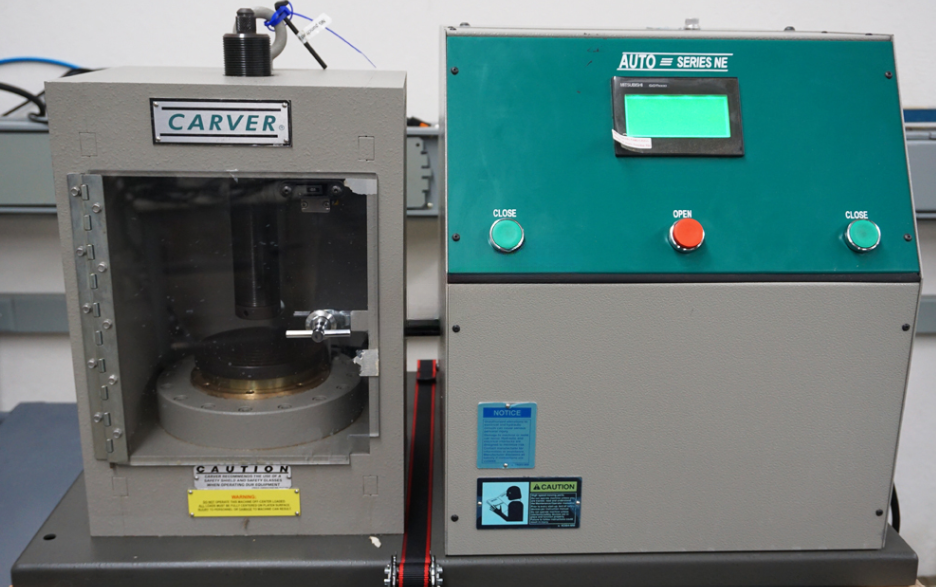

Carver 4387NE Bench Top Automatic Pellet Laboratory Press (40 Ton)

The self-contained 40 ton AutoPellet Press Model 4387NE has 5" diameter platen and integral safety shield cabinet enclosing electrically powered hydraulic system.

Includes 31mm Die for X-ray sample preparation.

Rigid slab side construction maintains precise alignment and includes provision for a vacuum line connection to the pellet die.

The microprocessor control system with digital force display allows programmable/selectable bleed-off rates.

Daylight Opening 1.5" Ð 7.25"

Stroke 1”

Daylight adjustment wheel with swivel handle

Self-contained hydraulic unit

Programmable setpoints for clamp force, dwell time and ejection force

10 recipe storage capability

Programmable in units of Pounds

Programmable decompression rates

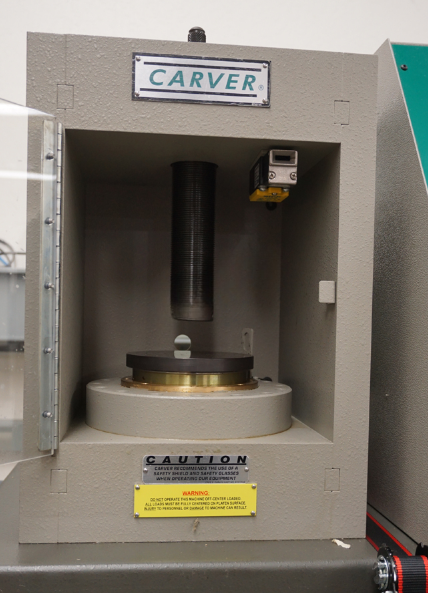

Interlocked safety enclosure with hinged door

Power Requirement: 115V

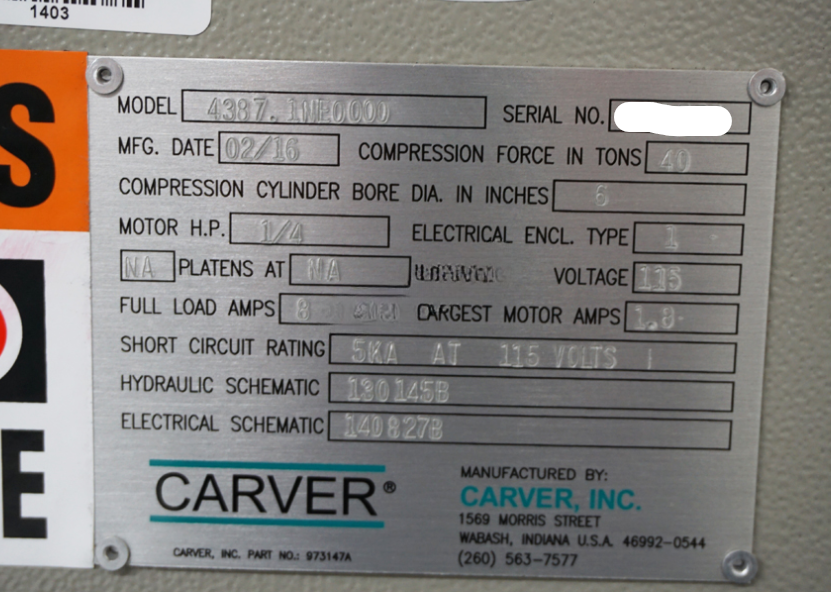

Date of Manufacture 02/2016
