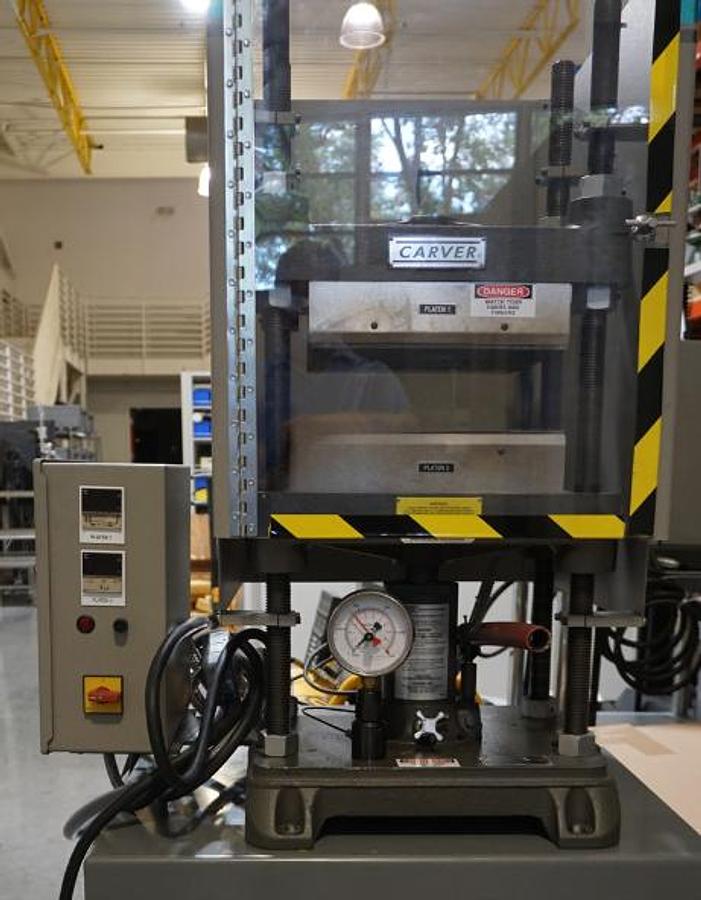

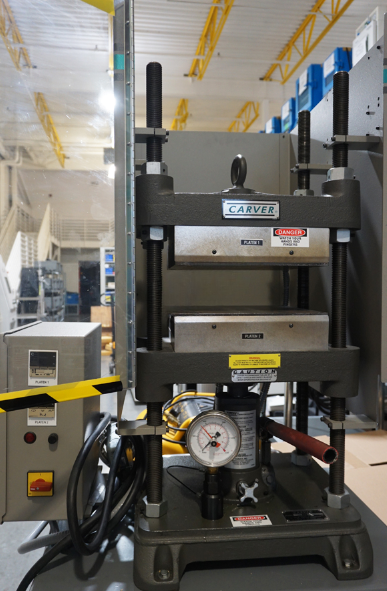

Carver 4122 manual 4 post heated press, 12 Ton capacity

Carver 4122 manual 4 post heated press, 12 Ton capacity

Contact us for price

or
Call +353 (0) 87 192 1110

Description

  • Manually operated
  • Clamping force 12 tons
  • Daylight opening 0″ – 10″ (Factory set at 4-1/2″)
  • Stroke 5-1/8”
  • Four (4) fully threaded columns
  • Heated platen package, including:

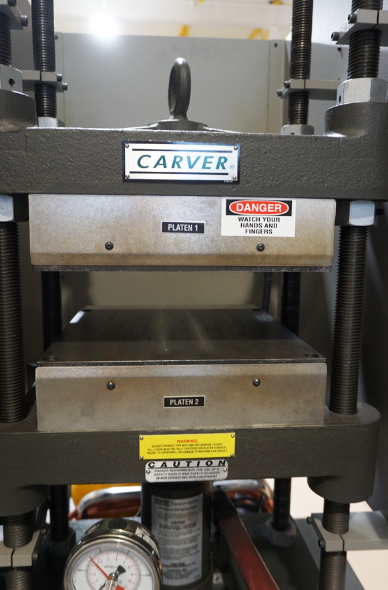

  • Two (2) 12”x 12” electrically heated steel platens
  • 2600 watts per platen
  • Temperature range up to 650 deg F
  • One (1) digital temperature controller per platen
  • 0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available)
  • 230/1 supply voltage FLA 22
  • Light gray safety shield
  • Dark gray frame
  • Electrical disconnect (non-fused)
  • Dimensions: 29”L-R x 27”F-B x 44”H (uncrated)
  • Weight: 851 pounds (uncrated)
  • Rebuilt hydraulic with all new seals


Show All

Specifications

ManufacturerCarver
Model4122 manual 4 post heated press, 12 Ton capacity
ConditionUsed
Stock NumberBM5550
