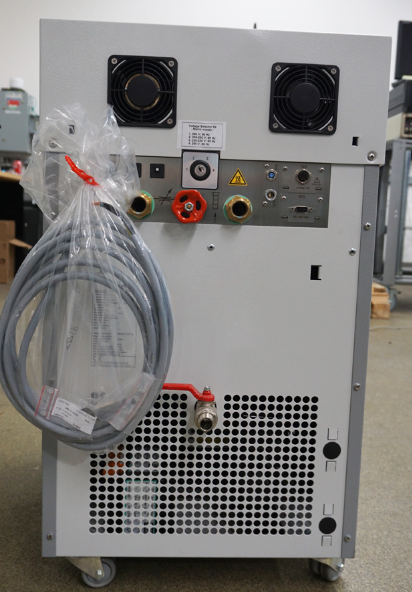

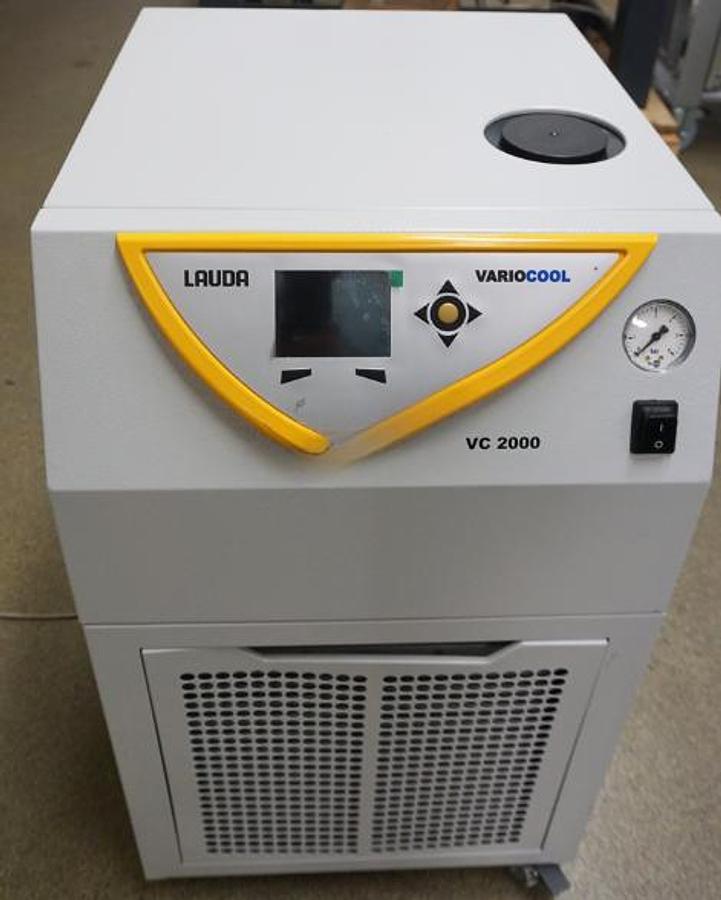

Lauda VC2000

Brand NEW Lauda VC2000 chiller -20C to +80C, 200-230VAC 50/60hz

• NRTL certified to UL/CSA standards
• Circulation chiller with integrated heater
• Colored TFT display for simultaneous indication of actual and set values and graphic illustration of the temperature profile
• Clear text menu navigation
• Fully electronic continuous controller with PID action
• Electronic level indication and low-level alarm
• Powerful pressure pump
• Ethernet (RJ45), USB interface and alarm contact as standard
• Slots for interface modules at the backside of the device
• Upgradeable with two interface modules (analogue module, contact module, RS 232/485 module, Profibus)
• Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
• Integrated programmer with max. 150 segments, splitable in 5 programs
• Adjustable bypass for pressure limiting
• Filler opening on top, drain tap on the backside
• SmartCool system for energy-saving digital cooling management including compressor on-off control
• Condenser cooling Air
• Utilizes traditional refrigerants (HFCs)
• Cold-plug socket (C20) for connecting a power cord

Technical data (according to DIN 12876)

ProductLAUDA VC 2000 NRTL

Voltage200-230V; 50/60Hz

Working temperature max. °C80

Working temperature min. °C-20

Temperature stability ±K0.05

Heat discharge cooling unitAir

Heater power max. kW1.90 kW @ 200 V / 2,50 kW @ 230 V

Cooling output at 20 °C kW2.15 kW @ 50 Hz / 2.20 kW @ 60 Hz

Pump pressure max. bar3.1 bar @ 50 Hz / 4.1 bar @ 60 Hz

Pump flow max. L/min37 L/min @ 50 Hz / 44 L/min @ 60 Hz

Pump connection thread mmG 3/4

Bath volume min. L9.0

Bath volume L14.0

Dimensions (WxDxH) mm450x550x825

Noise level dB (A)60

Weight kg72.0kg / 159lbs

ComplianceCE, NRTL certified to UL/CSA standards
