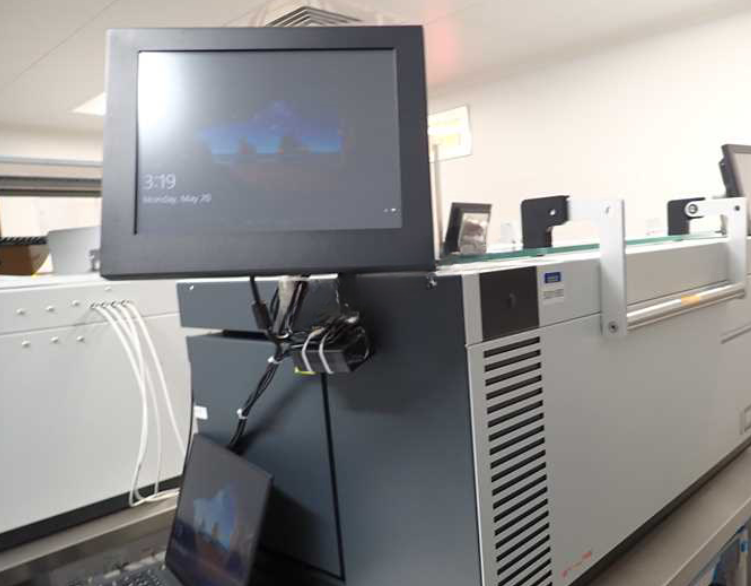

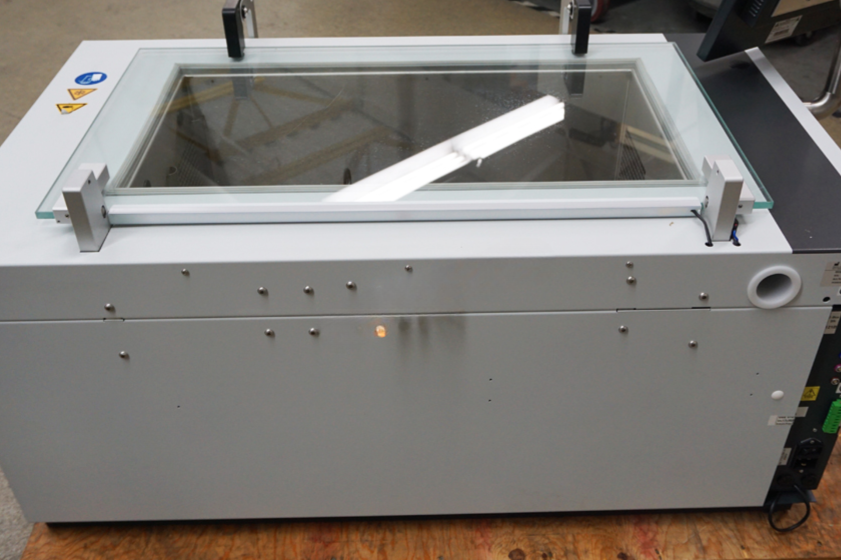

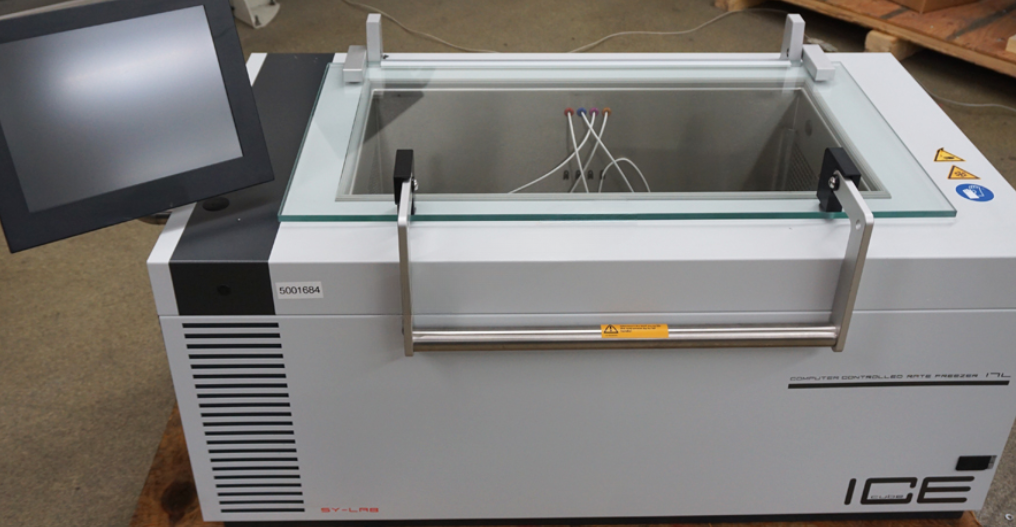

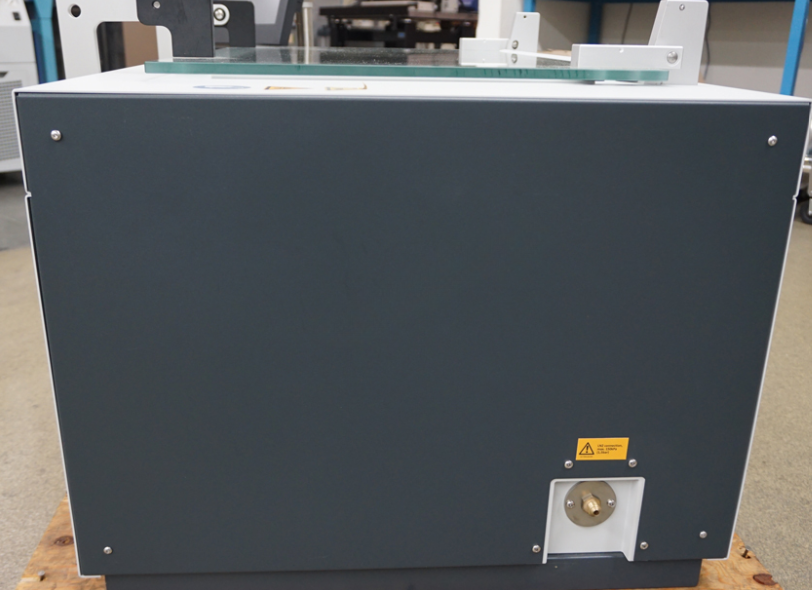

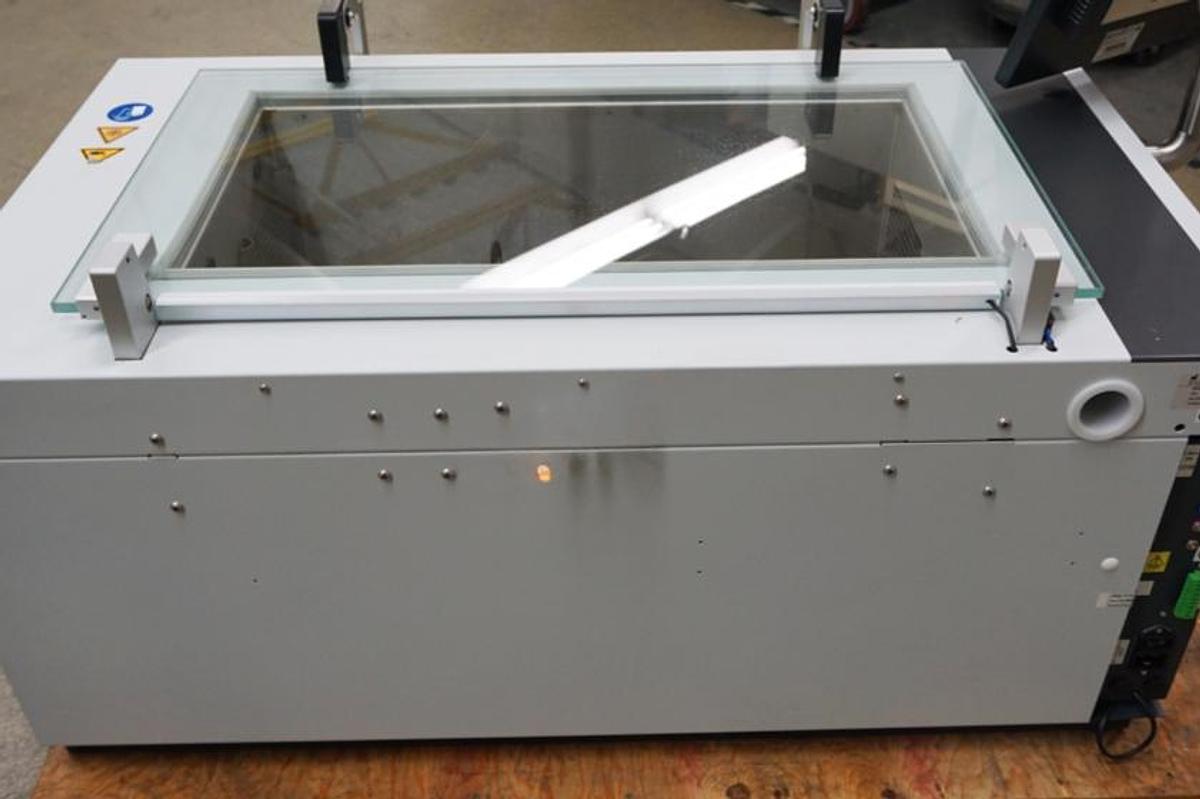

Sylab Icecube 17L Controlled Rate Freezer for Cryopreservation

Sylab Icecube 17L Controlled Rate Freezer for Cryopreservation +40 to -180C (+104F to -292F)

Controlled rate freezing is an established procedure for the cryopreservation of biologic material in research and clinical applications. In-line with GMP protocols, cell material can be frozen then stored at cryogenic temperatures. IceCube devices achieve reliable, reproducible results with maximum operational safety. They are used for clinical, veterinary and research tasks for controlled rate freezing and thawing of samples. Medical Device Directive (MDD) certification is available. The intuitive, flexible IceCube Series is designed specifically to meet current and future challenges of cryopreservation.  Freezer uses liquid nitrogen for cooling.

TECHNICAL SPECIFICATIONS 17L

Temperature range+40°C to -180°C (+104°F to -292°F)

(313K to 93K)

Cooling rates0,01°C to 30°C/min

Heating rates0,01°C/min to max. 5°C/min

Temperature sensors Pt-100, 1.5 mm Ø x 65 mm length, or (option) 1 and 1,5 mm Ø x 6/100/160/200 mm or flat foil temperature sensor

Temp. display resolution

0,01°C

Freezing chamber size

L x D x H: 660 x 340 x 390 mm, 88 litres

 25,9 x 13,4 x 15,35 inch

Max. Capacity 11.040 Straws 0.25 ml or 7.440 straws 0.5 ml

 2256 vials 1.8 - 2 ml in 12 racks

1128 vials 5 ml in 6 racks

Boxes and SBS format racks -available on request

22 Bloodbags*,

32 Bloodbags in metal cassettes*

Outer dimensions weight w/o PC W x D x H (H with open lid)

mm: 1090 x 660 x 560 (1010), 85 kg

inch: 43 x 25 x 22,1 (39,8)

LN2 Supply containerLiquid cylinder, pressure 1.5 bar

70 - 160 l

Pressure sensor (option)supply pressure monitor recording in real time

AutoSeeding

preparation (Option)second LIN manifold with magnetic valve for automatic

supply of a seeding rack for vials or straws

Electric supply115 or 230 V AC (11 or 5,5A), please specify at order

Accessories options

various chamber furniture/racks, 3.+4. temp. sensors, flat foil temp. sensor, potential free alarm outputs, uninterruptable power supply (UPS), insulated LIN hoses, LIN supply vessels, LIN storage solutions for processed samples, shipping containers, protective wear/ face shields, aprons, gloves, Medical Product registration requires tech. monitoring and periodic inspection

*) dependent on size and/or filling volume
