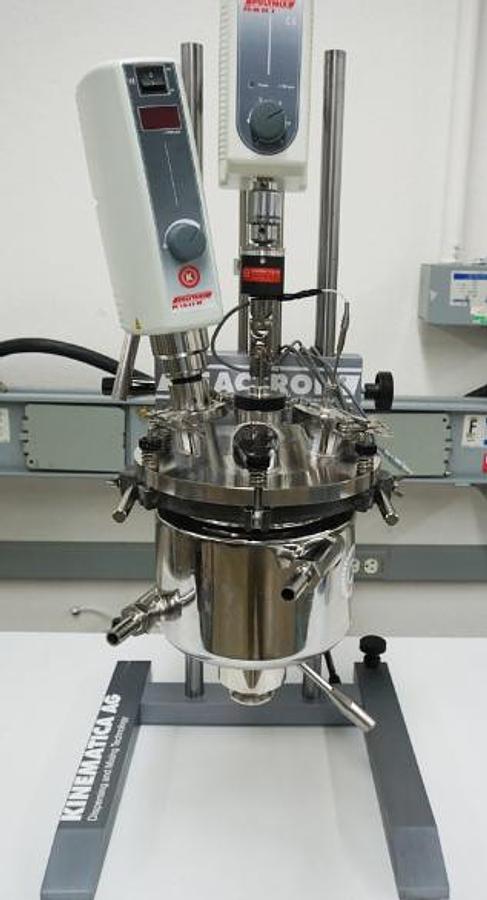

Kinematica Reactron RT 2 liter Benchtop Reactor with stainless pressure vessel

Includes

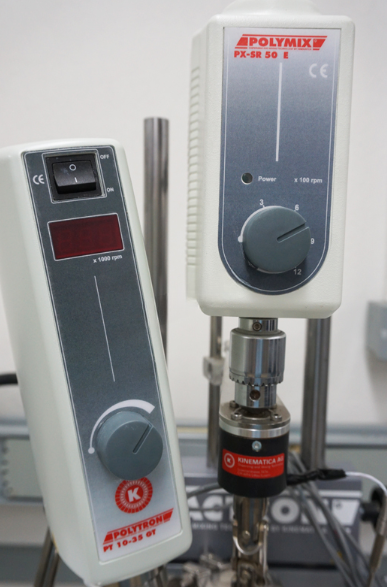

Polytron PT 10-35 GT turrax mixer

Polymix PX-SR 50 E agitator drive

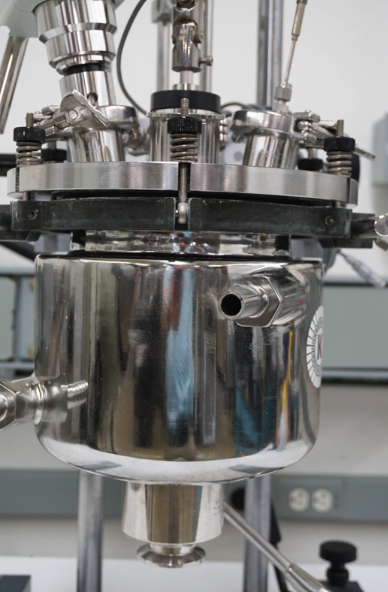

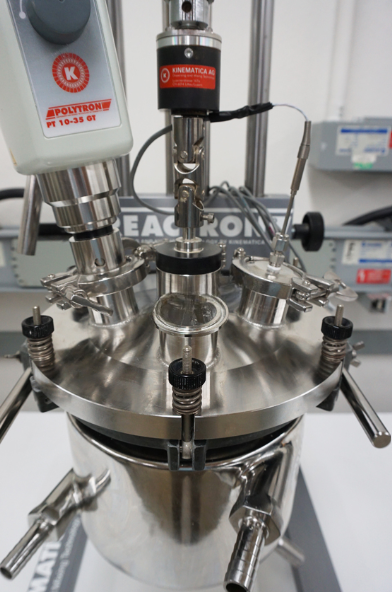

Jacketed vessel with useable capacity 2 liter made from STAINLESS STEEL, vessel cover made from stainless steel 316L with four clamp connections (Tri-clamp 1 1 / 2“) and sealed centrical lead-through fitting for stirrer tool, telescopic stand, POLYMIX® digital overhead stirrer with maintenance free gearbox 1 : 5 (high torque) and anchor stirrer. Upgrade options and complete accessory range on request.

Modular construction

– Mixing vessels, single wall or double wall: for the optimum application temperature

– Mixing vessels in borosilicate, glass or steel: when the vacuum is critical

– Range of dispersers drives and generators: give you the flexibility you want

– Cleaning and dismantling: is child’s play with the integrated (electro-) telescopic stand

– Simple change of aggregate

The standard configuration contains:

• Stainless steel vessel, 2 liters, with heating / cooling jacket
• Stainless steel vessel lid with tri clamp 1.5" connections and sealed central pass-through for the stirring element
• POLYMIX® PX-MT stirrer with transmission and anchor stirrer
• Telescopic stand

Design and possible variants:

• Minimum operating vol. (stirring unit) 450 ml
• Minimum operating vol. (dispersing unit) 1100 ml
• Maximum operating volume 2000 ml
• Maximum temperature 90°C (higher possible upon request)
• Vacuum 25 mbar to 5 bar Stirrer PX-MT, 50-2000 rpm
• Dispersing unit Based on your application specification
• Travel telescopic stand 250 mm
• Dimensions (WxHxD) mm 340 x 300 x 950
• Weight 20 kg
• Parts with product contact 1.4435 / 316L, Viton
