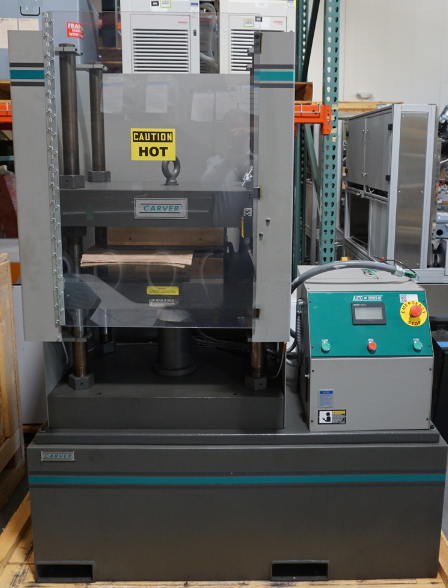

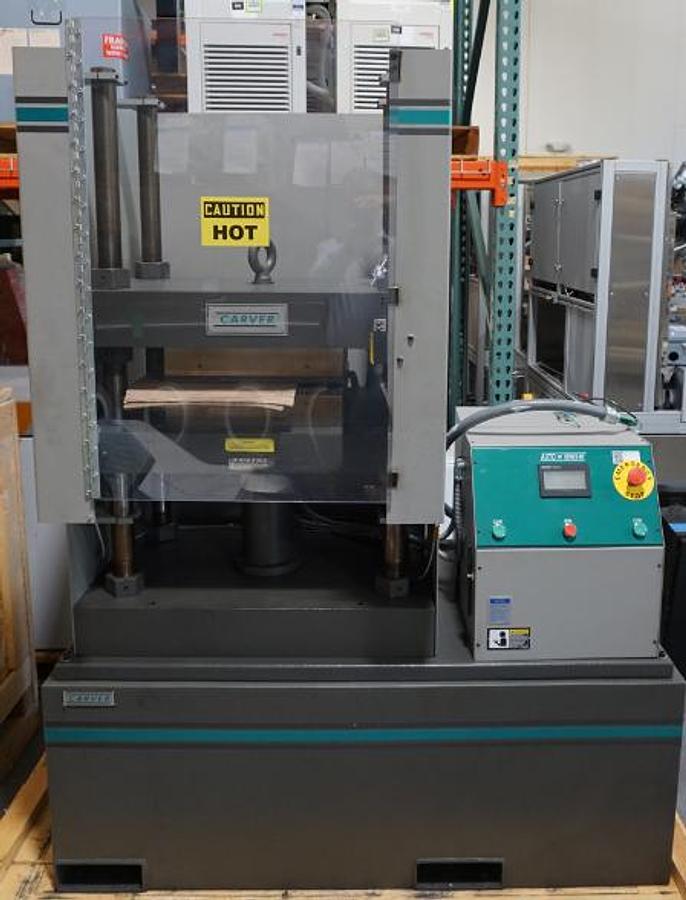

Carver 5401 AutoFour/4815-PL, H Automatic Hydraulic Heated Laboratory Press (48 Ton)

Carver Auto Series Plus automatic laboratory presses feature a large 7” color touch screen operator interface, enhanced platen temperature control with auto-tuning, ramp heating capability, strorage of up to 250 recipes and real-time trending of force and temperature. Optional features include seven day timer for auto platen heat-up, data logging for cycle parameters, and access to logged data through Wi-Fi. 48 ton models include a wrap-around floor stand.

Auto Series Plus press models are available with 15 to 48 tons of clamping force and 6" x 6" to 19” x 19” platens. These benchtop presses are used in quality control and research and development for test sample preparations, destructive testing, molding, laminating and fluid extraction. See below table for press specifications.

• Large 7" color touch screen
• Storage of up to 250 recipes
• Enhanced platen temperature control with auto-tuning
• Ramp heating capability
• Real-Time trending of force and temperature
• Seven day timer for auto platen-up (optional)
• Datalogging of cycle parameters (optional)
• Access to logged data through WiFi (optional)
• Automatic Air/Water Cooling (optional)
• Access Door Clear, impact resistant polycarbonate door permits observation and serves a safety shield to protect the operator
• Threaded Rods Permits adjustment of Daylight opening
• Heated Platens With digitally controlled cartridge heaters (optional)
• Proximity Switch For adjustable slow close position

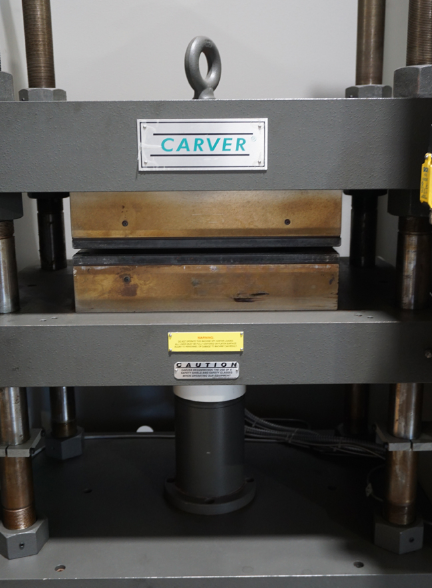

• Heavy Duty Bolsters Provide maximum rigidity
• Hydraulic Cylinder Delivers up to 48 tons of force
• Unitized Base Makes installation and set-up easy
• Full Touch Screen Interface For precise, programmed process control
• Dual Operator Buttons With "anti-tie-down" feature requires two-handed operation for operator safety
• Hydraulic Power Unit Completely self-contained, electrically operated

Model AutoFour/4815-PL,H

Catalog Number 5401

Max. Clamp Force, Tons (lb) 48

(96,000)

Heated Platens Yes

Platen Size (in) 15 x 15

Ram Stroke (in) 4

Daylight Opening (in) 0 to 15

Overall Size W x D xH (in) 55 x 36 x 72

Weight (lb) 3,384

Voltage Supply 230 1 phase
