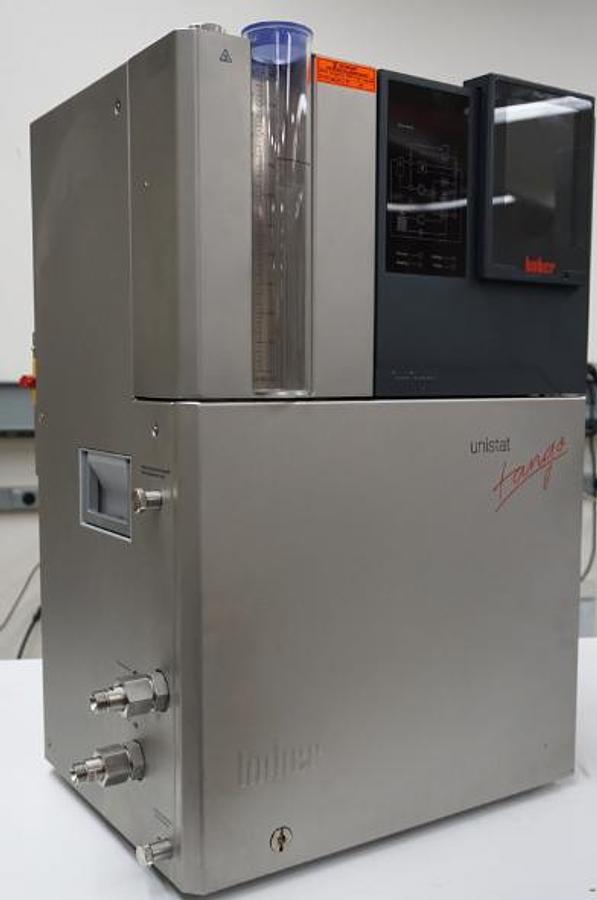

Huber Unistat Tango with Pilot One controller -45C to 250C

Huber Unistat Tango features

• Precise and reproducible temperature control results
• Fastest heating and cooling rates
• Wide temperature ranges with no fluid change
• Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
• Adaptive temperature control, self-optimising
• Efficient circulation pump
• 2 x USB (Host and Device), Ethernet and RS232 interfaces
• Efficient operation saves working time and operating costs
• Proven functionality for the process industry
• E-grade "Professional" included
• Natural refrigerant
• 1 meter insulated hoses included

General information & temperature controller

Temperature range-45...250C

Temperature stability0,01C

Temperature controlTAC, self-optimizing (True Adaptive Control)

Display resolution0,01C

Alarm messageoptical, acoustical

ControllerPilot ONE (E-grade"Professional")

Safety classIII / FL

Protection classIP20

Dimensions(W x D x H)426 x 327 x 631mm

Weight56kg

Heating / cooling capacity

Heating capacity3kW

Cooling capacity2502001000-20-40C0,70,70,70,70,40,06kW

Cooling machineair-cooled

RefrigerantR1270 (0,15 kg)

Circulation pump

Pressure pump max.55 l/min;0,9 bar

Pump connectionM24x1,5 AG male

Permissibleviscosity50mm/s

Connections

Pt100 connectionPt100

Analogueinputvia optional Com.G@te

Analogueoutputvia optional Com.G@te

Digital interfaceRS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.5...40C

Sound pressure level62dB(A)

Filling volume min.1,5Litres

Volume of expansion2,8Litres

Power supply230V 1~ 50Hz

Current max.16A

Fusing16 A
