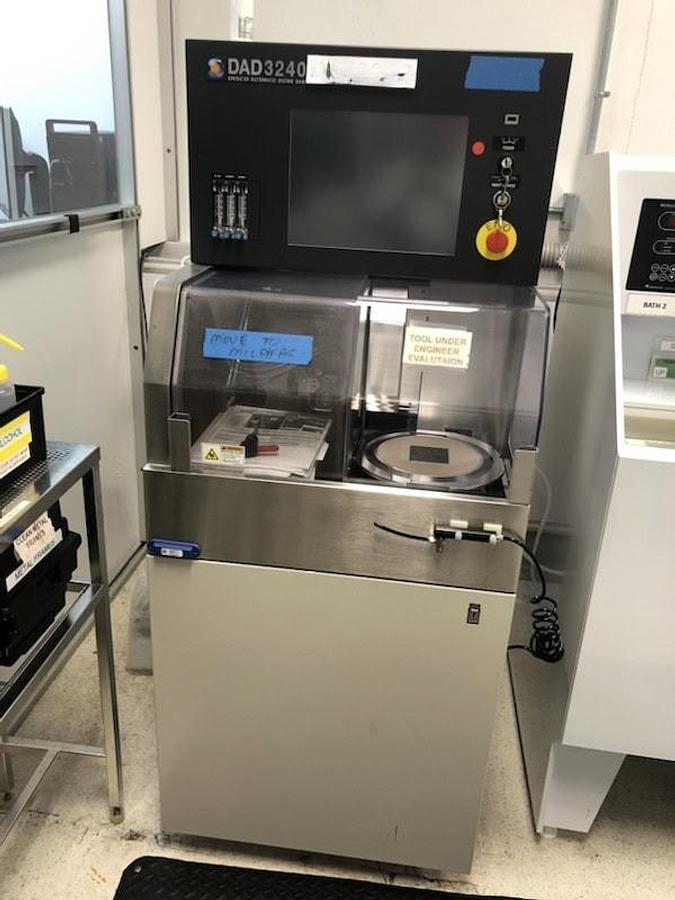

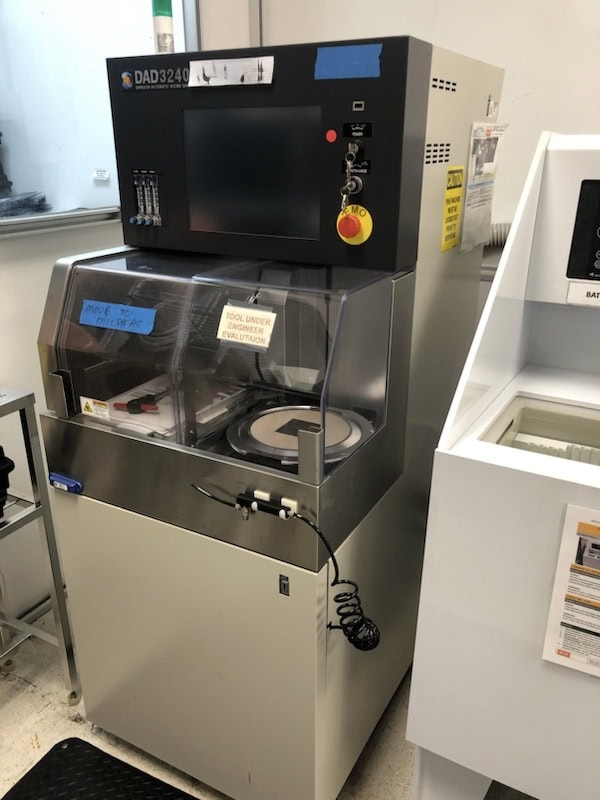

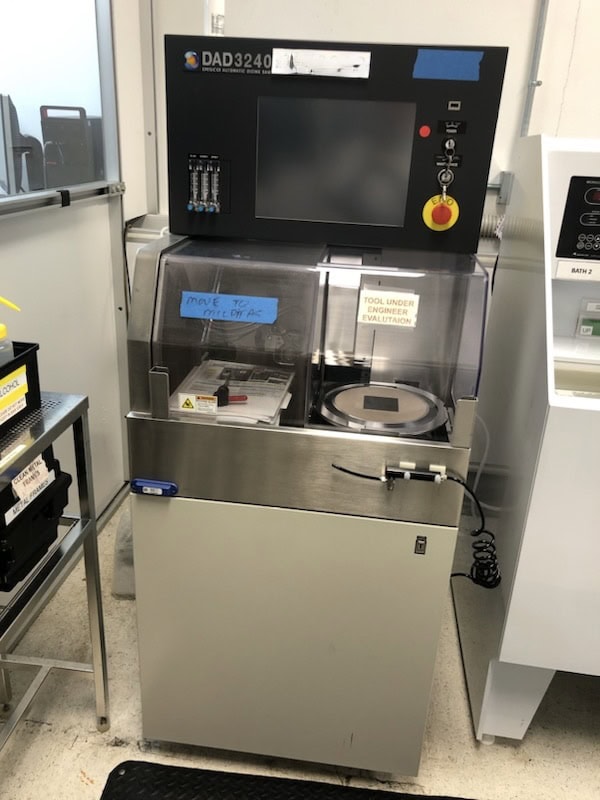

2018 Disco DAD3240 Dicing Saw

Max. workpiece size: 8"/ square die 200mm

X-axis:

Cutting range: 210mm

Cutting speed: 0.1 ~ 300m/s

Y-axis:

Cutting range: 210mm

Index step: 0.0001mm

Z-axis:

Max. stroke: 32.2mm

Moving resolution: 0.00005mm

∅-axis:

Max. rotating angle: 320 degrees

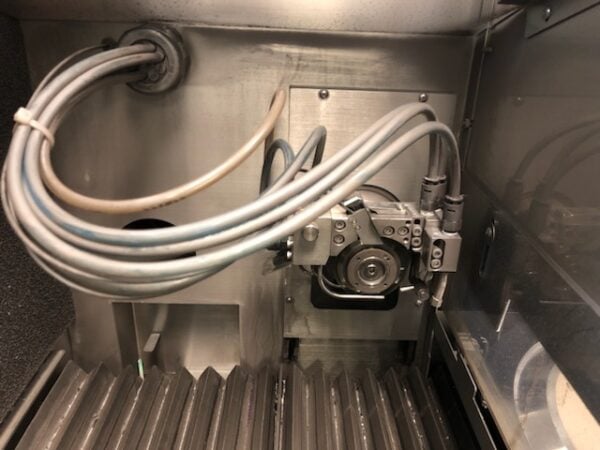

Spindle:

Rated output: 1.8kW

Rated torque: 0.29 Nm

Rotation speed range: 6,000~60,000 min ^-1

Dimensions: 25.59" x 37.40" x 62.99"

Weight: approx. 1,168 pounds
